In geosynthetic engineering, geomembrane HDPE 1.5 mm is one of the few materials that has earned a high level of trust and widespread use. This material, which is also called 60-mil HDPE liner when measured in imperial units, has become the industry's preferred solution for medium- to high-risk containment applications worldwide due to its durability. The applications of HDPE geomembrane 1.5 mm range from municipal landfills and mining heap leach pads to industrial wastewater lagoons and secondary containment systems; it predominantly shortens mechanical strength, chemical resistance, weldability, and cost effectiveness.
This detailed guide covers all aspects of GEOSINCERE Geosynthetics 1.5 mm HDPE geomembrane including its technical specifications, major applications, material properties, installation guidelines, quality metrics, and competitive strengths. This write-up is equally helpful to containment system engineers, contractors, and project owners who are looking for sustainable environmental safety solutions as it provides practical information.
Geomembrane HDPE 1.5 mm is a soft, thermoformed plastic sheet that is made from pure high-density polyethylene (HDPE) resin that is mixed with 2–3 percent carbon black, antioxidants, and UV stabilizers. The 1.5 mm thickness, or 60 mils in imperial measurement, is a key parameter in the design of geosynthetics. It is robust enough to resist substantial mechanical forces, punctures, and exposure to chemicals. On the other hand, it is not so thick that it leads to an exorbitant price or loss of flexibility.
HDPE is a highly crystalline, non-polar thermoplastic resin with a density of 0.94 g/cm³ or more. When HDPE is processed into geomembranes, it displays outstanding chemical inertness, very low permeability, very high tensile strength, and superior resistance to environmental stress cracking. Carbon black, which is added to the material at 2–3 percent by weight, endows the product with the ability to resist ultraviolet light (UV) degradation so that the material can be exposed to outdoor conditions for extended periods without significant deterioration.

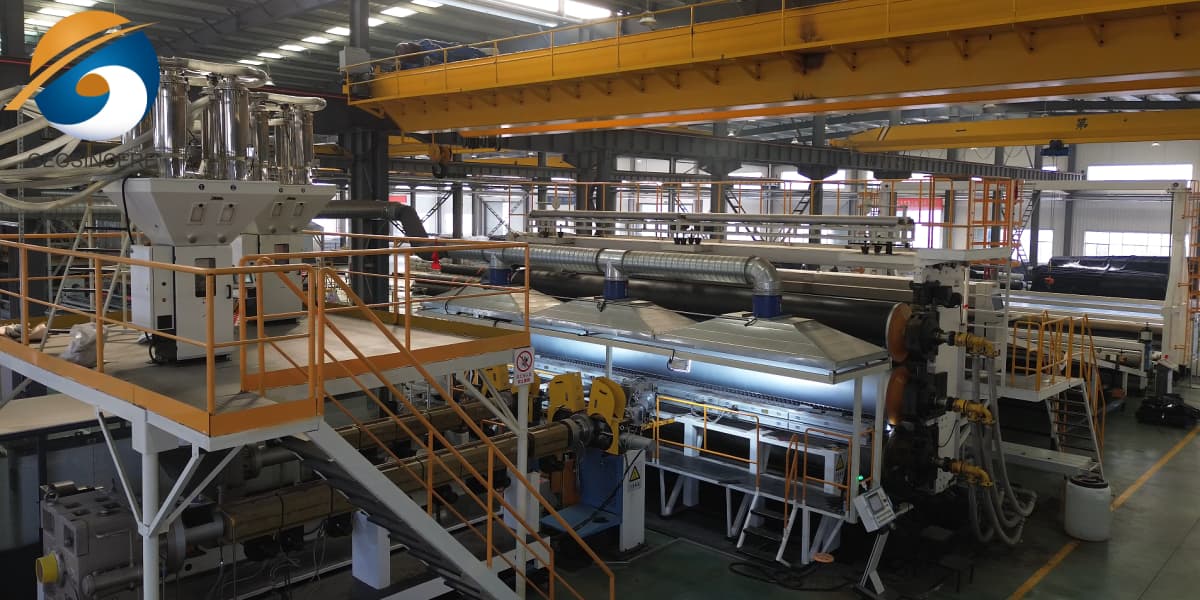

Advanced manufacturing methods, e.g. co-extrusion or blow-film technology, allow achieving precise thickness control, homogeneous material distribution, and excellent seam properties. These techniques are able to produce wide rolls of up to 8–10 m and long rolls of up to 150 m. This helps to minimize the number of joints in the field and speed up the installation process.
Choosing the proper thickness for a geomembrane liner is a crucial engineering decision. If it is too thin, the liner may get damaged due to a puncture or stress; if it is too thick, the material and installation costs could go up unnecessarily. The 1.5 mm HDPE geomembrane sits exactly at this trade-off point.
Geosynthetic Institute installation data shows that 1.5 mm HDPE liners make up about 24–31 percent of the worldwide installed HDPE geomembrane volume, thus being the second most popular thickness right after 1.0 mm liners. It is no coincidence that they are widely used. 1.5 mm thick liners have roughly 40–70 percent higher puncture resistance and 30–50 percent higher tear strength than 1.0 mm liners, whereas they are much lighter and more affordable than 2.0–3.0 mm liners.
The thickness of 1.5 mm is the norm and accepted by almost all regulatory agencies worldwide. For example, in the United States, the EPA Subtitle D stipulates that the minimum thickness of primary liners in municipal solid waste landfills should be 1.5 mm (60 mils) in quite a few cases. Correspondingly, state solid waste rules, as well as mining authorities, recognize 1.5 mm HDPE as the standard of containment for hazardous and non-hazardous waste facilities that meet strict requirements.
It is a premium 1.5 mm HDPE geomembrane that can make a difference in terms of mechanical strength. Typically, yield strength is between 22 N/mm to 29 N/mm, and break strength could be anywhere from 40 N/mm to 53 N/mm. Elongation at break is quite often 450% or higher, allowing for plenty of flexibility to compensate for subgrade settlement or deformation.
Puncture resistance, being an important factor for sites with sharp rocks or heavy machinery, usually surpasses 480 N when tested by the cone method; top-notch products have been known to hit the range of 750–1,000 N or even higher. Tear resistance is normally between 187 N and 280 N, so the liner will not continue tearing once a tear has started.
Making sure no fluid escape is the main job of any geomembrane. HDPE geomembranes have very tiny permeability coefficients, typically 1×10⁻¹² to 1×10⁻¹¹ cm/s under standard conditions. Some of the high-quality brands are even tested at 1×10⁻¹³ cm/s or 1×10⁻¹⁷ cm/s, which means they are able to hold back more than 99.9 percent of the liquid.
This is the reason why the permeability of 1.5 mm HDPE geomembranes is so low and why they can be used in an environment where a small leak can cause big problems, whether environmental or financial.
There is a good reason for HDPE geomembranes being considered as chemically resistant. They can withstand degradation even under the toughest pH conditions (1 to 14), which means that strong acids and alkalis as well as oils, hydrocarbons, and wide-ranging industrial chemicals do not have a destructive effect on these materials. Safety and long-lasting performance are guaranteed in particularly aggressive environments such as mining heap leach pads, hazardous waste landfills, and industrial wastewater lagoons.
In addition, the product does not suffer from environmental stress cracking, which is normally the major failure of polyethylene materials when forced to undergo continuous stress in the presence of certain chemicals. 1.5 mm HDPE geomembranes of the highest quality are stress cracks resistant for up to 1,500 hours, according to ASTM D1693 test.
Being UV resistant is a non-negotiable requirement for materials being outdoors. Luckily, HDPE geomembranes are made with elements such as carbon black and UV stabilizers that help them endure the challenge of being under the sun for long hours. Those membranes which are UV stabilized and made of HDPE still have more than 85 percent of their mechanical properties left after they have been exposed to the sun in the amount of 10,000 MJ/m² as per ASTM D7238 standard.
The service period which you can expect a correctly installed 1.5 mm HDPE geomembrane to last is generally 50 years and can even exceed 100 years for buried liners, whereas it could be only 20 to 30 years for those that are kept in the open. Such durability is indeed the reason that this type of lining is generally cheaper in the long-term when compared with alternatives.
As far as low temperature is concerned, the performance of HDPE geomembranes does not drop even at levels of extreme cold. Being soft and having a good resistance to impacts down to -70°C means that you can count on their operation being uninterrupted in both cold climates and during freeze-thaw seasonal cycles.
The 1.5 mm HDPE geomembrane is really the mainstay for landfill engineering nowadays. It is used as the primary base liners and leachate collection systems in municipal solid waste landfills and also as final cap liners for site closure. The thickness is in line with or even quite surpasses EPA Subtitle D standards, which means besides fulfilling the regulation requirements, the material ensures effective leachate and landfill gases containment over a long period of time.

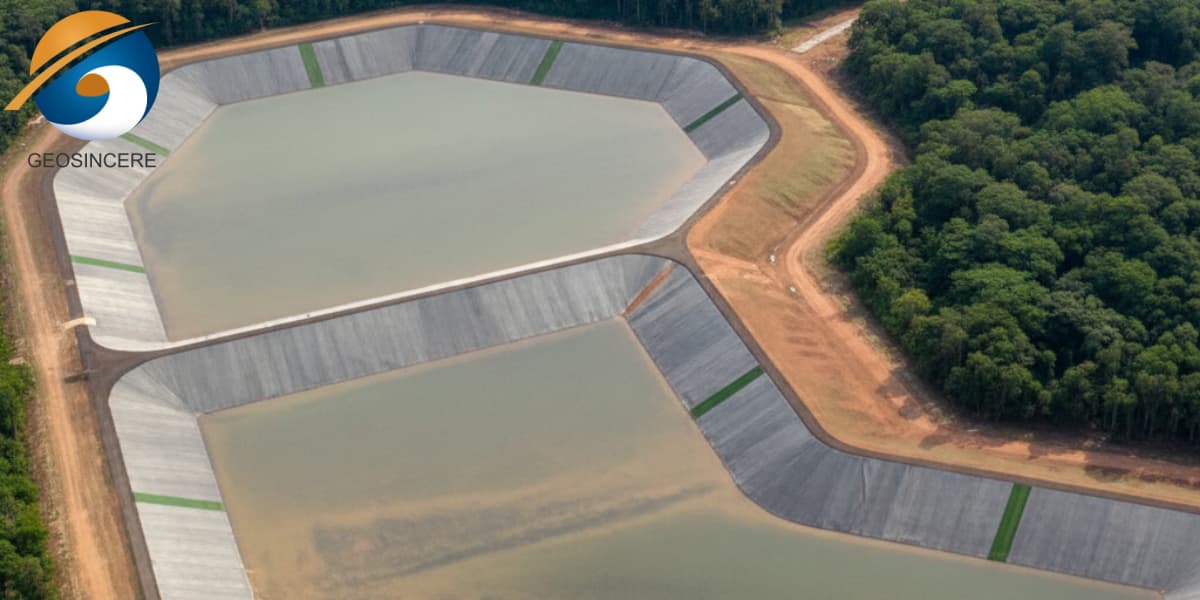

In mining, 1.5 mm HDPE geomembranes are a crucial component, being used for heap leach pads, pregnant leach solution ponds, tailings storage facilities, and process water impoundments. Their outstanding chemical resistance feature, specially towards acids and cyanide solutions, is the reason why the International Cyanide Management Code has endorsed this liner as the only one suitable for mining heap leach applications.

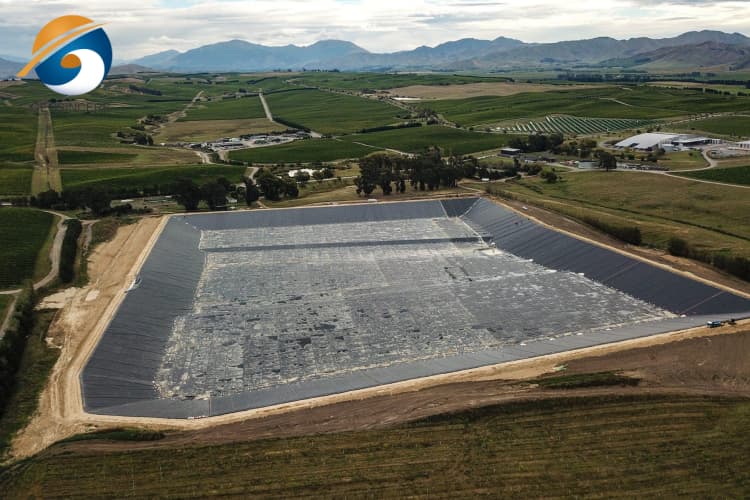

1.5 mm HDPE geomembranes line reservoirs, canals, irrigation ponds, as well as stormwater management basins in water conservation projects. They decrease water loss by seepage by as much as 99.9 percent in comparison to compacted clay liners. In farm sector, these liners find their application in aquaculture ponds, manure lagoons, and biogas digesters.
Examples of industrial uses for 1.5 mm HDPE geomembranes are as secondary containment underneath fuel and chemical storage tanks, and also for industrial wastewater lagoons and stormwater ponds. Thanks to this material’s chemical resistance, even with spills and leaks, containment is achieved without any degradation of the liner.
The proper installation technique is vital to maximize the efficiency and durability of any geomembrane system. Industry standards and also the recommendations of the manufacturers serve as the basis for the below instructions.
Subgrade should be level and without any sharp objects, debris, or protrusions that could damage the geomembrane. Achieve at least 95 percent Proctor density, remove all particles larger than 6 mm in diameter, and verify surface moisture below 3 percent. Conduct visual inspections at least once a day, especially for areas planned for geomembrane installation that very day. Also remember that the geomembrane should not be laid down during rainfall or under strong winds.
Roll out the geomembrane sheets downhill with a minimum slope of 1.5 percent. Do not expose the liner more than necessary; only unwrap the amount that you can anchor and weld on that day. Temporarily secure the geomembrane by using sandbags or other suitable ballast. It is not recommended to allow vehicular traffic on exposed geomembrane; in cases where it is absolutely necessary, only low-ground-pressure vehicles that are approved should be used.
Two main welding options available for HDPE geomembranes are hot wedge welding and extrusion welding. Hot wedge welding method is usually done at a temperature ranging from 300°C to 400°C and it can produce dual-track seams that will be perfect for flat and easily accessible areas. Extrusion welding on the other hand, where a ribbon of molten resin is extruded at the edge of overlapped geomembranes, is the method of choice for intricate shapes, patches, and repair work.
It is extremely important that the parameters of welding, like temperature, speed, and pressure, are properly controlled, and also ambient conditions should be taken into consideration when making adjustments. Welding, in general, should be carried out when the surface temperature of the geomembrane is above 0°C.
Quality control is integral to successful geomembrane installation. Non-destructive weld test methods include vacuum box testing, air pressure testing, and spark testing equipment. Destructive testing—including peel strength (ASTM D6392) and shear strength (ASTM D5321)—should be performed on test strips and representative field seams. High-quality welds achieve 90 to 98 percent of parent material strength.
To ensure reliable performance, 1.5 mm HDPE geomembranes should be manufactured to recognized industry standards. The most widely referenced specification is GRI-GM13, published by the Geosynthetic Institute. This standard regulates multiple parameters including thickness, density, tensile properties, puncture resistance, tear resistance, stress crack resistance, and carbon black content.
- ASTM D6693 for tensile properties (strength at yield and break)
- ASTM D1004 for tear resistance
- ASTM D4833 for puncture resistance
- ASTM D5397 for stress crack resistance
- ASTM D4218/D5596 for carbon black content and dispersion
- ASTM D3895/D5885 for oxidative induction time (OIT)
Manufacturers should provide third-party laboratory test reports confirming compliance with applicable standards. ISO 9001 certification for quality management systems and CE marking for European markets are additional indicators of product quality.
Understanding how HDPE compares to alternative geomembrane materials helps engineers make informed specification decisions.
HDPE offers the highest chemical resistance and mechanical strength of the three. Its tensile strength and puncture resistance are superior to both LLDPE and PVC. Service life under outdoor UV exposure ranges from 60 to 100 years, far exceeding LLDPE (40–60 years) and PVC (10–20 years). However, HDPE is relatively stiff and may require more careful handling in cold weather.
LLDPE (Linear Low-Density Polyethylene) provides greater flexibility than HDPE, making it easier to install over irregular subgrades and complex contours. It welds easily and performs better in cold conditions. However, LLDPE does not match HDPE’s chemical resistance in extreme environments.
PVC (Polyvinyl Chloride) is highly flexible and can be installed using adhesives, which reduces welding time. However, PVC has the poorest chemical resistance and durability of the three. Plasticizers migrate over time, causing the material to become brittle and crack.
For mining heap leach pads, landfills, and any application involving aggressive chemicals or long service life requirements, HDPE remains the recommended choice.
The global geomembrane market was valued at approximately USD 2.61 billion in 2025 and is projected to reach USD 3.8–4.2 billion by 2030, growing at a CAGR of 6.61 percent. HDPE geomembranes command 31.7 to 55 percent of this market share.
For 1.5 mm HDPE geomembranes, material prices typically range from $0.50 to $3.50 per square meter (ex-works, excluding installation, freight, and taxes). Bulk orders exceeding 50,000 square meters frequently secure volume discounts of 15 to 30 percent. Installed costs—including site preparation, welding, and quality testing—typically add $0.50 to $3.00 per square meter or 20 to 50 percent to material price.
While 1.5 mm HDPE may have a higher upfront cost than thinner liners or alternative materials, its lifecycle cost is superior. A 1.5 mm HDPE liner offers 30 to 50 percent lower material cost than 2.0–3.0 mm options while delivering significantly better puncture and tear performance than 0.75–1.0 mm liners. With a 50- to 100-year design life, the cost per year of service is substantially lower than for PVC or compacted clay alternatives.
HDPE geomembranes contribute to environmental protection in multiple ways. By providing impermeable barriers, they prevent leachate from landfills, chemicals from mining operations, and contaminants from industrial facilities from migrating into soil and groundwater. A 1.5 mm HDPE liner reduces leachate seepage by 99.9 percent compared to compacted clay alone.
Furthermore, HDPE geomembranes are manufactured from virgin resin with no toxic additives or preservatives. The material is chemically inert and does not leach harmful substances into the environment. At the end of its service life, HDPE geomembrane can be recycled into new products, reducing waste and supporting circular economy principles.
The geomembrane HDPE 1.5 mm represents the optimal intersection of strength, durability, chemical resistance, and cost efficiency in modern containment engineering. From landfill base liners and mining heap leach pads to reservoirs, canals, and industrial secondary containment systems, this versatile material has proven its reliability across decades of field service.
When specifying 1.5 mm HDPE geomembrane for your next project, ensure that the product meets GRI-GM13 or equivalent standards, that installation is performed by qualified contractors following ASTM guidelines, and that quality control testing verifies seam integrity and material conformance. With proper specification and installation, a Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) 1.5 mm HDPE geomembrane will provide decades of reliable containment, protecting both your investment and the environment.
