Modern environmental and civil engineering have turned significantly towards the use of geosynthetic barriers to effectively block the movement of fluids. The geomembrane HDPE 2mm, in particular, has become highly recognized as a standard for high-performance containment. This article thoroughly examines the GEOSINCERE Geosynthetics 2mm HDPE geomembrane, delving into its basis in material science, its mechanical and chemical resistance capabilities, the methods of installation, the quality control standards that are employed, and the wide range of its applications - from landfill liners to mining heap leach pads and irrigation canals. Based on technical information and case studies from the field, this paper highlights how a 2mm thickness is the perfect balance between durability, flexibility, and cost-efficiency for vital containment structures.
The effort to restrict the escape of liquids, gases, and hazardous wastes is one of the main environmental issues of this era. Contaminated groundwater, acid mine drainage, and methane emissions are only a few of the problems requiring dependable engineered solutions. In these kinds of interventions, geosynthetic materials, particularly geomembranes, have become the main barrier. Among the different types and thicknesses of geomembranes, the 2mm HDPE option has gained popularity as the standard for highly demanding environments requiring high durability, chemical resistance, and extended lifespan (usually 50-100 years).
This paper illustrates the broad functions of the 2mm HDPE geomembrane. Firstly, material properties of HDPE will be reviewed, then the criticality of the 2mm thickness level will be analyzed. These forerunner topics are followed by manufacturing standards, mechanical characteristics, chemical resistance, installation protocols, welding methods, and finally, detailed studies of actual cases. The desire is to equip engineers, regulators, and builders with comprehensive information regarding the strengths and weaknesses of this critical geosynthetic.
HDPE or High-Density Polyethylene is a kind of thermoplastic polymer that is made from petroleum and is mainly structured with very few branches. This makes HDPE have a high crystallinity level (usually between 50 and 90%) which means it is:Highly resistant under tensile stress - it does not easily change shape when pressure is applied.Very low permeability - HDPE’s permeability coefficient lies between 10-14 and 10-15 m/s for water, which means it is almost completely impermeable.Highly chemically non-reactive - it can withstand attacks of acids, bases, hydrocarbons, and many other chemicals without degrading.Highly resistant to ultraviolet rays - when by weight carbon black is used 2 to 3%, HDPE geomembranes can remain stable under the sun for many years.
In comparison with other geomembrane types (e.g., PVC, LLDPE, or EPDM), HDPE features better chemical and stress crack resistance capabilities for long-term use although it tends to be stiffer and the seams require more skilled work.
Geomembranes can be produced in a variety of thicknesses from 0.5 mm up to 3.0 mm or even more. The 2mm spec is quite special:
- Under 1.5 mm – Appropriate for temporary works, lining of canals, or areas for secondary containment where the risk of punctures is minimal.
- 1.5 mm up to 2.0 mm – The range used for moderate-risk landfills and mining.
- 2.0 mm up to 2.5 mm – Intensive liners for hazardous waste, heap leach pads, and high-pressure industrial areas.
- Greater than 2.5 mm – Mainly for very specialized cases (e.g., containment of highly aggressive chemicals); also more difficult to handle and seam.
Mechanical robustness – Withstands higher puncture loads and subgrade settlements.
Weldability – Fusion welding is reliable and field seams can be tested non-destructively.
Flexibility – While stiffer than 1.0 mm, 2mm HDPE can conform to moderate subgrade irregularities.
Cost-efficiency – Material cost is lower than 2.5 mm, but performance is nearly equivalent for most applications.
Several global standards (e.g., US EPA Subtitle D for hazardous waste landfills, EU Landfill Directive) require a minimum thickness of 1.5 mm or 2.0 mm for primary liners, depending on the level of toxicity of the waste and the presence of water pressure.

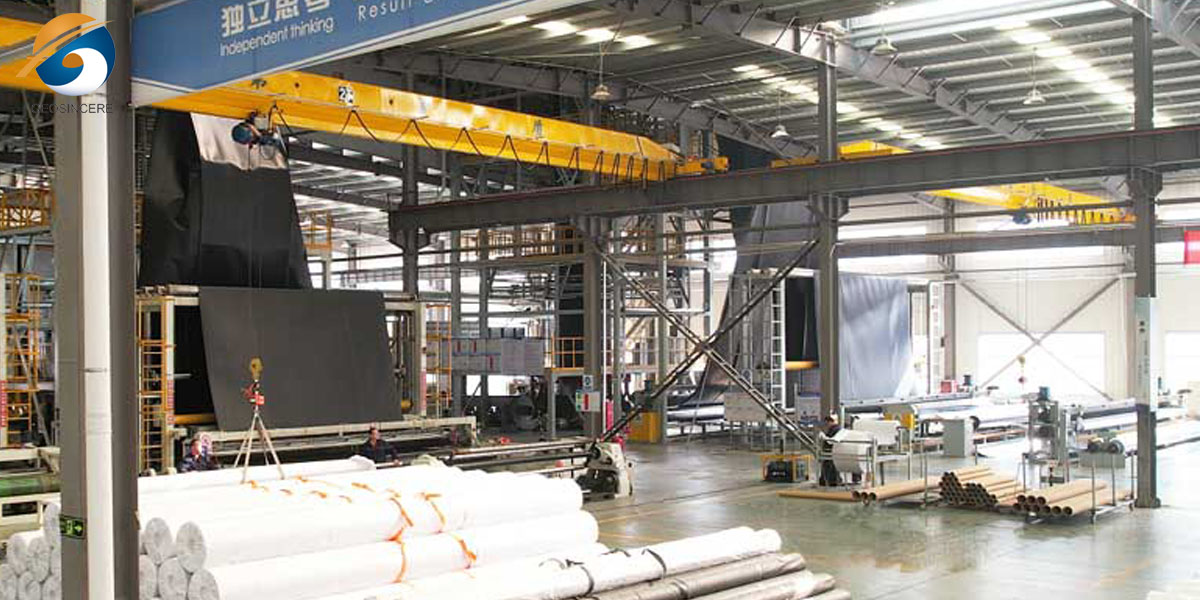

2mm HDPE geomembranes are produced through flat-die extrusion or blown film extrusion, followed by calendering to achieve precise thickness tolerance. Key industry standards include:
- GRI GM13 (Geosynthetic Research Institute) – Standard specification for HDPE smooth geomembranes. Requires density ≥ 0.94 g/cm³, carbon black content 2–3%, and specific mechanical properties.
- ASTM D7465 – Standard specification for HDPE geomembranes made from virgin resin.
- ISO 10318 – Geosynthetics – Terms and definitions.
- EN 13361 – Geosynthetic barriers for reservoirs and dams.
For a 2mm HDPE geomembrane, typical property values per GRI GM13 are:
|
Property |
Test Method |
Typical Value (2mm) |
|
Density (g/cm³) |
ASTM D1505 |
≥ 0.94 |
|
Tensile Strength (kN/m) |
ASTM D6693 |
≥ 40 (MD/TD) |
|
Elongation at Break (%) |
ASTM D6693 |
≥ 700 |
|
Tear Resistance (kN) |
ASTM D1004 |
≥ 1.25 |
|
Puncture Resistance (kN) |
ASTM D4833 |
≥ 1.20 |
|
Carbon Black Content (%) |
ASTM D1603 |
2.0–3.0 |
|
Stress Crack Resistance (hrs) |
ASTM D5397 |
≥ 300 |
These values ensure that a 2mm geomembrane can survive handling, installation, and long-term service stresses.
The 2mm HDPE geomembrane has enough tensile strength (over 40 KN/m) along both machine and transverse directions to resist tearing when the subgrade cracks open slightly. The elongation at break (>700%) meanwhile ensures that the sheet can be elongated considerably before breaking which is quite important especially when the ground beneath may settle unevenly.
According to ASTM D4833, the puncture resistance of 2mm HDPE may be around 1.2 kN or even higher. It avoids damages from sharp stones or roots and can resist the traffic of heavy construction equipment if a protective geotextile is laid. For very dangerous subgrade, a nonwoven geotextile cushion (e.g. 500 g/m² to 1000 g/m²) is advisable.
Stress cracking is a failure mode caused by the slow combination of tensile stress and chemical environment that results in a brittle fracture. A 2mm HDPE geomembrane manufactured from virgin resin with the correct antioxidants not only passes the ASTM D5397 notched constant tensile load (NCTL) test but does so with a time to failure of >300 hours. This test result is typically used as a predictor of 50+ year service life in the field.
Normally smooth 2mm HDPE when interfaced with sand has a low friction angle approximately between 15° and 20°. When the slope is steeper than 3H:1V rules generally require the use of textured geomembranes (either single or double sided) to provide good interfacial shear strength. 2 mm textured HDPE can get friction angles of 25°-30° when used with geotextiles or compacted clay.
The 2mm HDPE geomembrane is renowned for its resistance to a wide range of chemicals:
Acids – Sulfuric, hydrochloric, nitric (up to high concentrations).
Bases – Sodium hydroxide, calcium hydroxide.
Organic solvents – Aliphatic hydrocarbons, alcohols, ketones (limited by swelling).
Salts – Brine, seawater, leachate salts.
Microbes – Resists biodegradation.
However, strong oxidizing agents (e.g., concentrated nitric acid, chlorine dioxide) and some aromatic hydrocarbons (e.g., benzene, toluene) can cause swelling or degradation. Extended exposure to temperatures above 60°C accelerates antioxidant depletion.
Long-term aging studies (e.g., using Arrhenius modeling) predict that a 2mm HDPE geomembrane with proper antioxidant package (e.g., hindered amine light stabilizers – HALS) can last 100+ years at 20°C in a landfill environment. Ultraviolet exposure during construction (maximum 30 days recommended) causes minimal degradation if the geomembrane contains 2–3% carbon black.
It is the subgrade quality that determines the success of a liner system.
The subgrade for a 2mm HDPE geomembrane should be:
- Smooth-graded (no rocks > 12 mm in diameter).
- Compacted to 90% standard proctor density.
- Free of roots, debris, and sharp protrusions.

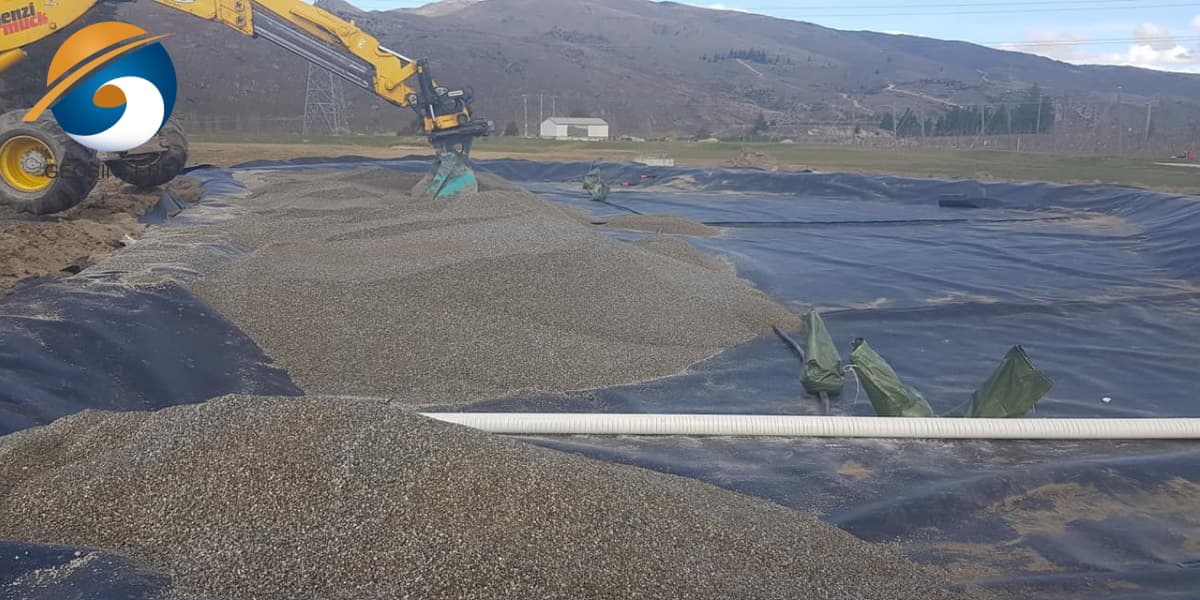

- Underlain by a drainage layer (e.g., geocomposite or sand) and/or a geotextile cushion.

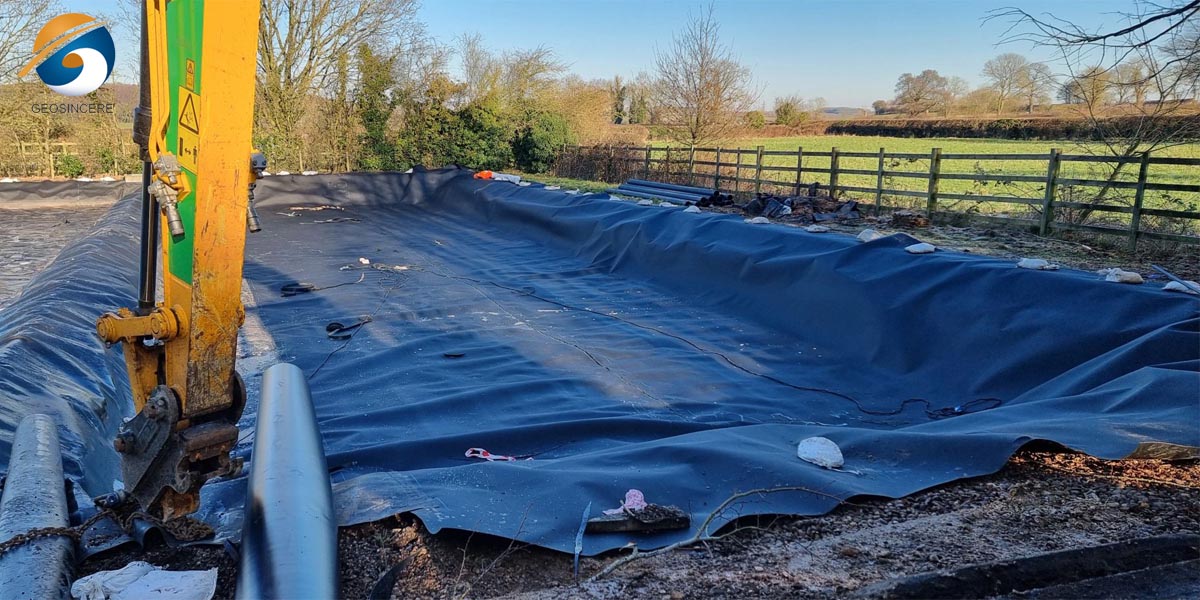

Geomembrane panels (generally 5–8 m wide, 100–200 m long) are unrolled with overlaps of 10–15 cm for fusion welding. Panels should be laid along the slope direction (top to bottom) to reduce stress concentrations.
Below are the three main welding methods used for 2mm HDPE:
The one widely used. Two sheets are heated by a hot wedge and pressed together, thus forming two parallel seams with a continuous air channel between them. Parameters: Temperature 400–500°C, speed 2–4 m/min, pressure 2–4 bar.
Generally used for patches, penetrations like pipe and sump, and repairs. HDPE resin molten bead is deposited onto the prepared seam.
Not commonly used for HDPE due to its non-polar nature; needs specialized equipment.
- Seams in the field must always be tested:
Non-destructive - Air channel test (Pressurize the channel to 2.5 bar, monitor for the drop in pressure); vacuum box test for patches.
Destructive - Shear and peel tests on seams samples (ASTM D6392) taken every 500 m of seams.
Penetrations like pipes and cables are sealed by HDPE boots or prefabricated connections. The liner anchor trench (0.5 m deep and 0.5 m wide) at the top of the liner is backfilled with compacted soil or concrete to hold the geomembrane securely.
The primary application. A typical hazardous waste landfill liner system consists of (from bottom to top):
- Subgrade / foundation
- Leachate collection layer (sand or geocomposite)
- Geomembrane HDPE 2mm (primary liner)
- Compacted clay liner (secondary barrier, 0.6 m)
- Protective geotextile
- Waste mass
For covers (caps), a 2mm HDPE geomembrane prevents rainwater infiltration into closed landfills.
In gold and copper mining, ore is stacked on a pad and irrigated with cyanide or acid solutions. The 2mm HDPE geomembrane provides chemical resistance against aggressive leachates. Overliner protection (e.g., geotextile plus 0.3 m of drainage gravel) is essential to prevent puncture from heavy mining equipment.

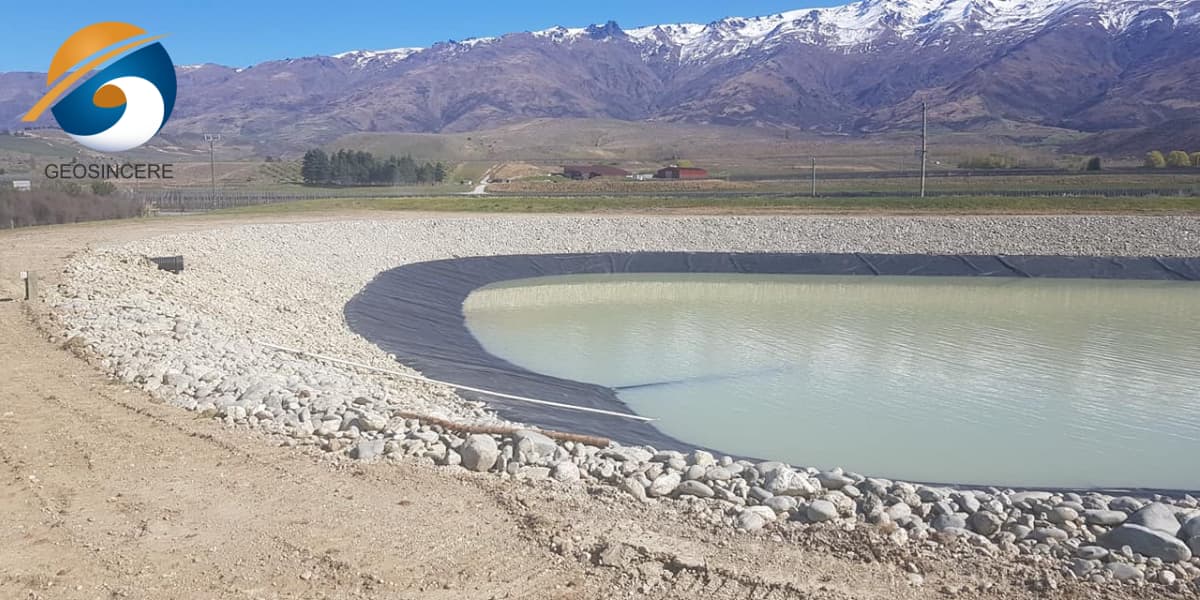

Large irrigation canals (e.g., the All-American Canal in California) use 2mm HDPE liners to prevent water loss. The smooth surface reduces friction and allows high flow velocities. Thickness is selected based on hydraulic head and potential damage from ice or debris.
Tank farms, chemical plants, and oil refineries use 2mm HDPE geomembranes as secondary containment liners to capture leaks from primary tanks. The liner is often installed beneath a concrete slab or as an exposed bund liner.
While thinner liners (0.5–1.0 mm) are common for shrimp or fish farming, some high-value species or aggressive environments specify 2mm HDPE for puncture resistance from claws or cleaning equipment.
- Location: Industrial facility, Germany
- Application: Primary liner for hazardous waste landfill (solvents, heavy metals)
- Design life: 100 years
- Specified geomembrane: 2mm smooth HDPE, GRI GM13 compliant
Subgrade: compacted clay (k < 1×10⁻⁹ m/s)
Geomembrane area: 45,000 m²
Seams: 2.5 km of dual-track fusion welds
Quality assurance: 100% air channel testing, 1 destructive sample per 500 m
After 5 years of operation, leachate analysis showed no measurable increase in heavy metals below the liner. Electrical leak location surveys identified two small holes (from installation damage), which were repaired by extrusion welding.
Proper cushioning geotextile (800 g/m²) prevented puncture from subgrade stones. Daily visual inspection during installation reduced defects.
To ensure a 2mm HDPE geomembrane performs as designed, follow these best practices:
Pre-installation – Verify subgrade smoothness with a straightedge (no gaps > 12 mm). Conduct electrical resistivity survey if metal objects are suspected.
Panel handling – Avoid dragging panels; use rollers or spreader bars. Protect from wind (temporary sandbags).
Weather limitations – Do not weld in rain, high wind (>40 km/h), or below 5°C without preheating.
Seam documentation – Label every seam with welder ID, date, and test results.
Repairs – All patches must be at least 150 mm larger than the defect. Extrusion weld patches require surface preparation (grinding).
Final testing – After installation, conduct a water ponding test (for flat areas) or an electrical leak location survey (for slopes).
The 2mm HDPE geomembrane contributes to environmental protection by preventing contamination. However, HDPE is a fossil-fuel-derived product. Sustainability improvements include:
Recycled content – Some manufacturers offer post-industrial recycled HDPE (limited to non-critical applications).
Reusability – After decommissioning, geomembranes can be removed, cleaned, and recycled into plastic lumber or new liners (though properties degrade).
Long service life – The 100-year design life means fewer replacements compared to alternative barriers (e.g., clay or concrete).
No material is perfect. Limitations of the 2mm HDPE geomembrane include:
High coefficient of thermal expansion (approx. 2×10⁻⁴ /°C) – Causes wrinkling if not tensioned properly.
Susceptibility to punctures during installation – Requires careful supervision and geotextile cushion.
Poor resistance to chlorine and strong oxidizers – Not recommended for swimming pool liners or wastewater disinfection tanks.
Difficult repair underwater – Leaks in submerged conditions require dewatering.
Engineers must consider these factors during design and specify appropriate accessories (geotextiles, drainage layers, leak detection systems).
The next generation of 2mm HDPE geomembranes will likely feature:
Nanocomposite additives – For improved barrier properties against volatile organic compounds.
Conductive layers – Embedded carbon black to allow real-time leak detection via electrical mapping.
Bio-based HDPE – Derived from sugarcane or other renewable sources, reducing carbon footprint.
Self-healing formulations – Microcapsules containing sealant that rupture when a puncture occurs.
These innovations will extend the application range and sustainability of 2mm HDPE geomembranes.
The geomembrane HDPE 2mm represents a mature, reliable, and rigorously tested solution for critical containment needs. Its combination of high tensile strength, exceptional chemical resistance, low permeability, and long service life makes it the material of choice for landfills, mining, water conservation, and industrial secondary containment. While proper design, subgrade preparation, and skilled installation are essential, a well-executed 2mm HDPE liner system can perform without failure for decades.
For engineers, specifying a 2mm HDPE geomembrane is not merely selecting a thickness—it is a commitment to quality, environmental protection, and long-term risk management. As regulatory pressures increase and global waste volumes rise, the role of the 2mm HDPE geomembrane will only become more central to sustainable infrastructure.
