When it comes to heavy-duty containment for landfills, mining operations, water reservoirs, and industrial facilities, the 60 mil hdpe geomembrane stands as one of the most trusted and frequently specified thicknesses in the global geomembrane industry. Whether you’re an engineer designing a landfill base liner, a mining operator planning a heap leach pad, or a contractor building a large-scale pond, understanding the full potential of a 60 mil HDPE liner is essential to your project’s long-term success.
In this comprehensive guide, we’ll explore everything you need to know about GEOSINCERE Geosynthetics 60 mil HDPE liners—from their composition and key specifications to real-world applications, installation best practices, cost considerations, and market outlook. By the end, you’ll have a clear roadmap for selecting the right liner for your project and be ready to take the next step with confidence.
A 60 mil HDPE liner is a high-density polyethylene geomembrane with a nominal thickness of 60 mils, which equals approximately 1.5 millimeters. One mil equals 0.001 inch, so 60 mil is 0.060 inches thick—a robust, heavy-duty barrier designed for demanding containment applications.

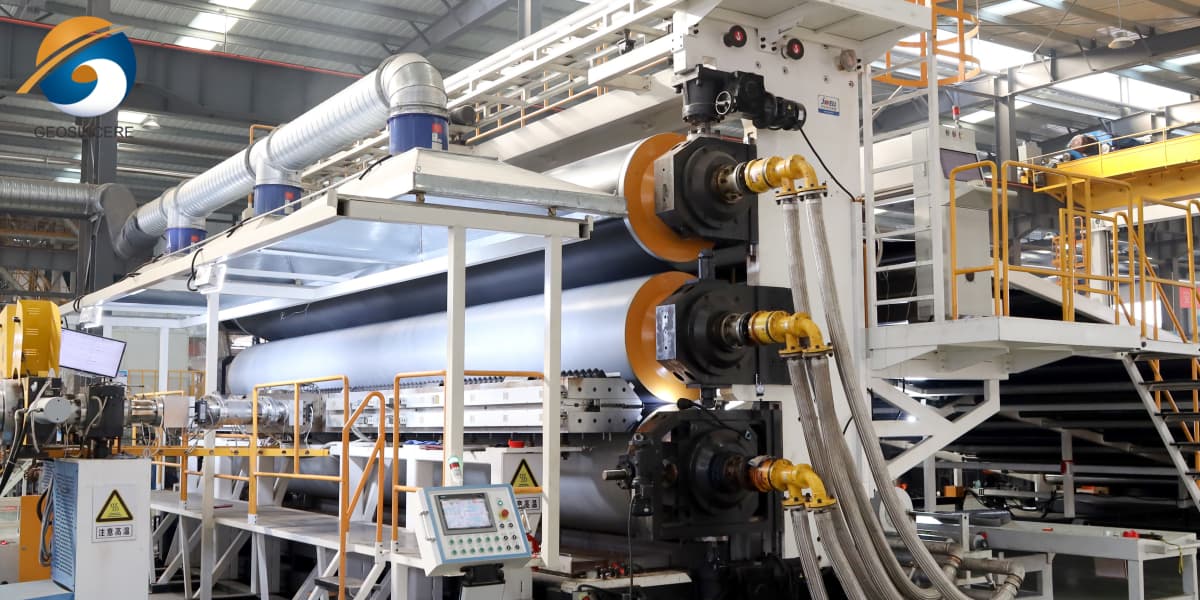

HDPE geomembranes are manufactured from approximately 97.5% high-density polyethylene resin, combined with 2.5% carbon black, antioxidants, anti-aging agents, and UV stabilizers. This precise formulation creates a dense molecular structure that delivers exceptional strength, chemical resistance, and long-term durability. The density of HDPE typically ranges from 0.941 to 0.960 g/cm³, which is significantly higher than LLDPE (≤0.939 g/cm³). This higher density translates directly into greater tensile strength, hardness, and chemical resistance—making HDPE the material of choice for high-risk containment applications.
In the geomembrane industry, thickness is a critical design parameter that balances mechanical performance with cost. Thinner liners (such as 40 mil or 1.0 mm) reduce upfront material cost but come with increased long-term risk—they are more susceptible to punctures, tears, and chemical degradation. Thicker liners (such as 80 mil or 2.0 mm) provide higher safety margins but significantly increase material usage and cost.
The 60 mil (1.5 mm) thickness sits at a strategic middle point. According to industry installation statistics, 1.5 mm HDPE liners account for approximately 24–31% of total HDPE geomembrane volume installed worldwide—the second most common thickness after 1.0 mm (40 mil) and ahead of 2.0 mm (80 mil). This thickness is universally accepted by regulatory agencies, including EPA Subtitle D, state solid waste rules, and mining authorities.
A premium 60 mil HDPE liner must deliver consistent, verifiable performance across several critical parameters. Below are the typical specifications you should expect from a high-quality product.
The tensile strength at yield typically ranges from 22 to 27 kN/m, while tensile strength at break reaches 40 kN/m or higher. Elongation at break is typically 700% or greater, allowing the liner to accommodate ground movement without tearing.
Puncture resistance typically ranges from 480 N to over 640 N (ASTM D4833), while tear resistance exceeds 187 N. A premium 1.5 mm HDPE geomembrane should deliver puncture resistance of 750–1000 N (cone method) and tear resistance of 200–280 N.
HDPE geomembranes offer extremely low permeability, with coefficients typically below 1×10⁻¹⁰ cm/s. High-quality 60 mil HDPE liners can achieve permeability less than 1×10⁻¹⁴ cm/s—essentially impermeable.
60 mil HDPE liners resist acids, alkalis, organic solvents, leachates (pH 1–14), crude oil, refined hydrocarbons, and saline solutions. This broad-spectrum chemical resistance makes them ideal for hazardous waste containment, mining leach pads, and industrial wastewater treatment.
Carbon black content of 2.0–3.0% provides excellent UV stabilization. HDPE geomembranes typically retain over 70% of their strength after 2,000 hours of accelerated UV aging. Under proper installation and operating conditions, HDPE liners have a service life exceeding 50 years; when buried, lifespans can reach 80 to 100 years.
Premium 60 mil HDPE geomembranes demonstrate no cracking at temperatures as low as -40°C to -50°C, ensuring reliable performance even in freezing environments.
HDPE geomembranes exhibit excellent environmental stress crack resistance, typically with 500-hour stress crack resistance per ASTM D5397. This property is critical for long-term performance in chemically aggressive environments.
The versatility and reliability of 60 mil HDPE liners have made them indispensable across multiple industries. Below are the primary applications.

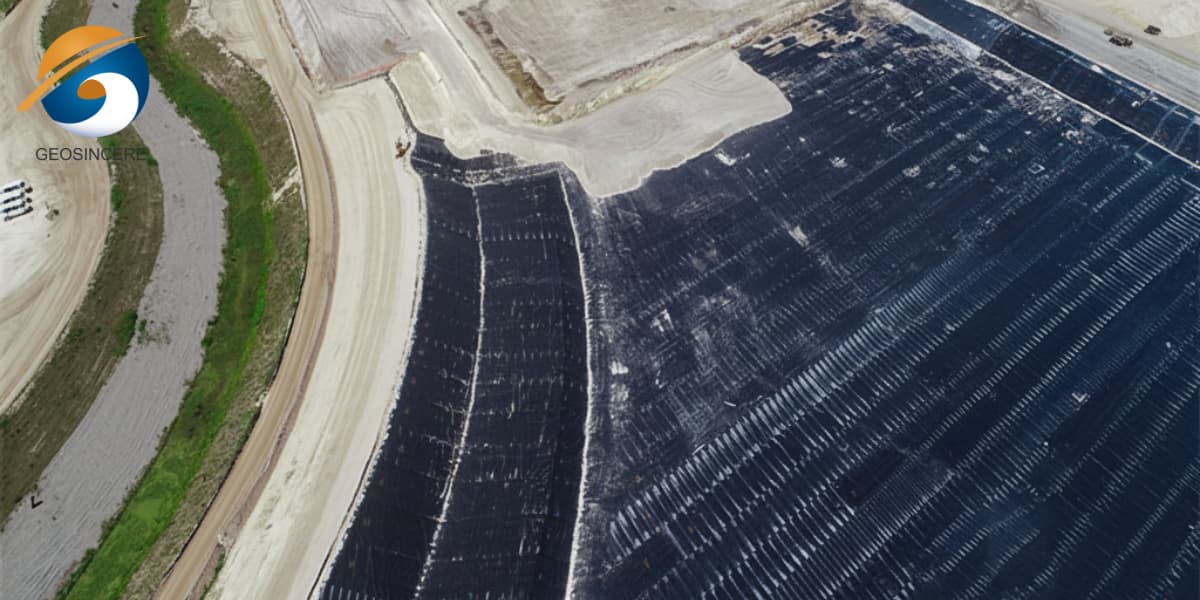

Landfills account for approximately 40% of HDPE liner applications, driven by global waste management regulations. 60 mil HDPE liners are used for primary landfill base liners, leachate collection systems, and cap covers. Their high puncture resistance prevents leachate contamination of soil and groundwater, ensuring compliance with environmental standards.

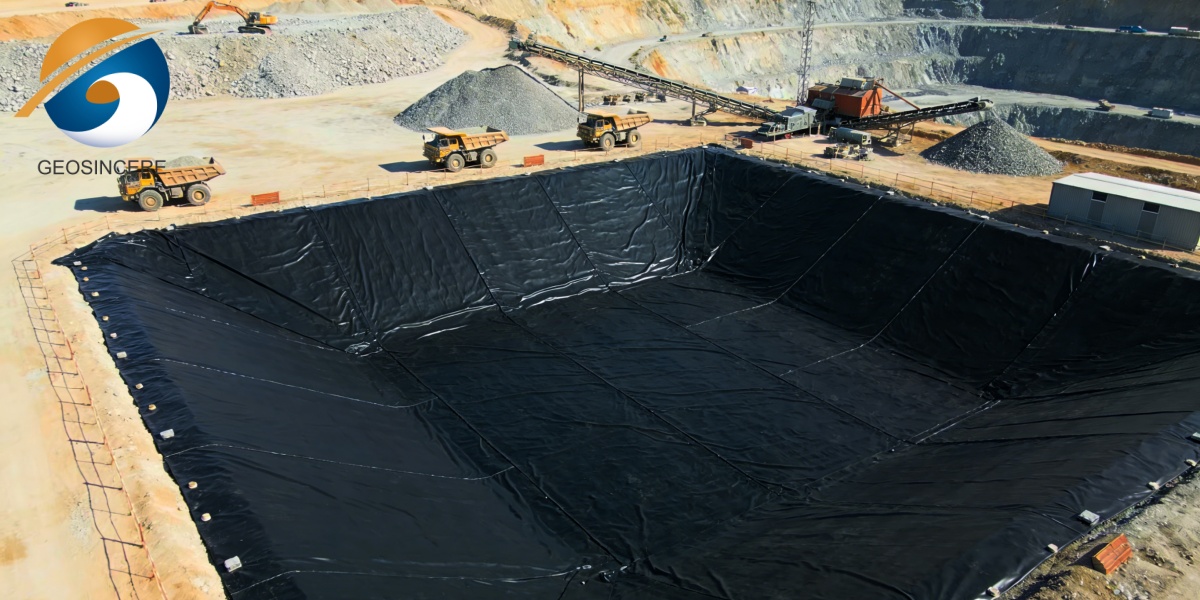

Mining applications represent approximately 25% of HDPE liner usage, including heap leach pads, pregnant leach solution ponds, tailings storage facilities, and process water impoundments. With tensile strength exceeding 30 kN/m, 60 mil HDPE liners effectively contain acidic byproducts and process chemicals from mining operations.
Water management accounts for approximately 20% of applications, with 60 mil HDPE liners used in reservoirs, irrigation canals, aquaculture ponds, and potable water containment. The textured surface option improves friction with backfill materials, enhancing slope stability.

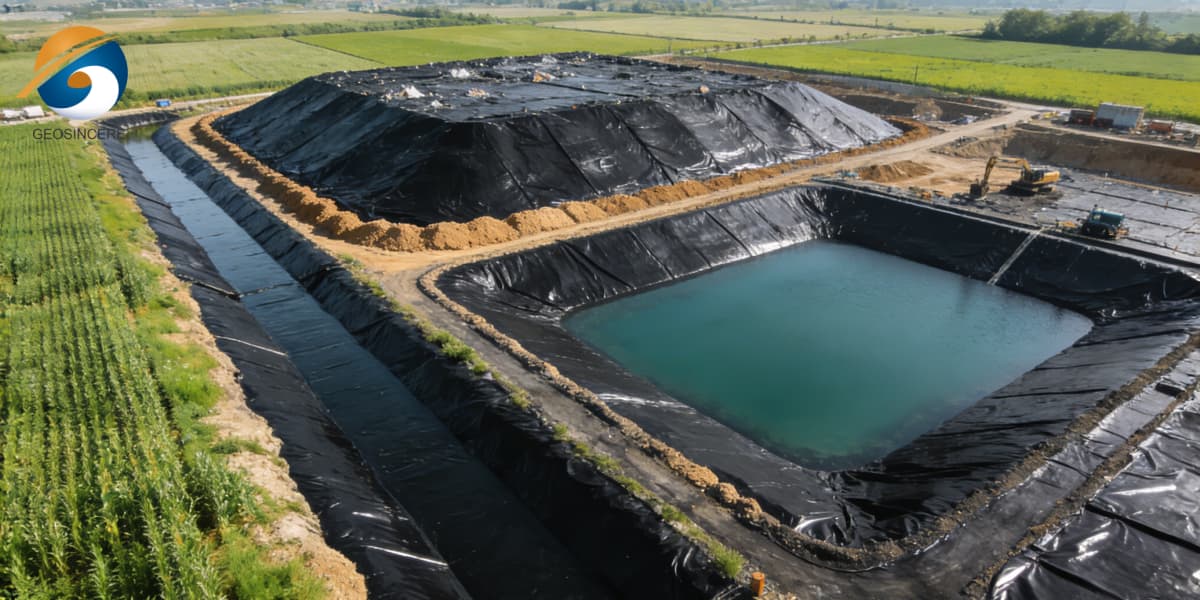

60 mil HDPE liners are widely used in wastewater treatment lagoons, leachate ponds, and industrial wastewater impoundments. Many municipal and industrial facilities rely on 60 mil liners to re-line existing ponds, providing groundwater protection while containing odorous gases.
Industrial facilities use 60 mil HDPE liners for spill containment berms around oil tanks and chemical storage. Secondary containment applications benefit from the liner’s chemical resistance and leak-proof performance.
60 mil HDPE liners are used in fish and shrimp ponds, providing non-toxic, leak-free environments with typical material costs of $1.50–$2.00 per square meter.
Proper installation is just as critical as material quality. Even the highest-quality 60 mil HDPE liner will fail to perform if not installed correctly. Here are the essential steps.
The subgrade must be heavily compacted, smooth, and completely free of sharp rocks, debris, or standing water. A geotextile cushion layer is often installed beneath the HDPE for added protection. Subgrade compaction should achieve a minimum of 95% Standard Proctor density, with a 150 mm sand cushion placed to protect the liner. The golden rule of panel layout is to align seams parallel to the slope (running up and down), never across the slope, to prevent shear stress on the welds.
Hot wedge (fusion) welding is the primary method for long, straight seams. A machine-driven heated metal wedge is inserted between overlapping panels (4–6 inches standard overlap), melting the inner surfaces, and trailing pressure rollers immediately press them together. The hot wedge machine produces a dual-track seam with an unbonded air channel between the two weld tracks—an engineered feature that allows 100% non-destructive testing of every inch of seam. Travel speed for standard 60 mil HDPE is typically 6–12 feet per minute, with wedge surface temperature ranging from 350–450°F depending on ambient conditions and liner thickness.
Extrusion welding is a manual process used for detail work, repairs, pipe boots, corners, T-joints, and locations where the hot wedge machine cannot operate. A handheld extrusion welder feeds HDPE welding rod through a heated barrel, depositing molten resin over the seam area.
Before any production welding begins, operators must perform trial seams (test welds) under actual field conditions—typically every morning, afternoon, and whenever weather conditions change. Trial seams are immediately tested on-site for strength, and if a seam fails, the machine must be recalibrated until it passes.
A comprehensive field quality control checklist is essential. It covers material inspection, subgrade preparation, welding quality, non-destructive testing, and documentation to ensure compliance with engineering design specifications and international standards.
- Air channel testing: For dual-track seams, the test channel is pressurized to 30 psi (200 kPa). According to industry standards, a pressure drop of no more than 2 to 3 psi over a 5-minute testing period is considered a passing result.
- Destructive seam testing: Seam strength must achieve at least 90% of parent material strength. For standard 60 mil HDPE, minimum acceptable values are peel strength of 62 ppi and shear strength of 90 ppi.
- Overlap verification: Minimum overlap width of 100–150 mm must be verified.
- Vacuum testing: Used for extrusion welds and detail areas.
- Documentation: All test results must be logged and traceable.
Understanding the cost of a 60 mil HDPE liner requires looking beyond just the initial purchase price. The cost is never a single fixed number—it is the result of multiple technical, commercial, and logistical variables working together.
In 2026, the material cost for a 60 mil HDPE liner typically ranges from $1.50 to $2.00 per square foot ($16.15–$21.53 per square meter) for standard smooth surfaces. Virgin HDPE resin costs 20–30% more than recycled resin but offers a longer lifespan and better performance. Textured surfaces add 10–15% to costs but improve friction on slopes, enhancing safety in applications like heap leach pads. For most standard 1.5 mm applications, the average price is usually below $2.50 per square meter for material only.
A common range for installed 60 mil HDPE liners is roughly $1.20 to $2.60 per square foot ($12.92–$27.99 per square meter), including materials, labor, and typical site work. Installation typically adds 15–50% to material costs depending on site conditions, project complexity, and location. For larger facilities, lower per-square-foot pricing applies due to economies of scale.
Key factors that affect 60 mil HDPE liner cost include material quality (virgin vs. recycled resin), surface type (smooth vs. textured), order quantity (bulk orders over 50,000 m² secure 15–30% volume discounts), shipping and logistics (especially for international buyers), and site-specific installation challenges.
The global HDPE geomembrane market is experiencing robust growth. The high-density polyethylene anti-seepage geomembrane market continues to expand at a healthy compound annual growth rate. Industry analysts project continued growth driven by stricter environmental regulations, expansion of mining activities, sustainable construction, infrastructure development in emerging economies, and water conservation projects.
Key growth drivers include escalating global focus on environmental stewardship, which translates into stricter regulations for waste containment and water conservation, creating non-discretionary demand for high-integrity lining systems. Rapid urbanization and industrialization in Asia-Pacific are driving massive investments in new landfills, water reservoirs, and mining operations. Growing emphasis on water security and conservation is increasing demand for geomembrane liners in reservoirs, canals, and irrigation systems.
Asia-Pacific currently dominates the HDPE geomembrane market, with steady demand also coming from mature markets in North America and Europe. The market includes numerous specialized manufacturers offering competitive pricing and a range of thickness options.
Lower upfront cost but reduced puncture resistance and higher long-term risk. More susceptible to punctures from sharp stones, equipment traffic, and chemical degradation.
Optimal balance of mechanical robustness, chemical resistance, and long-term durability for most primary containment projects. Provides approximately 40–70% higher puncture resistance and 30–50% higher tear strength than 1.0 mm.
Higher safety margins for extremely aggressive subgrades or heavy equipment loads, but significantly heavier and more expensive. Installation labor costs can be 40% higher compared to 60 mil due to reduced flexibility and heavier roll weights.
Under proper installation and operating conditions, 50+ years. When buried, lifespans can reach 80–100 years.
Yes, using extrusion welding or patch application by qualified technicians following proper procedures.
Yes. Manufactured from non-toxic materials, they prevent contaminant migration and protect soil and groundwater.
Subgrade must be compacted to at least 95% Standard Proctor density, with a 150 mm sand cushion placed to protect the liner.
GRI-GM13, ASTM compliance, ISO 9001, and CE marking are essential. Premium products also provide third-party independent lab testing.
The 60 mil HDPE liner offers an unbeatable combination of strength, chemical resistance, low permeability, UV durability, and cost-effectiveness. As the second most common HDPE thickness installed worldwide and universally accepted by regulatory agencies, it has proven its reliability across thousands of projects—from landfills and mining operations to water reservoirs and secondary containment.
Choosing the right liner today means fewer problems tomorrow, lower lifecycle costs, and peace of mind knowing that your containment system will perform as designed for decades to come. Don’t leave your project to chance. Choose the proven performance of 60 mil HDPE liners.
Every project has unique requirements, and the right 60 mil HDPE liner solution starts with understanding your specific needs. Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) team of geosynthetics experts is ready to help you select the optimal liner thickness, surface type (smooth or textured), specifications, and installation approach for your project.
- Premium virgin HDPE resin with full GRI-GM13 and ASTM compliance
- Thickness range from 0.5 mm to 3.0 mm, roll widths up to 8 meters
- Smooth and textured surface options
- ISO 9001 and CE certified manufacturing
- Competitive factory-direct pricing with bulk order discounts
- Technical support from initial design through installation
- Global shipping with proven export experience
Request your free quote today. Tell us your project requirements—thickness, surface type, area size, application type, and delivery destination—and we will respond within 24 hours with a customized proposal and pricing.
