In the modern world, where industrial activity and environmental stewardship must coexist, the role of GEOSINCERE geosynthetic materials has become paramount. Among these, the geomembrane HDPE 1.5 mm stands as a sentinel against contamination, ensuring that hazardous liquids, leachates, and chemicals do not penetrate the soil and groundwater. Specifically, the 1.5mm HDPE liner (equivalent to 60 mils in imperial units) has emerged as an industry standard—a "Goldilocks" thickness that balances structural integrity, flexibility, and cost-effectiveness. This article delves into the material science, manufacturing standards, mechanical properties, installation methodologies, and diverse applications of the 1.5mm HDPE liner, explaining why it has become the default specification for containment projects worldwide, from mining heaps to aquaculture ponds.
For decades, humanity relied on compacted clay and concrete to contain water and waste. However, clay cracks when desiccated, and concrete is vulnerable to chemical attack and seismic activity. The introduction of HDPE geomembranes in the 1980s revolutionized environmental engineering. Today, when an engineer specifies a 1.5mm HDPE liner, they are calling for a material that is chemically resistant, UV-stabilized, and remarkably durable.
Why 1.5mm specifically? Thinner liners (0.5mm or 1.0mm) are suitable for canals or temporary ponds but lack the puncture resistance required for rugged subgrades. Thicker liners (2.0mm or 2.5mm) offer ultimate protection but increase material cost, welding difficulty, and weight. The 1.5mm thickness provides a benchmark performance level that meets the rigorous demands of the U.S. Environmental Protection Agency (EPA) and the Global Organic Textile Standard (GOTS) for landfill caps and leachate ponds.
High-Density Polyethylene is a thermoplastic polymer derived from petroleum. Its molecular structure—characterized by long, straight chains with minimal branching—gives it a high density (0.94 g/cm³ or greater). To transform this resin into a 1.5mm HDPE liner, manufacturers add specific additives:
- Carbon Black (2-3%): Provides UV resistance, preventing photodegradation from sunlight.
- Antioxidants: Hinder thermal oxidation during the extrusion process.
- Carbon Black Dispersion: Ensures uniform color and protection.
The 1.5mm thickness is achieved through two primary methods:
- Smooth Sheet Extrusion: Molten HDPE is extruded through a flat die onto a polished chill roll. This creates a smooth surface, which is ideal for high-friction applications like landfill caps.
- Textured/Single-Sided Texturing: For sloped applications (e.g., dam faces), the liner is rolled against a textured mat while cooling. A 1.5mm textured liner provides enhanced frictional stability, preventing the liner from sliding down slopes of up to 3:1.
When engineers evaluate a containment system, they assess several key performance indicators. The 1.5mm HDPE liner excels in the following areas:
HDPE is virtually inert to over 170 chemical families, including acids (sulfuric, hydrochloric), bases (sodium hydroxide), salts, and hydrocarbons. A 1.5mm liner acts as a near-impermeable barrier, with a permeability coefficient of approximately 1×10−141×10−14 m/s to 1×10−161×10−16 m/s. This is six orders of magnitude lower than compacted clay.
The 1.5mm thickness hits a sweet spot for tensile properties. Typical values (based on standard virgin HDPE resin) include:
- Tensile Strength at Yield: 15-18 kN/m (kilonewtons per meter width)
- Elongation at Break: 700-800% (meaning the liner can stretch seven times its length before tearing—critical for differential settlement).
- Tear Resistance (ASTM D1004): > 60 N
A major threat to liners is sharp stones or roots in the subgrade. A 1.5mm HDPE liner typically resists puncture from a 5mm steel rod up to 300-350 Newtons of force. When placed over a geotextile cushion, this resistance increases exponentially.
Historically, HDPE suffered from "slow crack growth." Modern 1.5mm liners use bimodal resins that pass the NCTL test (typically > 300 hours), ensuring decades of service under constant load.
A 1.5mm HDPE liner is only as good as its installation. Unlike monolithic concrete, geomembranes are shipped in rolls (typically 7 to 8 meters wide and 100 to 150 meters long) and must be seamed together on-site.
Before unrolling the 1.5mm liner, the ground must pass a "finger test"—no sharp objects. Typically, a 200mm layer of sand or a non-woven geotextile (e.g., 500g/m²) is laid as a cushion.
Two methods prevail for 1.5mm HDPE:
A wedge welder heats the surfaces to approximately 400°C (752°F) and presses them together. This creates two continuous air channels. The seam is tested by pressurizing the channel to 200-250 psi for 5 minutes. A pressure drop > 10% indicates a leak.
Used for patches, repairs, or connecting to pipes. A bead of molten HDPE is extruded over the overlapped edges of two 1.5mm sheets.
- Qualification: Welders must be certified (e.g., by IAGI or NACE). For every 150 meters of seam, a 2-inch-wide strip is cut for laboratory peel and shear testing.
The perimeter of the liner is buried in a 0.6m x 0.6m anchor trench. Because 1.5mm HDPE is relatively stiff, the trench must be free of corners to avoid creasing.
No single product fits every job, but the 1.5mm HDPE liner comes remarkably close. Here is where it is most heavily utilized:
The mining industry is the largest consumer of 1.5mm HDPE. In gold and copper extraction, a "leach pad" is constructed. Ore is piled on the liner, and a cyanide or acid solution is trickled through. The 1.5mm liner must resist the abrasive action of the ore loading (often dropped from 2-3 meters) and the chemical aggression of the leachate. Its thickness provides enough redundancy to handle micro-cracks from heavy equipment traffic.
Modern sanitary landfills consist of multiple layers. The primary liner (bottom) is often a 1.5mm HDPE, lying above a clay liner and below a drainage geocomposite. It prevents leachate—toxic "garbage juice"—from entering the aquifer. According to EU Landfill Directive 1999/31/EC, a geomembrane thickness of at least 1.5mm is mandatory for hazardous waste cells.

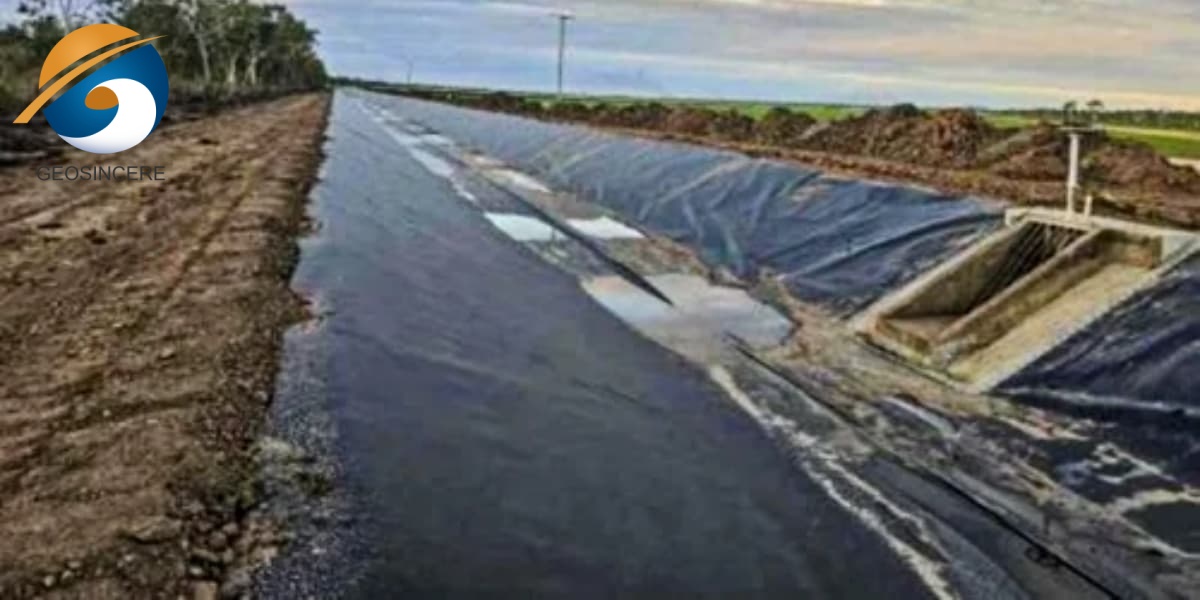

While potable water requires specific FDA-approved resins, raw water storage (for irrigation or fire suppression) frequently uses 1.5mm HDPE liners. They are cheaper and more flexible than concrete, and they prevent water loss through seepage (up to 95% reduction compared to unlined canals).
In Asia and Latin America, shrimp farmers have adopted 1.5mm HDPE pond liners. The smooth surface prevents benthic algae growth and makes harvesting easier. The thickness prevents punctures from shrimp claws and cleaning tools. Furthermore, it isolates the pond bottom from soil pathogens.
In chemical plants and oil refineries, tanks holding diesel or hydrochloric acid sit inside a concrete dike lined with 1.5mm HDPE. If the tank leaks, the liner contains the spill long enough for pumps to transfer it to a treatment facility.
To fully appreciate the 1.5mm HDPE liner, one must compare it to its competitors and its own family members.
|
Feature |
1.0mm LDPE |
1.5mm HDPE |
2.0mm HDPE |
Concrete |
|
Puncture Resistance |
Low (80 N) |
Medium-High (320 N) |
High (600 N) |
Low (cracks) |
|
Flexibility |
Very High |
High |
Moderate |
None |
|
Chemical Resistance |
Moderate |
Excellent |
Excellent |
Poor (Acids) |
|
Installation Speed |
Very Fast |
Fast (welding) |
Slow (heavy rolls) |
Very Slow |
|
Cost (material only) |
$2.50/m² |
4.50−4.50−6.00/m² |
$8.00+/m² |
$15.00+/m² |
|
Service Life |
10-20 years |
50-100+ years |
50-100+ years |
30-50 years (if reinforced) |
Verdict: The 1.5mm HDPE is the "value engineering" choice. It offers 80% of the strength of a 2.0mm liner at 60% of the cost, with better flexibility for installation on uneven terrain.
A 1.5mm HDPE liner is not a "fit-and-forget" product. Stringent quality control is expected by ASTM, GRI-GM, and ISO 9001 standards.
- Thickness Gauging: Every roll is scanned by an inline laser gauge to ensure the 1.5mm is consistent (+/- 5% tolerance).
- Density: Should test between 0.94 and 0.96 g/cc.
- High-Pressure Spark Testing: After installation, a conductive layer is applied, and a 20,000-volt spark is run over the liner. Wherever there is a pinhole, the spark jumps, allowing detection of holes as small as 0.5mm.
Is plastic the enemy? Not when it prevents worse pollution. The 1.5mm HDPE liner has a favorable life cycle assessment (LCA):
- Manufacturing energy: High (40 MJ/kg) but offset by preventing groundwater remediation (which costs millions).
- Longevity: Properly installed, a 1.5mm liner lasts 50-75 years. Some exposed liners in Arizona and South Africa have been serving for 40+ years with minimal degradation.
- End-of-Life: While not widely recycled, HDPE is #2 plastic. New technologies allow "fusion recycling," where old liners are shredded, washed, and re-extruded into drainage pipes or new geomembranes (downgauged).
Even a 1.5mm HDPE liner can fail if design rules are ignored:
- High Wind Uplift: If an empty pond has an unballasted liner, wind can suck it up like a sail. Solution: Anchor trench every 20m or deploy sand-filled tubes.
- Thermal Expansion: HDPE expands 2-3 mm per meter per 10°C. On a large 200m pond, this means 400mm of expansion. Solution: Allow slack (wavy panels) and use wide anchor trenches.
- Ozone and UV Degradation: While stabilized, the 1.5mm liner will become brittle after 30 years of full sun exposure. Solution: Cover with 300mm of soil or a floating cover.
Project managers often baulk at the upfront cost of a 1.5mm HDPE liner. Let us examine a hypothetical 10,000 m² industrial pond.
- Material Cost (1.5mm HDPE): 5.00/m2→50,000
- Geotextile Cushion (if required): 1.50/m2→15,000
- Installation (welding/labor): 3.00/m2→30,000
- Total Installed: $95,000
- Compare this to a concrete lining: 150,000+150,000+20,000 for joints + 4 months curing time. The HDPE liner is installed in 2 weeks.
Furthermore, consider the liability of not using a liner. In the U.S., the EPA can levy fines of $37,500 per day for uncontained hazardous waste. The 1.5mm HDPE liner is thus not an expense; it is an insurance policy.
The humble 1.5mm HDPE liner is evolving.
- Conductive Liners: New formulations include a thin conductive co-extruded layer. This allows for continuous leak detection via electrical mapping, rather than post-installation spark testing.
- Bio-based HDPE: Researchers are producing polyethylene from sugarcane ethanol. The resulting 1.5mm liner has a negative carbon footprint (sequesters CO2 during growth) while maintaining identical mechanical properties.
- Robotic Seaming: Automated welding robots with GPS guidance are now seaming 1.5mm liners on large mining projects, reducing human error and ensuring perfect seam temperatures.
The 1.5mm HDPE liner may not be glamorous, but it is one of the most critical engineering materials of the 21st century. It stands between our industrial ambitions and ecological disaster. Its specific thickness of 1.5mm is a testament to engineering optimization—thick enough to survive the brutal physics of a construction site, yet thin enough to be economically viable for projects ranging from a farmer's water tank to a massive gold mine.
By combining chemical inertness, high tensile strength, and proven longevity, the 1.5mm HDPE liner provides a sustainable solution to the age-old problem of containment. As regulations tighten and water becomes scarcer, the demand for reliable geomembranes will only grow. For any engineer designing a liquid-impoundment facility, specifying a 1.5mm HDPE liner (installed by certified technicians over a prepared subgrade) is not just a best practice—it is a professional responsibility. It is the invisible shield that allows modern industry to operate safely, ensuring that the water beneath our feet remains pure for generations to come.
