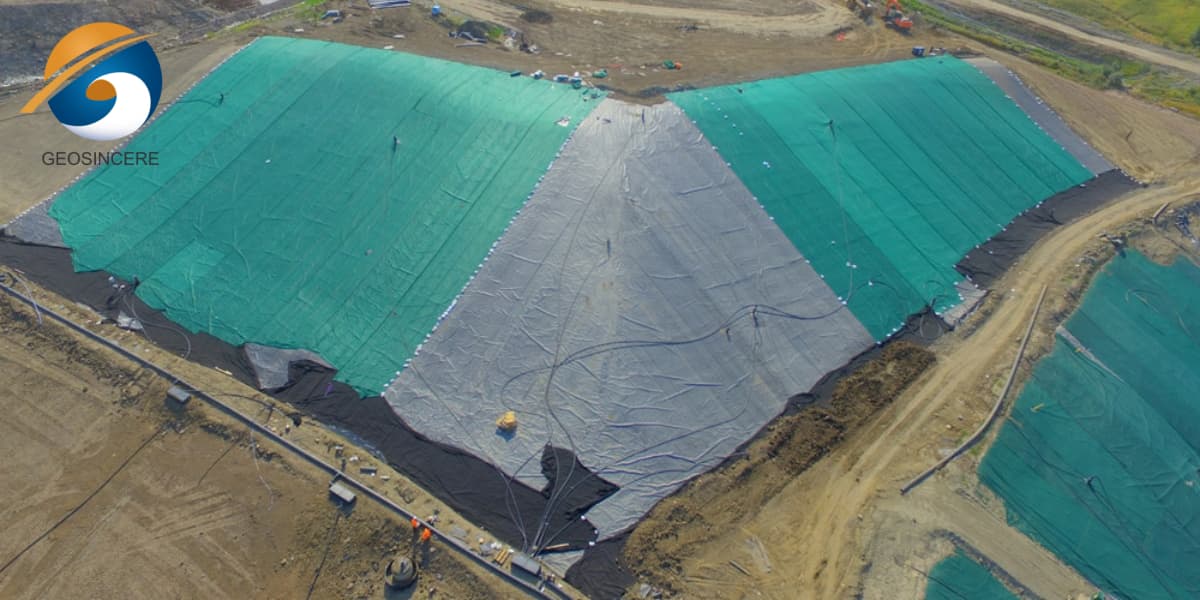

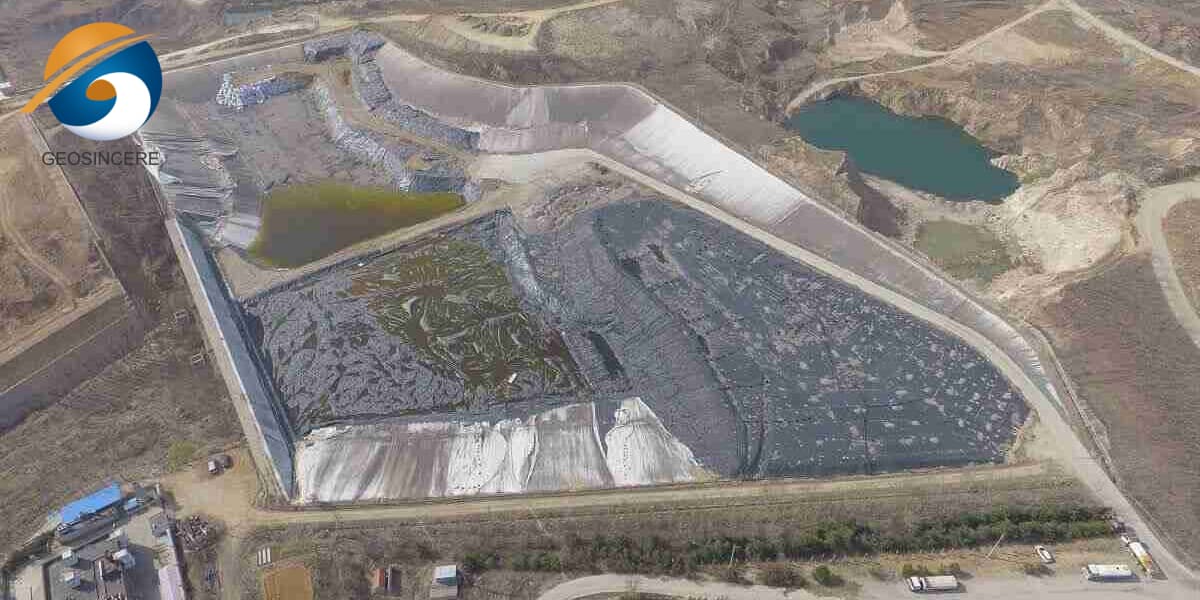

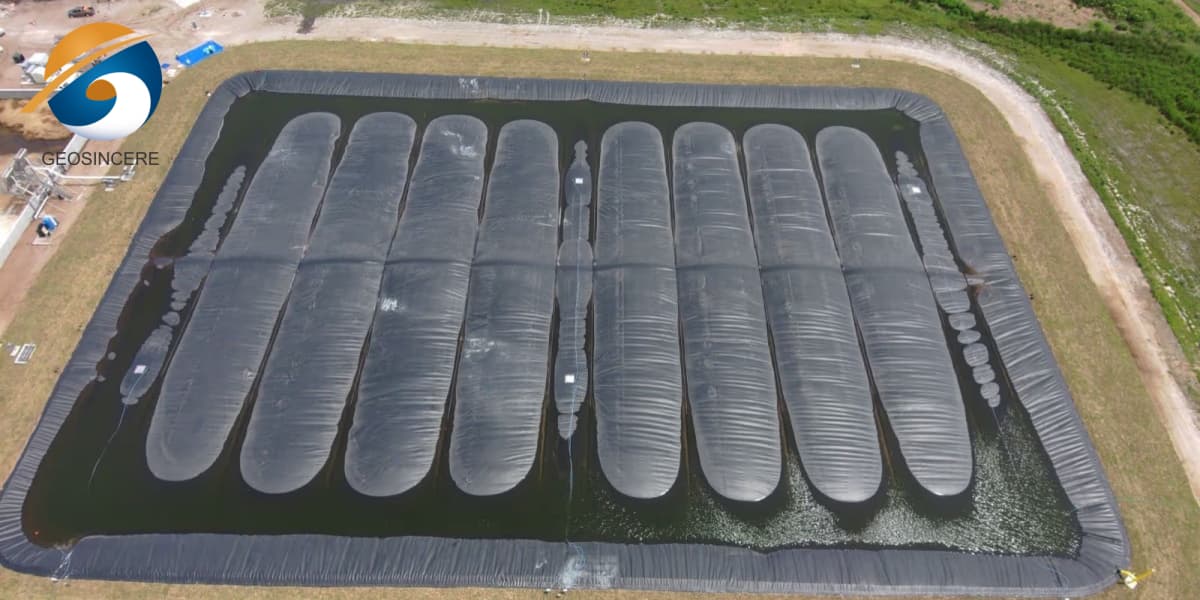

The use of geomembrane sheet is essential in mining water containment as well as in environmental protection projects. They primarily help in lining tailing storage facilities, heap leach pads, open ponds, and other engineered containment systems where hdpe geomembrane sheets play an instrumental role in preventing leakage, minimizing seepage, and protecting both groundwater and surface water from pollution. This manual identifies the most important factors in selecting GEOSINCERE Geosynthetics geomembrane sheet for mining purposes - materials, properties, testing, installation, compatibility with mining environments, lifecycle performance, regulatory, and operational requirements - all being given due consideration.
Understanding the selection of an appropriate geomembrane comes from a thorough evaluation of the specific project scenario and performance requirements list. Major aspects to look at are the type of fluid to be contained (process water, acidic or alkaline leachate, slurry), range of temperature variations, anticipated mechanical stresses (settlement, differential movement, abrasion), level of UV radiation, presence of hydrocarbons or solvents, as well as the desired duration of service life.
Determining performance parameters such as permeability restrictions, tensile and tear strengths limits, puncture resistance, and chemical resistance should be done during the initial phases of project planning to align material choice with long-term containment goals.
There are a number of geomembrane materials that are extensively used in mining operations and some of their features are given below one material at a time:
HDPE has been recognized for its superior chemical resistance capability aside from it having very limited permeability. For these reasons, it is commonly installed in landfills, pond liners, and tailings facilities. It is well- resistant to various chemicals and, in addition to offering durability, is also geared towards stiff liners with long design life requirements.
LLDPE gets advantage of increased flexibility and stress-crack resistance over traditional HDPE kinds. Its usage will mostly be in places where better conformance to the irregular subgrades as well as enhanced toughness are desired.
A little temperature is needed when fuel welding PVC geomembranes as flexibility is one of their features. They are greatly resistant to puncture and is, therefore, deployed mostly in places where being flexible in cold conditions is very essential. Also, for chemical environments, and long-term UV, PVC formulations will have to be adjusted accordingly.
EPDM can be described as a flexible elastomeric geomembrane. Besides having very good endurance against weathering and UV, they are still outstandingly versatile water-containment materials wherever outstanding flexibility and cold weather performance are the main criteria, though chemical compatibility will need to be assessed on a case-by-case basis.
CSPE is an extremely versatile material that is capable of standalone use in several water containment applications thanks to its high chemical and weathering resistance. Its mining applications, however, are quite limited and would likely depend on fluid compatibility issues.
Choice among these materials is a matter of assessing chemical compatibility, mechanical performance, environmental exposure, constructability, and cost jointly.
Chemical compatibility is one of the major factors determining the performance of geomembranes in mining. Fluids to be contained cover acidic and basic solutions, organic solvents, hydrocarbons, heavy metals in ionic forms, and process reagents. The assessment of compatibility must depend on manufacturer data, compatibility guides in print form, and, if possible, laboratory testing done with expected temperature and concentration conditions. When extreme chemical environment is considered, one cannot go wrong with HDPE and certain formulated LLDPE products which often are quite capable of resisting the chemicals involved; however, the inclusion of a variety of additives has an impact on the performance of the material. It should be remembered that wide-ranging compatibility cannot be assumed and should be evaluated for each chemical or mixture; factors like combined effects, temperature dependence, and potential for permeation or degradation over time also need to be taken into consideration.
The mechanical properties required depend on the types and levels of stresses expected during the installation and service periods. major factors include tensile strength, elongation at break, tear resistance, puncture resistance, and impact resistance. In mining operations, liners may experience mobile loads from heavy equipment, base settlement due to tailings consolidation, abrasive action of slurry, and localized puncture hazard from rocks or debris. Flexible materials like LLDPE, PVC, and EPDM can better adjust to differential settlement, whereas HDPE, which is stiffer, ensures dimensional stability under load.
Besides that, stress-crack resistance and fatigue due to cyclic loading must be taken into account to ensure long-term durability.
Very low permeability is a must for containment goals. When choosing geomembranes, prioritizing products with proven low permeation rates of the concerned chemicals is the right way. Seam strength and the seam making methods (extrusion welding, fusion welding, solvent welding for PVC, or adhesive bonding for some elastomers) significantly influence integrity of the system.
It is important to conduct qualification testing of seams to simulate service conditions, regular field inspections (e.g., air lance, vacuum box, electrical leak location where applicable),> and maintaining a QA/QC plan to prevent and identify leaks. It would also be wise to include secondary containment and leakage detection measures, especially when dealing with high risk applications.
Warm or cool temperatures affect the degree to which polymers can extend or deform before they break, as well as the rate at which chemicals permeate through them. Usual commercial polymer films have a thermal range of -50°C to +60°C for general purpose applications. Some exposures to specific environmental or process conditions may significantly shorten the functional life of a polymer film (e.g. intermittent high temperature or very low temperature conditions outside of the typical application range).
Therefore, the temperature of the environment should be taken into account when choosing a polymer film for an application. Depending on the circumstances, a polymer film is typically provided with thermally protective layers to be able to resist the highest temperatures during its lifetime as determined by its resistance to thermal degradation or the ability to maintain mechanical properties after heat exposure.
UV degradation of polymers in outdoor exposure is well understood. UV resistance of polymer films can be achieved by the use of UV stabilizers during compounding or a physically protective cover (e.g., soil cover or protective geotextile) as well as an alteration of the chemical structure of the polymer to give it resistance to UV radiation.
Evaluate site-specific solar exposure, seasonal temperature variations, and the need for UV-resistant additives or covers.
In many cases, good installation can make up for a less than perfect geomembrane and poor installation can be the cause of failure even for the most high-performance geomembranes. A good subgrade or foundation is a prerequisite of successful installation of geomembranes. The site is first leveled off and all sharp protrusions are removed and buried to avoid damage to the geomembrane during construction and through the service life.
Compaction and proving is performed to ensure that the necessary support is available and sufficient bearing capacity is achieved. If the surface is coarse or abrasive or if there is a risk of sharp stones above the subgrade at the time of installation and during the entire service life, then protection layers such as geotextiles can be used.
It is extremely important for a geosynthetic installer to follow directions from manufacturer on how to handle rolls, seaming and anchoring. Beyond rolling out the material, working with it on seaming and anchoring is also issues that are looked at when inspection Installation crews that are well trained, supervising adequately, and strict QA/QC procedures will lessen the damage risk during installation. Documented procedures for temporary protections during construction and for post-installation inspections are recommended.
A geomembrane by itself is not enough to provide containment but one part of a system that includes geotextiles, geonets, drainage layers, anchors, leak detection systems, protective covers and overlying soils or rock.
The choice of ancillary materials must be compatible chemically (to avoid material degradation or compromising of physical properties due to chemical interaction with geomembrane or adjacent materials), mechanically (to maintain the performance of the containment system under load), and functionally (to assure that all objectives of the containment system are met).
For instance, for cushion- and filtration purposes, geotextiles must be resistant to chemicals in the fluids that they will be exposed to. Drainage layers should retain their hydraulic performance and remain resistant to clogging when subjected to the expected solids load.
Adhering to industry-standard test methods and protocols ensures the qualification and performance of the geomembrane covering during installation and over its lifespan. For example, ASTM, ISO, and regional authorities' standards guide the testing of physical (tensile, puncture, thickness, etc.) and chemical/aging properties of geomembranes, as well as seam strength. Besides specifications, manufacturers should provide traceable test results for components and whole systems, and independent tests may be needed for certified assurance. Besides lab testing, on-site procedures such as mock-ups and field seam inspection also demonstrate proper installation technique.
To achieve desired results over the long haul, a comprehensive program encompassing inspection, monitoring, and maintenance is essential. Detection technologies for leaks, environmental monitoring, routine checks, repair works schedules allow early corrective actions. Observation activities should include liner condition, seam strength, drainage system, and erosion control among others. Protocol should be developed for leak/defect cases, covering sealing, fixing, and calling the authorities if applicable.
Besides the price of materials, a thorough evaluation should be made of the equipment and work needed for the construction, life span, serviceability, and last stage of the decommission. It is common that some panels are financially more viable over time despite that their initial cost is more than the others, especially if they have greater design life. Besides internal cost, include the expenses of environmental damage and recovery, if necessary, and the benefits that belong to the good record of the long-term performance of these components.
Regulatory laws and permits need to be considered when choosing membranes. Public agencies control the setting of performance standards related to the prevention of contamination, monitoring, and the working of the closing units. It is critical to understand that the materials used will meet the requirements of impermeability, secondary containment, and closure as defined by permits. Engage with regulators by submitting materials details, test results, QA/QC plans for installation together with the monitoring program.
Unique features of each mining site will influence the choice of a geomembrane: geological, hydrogeological, and climatic factors chemical exposure, as well as mode of operation and future plan. Site risk evaluation is a good way to identify failure modes (puncture, seam failure, degradation of a chemical part, lack of drainage), consequences of breach, and respective countermeasures. If risks are significant, add safety factors such as double-liner systems with leak detection, large design margins, and good monitoring.
Choosing an appropriate geomembrane is not simply a matter of picking the material with the best properties; it requires a thorough assessment including chemical compatibility, mechanical stresses, proper manufacturing, installation and post-installation practices, monitoring strategies, and cost considerations over the product life. For a majority of mining water containment uses, focus first on chemical resistance and low permeability of materials, carry out careful subgrade preparation and installation QA/QC, put in place extensive monitoring and maintenance plans. Call on the expertise of cross-discipline teams, including geotechnical, environmental, and materials specialists, and maintain close cooperation with capable Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) suppliers and installers to deliver reliable, durable containment and environmental safeguarding.
