Containment is the keyword in responsible management of the environment and resources in the 21st century. Making sure that pollutants do not reach groundwater aquifers, finding a way to conserve water resources in dry areas, and at the same time, ensuring safe disposal of industrial waste not only fulfill act of compliance but are, above all, ethical and economic necessities. For the most part, GEOSINCERE Geosynthetics HDPE geomembrane, a material that is resilient and reliable beyond ordinary, has been the mainstay for global containment.
Being continuous, flexible sheet liners made from a specially formulated High-Density Polyethylene, these membranes have been considered as the most effective impermeable barrier solution. The incredible chemical resistance, durability, and long-term performance make it the major player in the very important global containment projects. This detailed discussion covers the composition, strict design standards, perfect installation requirements, and wide use of HDPE geomembrane liner thus positioning it as the unyielding first line of defense in the safeguarding of our earth’s resources.
The perfection of HDPE geo membrane owes much to polymer engineering. A premium-grade, high-density polyethylene resin is at the core of its makeup—a thermoplastic polymer with a highly crystalline structure. Besides color, carbon black is added at the level of about 2-3% also as a very important UV stabilizer, which shields the polymer chains from solar radiation that is the main cause of oxidative degradation. Antioxidants and stabilizers come along as admixtures of the polymer for enhanced ESCR (environmental stress crack resistance) during long-term exposure.

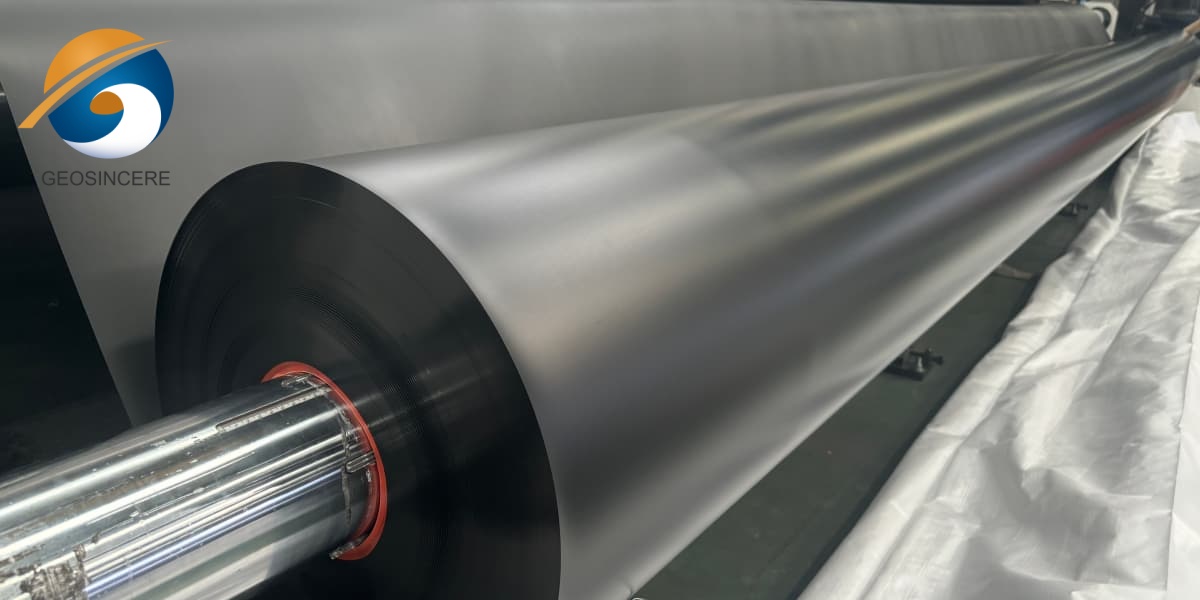

Subsequent extrusion of the polymer in its molten stage into sheets with thickness controlled within the range of 0.75 mm (30 mil) for secondary containment up to 2.5 mm (100 mil) or thicker for primary landfill liners.
With a hydraulic conductivity so low that it is for all intents and purposes be treated as impermeable to liquids and vapours.
Notwithstanding the installation, settlement and overburden loads, it will still maintain the barrier integrity.
This property is what differentiates a product from the rest. Performed through NCTL (Notched Constant Tensile Load) test (ASTM D5397), a good ESCR score means the material is capable of resisting a breakdown due to cracking when subjected to long-term tensile stress in a chemically aggressive environment—a failure mode known to plague especially those polyolefins of the poor-quality variety.
The highly inert nature of HDPE allows it to withstand a wide range of pH variations and be immune to attacks by salts, alcohols, and numerous other chemicals that constitute leachate, mining solutions, and industrial wastes. When it comes to hydrocarbons, oils, and greases, it is heads and shoulders above the competition in terms of resistance.
Choosing a geomembrane appropriate to the situation depends on the specific chemical, physical, and environmental conditions that the material will have to endure.
LLDPE provides more flexibility (lower modulus) and performs better at low temperatures, hence making it easier for use during installation in cold weather. On the contrary, HDPE has a substantially better chemical resistance, being less permeable, a higher tensile modulus (stiffness), and largely superior ESCR and UV resistance. HDPE is the choice for cases where the liner is exposed, used for a very long time and involved with chemicals.
Although PVC is soft, malleable and easy to connect with solvents, it does have a downside: the material contains plasticizers that may gradually leach out, which is why the liner becomes brittle. And when considering exposure to hydrocarbons and some industrial solvents, its resistance level is no match for that of HDPE. However, since HDPE is made up of a single composition without additives, it ensures long-term performance that is consistent and reliable.
EPDM is a kind of synthetic rubber that is not only very flexible but also highly resistant to punctures. However, it does have a higher permeability to some vapors and a limited chemical resistance range. Besides, it is liable to swell when in contact with some hydrocarbons. A large-scale containment barrier made of HDPE will provide users with performance that is not only more predictable but also covers a wider range of threats.
Geomembrane liner is just the heart and soul of a multi-component Composite Lining System. In fact, its long-term success is 100% dependent on proper engineering, preparation, and combinations of functional layers acting in concert within a system.
Subgrade being the base layer supporting the entire lining system needs to be envisaged thoroughly before installing any geosynthetics. The surface of the ground needs to be smooth without change of levels and made up of soil particles that are almost the same size.
Besides the sub-grade being uniformly graded, compacted and leveled to give a smooth working surface, all the sharp objects such as stones, roots or debris should be removed so as not to pose a risk of puncture. Apart from helping minimize differential settlements that could otherwise give rise to stress points or deformation of the geomembrane over a period, proper compaction is also beneficial for the maintenance of sub-grade performance. A properly done sub-grade is very important for ensuring the long-term stability of liner system.
In the case of landfill and waste containment, the concern with gas generation beneath the liner is very real. Thus, gas venting layer is installed where necessary to capture and safely release the trapped gas.
Generally, this component is made up of either gravel or geonet materials that are structured to provide uninterrupted passages for the movement of gas. Not only that by letting the escape of gas it alleviates the build-up of pressure problem that otherwise leads to the raise of the uplift forces but also there will be no change in the shape of the geomembrane system. Moreover, it will also contribute to better structural stability and safer operation of the landfill in the long run.
Frequently, a non-woven geotextile is laid immediately over the subgrade as a protective cushion layer.
Most importantly, it acts as protection of the geomembrane from being punctured and/or get abraded by the dust or soil particle as well as rough and uneven surface of the subgrade. Besides that, it is a smoother interface which minimizes the installation stress that comes with the exposure of HDPE liner deployment. In a few sophisticated systems, this layer can play the dual role of a leak detection system and/or a separation system resulting in a better overall system reliability. The amount of both GSM and thickness will be in tune with the conditions of load as well as the level of risk of the project.
Primary HDPE geomembrane is the real desperado, the main impermeable barrier in the composite lining system.
Being a thermoplastic polyolefin, HDPE exhibits good resistance to a wide range of chemicals. The inclusion of surface roughness on one or both sides is done to enhance frictional resistance at the interfaces to adjacent materials thereby mitigating the risk of slippage and improving overall slope performance. Being the principal layer for containment, it is extremely important that the welding quality and installation precision be given utmost attention.
The secondary protective layer is laid over the primary geomembrane to provide an extra shield against mechanical damages that could occur during the following phases of construction.
Usually, this layer consists of a protective geotextile or a thin sand layer that softens and spreads out the impact from the material placed on top. Thanks to this layer, the primary geomembrane suffers less from punctures, abrasions, and focused stress points that might be generated by the drainage aggregates or construction machinery. By serving as a protective barrier, it not only greatly increases the time the geomembrane will last but also improves the overall robustness of the lining system.
The leachate collection layer's main function is to efficiently control and convey the liquid that builds up on top of the liner system.
Typically, this layer is a gravel layer, geonet networks, or prefabricated geocomposite drainage materials that are capable of high flow rates in-plane. This layer makes sure the leachate is funneled to the nearby collector pipes or sump areas for a secure disposal. By mitigating the increase in water pressure, it not only aids in the protection of the geomembrane from overloading but also guarantees the containment system’s performance remains consistent over a long time.
The filter or overburden layer acts as the last protective and operational layer in the system, with its characteristics being dependent on the type of usage.
For landfill systems, this might be the waste materials covered with soil layers for protection, whereas in the case of engineering uses, this can be ballast, structural fill, or soil for plants. In addition to helping the surface loads to be spread out evenly, this layer prevents the smallest particles from clogging the drainage below. It also functions as a protective environmental layer and, in some cases, provides for the growth of plants or the use of the surface for rehabilitation.
Installing and welding the seams of the HDPE geomembrane is a distinct craft where the emphasis on quality assurance is very high. The overall strength of the liner is dependent on the strength of its seams.
This is how most welding gets done these days. A hot wedge is used to melt the surfaces to be joined, which are then immediately pressed together by dual rollers, thus forming two parallel, air-channeled seams. The air channel serves for non-destructive testing.
This method is primarily for detailed tasks, patches, and fixing. A narrow strip of melted HDPE polymer is laid down on the seam to bind the layers.
Each welder has to be certified on the exact equipment and materials before starting work on a project.
Daily seam samples from the field are cut and subjected to shear and peel strength tests in a laboratory to confirm they meet or exceed the strength of the parent sheet.
All fusion seams are 100% tested. Air Pressure Testing (for dual-track seams) is used to verify the sealing of the air channel. Vacuum Box Testing and Spark Testing are employed for extrusion welds and patches to reveal any pinholes.
HDPE has a high coefficient of thermal expansion. Designers must account for this by allowing slack during installation on cool mornings, using expansion folds or “belly” in long runs, and ensuring proper anchorage in perimeter trenches to manage stresses.
A smooth, compacted subgrade, combined with a cushion geotextile, is the first line of defense. The use of rounded drainage aggregate (not crushed, angular stone) above the liner is also critical.
Modern resin formulations, carbon black dispersion, and antioxidant packages are designed to provide a service life well in excess of 100 years when properly protected from exposure. Exposed applications require specially formulated, high-carbon black content membranes.
The flagship application. Landfill Base Liners & Caps (single and composite), Tank Impoundments, and Wastewater Lagoon liners rely on HDPE’s chemical resistance and impermeability.
Heap Leach Pads for gold/copper extraction, Tailings Impoundments, and Process Solution Ponds demand HDPE’s resistance to acidic and cyanide-laden fluids.

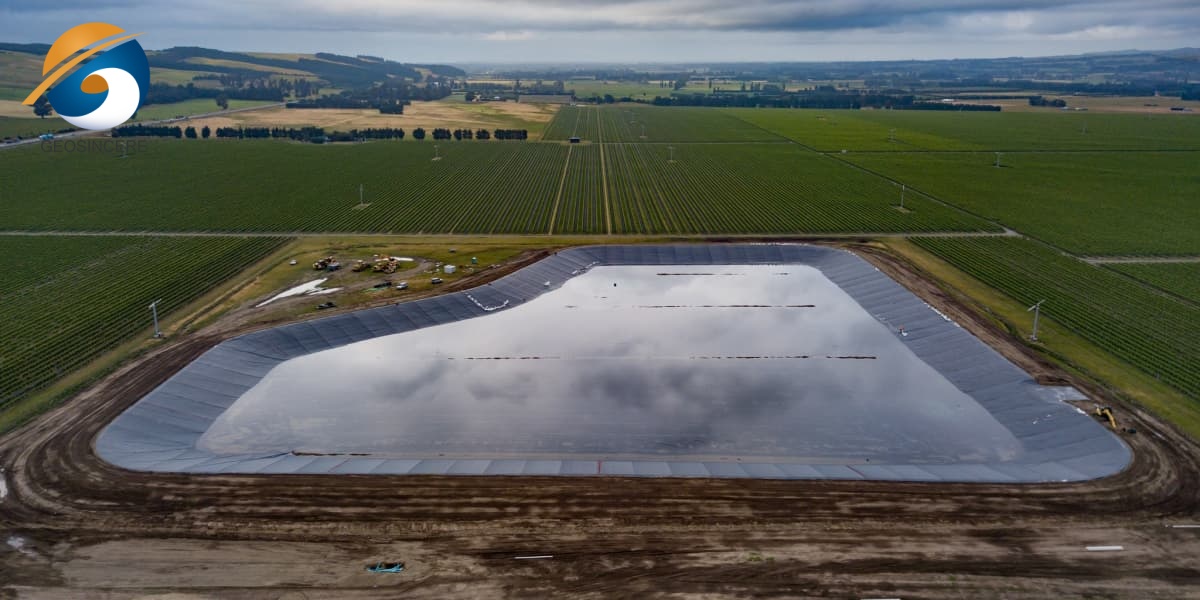

Lining Potable Water Reservoirs, Agricultural Irrigation Canals and Ponds, and Decorative Lakes to prevent seepage losses in an era of water scarcity.
Lining Shrimp and Fish Ponds to create a controlled, hygienic environment, prevent water loss, and separate farm operations from natural groundwater.
Secondary Containment for fuel tanks and chemical plants, Tunnel and Underground Waterproofing, and Vapor Barriers beneath building slabs.
The after-effects of a liner failure are not only the cleanup costs that may reach tens of millions, but regulatory fines, legal liabilities, environmental harms, and reputational damages that can hardly be repaired.
A properly specified and installed HDPE geomembrane system is the most cost-effective form of environmental and financial insurance available. It enables industries to operate responsibly, communities to protect their water resources, and societies to manage waste in a safe, contained manner. It is a foundational technology for sustainable economic development.
The HDPE geo membrane is a testament to materials engineering meeting the most severe environmental challenges. It is not a commodity but a performance-proven system whose reliability is built upon rigorous science, exacting manufacturing standards, and a culture of precision in installation. When the mandate is zero leakage, when the stakes involve protecting public health and vital ecosystems, the global engineering community turns to HDPE. For project owners, consultants, and regulators, specifying a certified, high-quality HDPE geomembrane with an accredited installation crew is not merely a best practice—it is a fundamental duty. It represents a commitment to performance, longevity, and planetary stewardship that will endure for generations.
Demand nothing less than the gold standard for your containment challenges. Our HDPE geomembranes are manufactured from premium resins, backed by complete certification suites (including GRI-GM13/19 standards), and supported by a global network of certified installation partners. Contact us Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) for a detailed technical consultation, project-specific CQA plans, and to secure the impermeable barrier your project requires.
