When looking for dependable containment solutions for environmental protection, water conservation, and other industrial uses, geomembrane made of HDPE remains the leading industry benchmark without a doubt.
Geomembrane in HDPE is extremely durable, chemically resistant, and cost-effective. No matter if you are building a landfill, mining operation, pond for aquaculture, or a water reservoir, it is vital to have a thorough knowledge of HDPE geomembranes as your project’s long-term success depends on it.
This article explains all the aspects you need to know—starting from the composition and main features to the actual uses, installation best practices, and selection of the right supplier.
Basically, HDPE geomembrane is a top-notch synthetic liner made from high-density polyethylene resin. It contains about 97.5% HDPE and 2.5% carbon black, in addition to antioxidants and UV stabilizers. This mixture produces such a molecular structure that is extremely dense, strong, and capable of withstanding environmental deterioration.
Different thicknesses are available from 0.2 mm to 3.0 mm, and roll widths can be up to 8 meters. The standard colors are black, white, and green. HDPE geomembranes are capable of operating in a temperature range of -70°C to 70°C and have a lifespan of 50 to 70 years which is a long-term performance level that few other containment materials can match.
Globally, HDPE accounts for around 95% of all geomembrane usage. Here are the reasons.
HDPE geomembranes are capable of withstanding acids, alkalis, salts, oils, and more than 80 different chemical media. Therefore, they are perfectly suitable for containing hazardous waste, mining leach pads, and industrial wastewater treatment.
Being impermeable to 10 ⁻¹² cm/s or less, HDPE offers 99.9% containment efficiency—this is way above ordinary waterproofing materials.
The tensile strength of 20-40 kN/m along with puncture resistance of 400-1,200 N (ASTM D4833) enables HDPE liners to handle great physical stresses and, at the same time, deter plant roots.
Thanks to carbon black and UV stabilizers, HDPE retains its shape and functionality even after exposure to sunlight and weathering, ensuring dependable operation in quite severe situations like from -20°C to very high altitudes.
Per mm thickness, HDPE is the cheapest industrial geomembrane. In 2026, the prices usually vary between $0.50 and $3.50 per square meter (ex-works), with bulk orders by over 50,000 m² ending up with 15–30% volume discounts.
When exposed to the right conditions, HDPE geomembranes can be functional for 50–70 years. If they are buried, their lifespan may even be as long as 40–100 years, which results in not only lower lifecycle costs but also less environmental liability.
HDPE is a non-toxic material that fulfills the environmental standards set worldwide. Hence, it can also be employed in agriculture, aquaculture, and drinking water reservoirs.
HDPE is the most popular type of geomembrane while LLDPE (Linear Low-Density Polyethylene) is more flexible. HDPE has better puncture resistance and tensile strength but is less flexible and must be welded on-site. LLDPE, on the other hand, can be pre-fabricated, folded and thus, the time required for field installation is reduced. However, for most large-scale containment like landfills, mining tailings, reservoirs, HDPE is the one that will usually be chosen because of its superior chemical resistance and mechanical strength.
HDPE geomembranes are used as low-permeability liners in many industry segments.
- Environmental sanitation & waste management: Landfill base liners and cap covers are physical barriers that prevent landfill leachate from entering into soil and water thereby stopping contamination of these media.
- Mining & tailings management: Heap leach pads, tailings storage facilities, and solution ponds. For example: a potash mine in Saskatchewan used HDPE geomembrane with special formulation that was able to withstand fluid temperatures ranging from -20°C to 100°C.

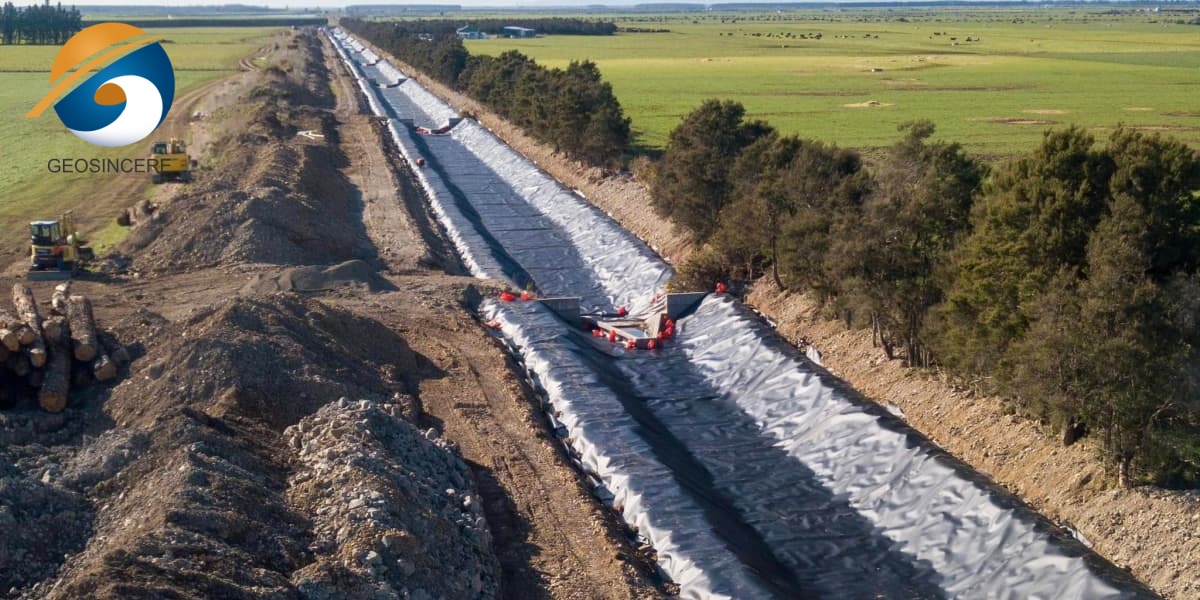

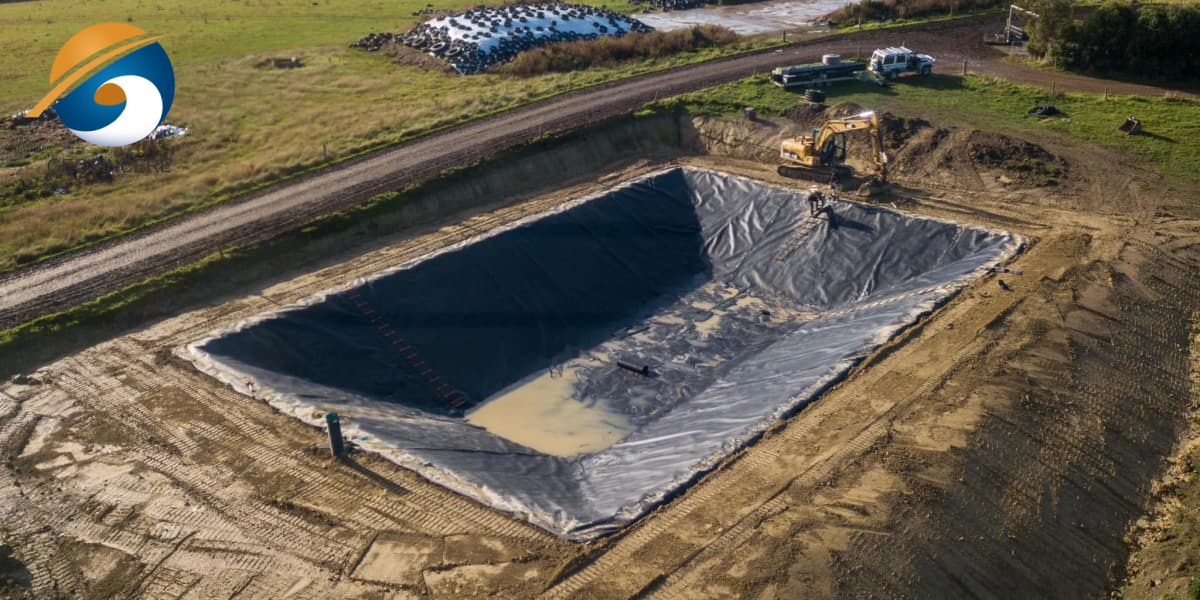

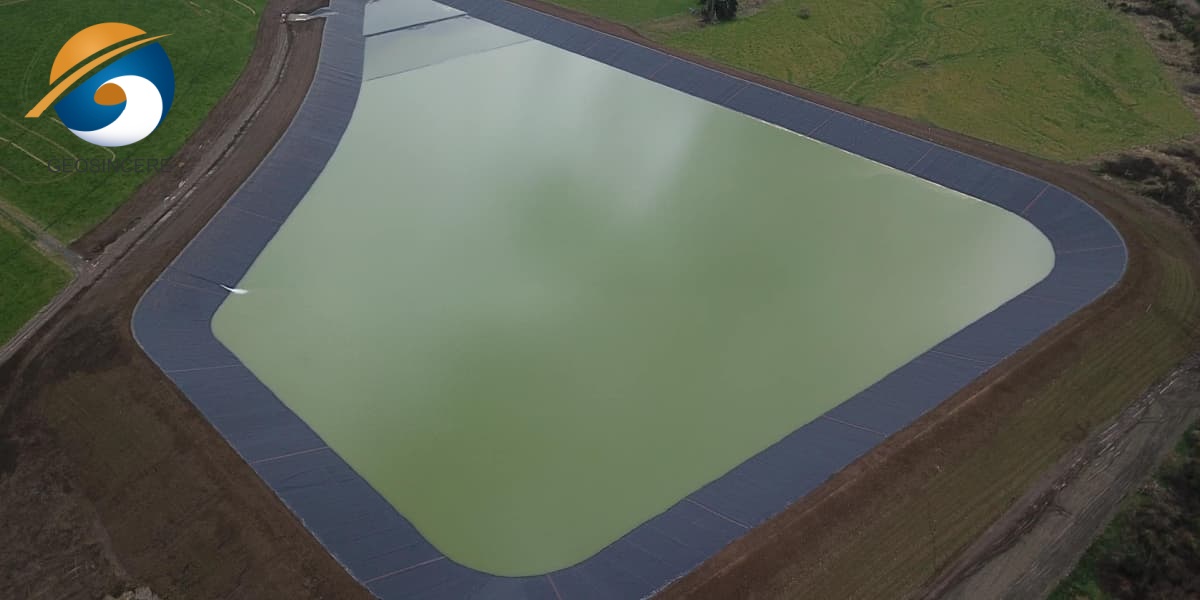

- Water conservation & hydraulic works: Drinking water reservoirs, irrigation canals, wastewater lagoons, and aquaculture ponds.
- Municipal engineering: Building basements, underground garages, dock engineering, and vertical groundwater control screens.
- Agriculture & aquaculture: Fish and shrimp farming liners preserve water quality and decrease water usage.
- Secondary containment: Fuel storage tanks and chemical manufacturing facilities.
It is equally critical to install the product correctly as it is to choose the right product. Inadequate installation of even the best-quality HDPE geomembrane will result in inadequate performance. These are the fundamental steps and recommended practices for achieving excellent HDPE geomembrane installation.
The subsoil on which the geomembrane is laid must be consistent and devoid of sharp objects that may puncture the liner. All rocks, roots, and other debris should be removed, and the ground should be compressed to make a stable, even surface. Visual inspections are a must every day, especially in the construction area that is planned to be lined that day.
It is a good practice to only spread out that amount of geomembrane which can be anchored and welded within the day. This practice is a good way to avoid liner exposure to weather and site condition unnecessarily. Sandbags or their equivalents should be used during the installation of the geomembrane to keep it in position. No vehicular traffic should cross the exposed geomembrane; if ground equipment is required, only approved low-ground-speed vehicles should be used.
Thermal fusion welding methods such as dual-track hot wedge welding and extrusion welding are used to join HDPE geomembranes. Welding should be done only when the surface is clean and dry and the weather is favorable. Integrity testing of the seams through air channel testing and vacuum testing should be done as part of the quality control process.
At a bare minimum, HDPE geomembranes should adhere to GRI GM13 requirements. Follow-up checks should be done on quality control certificates and test results to ensure that the materials provided are in line with project standards. Visual checks should be carried out to ensure that the liner is new and without defects such as holes, blisters, or contaminants.
Field quality control covers seam nondestructive testing, destructive seam sampling for lab testing, and leakage detection surveys. Such exercises guarantee that the installed geomembrane system complies with design and regulatory specifications.
The worldwide demand for HDPE geomembrane is exhibiting robust growth. As per HNY Research estimates, the market size is expected to increase from $1.52 billion USD in 2025 to $2.66 billion by 2031, growing at a CAGR of 9.74%. The major factors fueling the market are more stringent environmental legislation, the development of mining activities, the construction of green buildings, infrastructure development in emerging economies (especially Asia-Pacific), and water-saving projects.
Well-known manufacturers in the industry are Solmax, AGRU, GSE Environmental, NAUE, Atarfil, Officine Maccaferri, and Layfield.
Supply selection plays a crucial aspect in determining the finished product. Below are some of the essential points to need keep in mind:
- Raw Material Quality: Virgin HDPE resin with density in the range of 0.94 to 0.96 g/cm³ and 2 - 3 % carbon black content for UV stabilization should be the materials used by the supplier.
- Manufacturing Experience and Production Capacity: Manufacturer with at least 5 years experience in geomembrane product manufacturing would be preferred.
- Compliance with International Standards: Product certification of GRI-GM13, ASTM, ISO 9001, and CE must be ensured.
Thickness Range and Customization Ability: Besides offering thicknesses ranging from 0.5 mm to 3.0 mm a good supplier would provide roll widths up to 8 meters.
- Technical Support Capability: Suppliers that offer installation guidance, quality control support, and after-sales service should be considered.
- Global Project References: Proved capability may be assessed by references of similar projects to yours that have been completed.
- Export Experience and Price-Performance Balance: Having export experience usually means that the supplier is capable of maintaining logistics and delivering at competitive prices.
HDPE geomembranes are well-known for their chemical resistance, very low permeability, strong mechanical strength, UV durability, cost-effectiveness, and long lifespan of several decades. Due to environmental regulations being made more stringent and infrastructure investment in increasing, HDPE continues to be the global standard in containment lining systems.
When you make the right choice for your geomembrane today, you will have fewer issues in the future, lower lifecycle costs, and security.
As every project is quite different, our Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) team of geosynthetics experts is at your disposal to assist you in selecting the optimal HDPE geomembrane thickness, specifications, and installation approach.
- High quality virgin HDPE resin fully compliant with GRI-GM13
- Thickness range from 0.5 to 3.0 mm, roll widths up to 8 m
- ISO 9001 and CE certified
- Factory-direct pricing at competitive rates
- Technical support during design and installation
- Experience in global shipping and proven export capability
Request a free quote now. Share us your project details - thickness, area, application type, and delivery destination. A tailored proposal will be sent to you within 24 hours.Choose HDPE geomembranes due to their proven performance. Get in touch with us right away and be a building expert.
