When it comes to geosynthetics, polyethylene is almost the first thing that comes to mind when "geomembrane" is mentioned. HDPE (High-Density Polyethylene) has been at the forefront of the production of landfill liners and mining liners for years thereby benefiting from its great chemical resistance and very strong tensile strength. Nevertheless, polyethylene is a big family, where a member named Low-Density Polyethylene (LDPE) can give engineering a completely different set of options.
HDPE is the rigid member of the family, whereas GEOSINCERE Geosynthetics LDPE geomembrane liner, due to their flexibility, elongation, and conformability, become a great choice for those occasions when engineering demands very complex situations. We cover the properties, making, and perfect use of LDPE geomembranes, which differentiate them from the linear low-density(LLDPE) and high-density members of the family.
LDPE's primary feature is its highly branched molecular structure. The molecular chain branching makes it less crystallized giving LDPE a lower density (< 0.930 g/cm³) and more flexible character, unlike the linear HDPE and LLDPE structures. Therefore, it makes a geomembrane that apart from being "stronger", in fact, is "tougher" under certain specific dynamic conditions.
The use of LDPE geomembrane requires a thorough understanding of the polymer chain. LDPE is carried out by high-pressure free radical polymerization. In this way, both long and short chain branches are formed at the same time, which molecular chains prevents them from tightly packing into a crystalline lattice. Mechanical Consequences of Branching:
LDPE geomembranes can stretch drastically before breaking. HDPE in contrast may break only at elongations of 500-700%, whereas with LDPE and LLDPE it is possible even to exceed 800% for elongation at break -5. This is why the liner remains intact even when settlement cracks or unevenness in the terrain are stretched.
The flexural modulus of LDPE is much lower when compared with HDPE. Therefore, this polymer is softer and more flexible. Unlike a rigid sheet, it can be laid on subgrade contours as a heavy fabric drapes does.
LDPE, in general, exhibits a lower tensile strength than HDPE at a constant thickness -1. This is why LDPE liners are either specified at slightly increased thicknesses or are used in applications where hydrostatic pressure is low.
There is a technical mistake in the industry when "LDPE" and "LLDPE" are referred to as one and the same. Linear Low-Density Polyethylene (LLDPE) is a totally different copolymer. As brought out by industry standards, LLDPE has 0.939 g/cm³ or less density, but it is linear with short branches which gives higher tensile strength than LDPE without compromising elongation.
So, where does pure LDPE fit? True LDPE is selected for applications requiring the highest degree of "dead soft" flexibility. It is often used for:
- Capping layers: Where the liner must float or move without puncturing.
- Temporary liners: Where ease of removal and handling is paramount.
- Complex geometries: Around pipes, manholes, and concrete structures where stiff HDPE would be difficult to detail.
Modern manufacturing often utilizes blends, but a pure LDPE geomembrane remains the king of conformability-6.

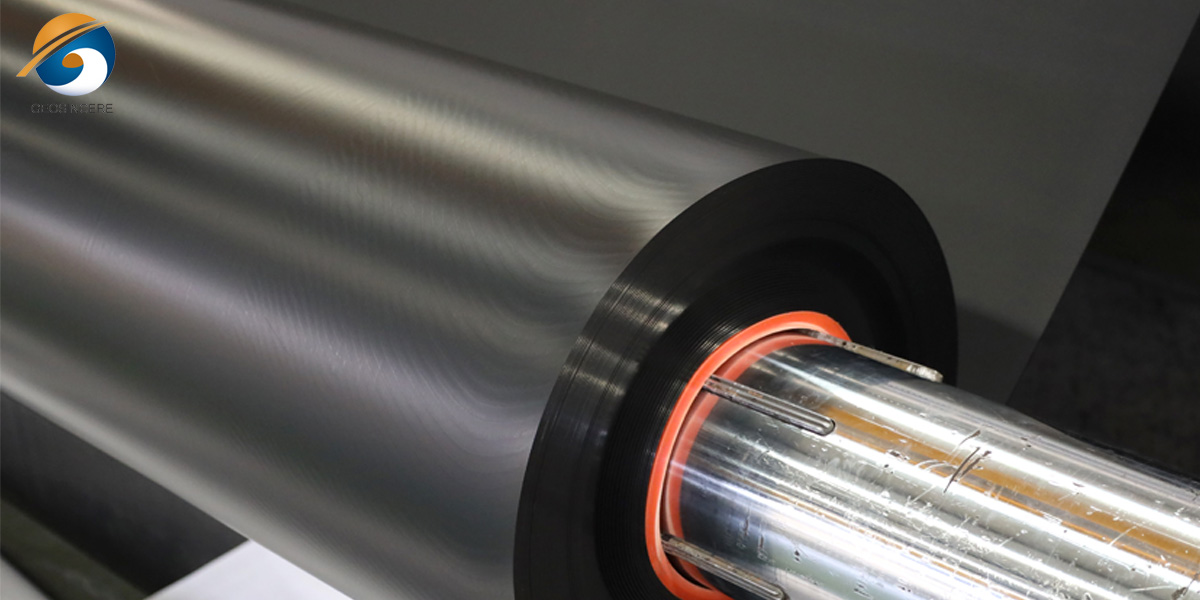

The production of an LDPE geomembrane typically follows the "blown film" or "flat die" extrusion process. Resin (LDPE pellets) is melted and extruded through a die. In the case of blown film, air inflates the molten plastic into a bubble, which cools and collapses before being wound into rolls.
Because LDPE is sensitive to oxidation and UV radiation, raw resin is rarely used alone. A standard formulation includes:
- Carbon Black (2-3%): Essential for UV stabilization. The dispersion of carbon black must be graded to ensure no "fish eyes" (agglomerates) create weak spots.
- Antioxidants: To prevent thermal degradation during the extrusion process.
- Processing Aids: To ensure the melt flow index (MFI) is stable. Typical LDPE grades for geomembranes have an MFI ranging from 0.2 to 0.75 g/10min to ensure good bubble stability during manufacturing.

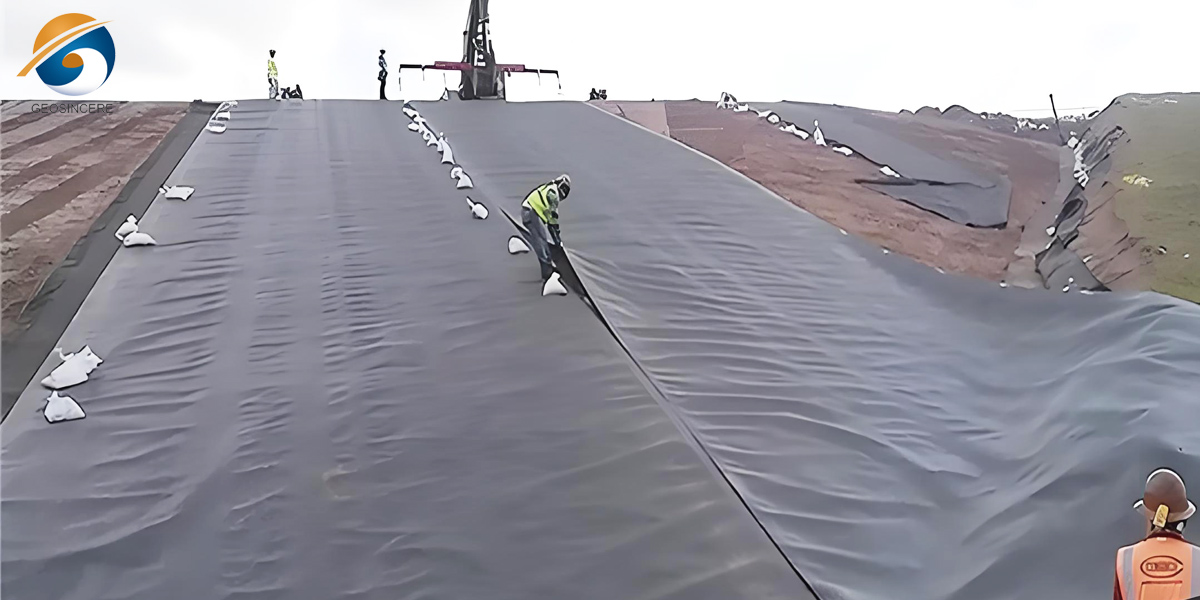

Installing an LDPE geomembrane requires a different skill set than HDPE. Because LDPE has a lower melting point and faster melt flow, welding parameters must be carefully controlled.
This is the most common method for long seams. The wedge melts the surfaces, and pressure rollers fuse them. For LDPE, the temperature is generally lower than for HDPE to prevent burn-through.
Used for patches and complex details. A bead of molten LDPE resin is laid over the seam. Because LDPE is so flexible, extrusion welds on LDPE handle stress better than on rigid materials.
While rare for structural seams, adhesives can be used for LDPE, though thermal fusion is always preferred for strength.
Due to its high thermal expansion coefficient, LDPE can expand significantly in heat. Installers must lay the material "slack" or during cooler temperatures to prevent wrinkles that can create stress cracks later.
LDPE geomembranes are chosen for projects where "plasticity" and "strain tolerance" are the primary design criteria.

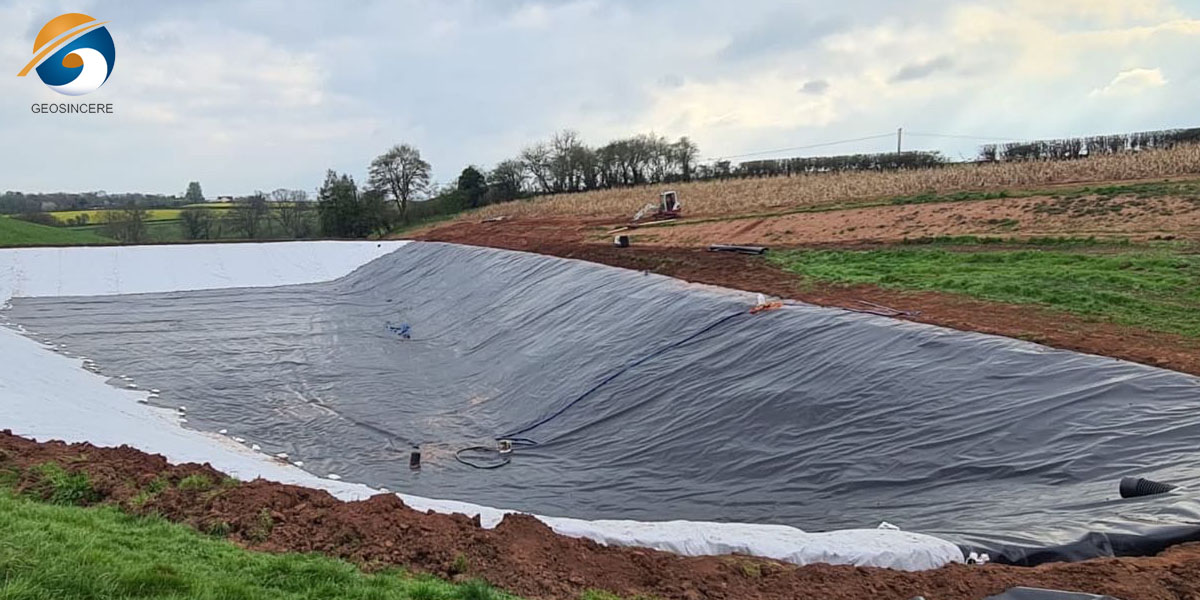

While LLDPE is common, LDPE is favored for small, irregularly shaped farm ponds. Its flexibility allows it to conform to hand-dug contours without requiring perfectly smoothed subgrades. It creates a reliable barrier for water conservation in irrigation.
In tunnel boring, the concrete segments move and settle. A rigid liner could crack under the strain. LDPE geomembranes act as a waterproofing membrane that bridges potential cracks in the concrete structure. Their high elongation capacity ensures the tunnel remains dry even under seismic activity.
LDPE is lighter and more flexible than HDPE, making it ideal for floating covers on potable water reservoirs or waste treatment lagoons. It moves with the water level, wind, and ice without cracking. The material's low modulus reduces stress on anchor trenches.
For small chemical tanks or fuel storage, LDPE liners (often reinforced) provide a "bathtub" style containment that is easy to prefabricate off-site. The ability to heat weld LDPE in a factory setting allows for large, prefabricated panels (up to 10,000 sq meters) to be folded and shipped, reducing field seaming.
No material is perfect. The primary limitation of LDPE is stress cracking susceptibility relative to HDPE, specifically SCG . While modern LDPE formulations are vastly improved, under constant high tensile stress in aggressive chemical environments, HDPE remains superior.
Furthermore, LDPE has lower resistance to high temperatures. While HDPE can handle short-term exposure to 80°C, LDPE begins to soften around 60-70°C. It is also less resistant to penetration from sharp objects (e.g., rocks) compared to a thicker or harder liner.
However, regarding longevity, LDPE geomembranes containing 2% carbon black have a proven service life of over 20 years in exposed applications, and much longer when buried or covered by water.
Testing an LDPE geomembrane follows similar protocols to HDPE, but with different pass/fail criteria.
This measures the break strength and elongation. LDPE must demonstrate elongation typically >600% to pass.
LDPE performs well here because its flexibility distributes point loads, preventing easy tear propagation.
Recent studies, including those examining PFAS solutions, show that polyethylene geomembranes (including LDPE) are generally resistant to a wide range of chemicals, though antioxidant depletion is a long-term consideration in highly reactive leachates.
The LDPE geomembrane is a testament to the engineering principle that "flexibility is strength." While HDPE is the material of choice for steep slopes and aggressive mining leach pads, LDPE excels in dynamic, complex, or low-stress environments.
For the specifier or engineer, choosing LDPE over HDPE is a deliberate design choice that prioritizes:
- Conformability over rigidity.
- Elongation over brute tensile force
- Ease of installation in geometrically complex areas.
Whether lining a remote agricultural canal or waterproofing a critical urban tunnel, the Low-Density Polyethylene geomembrane remains an indispensable, high-performance tool in civil and environmental engineering. By understanding its unique polymeric structure, we can deploy it not as a "cheap alternative," but as a specialized solution for the most demanding flexible containment challenges.
