In the field of geotechnical engineering and environmental protection, very few materials can match the durability, chemical resistance, and impermeability characteristics of high-density polyethylene (HDPE) geomembranes. Out of all the different thicknesses available, the 60-mil (1.5 mm) geomembrane has become somewhat of a benchmark in the industry given its unparalleled puncture resistance, excellent long-term stability, and outstanding barrier performance. In a way, as “geomembrana” stands for the Spanish and Italian terms, the English technical publications have kept the term “60 mils geomembrane”, which basically means a robust polymeric liner mainly utilized in mining, landfill lining, wastewater treatment, and secondary containment.
This paper sheds light on the technical features, production methods, mechanical characteristics, installation protocols, quality assurance techniques, and the practical uses of GEOSINCERE Geosynthetics 60 mil HDPE geomembrane. Understanding why this particular thickness is more effective than thinner ones (e.g., 30 or 40 mil) when it comes to resisting harsh environments can help engineers and project managers make well-informed choices that would not only align with the budget but also the required performance and government regulations.
The word “mil” denotes a length unit that is one-thousandth part of an inch (0.001 inch). Hence, a 60 mil geomembrane refers to a thickness of 0.060 inches, which is almost 1.5 millimeters (1.524 mm to be exact). Here are some comparisons to get a clear idea:
This thickness is sufficiently strong for light-duty applications such as secondary containment and canals.
Suitable for general purpose uses like pond liners or as limited landfill cover.
This level of durability is required for primary landfill liners, mining heap leach pads, and hazardous waste.
Reserved for the most demanding applications such as chemical containment and nuclear waste.
The difference between 40 mil and 60 mil is a 50% increment in thickness, but the enhancements in the mechanical properties especially the puncture resistance, tear strength, and friction angle are not in direct proportion. In fact, 60 mil is the minimum thickness often mandated by the regulatory authorities for high-risk applications (for instance, the landfill liner requirements under US EPA Subtitle D).
The fact that a geomembrane is 60-mil does not automatically guarantee its superiority across the board. The type of polymer used has a significant influence on the flexibility, chemical compatibility, and UV resistance of the resulting product.
- Characteristics: It has very high resistance to chemicals, does not allow gases or liquids to pass through easily, is stable under UV light, has very strong tensile strength (> 30 kN/m), but on the other hand, it is quite rigid.
- Landfills
- Mining activities
- Disposal of hazardous waste
- ASTM Standard: GRI GM13 (for HDPE smooth)
- Characteristic: It is a lot more pliable than HDPE, and also it is easier to conform to an irregular subgrade, however, the chemical resistance is lower than that of HDPE, the permeability is at a similar level.
- Ideal for: Floating covers, ponds, and locations that require a curved surface.
- Characteristics: The addition of a scrim confers a much higher tear resistance; this kind of product is typically used when the sheet faces a high risk of puncture.
A 60 mil HDPE geomembrane usually has a density of 0.94 g/cm³, the carbon black used to protect it from UV is around 2–3%, and the melt flow index (MFI) is less than 1.0 g/10 min which is important for ensuring it remains durable over time.

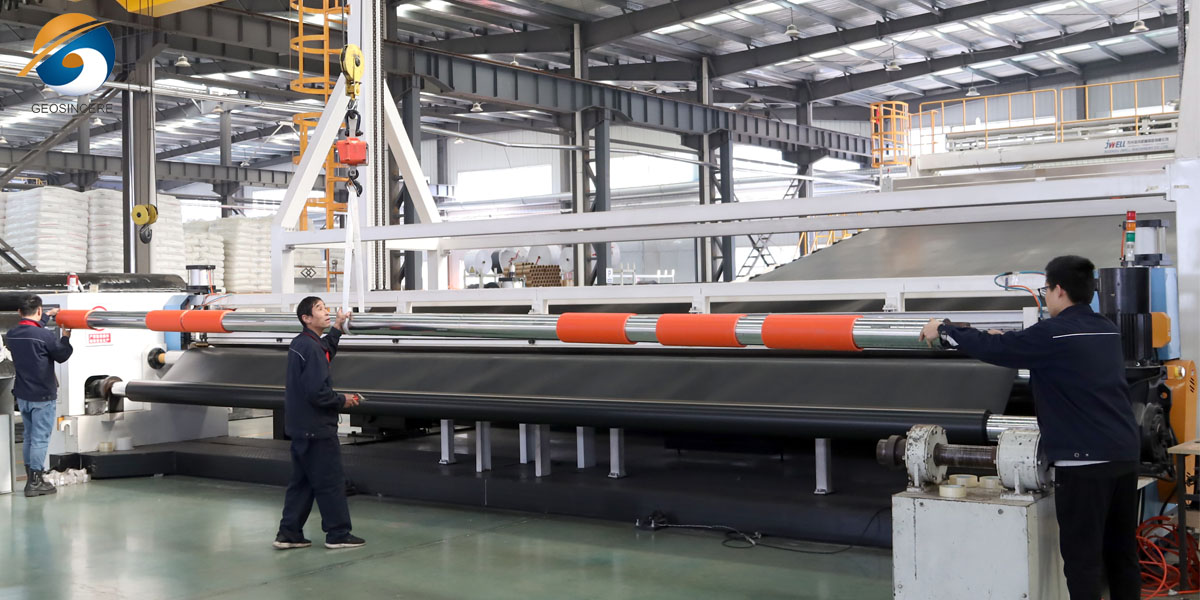

60-mil geomembranes are produced via flat sheet extrusion or calendering. After extrusion, the surface can be modified:
- Smooth: Standard for subgrade or covered applications.
- Textured (single or double-sided): Created by melting polyethylene particles onto the surface. The texture increases interface friction angle with soil or geotextiles (from 18°–22° up to 30°–35°), crucial for slope stability on steep grades (> 3H:1V). However, texture reduces puncture resistance by 10–15% compared to smooth sheets of the same thickness.
For 60-mil textured geomembranes, asperity height must be ≥ 0.25 mm (GRI GM12). Double-sided texturing is common in landfill bottom liners over compacted clay liners (CCL).
|
Property |
Test Method |
Minimum Value (60 mil) |
|
Tensile Strength (yield) |
ASTM D6693 |
29 kN/m |
|
Tensile Strength (break) |
ASTM D6693 |
48 kN/m |
|
Elongation at yield |
ASTM D6693 |
12% |
|
Elongation at break |
ASTM D6693 |
700% |
|
Tear Resistance |
ASTM D1004 |
187 N |
|
Puncture Resistance |
ASTM D4833 |
750 N |
|
Carbon Black Content |
ASTM D1603 |
2.0–3.0% |
|
Oxidative Induction Time (OIT) |
ASTM D3895 |
100 min (standard) |
|
Permeability coefficient |
ASTM E96 |
1×10⁻¹⁴ cm/s |
These properties explain why 60 mil is specified where subgrade stones, root penetration, or heavy equipment traffic is anticipated.
A 60-mil membrane resists punctures from 20 mm angular stone under 50 psi contact pressure, while a 40 mil liner would fail under the same conditions. In landfill base construction, regulations require a minimum thickness of 60 mil over a 12-inch drainage stone layer.
HDPE geomembranes degrade primarily via UV exposure and chemical oxidation. A 60-mil sheet has a service life exceeding 100 years for buried applications (according to EPA/NIST studies), thanks to the added thickness acting as a sacrificial layer against oxidative degradation. The antioxidant package (e.g., hindered amine light stabilizers, HALS) lasts longer because diffusion through the polymer matrix is slower at greater thickness.
Even if a 60-mil geomembrane develops a small hole (e.g., during installation), the leakage rate through a circular defect is proportional to the thickness squared (assuming laminar flow through the hole). Doubling thickness from 30 to 60 mil reduces leakage by a factor of 4 for the same defect size.
Environmental stress cracking (ESC) is a failure mode where tensile stress and chemical exposure cause brittle fracture. Thicker sections (60 mil vs. 30 mil) exhibit higher resistance to ESC due to reduced chain mobility at the crack tip. The Notched Constant Tensile Load (NCTL) test (ASTM D5397) shows 60-mil HDPE lasts > 500 hours vs. 100 hours for 30 mil under identical conditions.
Installing a 60-mil geomembrane requires specialized equipment and trained crews due to its weight (approx. 0.95 kg/m² for smooth HDPE) and stiffness.
Preferred for seams in flat or gently sloping areas. Parameters: 400–450°C, speed 2–3 m/min. Peel and shear testing must be performed every 500 linear meters.
Used for patches, around penetrations (pipes, sumps), and in areas inaccessible to wedge welders. Requires a filler rod of identical resin.
Air channel testing (ASTM D7176) for double-track seams; vacuum box (ASTM D5643) for single-track seams; destructive shear/peel (ASTM D6392) – peel strength must exceed 80% of parent material.
The subgrade must be free of sharp objects – stones > 12 mm must be removed or covered with a geotextile cushion (min. 6 oz/yd² nonwoven). A 60-mil liner can bridge minor depressions (up to 2 cm under 1 meter pressure), but any void > 2 cm in depth increases puncture risk under traffic.
For exposed geomembranes (e.g., floating covers or reservoir liners), 60-mil HDPE may require anchorage trenches (0.5 m deep, 0.3 m wide) filled with concrete or compacted soil. Wind uplift forces on a 60-mil sheet are lower than on lighter membranes because of increased mass, but velocities > 80 km/h still pose a risk.
Manufacturers must provide an MQC (Manufacturer’s Quality Control) report, and an independent CQA (Construction Quality Assurance) inspector must verify:
Thickness (ASTM D5994) – 60 mil ± 10% (i.e., 54–66 mil). Average 5 measurements per 1,000 m².
Density (ASTM D1505) – 0.940–0.948 g/cm³ for HDPE.
Carbon black dispersion (ASTM D5596) – Category 1 or 2 only.
Tensile properties (ASTM D6693) – Yield strength > 29 kN/m.
Tear resistance (ASTM D1004) – > 187 N.
For seam testing: 250 mm/min crosshead speed, accept if failure occurs in parent material (not along weld). Peel test failure load must be > 80% of tensile yield.

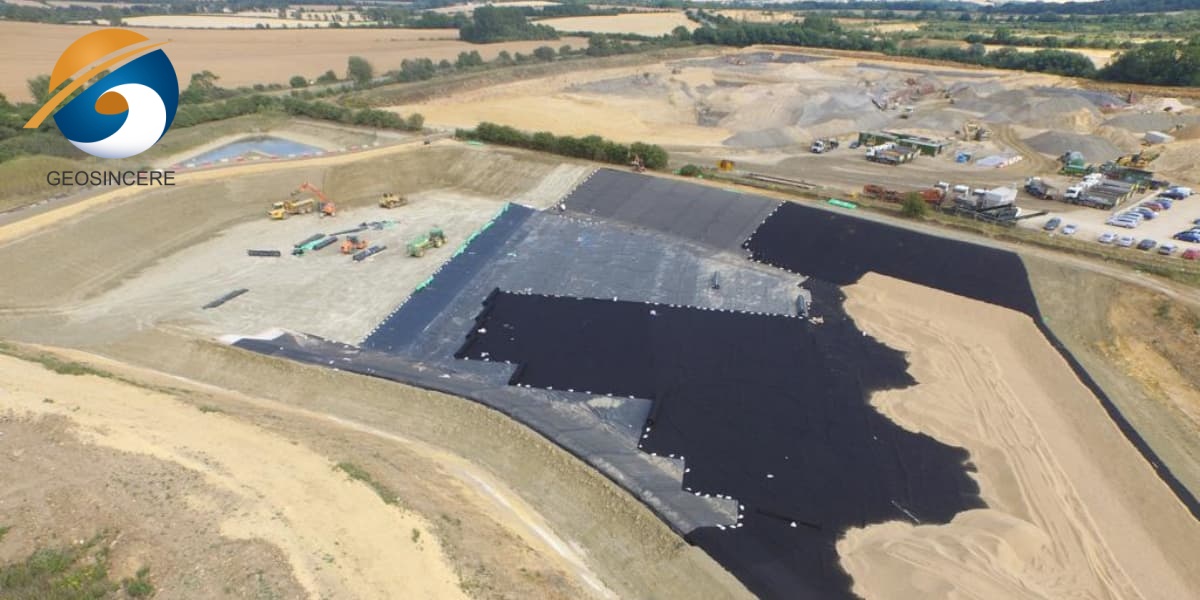

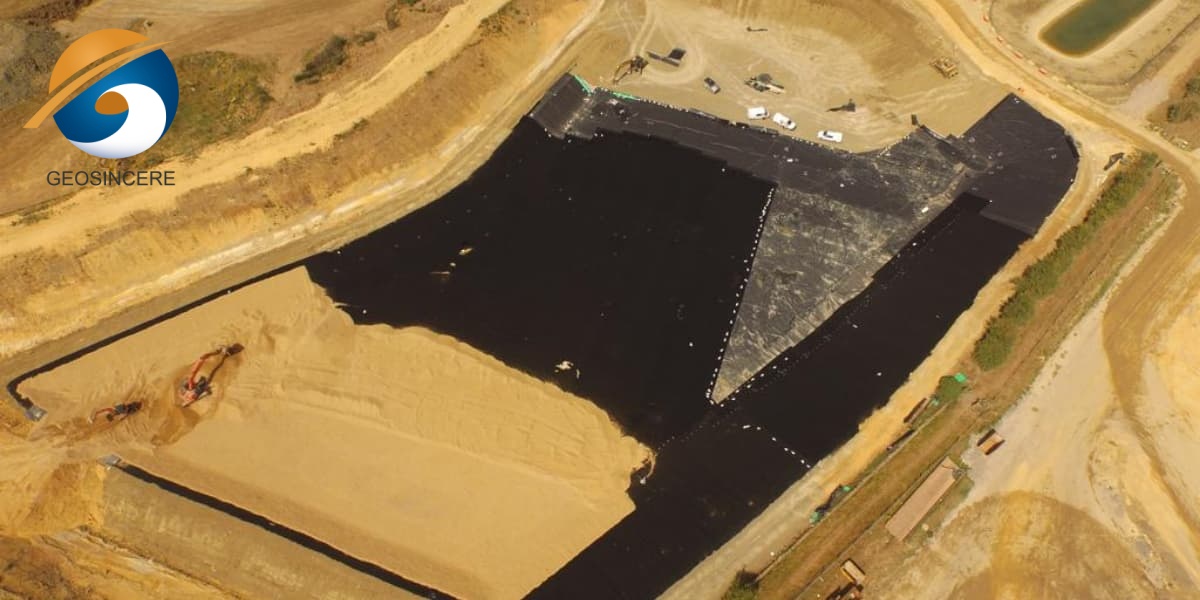

US EPA Subtitle D requires a composite liner: 60-mil (minimum) HDPE geomembrane over 24 inches of compacted clay with permeability ≤ 1×10⁻⁷ cm/s. The 60-mil thickness prevents puncture during leachate collection stone placement and compaction.
For gold and copper extraction using cyanide or sulfuric acid, 60-mil HDPE resists chemical attack and abrasion from ore loading (crusher run, 2–4 inch rock). Double-sided texturing improves friction on slopes up to 2H:1V. Puncture from tracked dozers spreading ore is mitigated by the 60 mil thickness.
Above-ground storage tanks (AST) holding oil, diesel, or chemicals must have secondary containment of 60-mil minimum (40 CFR 112). Dike floors and berms lined with 60-mil HDPE ensure zero leakage for 20+ years.

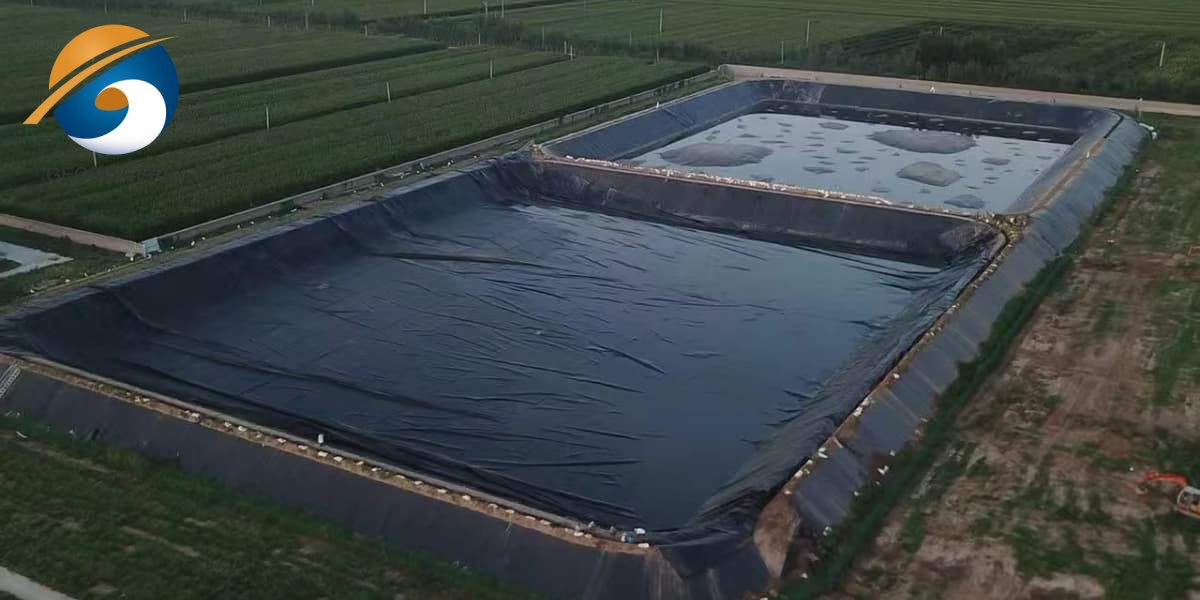

While 30 or 40 mil is common for fish ponds, large drinking water reservoirs in rocky terrain (e.g., Andean regions) specify 60-mil LLDPE for its flexibility and puncture resistance against glacial till.
Anaerobic digesters and manure lagoons use 60-mil HDPE floating covers for methane collection. Thickness provides ballast against wind and durability against UV and hydrogen sulfide corrosion.
As of 2025, raw 60-mil HDPE geomembrane costs approximately $2.50–$4.00 per square meter (depending on texture, resin quality, and volume). Installation adds $1.50–$3.00/m². Compare to 40 mil at $1.80–$2.80/m². For a 1-hectare landfill liner (10,000 m²), upgrading from 40 to 60 mil adds $7,000–$12,000 in material cost – often less than 2% of total construction cost – yet doubles puncture resistance and extends design life by 30+ years.
Failure to use 60 mil where required (e.g., mining leach pad with angular ore) leads to leakage, environmental fines (up to $50,000/day under Clean Water Act), and remediation costs exceeding $500,000. Thus, 60 mil is not merely an engineering choice but a risk management imperative.
Despite its advantages, 60-mil geomembranes have limitations:
HDPE becomes brittle below 5°C; cold weather installation requires pre-heating or extrusion welding with hot air guns.
Linear expansion coefficient = 1.5×10⁻⁴ mm/(mm·°C); a 100 m panel expands 15 cm over a 40°C temperature swing. Wrinkles form if not tensioned properly.
Thicker sheets require more heat input; improper welding creates voids or burn-through.
60-mil HDPE is less flexible than 40-mil LLDPE for pond covers with changing liquid levels.
For applications requiring extreme chemical resistance (e.g., concentrated sulfuric acid, > 98%), a specialty liner like PVDF or EPDM may outperform even 60-mil HDPE.
At the Cerro Verde copper-molybdenum mine (Arequipa, Peru), engineers specified a 60-mil textured HDPE geomembrane for a 120-hectare leach pad at 3,000 meters elevation. The pad receives crushed ore with particle sizes up to 50 mm (sharp granite). The liner was placed over a 300 mm drainage layer of 25 mm washed stone with a nonwoven geotextile cushion (600 g/m²). After 8 years of operation, leak detection underdrains recorded zero detectable seepage of sulfuric acid solution (pH 1.5). The 60-mil thickness survived three cycles of ore stacking (dozer traffic) and stripping without measurable puncture damage – a performance impossible with 40 mil liners used in an adjacent earlier phase that failed within 3 years.
Combining 50 mil HDPE with a polyester scrim achieves 60-mil puncture resistance with less polymer. However, creep behavior remains under study.
60-mil HDPE with a coextruded carbon black layer allows spark testing for holes. This is becoming mandatory in European mining regulations.
Derived from sugarcane ethylene; identical mechanical properties but reduced carbon footprint. Pilot projects in Brazil use 60-mil biobased liners for ethanol storage.
Using thermography to detect 1 mm holes in 60-mil geomembranes over 100-ha sites. Reduces CQA costs by 40%.
The geomembrana 60 mils (1.5 mm) occupies a critical niche in geosynthetic engineering – heavy enough to resist aggressive environments yet light enough to be economically installed over large areas. Whether protecting groundwater from mining chemicals, containing municipal waste for centuries, or securing secondary containment for hazardous liquids, 60-mil HDPE (and its LLDPE variant) provides a proven, code-approved solution.
Engineers must remember that thickness alone does not guarantee performance. Proper subgrade preparation, certified welding, rigorous CQA testing, and an understanding of site-specific stresses (chemical, mechanical, thermal) are equally essential. Nevertheless, when the stakes are high – financial, environmental, and regulatory – the 60-mil geomembrane remains the trusted benchmark. As regulations tighten globally (e.g., EU Landfill Directive 1999/31/EC requiring 1.5 mm minimum for hazardous waste), the demand for this heavy-duty liner will only grow.
