In modern infrastructure development, selecting the right containment material is not only a technical decision but also a long-term investment strategy. The Geomembrane HDPE has become one of the most widely adopted solutions for waterproofing, environmental protection, and liquid containment applications due to its outstanding durability, chemical resistance, and cost efficiency.
From mining operations and landfill engineering to agricultural reservoirs and wastewater treatment facilities, GEOSINCERE Geosynthetics hdpe geomembrane liner provide a reliable barrier system that helps prevent leakage, protect natural resources, and reduce long-term maintenance costs.
According to industry standards, HDPE geomembranes are typically manufactured with thicknesses ranging from approximately 0.75 mm to 2.0 mm (30 mil to 120 mil) depending on project requirements. Among them, 1.0 mm, 1.5 mm, and 2.0 mm thicknesses are commonly used in environmental and industrial applications.
The global demand for geomembrane solutions continues to grow as governments and industries place greater emphasis on sustainable development, water conservation, and pollution prevention. Choosing the right geomembrane hdpe supplier and optimizing procurement strategies can significantly improve project economics throughout the entire lifecycle.
Geomembrane HDPE is a synthetic impermeable liner manufactured primarily from high-density polyethylene resin. It is engineered to provide a low-permeability barrier against liquids, chemicals, and environmental contaminants.
According to the Geosynthetic Research Institute (GRI) specifications, high-quality HDPE geomembranes commonly comply with standards such as GRI GM13, which defines requirements for:
Professional HDPE geomembranes commonly follow:
- ASTM D5199 — Thickness measurement
- ASTM D6693 — Tensile properties
- ASTM D1004 — Tear resistance
- ASTM D4833 — Puncture resistance
- GRI GM13 — HDPE geomembrane specifications
These standards provide measurable requirements for product performance.
HDPE geomembranes typically contain approximately 97% polyethylene resin and 2–3% carbon black and additives, which provide UV protection and long-term stability.
|
HDPE Geomembrane Thickness |
Typical Application |
|
0.75–1.0 mm (30–40 mil) |
Agricultural ponds, irrigation reservoirs, temporary containment |
|
1.5 mm (60 mil) |
Mining heap leach pads, landfill liners, wastewater facilities |
|
2.0 mm (80 mil) |
Heavy-duty industrial containment, high-risk applications |
The popularity of HDPE geomembrane comes from several important properties:
HDPE has a highly stable molecular structure, allowing it to resist many aggressive substances, including:
- Acids
- Alkalis
- Salts
- Industrial wastewater
- Mining solutions
This makes it suitable for demanding applications such as heap leach pads and landfill containment systems.
One of the most important advantages of HDPE geomembrane is its extremely low permeability.
Compared with traditional clay liners, HDPE geomembranes provide a much thinner yet highly effective barrier layer, reducing leakage risks and improving containment performance.
When properly manufactured and installed, HDPE geomembranes can provide service lives exceeding 50 years in many buried applications.
Their durability depends on:
- Material quality
- Installation practices
- Environmental exposure
- Operating conditions
Many buyers focus only on the initial purchase price when sourcing geomembranes. However, the lowest price does not always represent the lowest total cost. Substandard liners often suffer from premature degradation due to poor UV resistance or insufficient antioxidant packages, leading to early brittle failure.
A cost-effective HDPE geomembrane solution should consider:
- Material quality
- Expected service life
- Installation efficiency
- Maintenance requirements
- Failure risks
A slightly higher-quality liner can significantly reduce future repair expenses and environmental risks, delivering a far superior return on investment (ROI) over the project's operational lifespan.
The total cost of a containment system includes:
- Material purchase
- Transportation
- Installation
- Inspection
- Maintenance
- Replacement
High-quality HDPE geomembranes reduce lifecycle costs by minimizing:
- Leakage problems
- Repair frequency
- Operational interruptions
For large projects such as mining facilities or landfill systems, where environmental compliance is strict, even a minor leak can trigger severe regulatory fines and catastrophic containment failures. Investing in premium materials from the start safeguards your budget, ensures compliance, and avoids liner failure that can save substantial remediation costs.
Mining is one of the largest application areas for HDPE geomembranes. Common uses include:
- Heap leach pads
- Tailings storage facilities
- Process water ponds
- Mining wastewater containment
Mining solutions often contain chemicals such as cyanide or sulfuric acid, requiring materials with excellent chemical resistance. High puncture resistance is also essential to withstand the heavy loads and sharp edges of crushed ore. Typical mining applications commonly use:
- 1.5 mm HDPE geomembrane
- 2.0 mm HDPE geomembrane
depending on engineering requirements, often featuring textured surfaces to increase slope stability and prevent soil slippage.

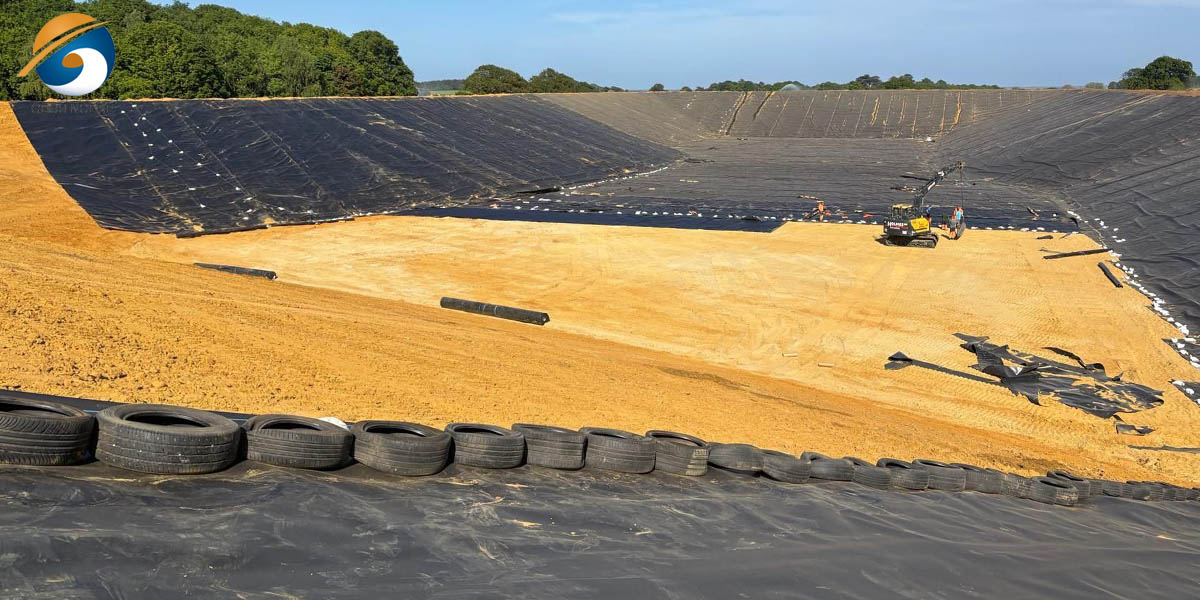

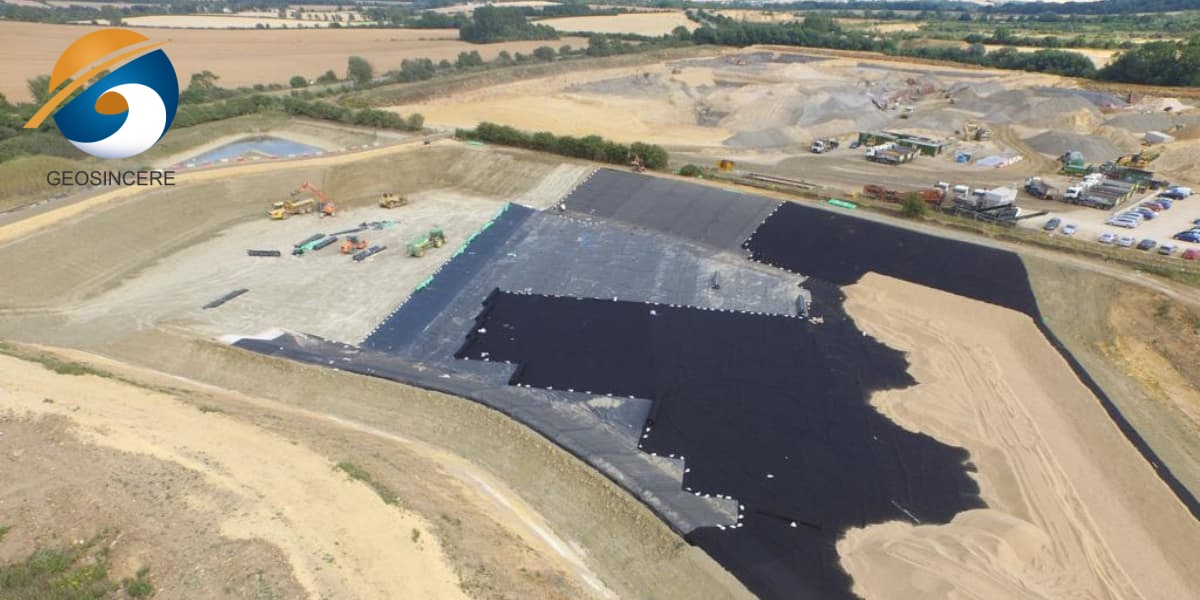

Modern landfill systems require reliable liners to prevent leachate contamination. HDPE geomembranes are used for:
- Primary liners
- Secondary containment layers
- Landfill caps
Their low permeability helps protect groundwater and surrounding ecosystems. Given that landfill containment must remain secure for decades, selecting high-density liners with exceptional stress-crack resistance ensures long-term regulatory compliance.

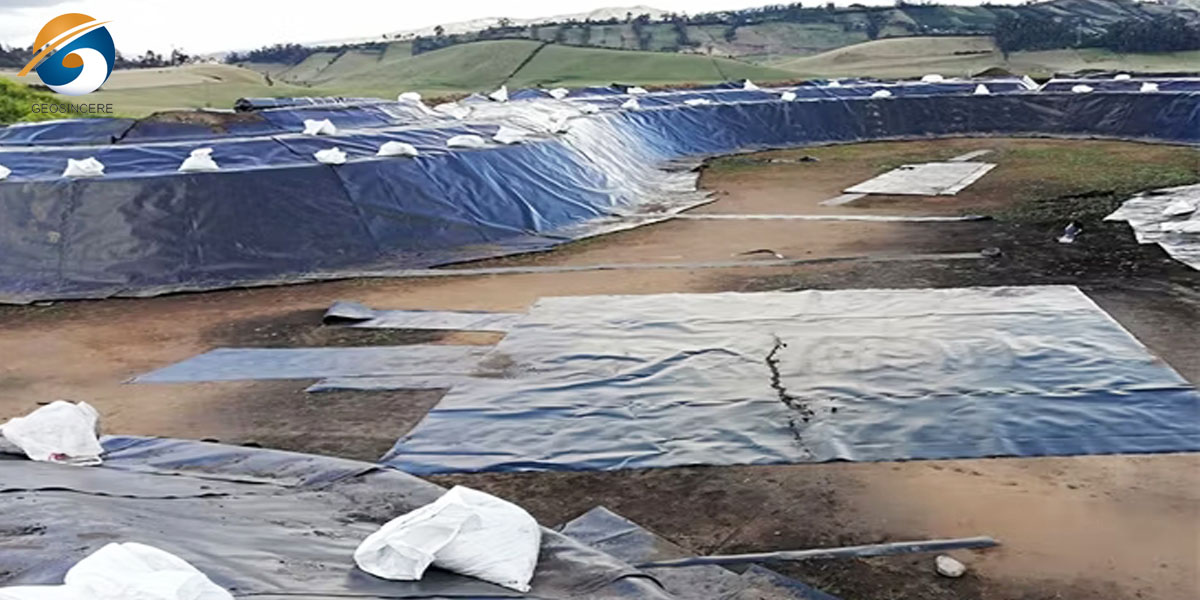

Water scarcity has increased global demand for efficient water storage systems. HDPE geomembranes are widely used in:
- Irrigation reservoirs
- Agricultural ponds
- Artificial lakes
- Water storage tanks
By reducing seepage losses, geomembrane liners improve water utilization efficiency. For agricultural and drinking water applications, certified non-toxic and eco-friendly HDPE materials are crucial to prevent any chemical leaching into the water supply.
Wastewater treatment plants use HDPE geomembranes for:
- Treatment lagoons
- Anaerobic ponds
- Sludge containment areas
The chemical resistance of HDPE allows long-term exposure to wastewater environments. Additionally, their excellent UV resistance prevents material degradation under direct sunlight, ensuring the lining system remains durable against domestic and industrial effluents over years of continuous exposure.
A reliable supplier should have:
- Advanced extrusion equipment
- Quality control systems
- Experienced technical teams
- Consistent production capacity

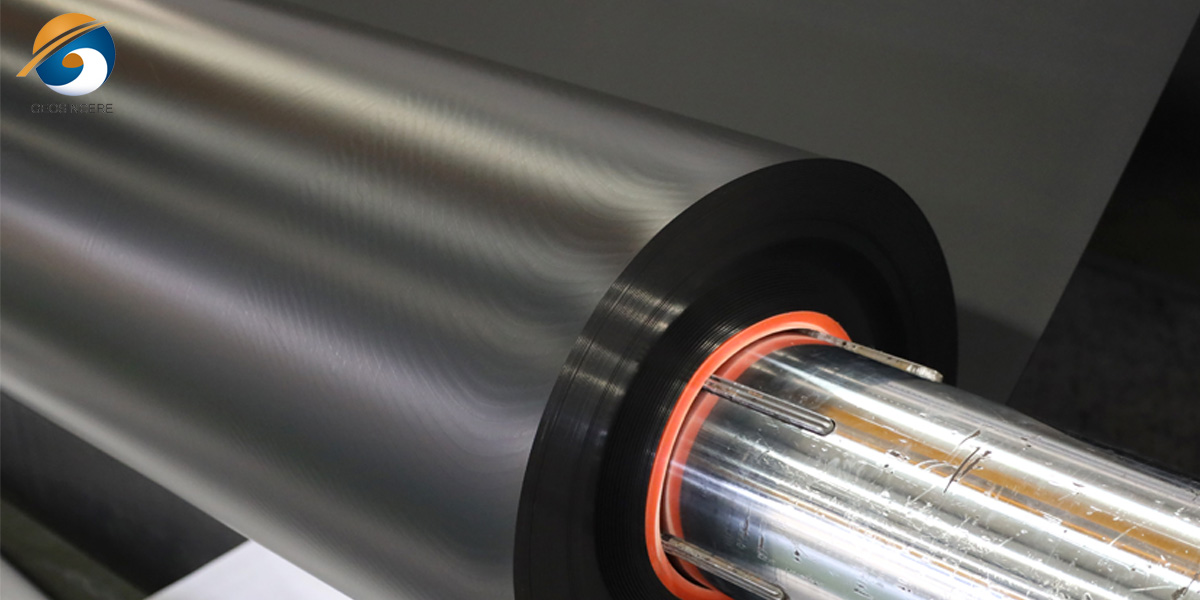

Manufacturing capability directly affects product reliability. Top-tier manufacturers utilize state-of-the-art multi-layer co-extrusion blown film lines, which ensure uniform thickness and consistent properties across the entire width of the liner. Buyers should also verify if the factory can maintain a stable raw material supply chain to prevent delivery delays during peak construction seasons.
Professional HDPE geomembrane suppliers should provide testing reports related to:
- ASTM standards
- GRI GM13 requirements
- ISO quality management systems
Important testing parameters include:
- Thickness
- Tensile properties
- Tear resistance
- Puncture resistance
- Carbon black dispersion
Among these, carbon black content and dispersion are vital, as they dictate the liner's UV resistance and long-term durability. Reliable suppliers must offer batch-specific Mill Test Certificates (MTC) and allow third-party inspections (such as SGS or Intertek) to verify these properties before shipment.
Selecting the correct thickness is essential for balancing performance and cost.
Common thickness options:
|
Thickness |
Typical Applications |
|
0.75–1.0 mm |
Agriculture ponds, general waterproofing |
|
1.5 mm |
Mining, landfill, industrial containment |
|
2.0 mm+ |
Heavy-duty containment systems |
Choosing excessive thickness may increase unnecessary costs, while insufficient thickness may create performance risks.
Large geomembrane projects can reduce costs through:
- Optimized roll dimensions
- Efficient container loading
- Reduced installation waste
For example, wider rolls can reduce welding seams and improve installation efficiency.
Professional manufacturers conduct tests including:
- Tensile strength testing
- Elongation testing
- Tear resistance testing
- Puncture resistance testing
These tests ensure the geomembrane meets engineering requirements.
Even the best HDPE geomembrane requires proper installation.
Important practices include:
- Proper subgrade preparation
- Professional welding
- Seam testing
- Damage inspection
Installation quality directly affects long-term performance.
Stricter environmental regulations worldwide are increasing demand for reliable containment systems.
Industries are investing more in:
- Pollution prevention
- Water conservation
As global infrastructure expands, HDPE geomembranes are becoming essential materials for sustainable engineering solutions.
Applications in:
- Renewable energy projects
- Water management
- Environmental restoration
are expected to continue growing.
Future HDPE geomembranes are expected to improve in:
- Stress crack resistance
- Durability
- Recyclability
- Smart monitoring capability
Furthermore, the integration of conductive layers and smart sensor technologies allows for real-time, automated leak detection. These material advancements ensure that next-generation HDPE geomembranes will provide smarter, more sustainable, and nearly indestructible containment solutions for the most demanding global environments.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) Geomembrane HDPE is more than a waterproofing material—it is a long-term investment in infrastructure reliability, environmental protection, and operational efficiency.
By selecting the appropriate thickness, working with qualified suppliers, and focusing on lifecycle value rather than initial price alone, project owners can achieve better performance and lower long-term costs. Ultimately, a well-executed procurement strategy mitigates risk, ensures regulatory compliance, and protects the massive capital invested in engineering assets.
Whether applied in mining, landfill engineering, agriculture, wastewater treatment, or water conservation, HDPE geomembranes continue to provide a dependable solution for modern containment challenges. As global industries move toward safer and more sustainable development, investing in high-quality HDPE geomembrane technology will remain a strategic choice for future infrastructure projects, delivering peace of mind and measurable savings for decades to come.
