Geomembrane have revolutionized the field of environmental containment since their widespread adoption in the latter half of the 20th century. Among the various types of polymeric liners available, GEOSINCERE Geosynthetics high-density polyethylene (HDPE) geomembranes have emerged as the industry standard due to their exceptional chemical resistance, durability, and cost-effectiveness. The term "Geomembrana HDPE 30 mils" refers specifically to an 30 mil HDPE liner with a nominal thickness of 30 thousandths of an inch—equivalent to approximately 0.75 millimeters or 750 microns.
This specific thickness occupies a unique position in the geomembrane market. It is thick enough to provide meaningful puncture resistance and long-term durability, yet thin enough to remain economically viable for large-scale projects. The "mil" unit of measurement, while unfamiliar to those accustomed to the metric system, remains the industry standard in North America for specifying geomembrane thickness. One mil equals 0.001 inches or 0.0254 millimeters; thus, a 30-mil liner measures 0.030 inches in thickness.
The production of Geomembrana HDPE 30 mils begins with specially formulated polyethylene resin designed specifically for flexible geomembrane applications. According to manufacturer specifications, the material composition typically includes approximately 97.5% polyethylene, 2.0–3.0% carbon black, and trace amounts of antioxidants and heat stabilizers. This carefully balanced formulation serves multiple purposes:
The carbon black content is not merely a pigment—it provides critical ultraviolet (UV) stabilization, protecting the polymer chain from degradation caused by prolonged sunlight exposure. The antioxidants and heat stabilizers prevent oxidative degradation during both the manufacturing process and the product's service life, particularly important for applications where the geomembrane may experience elevated temperatures.
Notably, high-quality HDPE geomembranes do not use fillers, plasticizers, or extenders that could compromise the material's long-term performance. The absence of these additives ensures that the material maintains its mechanical properties and chemical resistance throughout its intended service life, which can extend to 20–30 years or more in properly designed applications.

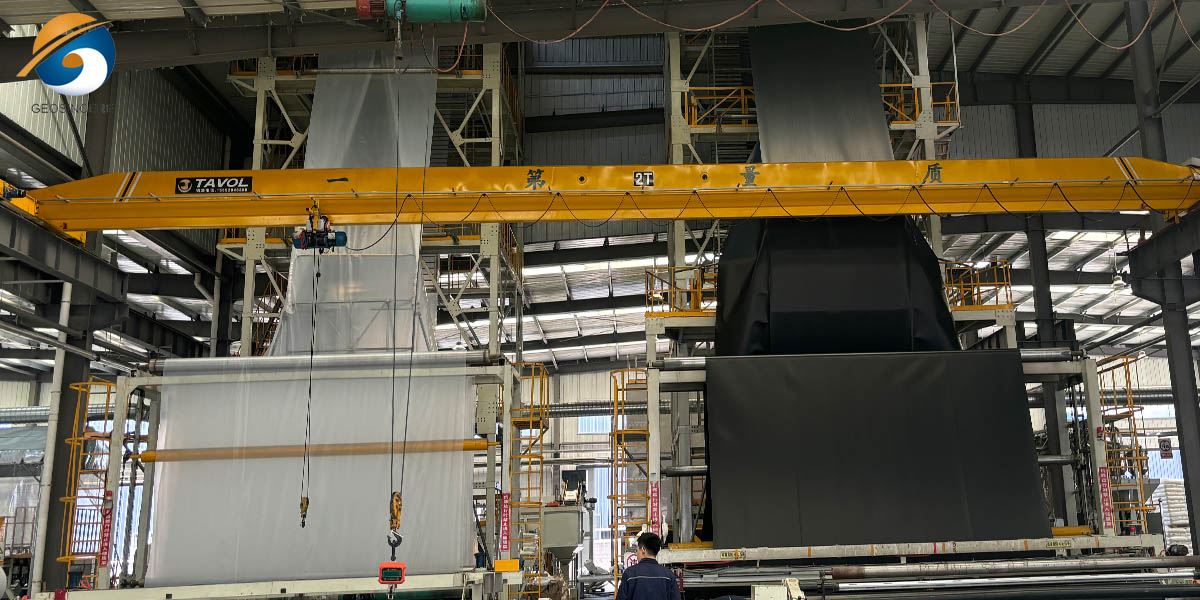

The transformation of polyethylene resin into finished geomembrane sheets involves several sophisticated manufacturing processes. The most common methods include extrusion, calendering, and spread coating. In the extrusion process, the polymer resin—along with carbon black and stabilizing additives—is melted and forced through a flat die to create a continuous sheet of uniform thickness. The calender process passes the molten polymer through a series of heated rollers to achieve the desired thickness and surface finish.
Quality control during manufacturing is paramount. Leading manufacturers subject their products to rigorous testing following ASTM (American Society for Testing and Materials) standards and GRI (Geosynthetic Research Institute) guidelines. Each production roll is tested for thickness uniformity, density, tensile properties, and carbon black dispersion.
The nominal thickness of 30 mils (0.75 mm) is the defining characteristic of this geomembrane variant. Industry standards typically allow for a tolerance of ±10% from the nominal value, with minimum average thickness requirements to ensure consistent performance. This thickness places the 30-mil geomembrane in the middle range of available options, which span from as thin as 0.15 mm to 3.0 mm or more for heavy-duty applications.
Geomembranes are manufactured in rolls of various widths, commonly ranging from 4 meters to 10 meters, with roll lengths typically varying from 50 meters to 200 meters depending on the manufacturer and customer specifications. The ability to customize dimensions allows for efficient site-specific panel layout designs that minimize field seaming requirements.
The mechanical performance of Geomembrana HDPE 30 mils is characterized by several key properties that have been thoroughly documented through standardized testing. Based on ASTM D638 Type IV testing at a crosshead speed of 2.0 inches per minute, a 30-mil HDPE geomembrane typically exhibits tensile strength at yield of approximately 140 lb/in width and tensile strength at break of approximately 240 lb/in width.
The elongation properties are particularly noteworthy—the material demonstrates a yield elongation of approximately 13% and a remarkable break elongation of 700%. This exceptional elongation capacity allows the geomembrane to accommodate significant subgrade settlement, differential movement, and stress redistribution without rupturing. The material's ability to stretch extensively before failure provides a safety margin that is critical in applications where foundation conditions may be less than ideal.
Tear resistance, measured using ASTM D1004 Die C, typically shows values of approximately 45 pounds initiation force. Puncture resistance, a critical property for applications where the geomembrane may encounter sharp objects in the subgrade or overlying materials, measures approximately 80 pounds under FTMS 101 Method 2065 testing protocols.
The environmental durability of HDPE geomembranes is one of their most significant advantages. The material exhibits low-temperature brittleness down to -112°F (-80°C), ensuring reliable performance even in cold climates. The coefficient of linear thermal expansion is approximately 0.00008 in/in/°F, a relatively low value that minimizes thermal stress issues during installation and service.
Chemical resistance is inherent to HDPE's molecular structure. The saturated carbon-hydrogen backbone of polyethylene provides excellent resistance to a wide range of chemicals, including acids, bases, salts, and many organic compounds. This chemical inertness makes the material suitable for applications involving aggressive leachates, mining solutions, and industrial effluents.
Environmental stress crack resistance (ESCR) is a particularly important property for HDPE geomembranes. Under ASTM D1693 testing at 60°C with 10% Igepal solution, a 30-mil HDPE geomembrane typically demonstrates a minimum of 2,000 hours to failure. This resistance to stress cracking is critical for applications where the geomembrane may be exposed to stress concentrations over extended periods.
The long-term durability of HDPE geomembranes depends significantly on their resistance to oxidative degradation. The oxidative induction time (OIT) provides a measure of this resistance. Standard OIT testing under ASTM D3895 typically shows values of 100 minutes minimum, while high-pressure OIT testing under ASTM D5885 typically demonstrates 400 minutes minimum.
After oven aging at 85°C for 90 days, standard OIT retention must be at least 55%, and high-pressure OIT retention must be at least 80% -7. This thermal stability ensures that the geomembrane will maintain its protective properties throughout its design life, even in applications where elevated temperatures may be encountered.
UV stability, enhanced by the carbon black content, ensures that the geomembrane can withstand exposure to sunlight during installation and in uncovered applications. Testing per ASTM D7238 typically requires 50% OIT retention after 1,600 hours of UV exposure.
The success of any geomembrane installation begins with proper site preparation. The subgrade must be graded smooth and compacted to at least 90% density. All protruding rocks, roots, debris, or other sharp objects that could puncture the liner must be removed. The subgrade surface should be inspected daily and approved by the owner's representative before geomembrane deployment commences.
Adequate drainage facilities should be established around the construction site to manage rainwater and groundwater during installation. This proactive approach prevents standing water from interfering with the installation process and ensures that the geomembrane can be placed on a dry, stable surface.
Proper storage and handling of geomembrane rolls are essential to prevent damage before installation. Rolls should be stored on a smooth, level surface and protected from mud, dirt, dust, puncture, and other deleterious conditions. When stored outdoors, rolls should be elevated and covered to prevent UV exposure and water accumulation.
Each roll should bear manufacturer labeling that includes product identification, material thickness, roll number, dimensions, and weight. This traceability is essential for quality assurance and documentation purposes.
Geomembrane deployment should follow approved panel placement drawings that specify the layout of individual panels. The installation should be conducted in accordance with the following best practices:
The geomembrane should be unrolled and positioned with careful attention to avoiding wrinkles and bubbles. For slope applications, panels should be laid from top to bottom, following the slope line. Adjacent longitudinal joints should be staggered, offset by more than 1 meter from each other, and should be located more than 1.5 meters away from dam feet and bending points.
The material should not be stretched too tightly during placement—a slight corrugation or slack allows for thermal expansion and subgrade settlement without overstressing the material. Temporary ballast such as sandbags should be placed on the geomembrane to prevent wind uplift, particularly during the deployment phase.
Installation should be avoided during precipitation, when standing water is present, during excessive wind, or when material temperatures are outside specified limits -9. The minimum temperature for installation is generally 0°C (32°F) .
Field seaming is arguably the most critical aspect of geomembrane installation, as seam integrity determines the overall effectiveness of the containment system. The primary method for seaming HDPE geomembranes is thermal fusion welding, typically performed using automatic fusion welding equipment.
Prior to seaming, the welding area must be cleaned of moisture, dirt, and other foreign materials that could compromise weld quality. The cleaning process may involve using acetone or other suitable solvents followed by mechanical abrasion to ensure clean polyethylene surfaces.
In thermal fusion welding, the overlapping edges of the geomembrane are heated to a molten state and pressed together to form a continuous bond. Wedge welders or hot air welders may be used depending on the seam configuration and access considerations. Where thermal fusion welding is not practical—such as at pipe penetrations, patches, repairs, or short seam runs—extrusion welding may be employed.
Quality control testing of field seams typically involves both nondestructive and destructive testing methods. Air pressure testing and vacuum box testing are common nondestructive methods used to detect leaks and delaminations. Destructive testing involves cutting seam samples for tensile testing in the laboratory to verify that the seam strength meets specification requirements.
The perimeter of the geomembrane must be anchored to prevent movement and ensure long-term stability. Common anchoring methods include anchor trenches, concrete deadman anchors, or mechanical fastening systems. The specific anchoring approach depends on project requirements, slope conditions, and anticipated loading.
In applications requiring additional protection, the geomembrane surface may be covered with a protective layer such as geotextile, sand, or soil cover. These protective layers shield the geomembrane from UV radiation, mechanical damage, and thermal stress.

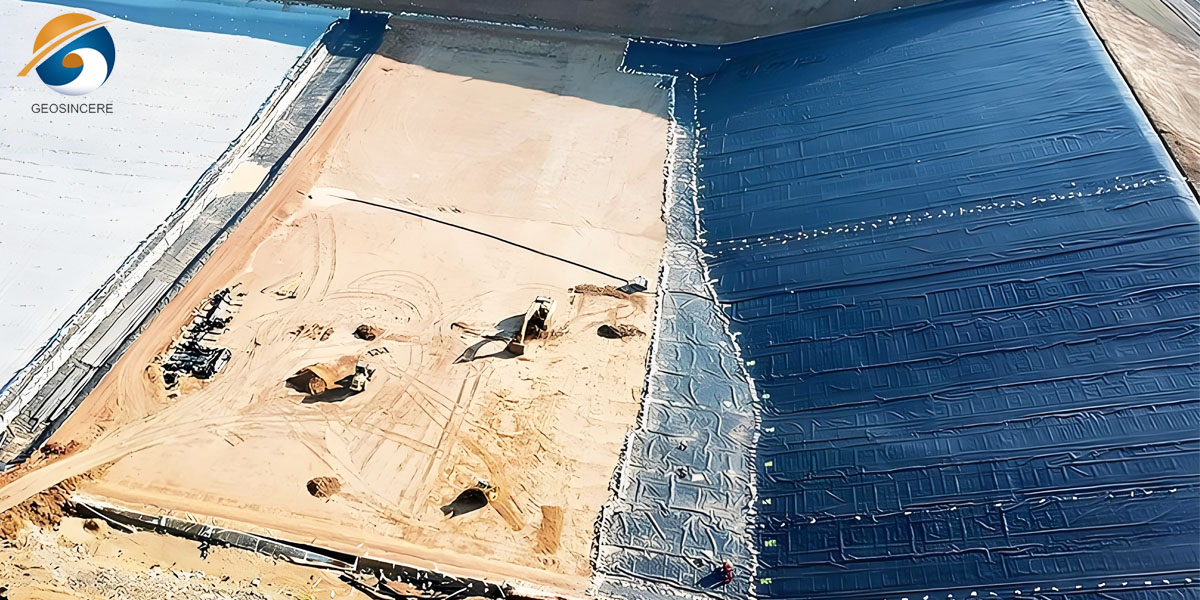

One of the primary applications of 30-mil HDPE geomembranes is in environmental containment systems. These liners serve as critical barriers in municipal solid waste landfills, preventing leachate from contaminating underlying groundwater resources. In this application, the geomembrane is typically combined with a leachate collection system and a protective soil cover to create a multi-layer containment system.
Hazardous waste containment facilities also rely on HDPE geomembranes, often using thicker materials for primary liners but employing 30-mil material for secondary containment or caps. The chemical resistance of HDPE makes it suitable for containing a wide range of industrial wastes and contaminated materials.

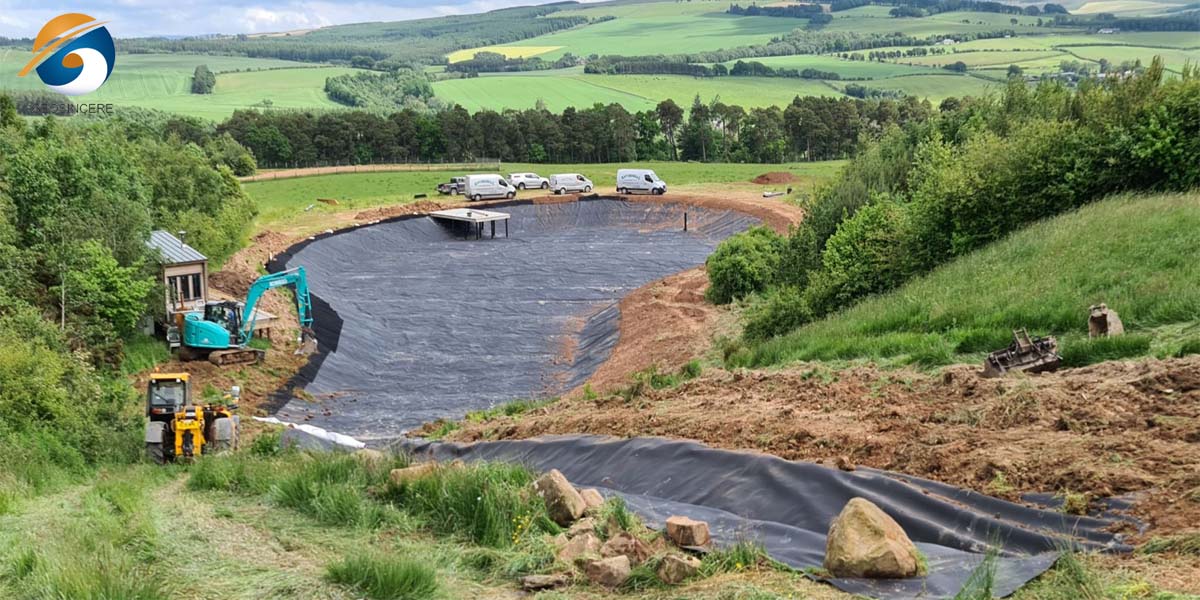

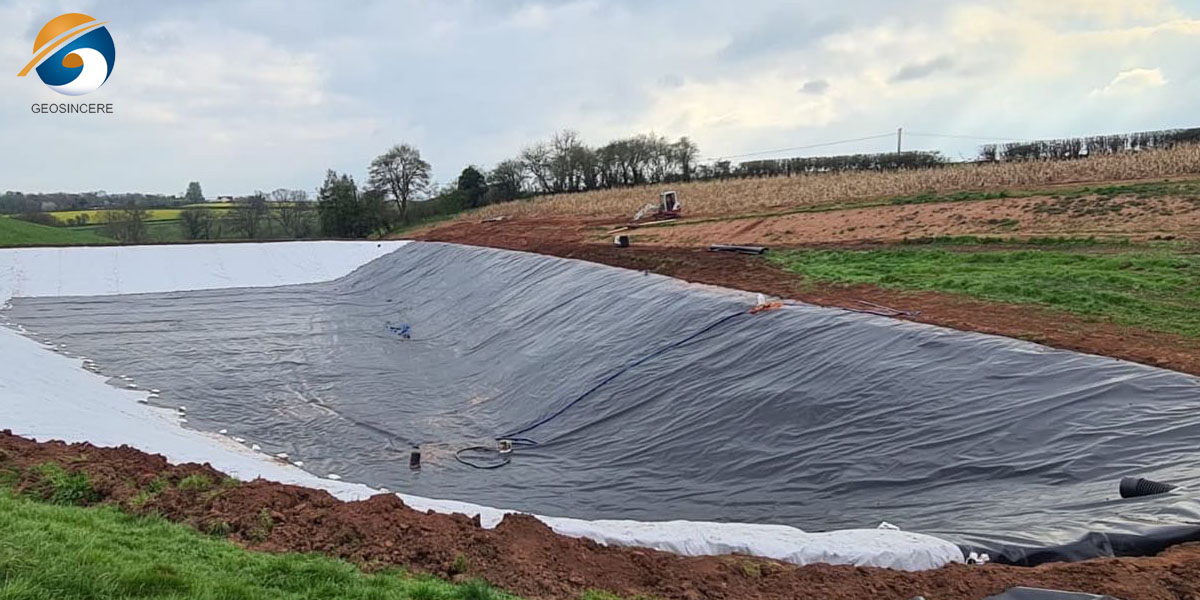

Water management applications represent a significant market for 30-mil HDPE geomembranes. These liners are widely used in irrigation canals, reservoirs, and storage ponds to prevent water loss through seepage. In agricultural settings, they line irrigation ditches, manure lagoons, and aquaculture ponds, contributing to water conservation and environmental protection.
Decorative ponds, fish ponds, and golf course water features frequently employ 30-mil HDPE geomembranes due to their balance of cost and performance. The material's resistance to biological growth and chemicals used in water treatment makes it particularly suitable for these applications.
The mining industry utilizes HDPE geomembranes extensively for heap leach pads, tailings storage facilities, and process solution ponds -5-7. The 30-mil thickness is often specified for applications where puncture risks are moderate and where cost optimization is a priority. However, mining applications with high loads or sharp substrates may require thicker materials.
Industrial applications include the lining of chemical storage tanks, secondary containment for petrochemical facilities, and barrier systems for industrial waste disposal sites. The resistance of HDPE to a wide range of chemicals makes it suitable for these demanding applications, although chemical compatibility testing is always recommended for specific exposure scenarios.
In construction applications, HDPE geomembranes serve as moisture barriers beneath concrete slabs, waterproofing for underground structures, and liners for green roof systems. The material's combination of impermeability and flexibility makes it an effective barrier against water intrusion in building foundations and other structures.
Civil engineering applications include canal lining to reduce water losses from irrigation systems, tunnel waterproofing, and seepage barriers for dams and other hydraulic structures. The 30-mil thickness provides adequate puncture resistance for many of these applications while maintaining ease of installation.
Choosing the appropriate geomembrane thickness requires careful consideration of multiple factors. The 30-mil thickness is not universally suitable for all applications; project-specific requirements must guide the selection process.
The first consideration is whether the application is temporary or permanent. A 30-mil HDPE geomembrane is often suitable for temporary liners or covers where minimal installation stresses are expected. For permanent installations with long design lives (20+ years), a thorough assessment of the loading conditions, puncture risks, and anticipated service environment is essential.
Chemical compatibility with the contained materials must be verified. While HDPE offers broad chemical resistance, specific chemicals or solutions at elevated temperatures may require alternative materials or greater thicknesses.
The puncture and tear resistance of a 30-mil geomembrane may be adequate for many applications, but projects with sharp subgrade materials, heavy overburden, or significant construction traffic should consider thicker materials. The puncture resistance provided by a 30-mil liner is approximately 80 pounds under standardized testing, which provides a good safety margin for well-prepared subgrades but may be insufficient for demanding conditions.
The choice between smooth and textured geomembrane surfaces depends primarily on slope stability requirements. Smooth geomembranes are typically used for pond and lagoon liners where interface friction is less critical. Textured materials are preferred for steep lined slopes where the additional friction between the geomembrane and adjacent materials enhances stability.
Selecting a reputable manufacturer with proven quality control systems is essential. Manufacturers should be able to provide certified testing data confirming that their product meets the required ASTM performance standards for tensile strength, tear and puncture resistance, permeability, and chemical resistance.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) Geomembrana HDPE 30 mils represents a versatile, cost-effective solution for a wide range of containment applications. Its 0.75-mm thickness occupies a strategic position in the geomembrane market, offering a favorable balance between cost and performance for projects that do not require the maximum puncture resistance or service life of thicker materials.
The material's composition of high-quality polyethylene with carbon black and stabilizing additives provides excellent chemical resistance, UV stability, and durability. Its mechanical properties—including 700% elongation at break and significant tensile strength—enable it to accommodate installation stresses and service loads without failure.
Proper installation is essential to realize the full benefits of this material. Site preparation, careful handling and deployment, skilled field seaming, and appropriate anchoring and protection measures all contribute to a successful installation that will perform as designed throughout its service life.
The applications of 30-mil HDPE geomembranes span environmental protection, water management, mining, industry, and construction. From municipal landfills to aquaculture ponds, from irrigation canals to industrial containment, these geomembranes provide an impermeable barrier that protects water resources and the environment.
As global awareness of environmental protection and water conservation continues to grow, the importance of reliable containment systems will only increase. Geomembrana HDPE 30 mils, with its proven performance and cost-effectiveness, will continue to play a vital role in meeting these challenges.
