A 40 mil PVC liner occupies a distinct position in containment engineering. At approximately 1.0 millimeter thick, it is flexible enough to conform to irregular subgrades yet substantial enough to handle the puncture loads and chemical exposure of demanding environments. GEOSINCERE Geosynthetics PVC geomembrane liner remain the most commonly specified lining material in the industry, manufactured by calendering or extrusion from a compound of vinyl resin, plasticizers, and stabilizers. The 40 mil geomembrane thickness has become the default specification for irrigation reservoirs, aquaculture ponds, landfill caps, and municipal water storage—applications where HDPE’s rigidity would complicate installation and EPDM’s cost would strain the budget.
A 40 mil PVC liner is not simply a thicker version of thinner PVC sheeting. The compound formulation determines whether the liner performs for decades or fails within a few seasons. Quality manufacturers use virgin polymers with 50 to 70 percent PVC resin by weight, blended with liquid plasticizers that are fully absorbed into the resin powder before processing. No more than 10 percent regrind is permitted, and recycled materials are excluded from the formulation entirely.
The plasticizer system is what gives PVC its defining characteristic: flexibility. A properly formulated 40 mil liner achieves elongation at break exceeding 400 percent, meaning it can stretch significantly before failing. This is the property that allows PVC to conform to settlement, bridge small voids, and accommodate the ground movement that would cause a rigid geomembrane to crack. The trade-off is that plasticizers migrate over time, and the rate of migration determines the liner’s long-term service life.
A 40 mil PVC liner meeting ASTM D7176 requirements delivers tensile break stress of at least 97 pounds per inch, tear resistance of 10.5 pounds, and hydrostatic resistance of 120 psi. These numbers describe a material that will survive installation over prepared subgrade, resist punctures from typical construction traffic, and hold water under head pressure.
The property most often overlooked in specification is low-temperature brittleness. Quality 40 mil PVC maintains flexibility at temperatures below −29°C, which is critical for projects in cold climates where liners are installed in late autumn or early spring. A liner that becomes brittle at low temperature will crack during unrolling or panel placement, and those cracks may not become visible until the pond is filled.
Seam strength is the other specification that separates acceptable liners from poor ones. Factory-fabricated seams in quality 40 mil PVC achieve peel strength of at least 15 pounds per inch and shear strength exceeding 77 pounds per inch. Field seams made with solvent welding or thermal fusion should meet equivalent values when tested according to ASTM D6392 or D6214.
The choice between 40 mil PVC and an equivalent HDPE liner is rarely about which material is stronger in absolute terms. HDPE wins on tensile strength, chemical resistance, and UV durability. A 40 mil HDPE liner can remain exposed to sunlight for decades without significant degradation, while PVC is not naturally UV-resistant and its useful life when exposed to sunlight can be one-tenth of its buried lifespan.
But PVC wins on the properties that determine installation success on real sites. A 40 mil PVC liner is highly flexible and easily foldable, able to grip rough terrain and conform to irregular subgrades without the wrinkling and bridging that HDPE exhibits on similar ground. For projects where the subgrade cannot be perfectly prepared—which describes most agricultural reservoirs, aquaculture ponds, and municipal lagoons—PVC’s flexibility translates directly into fewer installation defects.
The practical rule is straightforward. If the liner will be buried under soil or sediment and the subgrade is irregular, 40 mil PVC offers superior conformability at lower material cost. If the liner will remain exposed to UV, or if the application involves aggressive chemicals, HDPE is the correct choice regardless of installation convenience.
The applications for 40 mil PVC liners cluster around water containment and environmental protection. Irrigation ponds, canals, reservoirs, and ditches are among the most common uses, where the liner prevents seepage losses that can exceed 30 percent in unlined earthen channels. Aquaculture operations specify PVC formulated for fish safety, containing water without leaching plasticizers that would harm aquatic life.

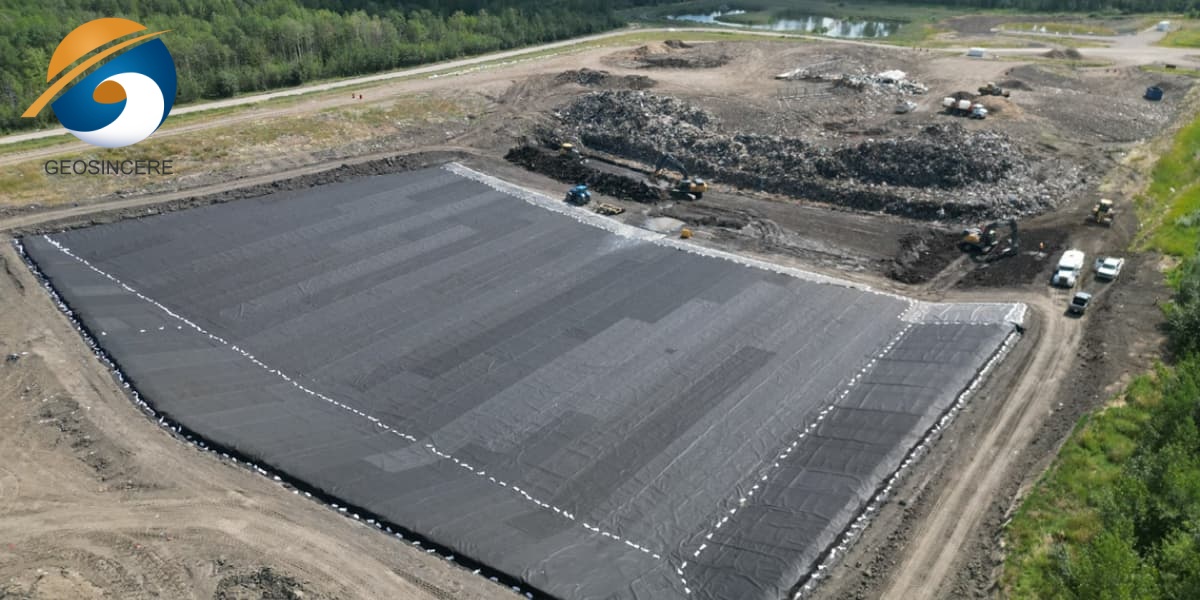

Landfill applications use 40 mil PVC for caps, closures, and daily cover. The material’s low permeability and chemical resistance make it suitable for containing leachate and preventing groundwater contamination. Municipal water storage—including potable water reservoirs—relies on PVC formulations certified to NSF/ANSI Standard 61 for drinking water contact.

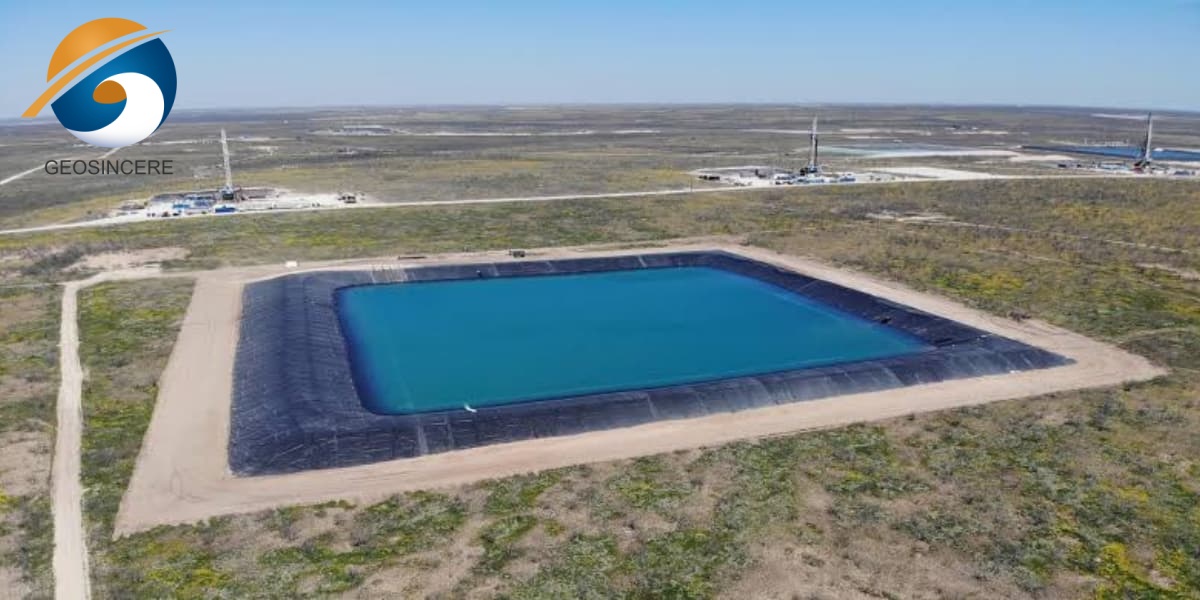

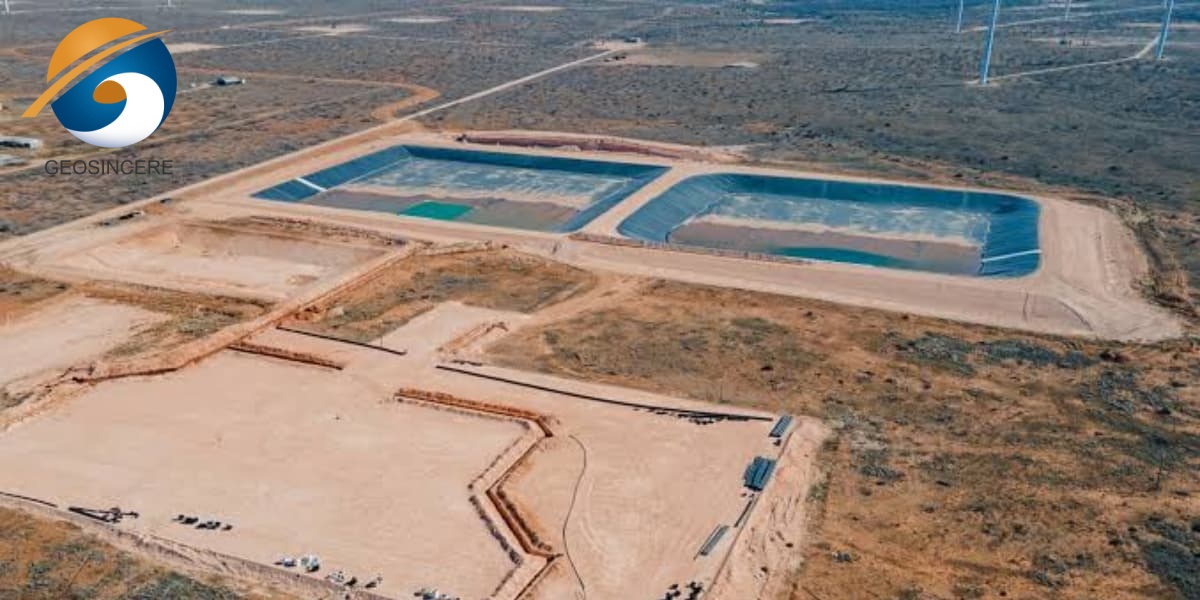

Wastewater lagoons, animal waste containment, and mining process ponds also specify 40 mil PVC where the combination of chemical resistance and flexibility justifies the material choice.
A 40 mil PVC liner is only as good as its installation. The material can be field-seamed using solvent welding or thermal fusion, and the choice between methods depends on project specifications, ambient conditions, and crew experience.
Solvent welding requires clean, dry contact surfaces. Field lap joints are formed by overlapping panel edges a minimum of six inches, wiping the contact surfaces clean, and applying bonding solvent across a 2-to-3-inch width to create a continuous weld. The surfaces are pressed together immediately and rolled to squeeze adhesive toward the leading edge. A small amount of adhesive extruding at the seam edge confirms sufficient solvent was applied.
Fishmouths—the small folds that form where two panel edges meet unevenly—must be slit out far enough from the seam to dissipate them, then lapped, seamed, and patched.
Thermal fusion welding, introduced for PVC geomembrane field seams in the early 1990s, extended the construction season by allowing installation in colder conditions. Hot wedge welders create a continuous seam that is typically stronger and more consistent than solvent-welded joints, but the equipment cost and operator training requirements are higher.
Non-destructive testing is mandatory for both methods. Air lance testing or vacuum box testing should be performed on all seams and penetration seals according to ASTM D4437. Destructive seam testing—removing samples at intervals of at least one test per 500 linear feet of field seam—provides the quantitative confirmation that seam strength meets specification.
The most common installation failure in 40 mil PVC systems is not seam failure. It is subgrade damage. A liner laid over protruding rocks, roots, or construction debris will be punctured during backfill placement or when the pond is first filled. A nonwoven geotextile cushion beneath the PVC liner is not optional on any site where the subgrade cannot be walked without encountering angular material.
Material cost for 40 mil PVC liner typically runs 20 to 40 percent lower than polymeric membranes of similar performance grade. That cost advantage is real, but it must be weighed against service life.
A 40 mil PVC liner buried under 12 inches of soil or sediment can perform for 25 to 50 years. Exposed to direct sunlight, that service life contracts dramatically. PVC liners should be buried for greatest durability, and UV-resistant formulations, while available, carry shorter warranties than the buried service life of standard formulations.
The specification decision, then, is not simply about the liner. It is about whether the project design includes a cover layer—soil, gravel, or concrete—that will protect the PVC from UV exposure. Where a cover is planned, 40 mil PVC delivers excellent value. Where the liner will remain exposed, the material selection should shift to HDPE regardless of PVC’s installation advantages.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) 40 mil PVC liner is a mature, well-understood containment material. Its flexibility, chemical resistance, and cost profile make it the correct specification for buried water containment, aquaculture, landfill caps, and municipal reservoirs. Its limitations—UV sensitivity, plasticizer migration, and lower tensile strength than HDPE—are equally well understood and manageable through proper design and installation.
The specification that matters is not the thickness alone but the compound formulation, the seam strength, and the subgrade preparation that precedes installation. A 40 mil liner from a manufacturer using virgin resin with controlled plasticizer content, installed over a geotextile cushion by a crew that tests every seam, will outperform a thicker liner from a supplier cutting corners on formulation and installation. The liner is a commodity. The containment system is an engineering decision.
