The use of High-Density Polyethylene (HDPE) geomembrane liners has transformed containment solutions in the fields of mining and wastewater management where environmental protection is at high risk. Geosino is one of the biggest global manufacturers of geosynthetic materials that include Lining HDPE, as a Senior Foreigh Trade Operation Specialist working for Geosino, my exposure has allowed me to understand how these materials can serve as effective barriers that are economical as well as protect the environment and industry from contamination.
GEOSINCERE Geosynthetics HDPE liners serve as impermeable barriers that prevent the migration of liquids, chemicals, and other contaminants from seeping into the soil and contaminating it or getting into the groundwater. In mining operations they are required elements for Heap Leach Pads, Tailings Ponds and Solution Storage. In the case of wastewater treatment they function to prevent polluting discharge of liquid or to prevent the soil from soaking them up. The reason they are so widely used is a combination of excellent chemical and mechanical resistance with very low permeability.
In this article we will be covering HDPE geomembrane lining solutions with particular focus on established industry practices, standards, and actual cases of HDPE liner applications. Target audience includes engineers, project managers, and procurement staff, the intent is to provide them with guidance on choosing and implementing these systems effectively. With emphasis on environmental protection around the world lining HDPE help facilities meet strict regulations requirements as well as limit long-term exposure risks and associated costs.

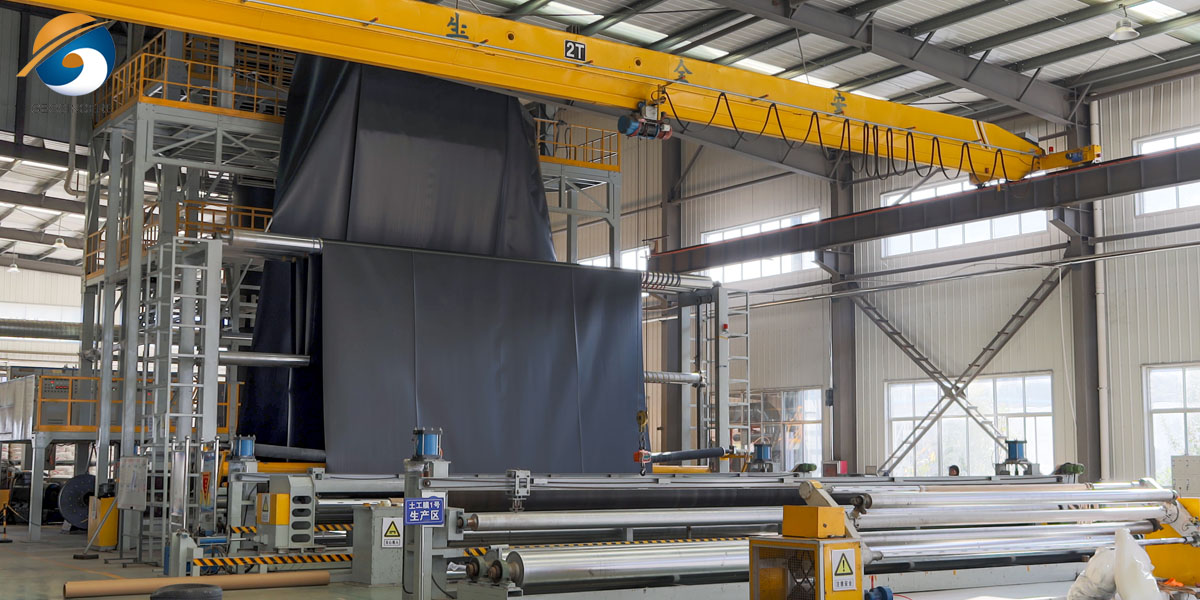

Lining HDPE is made of the plastic high-density polyethelene, these are basically flexible layers of synthetic material. These are manufactured in different widths as extruded sheets and normally available in thickness ranging from 0.5mm (20 mil) to 3.0mm (120 mil) where 1.5mm (60 mil) and 2.0mm (80 mil) are popular selections for heavy-duty applications. The main ingredients are of high-quality virgin HDPE resin plus carbon black as a UV stabilizer added as an ingredient at approximately 2-3%.
GRI-GM13 is the main specification standard, it prescribes the minimum properties that a HDPE geomembrane should possess. This standard sets out physical, mechanical, and chemical requirements to guarantee consistency and performance level. There are special cases too and for those higher-performance versions can meet the requirements of guidelines such as GRI-GM42.
It is the nature of the semicrystalline organization of HDPE that makes it a good balance between durability and chemical inertness. Compared to more supple materials, for instance, LLDPE and PVC, the HDPE is far more resilient both to a wide range of solvents as well as high temperatures, in some cases, though, is stiffer and needs a lot of attention during installation.
HDPE liner geomembranes are the best performers of a number of important characteristics that make HDPE the go-to material for harsh environmental conditions:
HDPE can resist a large variety of the types of acidic, basic, saline, and organic chemical agents, which are the major constituents of mining leachates and industrial wastewater. This resistance results in the material not being affected much over the years.
A value much lower than in other materials is common, for example, one might see as little as 1e-13 cm/s as in this case, that is a level that is effective at trapping both liquids and gases.
For instance, GRI-GM13 specifies requirements like high tensile strength which can be about 20-45 kN/m, depending on the thickness and test method of a particular geomembrane, tear and penetration resistance and so on. On the other hand, the maximum elongation at break for smooth HDPE is usually greater than 700% and the tensile properties are also very good.
HDPE with carbon black being the right dispersal has proven over time to be resistant to prolonged UV exposure. Research has shown that HDPE sheets when exposed externally and properly protected have a service period that stretches up to 20-30 years, whereas in a fully covered situation HDPE can out last the 30-year mark.
Lightweight for transport, weldable for strong seams, and requiring minimal maintenance, HDPE reduces overall project lifecycle costs compared to traditional clay liners or other alternatives.
Include resistance to biological attack and stress crack resistance when properly formulated. Textured HDPE enhances interface friction for slope stability in mining heaps.
Limitations exist, such as lower flexibility in cold temperatures and potential for environmental stress cracking under specific combined conditions, which is why proper design, subgrade preparation, and material selection are vital.

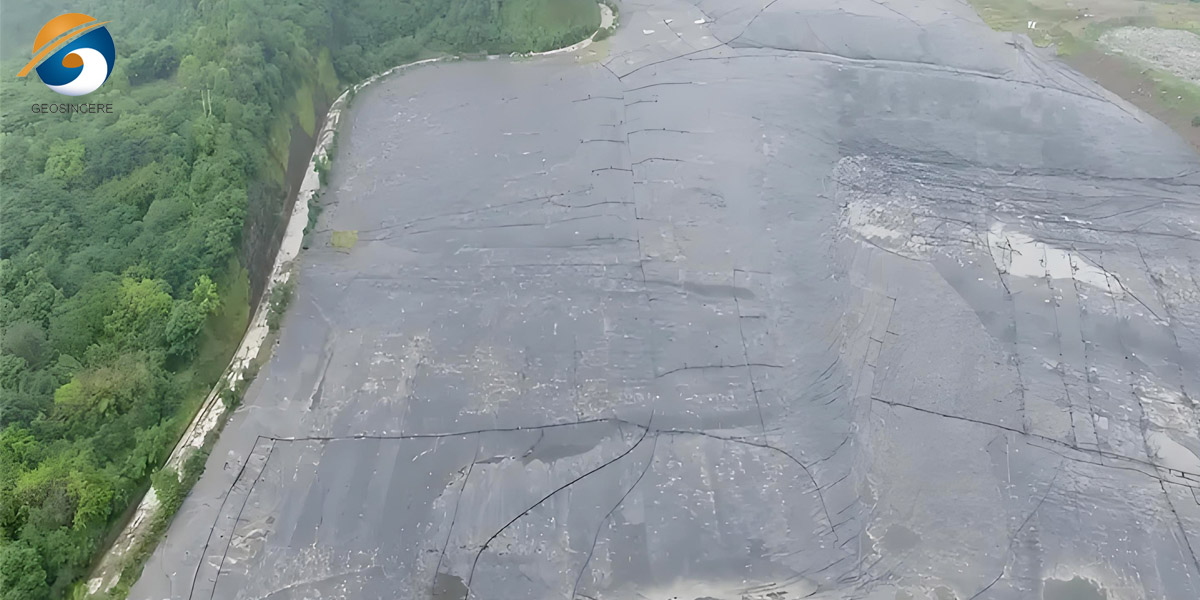

Mining operations generate significant volumes of process solutions and tailings that require secure containment. HDPE liners are widely used in heap leach pads for gold, copper, and other metals, tailings storage facilities, evaporation ponds, and process solution ponds.
In heap leaching, crushed ore is stacked on a lined pad, and a leaching solution (often cyanide for gold) percolates through to extract minerals. The HDPE liner prevents solution from escaping into the ground. Common thicknesses are 1.5 mm to 2.0 mm, frequently in composite systems with geotextiles or clay for added protection.
Tailings ponds store waste slurry from mineral processing. HDPE provides a barrier against heavy metals and chemicals. Examples include applications at high altitudes in regions like Northern China and Mongolia, where HDPE has been used for salt evaporation ponds, heap leach pads, and chemical solution ponds.
Historical context shows HDPE adoption growing since the 1980s, with early large-scale uses in projects like Summitville (though that had other issues) and subsequent improvements in design. Modern pads often use single or double geomembrane systems, with gravel covers of 1-2 meters for protection.
Advantages in mining include high tensile strength for load-bearing under ore heaps (which can exceed 100-200 meters in depth in some designs), weldability for large seamless areas, and compatibility with leak detection systems when using conductive layers.

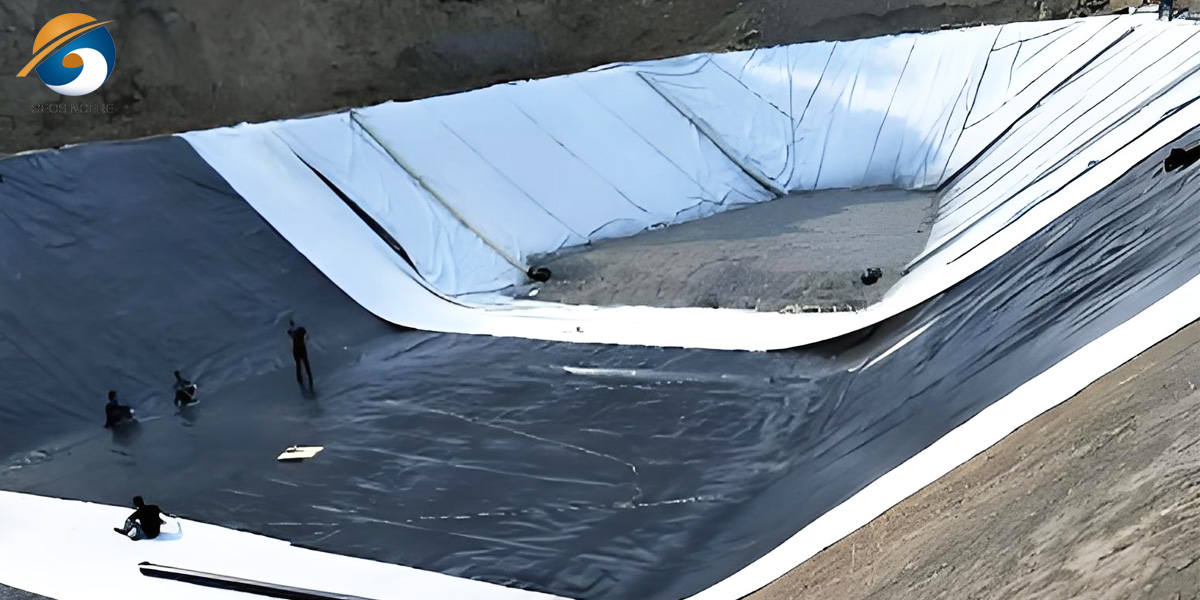

Wastewater treatment facilities use HDPE liners for aeration lagoons, anaerobic digesters, effluent storage ponds, and sludge containment. They prevent seepage of contaminants into groundwater, ensuring compliance with environmental standards.
In one documented case, a pair of aeration lagoons at a wastewater treatment facility were lined with 0.75-mm HDPE geomembrane. HDPE is also applied in industrial effluent basins handling aggressive chemicals.
Benefits include resistance to a wide range of pH levels and organic/inorganic compounds in sewage and industrial wastewater. For biogas digesters, thicker 2 mm liners are common due to higher demands.
HDPE liners support secondary containment around tanks and pipelines, and are used in stormwater management and soil remediation projects. Their long service life and low maintenance make them ideal for permanent installations in treatment plants.
Effective HDPE lining systems require comprehensive design. Key factors include site-specific geotechnical conditions, chemical compatibility testing, slope stability analysis, and load calculations.
Subgrade preparation is critical: the foundation should be smooth, free of sharp objects, and properly compacted. A geotextile cushion layer often protects the liner from punctures.
For mining heap leach pads, designs account for ore height, solution chemistry, and seismic activity. Composite liners (geomembrane over clay or with geosynthetic clay liner) enhance safety.
Thickness selection depends on application: thinner for general wastewater (e.g., 0.75-1.5 mm), thicker for high-load mining (1.5-3.0 mm). Standards like GRI-GM13 guide minimum properties, but projects often specify additional tests.
Leak detection, collection systems, and overtopping protection are integrated. Thermal expansion/contraction and panel layout planning minimize wrinkles and stress.

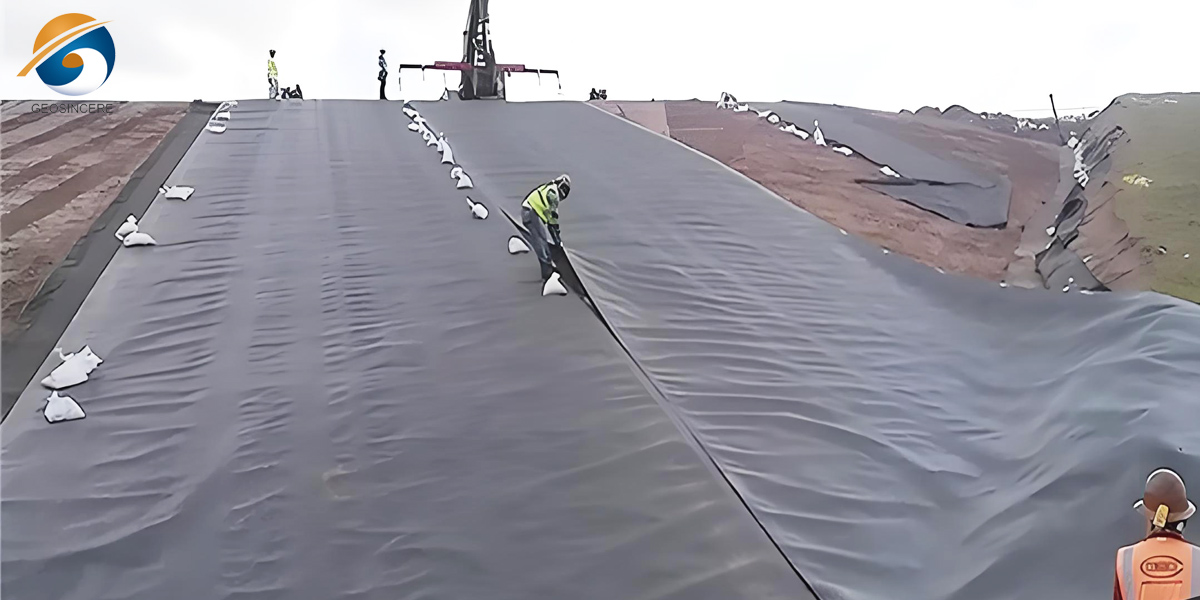

Proper installation ensures performance. Panels are deployed using equipment that avoids damage, then welded using hot wedge or extrusion methods for strong, testable seams.
Quality control includes non-destructive testing (e.g., air pressure or vacuum box) and destructive seam testing. Experienced crews follow protocols for anchoring, folding, and covering.
In mining, installation occurs before ore placement, with careful management of large areas. For wastewater ponds, dewatering and subgrade stability are key.
GEOSINCERE Geosynthetics recommends following manufacturer guidelines and third-party CQA (Construction Quality Assurance) for critical projects. Installation in suitable weather avoids issues with temperature and wind.
HDPE liners require minimal maintenance when installed correctly. Inspections focus on exposed areas for UV damage or mechanical issues. Covered systems last decades.
A 9-year study on HDPE in high pH mining applications demonstrated degradation behavior, informing better material choices.
Real-world successes include HDPE use in Mongolian gold mine heap leach pads with 1.5 mm liners for cyanide containment, and various wastewater lagoons globally.
HDPE geomembrane lining solutions from manufacturers like Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) offer proven, reliable performance for mining and wastewater applications. Their combination of chemical resistance, strength, and durability supports sustainable operations and environmental protection.
By adhering to standards like GRI-GM13, investing in proper design and installation, and selecting appropriate thicknesses and textures, projects achieve long-term success. As global regulations tighten, HDPE liners will continue to play a vital role.
