Every procurement engineer who has ever sourced a HDPE liner pond knows the weight of the decision. The wrong choice does not just leak water—it leaks budget, reputation, and environmental compliance. You are not buying a roll of plastic. You are buying a barrier that must hold millions of gallons for decades, resist aggressive chemicals, survive UV exposure, and do all of this while staying within a tight capital expenditure.
Over the past three decades, GEOSINCERE Geosynthetics geomembrane pond liner have become the default specification for serious water containment projects. But simply specifying “HDPE” is not enough. The real work lies in choosing the right geomembrane thickness, the right surface finish, the right supplier, and the right installation protocol. This guide walks you through each of those decisions from a procurement engineer’s perspective, without marketing fluff and without generic advice that you have read a hundred times before.
Let us start with the material itself. HDPE is a thermoplastic polymer with a density above 0.94 g/cm³. It is manufactured by polymerising ethylene under controlled conditions, then compounded with carbon black, antioxidants, and processing aids. The result is a dense, tough sheet that exhibits a permeability coefficient of roughly 1×10⁻¹⁷ cm/s. In plain language, that means essentially zero water transmission through the liner body. For an irrigation reservoir holding 50,000 cubic metres, this translates into seepage losses of less than a few litres per year – a number that clay or concrete cannot even approach.
Beyond permeability, HDPE offers remarkable tensile strength. Standard grades achieve yield tensile strengths above 25 MPa and elongation at break exceeding 450%. That combination – strength plus stretch – allows the liner to accommodate soil settlement, thermal expansion, and hydrostatic pressure without tearing. Unlike rigid concrete, which cracks under movement, HDPE flexes. Unlike unreinforced PVC, it does not become brittle with age.
Chemical resistance is another area where HDPE shines. It withstands pH levels from 1.5 to 14, making it compatible with acidic mine drainage, alkaline process water, and most agricultural chemicals. It also resists hydrocarbons and microbiologically induced degradation, which can attack other polymers over time. For aquaculture ponds, food grade HDPE formulations are available that do not leach plasticisers or heavy metals into the water, keeping fish stocks healthy and safe.
UV stability is often the first concern for outdoor ponds. HDPE contains 2 3% carbon black, which acts as a powerful UV screener. With proper formulation, an exposed HDPE liner can maintain its mechanical integrity for 20 years or more in sunny climates. If the liner is buried under water or soil, its service life easily extends beyond 50 years. Manufacturers now offer warranties of up to 25 years for exposed applications – a testament to the material’s proven longevity.
Many procurement engineers ask whether PVC or EPDM could work for their project, especially when initial quotes come in lower. Let us address each alternative candidly.
PVC liners are lighter, more flexible out of the box, and cheaper per square metre. They are attractive for small decorative ponds or temporary storage. However, from a whole life cost perspective, PVC is a risky choice for permanent infrastructure. The material contains plasticisers that gradually migrate out, causing the liner to stiffen and lose elongation. Once stiff, PVC becomes susceptible to stress cracking and UV embrittlement. Without burial under at least 30 cm of soil or water, a PVC liner may fail within 10 to 15 years. In addition, PVC has limited resistance to hydrocarbons and certain solvents – common in mining and industrial settings. When you factor in the cost of replacement, the initial savings vanish.
EPDM rubber is the premium flexible liner. It remains elastic at very low temperatures, resists ozone and UV well, and is universally safe for fish. For small, complex shaped ponds, EPDM is often the preferred choice. But for large projects, EPDM presents serious drawbacks. It cannot be thermally welded – seams must be made with adhesive tapes or liquid adhesives. Seam strength depends entirely on surface preparation and curing conditions, making field quality control difficult. Furthermore, EPDM is two to three times more expensive than HDPE per square metre, and its puncture resistance is lower, requiring thicker gauges and more careful subgrade preparation.
HDPE sits in the sweet spot. It costs less than EPDM, lasts longer than PVC, and offers weldable seams that are stronger than the parent material. For a 10,000 square metre pond, the total installed cost of HDPE is typically 30 50% lower than EPDM and only marginally higher than PVC – but with triple the service life. That is the kind of arithmetic that procurement engineers appreciate.
Thickness is the single most important specification you will write. Too thin, and the liner risks punctures during installation or from sharp stones; too thick, and you are wasting budget on unnecessary material.
For agricultural irrigation ponds and moderate size reservoirs, 0.75 mm to 1.0 mm is the industry standard. This thickness provides ample puncture resistance for typical clay or sandy subgrades when protected by a geotextile underlayment.
For fish farming and aquaculture, where maintenance crews walk on the liner and nets may drag across it, 1.0 mm to 1.5 mm is recommended. The extra thickness also reduces oxygen permeability slightly, which can help stabilise water chemistry in intensive systems.
For industrial applications – including mining tailings ponds, chemical storage, and wastewater treatment lagoons – 1.5 mm to 2.0 mm is the norm. These environments involve heavy equipment, abrasive solids, and aggressive chemistry, demanding the highest puncture and tear resistance.
For canal lining and stormwater detention basins, 0.75 mm often suffices, provided the subgrade is well prepared and the liner is covered with a protective layer of soil or gravel.
Always specify a tolerance of ±5% on thickness, per GRI GM13 standards. And always request mill test reports confirming that the supplied material meets the specified nominal thickness across the entire roll.
This is a detail that many procurement documents overlook, with costly consequences.
Smooth HDPE liners are suitable for flat bottoms and gentle slopes where friction is not a critical factor. They are also easier to weld and easier to clean. But on side slopes steeper than 1V:3H, a smooth liner may slide under the weight of water and overlying soil, leading to wrinkling and eventual failure.
Textured HDPE – either single sided or double sided – provides high interface friction angles, often exceeding 25 degrees with compacted clay or geosynthetic clay liners. This allows steeper slopes, reduces the footprint of the pond, and minimises the risk of liner slippage. For embankment dams and sloped reservoirs, double sided textured liners are often specified. The texture is applied during extrusion using a spray-roughening or embossing process, and it does not compromise the material’s tensile or chemical properties.
From a procurement standpoint, textured liners cost about 10 15% more than smooth equivalents, but the added stability often eliminates the need for expensive anchoring systems or additional ballast. Evaluate slope geometry carefully – if your site has long, gentle slopes, smooth may be perfectly adequate; if space is constrained and slopes are steep, textured is non-negotiable.
You cannot rely on a supplier’s brochure. Every HDPE liner destined for a critical containment project should comply with GRI-GM13, which is the gold standard for geomembrane specifications. GM13 defines minimum requirements for thickness, density, tensile properties, tear resistance, puncture resistance, stress crack resistance, and UV stability.
In addition to GM13, request evidence of ISO 9001 (quality management) and ISO 14001 (environmental management). For projects in Europe, CE marking is mandatory. For mining applications, many clients also require ASTM D6693 for tensile testing and ASTM D6392 for seam strength.
Crucially, ask for third party test reports from accredited laboratories – not just in house certificates. Reputable suppliers will provide reports from SGS, Bureau Veritas, or similar entities for each production batch. If a supplier hesitates or offers only self-certified data, that is a red flag.
Do not forget about stress crack resistance – a key failure mode for HDPE under long term load. GM13 requires a minimum of 300 hours in the notched constant tensile load (NCTL) test at 50°C. Some premium grades exceed 1,000 hours. If your pond will be exposed to fluctuating water levels or cyclic loading, specify higher NCTL values.
The global HDPE liner market is dominated by Chinese manufacturers, who account for over 70% of production capacity. This offers cost advantages but also requires careful vetting. Here is a framework I have used on multiple projects.
A facility with fewer than three extrusion lines and less than 10,000 square metres of daily capacity will struggle to deliver large orders on time. Ask for a production schedule and verify lead times. For orders exceeding 50,000 square metres, a supplier should be able to commit to a firm shipping date.
Do they test every roll for thickness, density, and tensile? Do they retain samples for traceability? Do they have a dedicated QA team independent of production? These questions separate professional manufacturers from opportunistic traders.
Even if you are buying only raw liner, your supplier should be able to advise on field welding parameters and provide qualified welders. Some suppliers offer on site technical support for large projects – a valuable bonus.
Factories near major ports – such as Qingdao in Shandong province – can ship containers more efficiently and with lower inland freight costs. Delivery time from order to FOB port should be clearly stated in the proforma invoice. Ask about their container loading methods to minimise waste and damage during transit.
Before placing a full order, request a 10 metre sample of the exact specification you intend to buy. Test it in your own lab, or send it to an independent lab for verification. This is not excessive – it is due diligence.

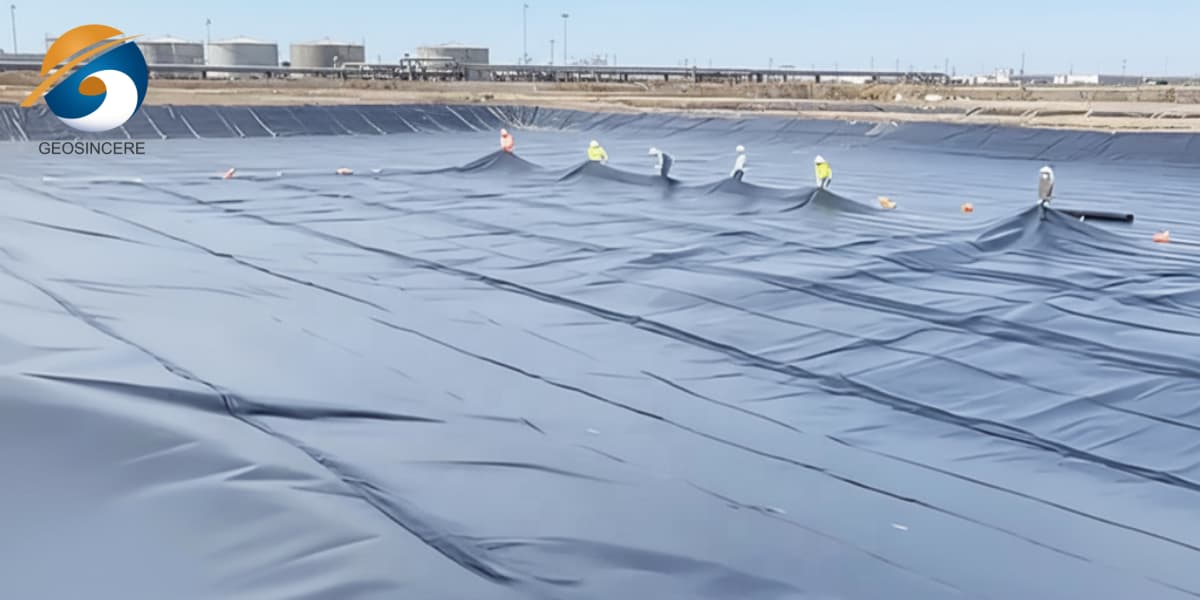

You can buy the best HDPE liner in the world, but a poor installation will ruin it. As a procurement engineer, you should include installation requirements in your tender documents.
Remove all stones, roots, and debris larger than 20 mm. Compact the subgrade to at least 95% standard Proctor density. Place a non woven geotextile protection layer (minimum 500 g/m²) over the entire prepared surface. This fabric cushions the liner against punctures from underlying soil and also provides drainage for any water that might accumulate beneath.
Field seams should be made using a hot wedge welder that produces a double track, leaving an air channel between the two welds. This channel can be pressure tested on site to verify seam integrity. For extrusion welding (used for patches and details), the welding rod must be made from the same resin as the liner. All seams should be non destructively tested using vacuum or spark testing, and destructive peel and shear samples should be taken every 200 metres of seam.

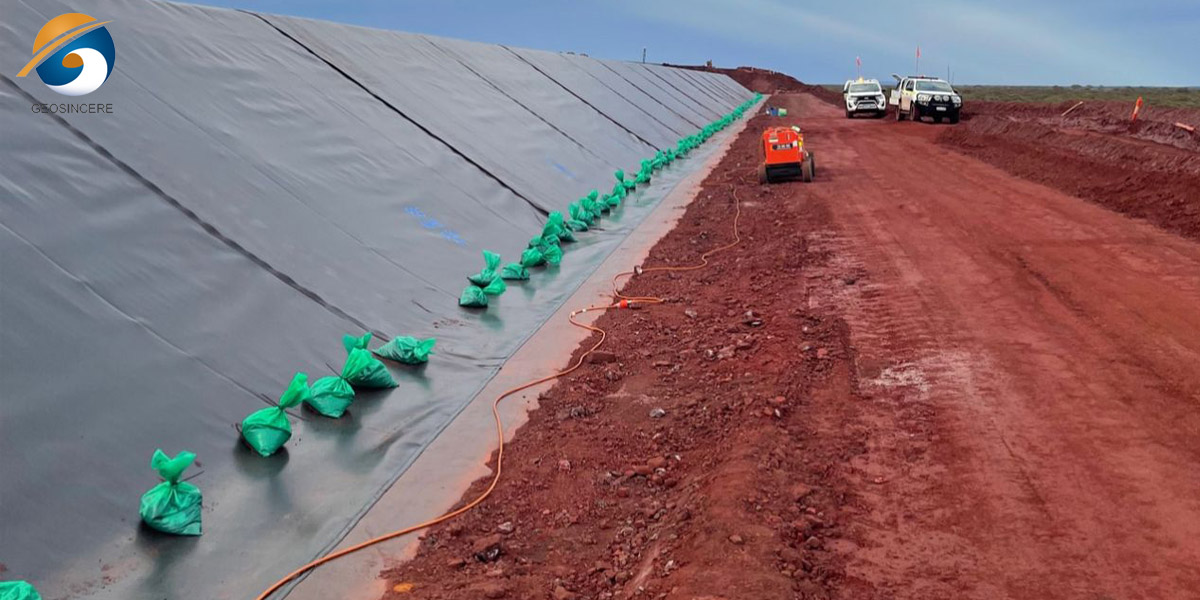

Typically 60 cm wide and 60 cm deep – should be dug around the perimeter, with the liner wrapped over a 100 mm PVC pipe or embedded in concrete to prevent pull-out. Gas vents must be installed at the top of slopes to relieve any gas pressure beneath the liner, which can cause blistering and uplift.
Procurement engineers are measured by cost savings, but short term savings can be deceptive. Let us run a simplified scenario. Suppose you need to line a 5 hectare pond.
A PVC liner at 1.0 mm might cost $0.40 per square metre, HDPE at 1.0 mm might cost $0.70, and EPDM might cost $2.00. That suggests PVC wins, right? But PVC has a typical service life of 12 years, HDPE 25 years, and EPDM 30 years. Over 30 years, you will replace the PVC at least once – and that replacement includes removal, disposal, and re installation, which can easily double the material cost. In addition, downtime during replacement costs lost production.
When you calculate cost per year of service, HDPE typically comes out at $0.03 per square metre per year, compared to $0.07 for PVC and $0.06 for EPDM. That is the number that matters to your finance team. HDPE is not the cheapest on day one, but it is the cheapest over the project’s life – and that is exactly what a procurement engineer should advocate.
To summarise, here is a concise checklist for your next HDPE pond liner procurement:
- Specify thickness based on application – 0.75-1.0 mm for agriculture, 1.0-1.5 mm for aquaculture, 1.5-2.0 mm for mining and industrial.
- Choose smooth for flat bottoms, textured for slopes steeper than 3H:1V.
Require GRI-GM13 compliance and third party test reports.
- Verify supplier production capacity and logistics track record.Include detailed installation specifications in the tender, including subgrade prep, protection layer, welding parameters, and anchoring.
- Request a sample roll for independent testing before final order.
- Evaluate on total cost of ownership, not initial price.
By following these guidelines, you will not only secure a reliable liner – you will also demonstrate to your management that you understand both the technical and commercial dimensions of the investment.
