The 1.5 mm HDPE liner is one of the most widely used geomembrane specifications in modern mining heap leach pad systems. In mining operations, especially gold, copper, and uranium extraction, heap leaching involves the use of highly aggressive chemical solutions such as sodium cyanide or sulfuric acid to extract valuable metals from ore piles.
These chemical solutions must be fully contained to prevent environmental contamination and ensure operational efficiency. A GEOSINCERE Geosynthetics HDPE geomembrane 1.5 mm provides the optimal balance between mechanical strength, chemical resistance, cost efficiency, and long-term durability, making it the industry standard for many mining projects worldwide.
Heap leach pads are exposed to heavy loads, uneven subgrades, sharp rock particles, and continuous chemical exposure. Under such extreme conditions, liner performance becomes a critical factor in determining both environmental safety and project profitability. Specifically, the 1.5 mm thickness engineered with high-density resin offers superior puncture resistance against coarse ore puncture and excellent multi-axial elongation to withstand localized settlement. Moreover, this precise gauge minimizes the risks of stress cracking and thermal expansion issues commonly found in thicker variants, ensuring the seam integrity remains uncompromised over decades of operation. Ultimately, preventing even minor pregnant leach solution (PLS) leaks directly translates to maximizing metal recovery rates and protecting the mining enterprise from catastrophic environmental liabilities and regulatory penalties.

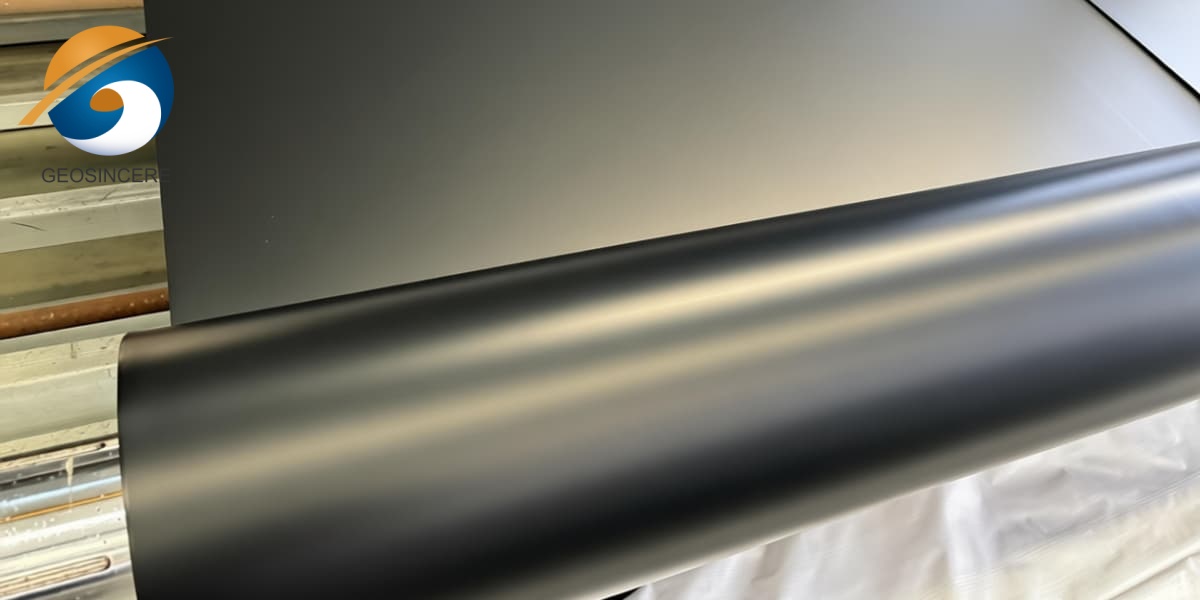

A 1.5 mm HDPE liner is a high-density polyethylene geomembrane sheet with a nominal thickness of 1.5 millimeters. It is engineered to act as an impermeable barrier in containment systems, particularly in mining, landfill, and water storage applications.
Key properties include:
- High chemical resistance
- Excellent impermeability
- Strong puncture resistance
- UV and oxidation resistance
- Long service life (20–50 years depending on conditions)
This thickness is widely considered the “standard heavy-duty grade” for mining containment applications. At 1.5 mm, the geomembrane achieves an ideal structural equilibrium; it possesses the robust tensile strength required to endure immense hydrodynamic pressures and the dead load of ore heaps up to 100 meters high, while retaining sufficient elasticity to conform to irregular subgrade topography. This unique blend of flexibility and toughness prevents tear propagation, a critical hazard in high-stress containment environments.
The liner is manufactured using advanced extrusion or blown-film processes. High-quality virgin HDPE resin is combined with:
- Carbon black (UV protection)
- Antioxidants (aging resistance)
- Stabilizers (thermal and chemical stability)
The result is a uniform, high-performance geomembrane capable of withstanding harsh mining environments. During the extrusion phase, precise computerized gauge control systems constantly monitor and adjust the sheet's cross-sectional uniformity, ensuring there are no thin spots that could compromise the liner's integrity. Additionally, the Melt Flow Index (MFI) and molecular weight distribution of the raw resin are rigorously tested to guarantee that the final 1.5 mm product delivers optimal weldability and superior stress-crack resistance under field conditions.

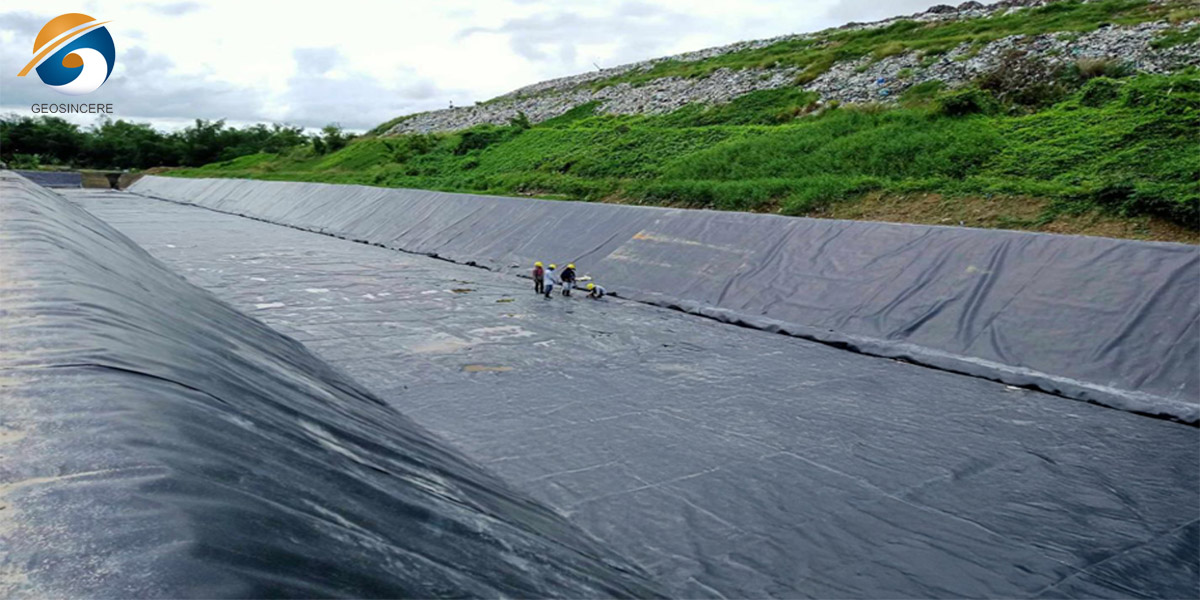

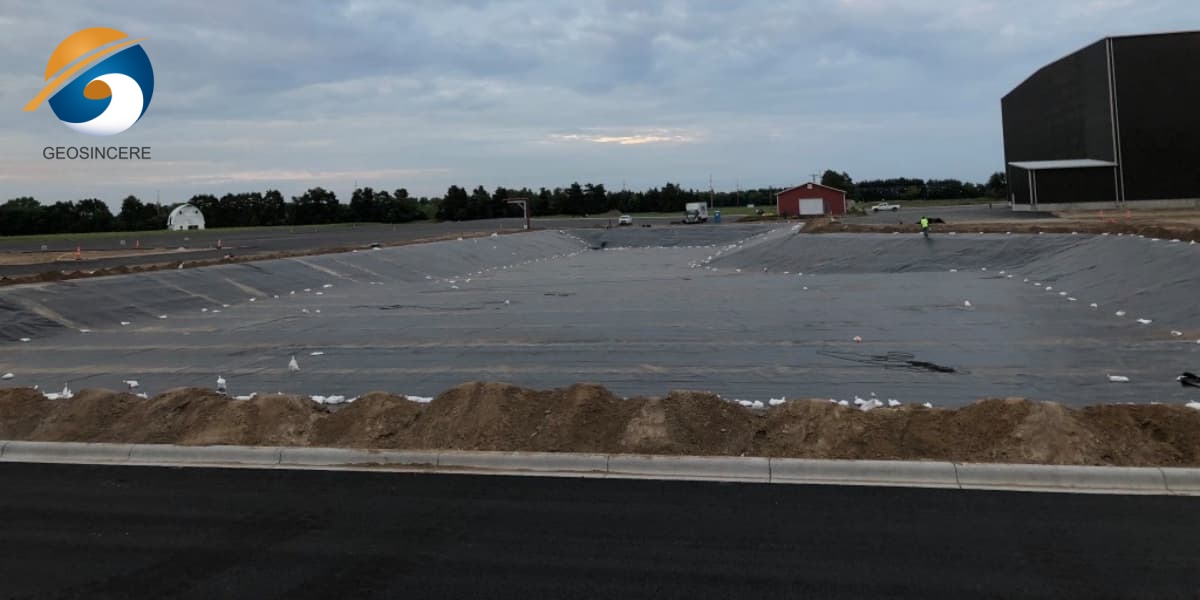

A heap leach pad is an engineered structure where crushed ore is stacked in large piles. Chemical solutions are applied to dissolve target metals, which are then collected at the base of the pad.
The liner system beneath the ore heap is essential to:
- Prevent solution leakage
- Protect groundwater
- Collect pregnant leach solution efficiently
Typically designed as a multi-layered composite system, the pad integrates a prepared subgrade, a low-permeability clay liner or geosynthetic clay liner (GCL), the primary 1.5 mm HDPE geomembrane, and an overliner drainage layer. Within this complex infrastructure, the 1.5 mm HDPE liner serves as the absolute hydrological cutoff, forcing the heavy, metal-laden solution to flow laterally into collection pipes rather than percolating into the underlying soils.
Even a small failure in the liner system can result in:
- Toxic chemical leakage
- Environmental fines
- Loss of valuable leach solution
- Production shutdowns
This makes the selection of 1.5 mm HDPE liner a critical engineering decision. Because heap leach operations often run continuously for years, a microscopic puncture or a single faulty weld can lead to the unrecoverable loss of thousands of ounces of dissolved gold or copper into the earth. Beyond the immediate financial drain of lost product, environmental remediation costs and regulatory penalties can jeopardize a mining company's social license to operate. Utilizing a robust 1.5 mm thickness provides the structural safety margin needed to survive the dynamic stresses of heap building, minimizing long-term risk and safeguarding the project's bottom line.
Mining operations often involve highly reactive chemicals such as:
- Cyanide solutions (gold mining)
- Sulfuric acid (copper leaching)
- Alkaline solutions (uranium extraction)
The 1.5 mm HDPE liner is designed to resist chemical degradation even under prolonged exposure. In many heap leach operations, these chemical solutions are not only highly concentrated but also applied at elevated temperatures due to exothermic reactions or ambient tropical climates. This thermal acceleration increases the aggressiveness of the chemical attack. A 1.5 mm HDPE liner provides a critical sacrificial barrier and structural cushion that prevents these harsh fluids from inducing polymer swelling or leaching out vital additives, ensuring the liner does not become brittle or lose its elastomeric properties over decades of intense chemical contact.
HDPE has a highly stable polymer structure, which provides:
- Low chemical reactivity
- Resistance to oxidation
- Long-term molecular integrity
This makes it ideal for environments where chemical stress is continuous and intense. From a chemical standpoint, high-density polyethylene is a semi-crystalline polymer characterized by a high molecular weight and dense carbon-hydrogen chains ($(-CH_2-CH_2-)_n$). This tightly packed molecular matrix creates a formidable physical barrier that prevents hazardous chemical ions and solvents from diffusing into the liner material. Because the 1.5 mm thickness ensures an ample density of these continuous polymer chains, it significantly retards the rate of chemical permeation. Furthermore, the material is formulated with specialized hindered amine light stabilizers (HALS) and advanced antioxidants, which work synergistically at the molecular level to neutralize free radicals, thereby preventing chemical oxidation and maintaining the liner’s mechanical toughness.
Heap leach pads are constructed over rough, rocky subgrades. The 1.5 mm thickness provides:
- Improved puncture resistance
- Better stress distribution
- Reduced installation damage risk
Once ore is stacked on the liner, it must withstand:
- High vertical loads
- Uneven pressure distribution
- Long-term settlement
The 1.5 mm HDPE liner maintains structural integrity under these conditions.
Proper foundation preparation is essential:
- Removal of sharp rocks
- Soil compaction
- Installation of protective geotextile layers

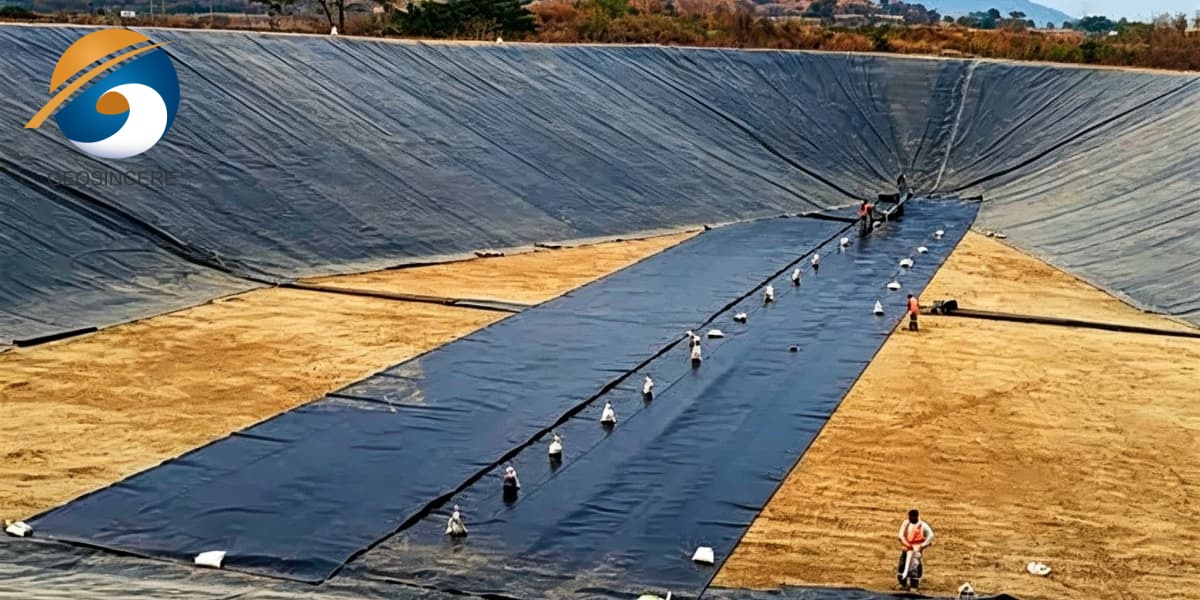

HDPE liners are joined using:
- Hot wedge welding
- Extrusion welding
Proper seam quality control ensures leak-free performance across large mining fields.
Common inspection methods include:
- Vacuum testing
- Air pressure testing
- Destructive seam sampling
These tests ensure compliance with international mining standards.
The primary function of a 1.5 mm HDPE liner is to prevent toxic leachate from entering groundwater systems.
By isolating chemical solutions, HDPE liners protect surrounding soil ecosystems from long-term damage.
Mining companies must comply with strict environmental regulations. Proper liner systems help ensure:
- Environmental permits approval
- Reduced legal risk
- Sustainable mining operations
Even in exposed conditions, HDPE liners maintain stability due to:
- Carbon black additives
- UV stabilization
- Oxidation resistance
Mining environments involve constant mechanical stress. The 1.5 mm thickness helps reduce:
- Environmental stress cracking
- Fatigue failure over time
Under proper installation, a 1.5 mm HDPE liner can last:
- 20 to 50 years depending on conditions
- Even longer in buried applications
While thicker liners (2.0 mm) offer higher protection, the 1.5 mm HDPE liner provides:
- Lower material cost
- Easier installation
- Sufficient durability for most heap leach systems
The long service life reduces:
- Maintenance costs
- Repair frequency
- Operational downtime
A well-prepared base is foundational to the success of the entire containment system. Ensuring a smooth, highly compacted, and debris-free subgrade significantly reduces localized stress concentrations, minimizes puncture risks, and optimizes the overall performance and longevity of the HDPE liner.
Integrating high-performance geotextile cushioning layers above or below the liner acts as a critical shield. This defensive barrier substantially improves:
- Puncture resistance against sharp aggregate angularity
- Load distribution under massive heap weight
- Long-term durability by mitigating physical abrasion
Implementing a robust, proactive inspection program is vital to managing chemical and physical risks over time. Regular monitoring and advanced leak detection ensure the early identification of:
- Seam defects or joint degradation before major leaks occur
- Localized damage caused by operational machinery or rock settlement
- Drainage issues that could cause excessive hydraulic head pressure
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) 1.5 mm HDPE liner plays a vital role in modern mining heap leach pad systems by combining chemical resistance, mechanical strength, and long-term durability.
Its ability to withstand aggressive chemical environments while maintaining structural integrity under heavy loads makes it the preferred choice for mining engineers worldwide. By ensuring safe containment, environmental protection, and cost efficiency, the 1.5 mm HDPE liner remains a cornerstone of sustainable mining infrastructure.
