In today's world of water resources engineering, industrial containment, and environmental protection, the hdpe geomembrane pond liner has become the de facto sealant for impermeable boundaries. This comprehensive article delves into the multifaceted world of HDPE geomembrane liner, their polymer chemistry, manufacturing methods, physical characteristics, and their usage areas that range from aquaculture to hazardous waste isolation. We will review different techniques for the lining system, quality control measures, and performance tests over a period long enough so that it is evident that HDPE is the preferred material by design professionals and environmental scientists. The paper also presents an assessment of the role of HDPE in sustainable development, by looking at the chemical resistance, ultraviolet (UV) degradation resistance, and the capability for groundwater protection offered by HDPE. By linking together data on materials and information coming from the field, the guide will help the reader to develop a comprehensive perspective and understand the reasons why the GEOSINCERE Geosynthetics HDPE geomembrane pond liner is so essential in the contemporary engineering and environmental sectors.
Governing liquids is one of the main problems of mankind nowadays, especially in the areas like irrigation, leachates from landfills, and the process of mining. Therefore, one cannot help but look for some kind of a barrier through which the liquid does not escape to the surroundings. At a historical level, compacted clay was the only option as a natural material for this role. Nevertheless, natural soils being inherently variable, susceptible to drying-out cracking, and limited availability of clay, have caused a shift to manufactured solutions such as the HDPE geomembrane pond liner.
Sin ce its first appearance in the 1980s, HDPE geomembrane has literally changed face the industry of containment. In comparison to flexible PVC or polypropylene products, HDPE presents high tensile strength as well as extraordinary chemical inertness and durability. A well-placed HDPE line can last over 50 years. Hence it is regarded nowadays as one-of-a-kind construction of a really critical facility material.
This document shall be of assistance to those who are involved in project execution, civil engineering, environmental consultancies, and construction fields. We will look into the material at the molecular level as we discuss its performance, and in parallel, we will touch upon the practicalities of the welding and seaming of the liner. By the end the reader is hopefully able to get an insight into how deep a material can be just looking at its chemical composition and yet it can function just as a basic "plastic sheet.”
The reason behind the performance of the HDPE geomembrane is a good understanding of its source of origin: HDPE is a thermoplastic that comes straight from crude oil. Through a process involving linking together single units of molecules of ethylene the resulting chains of this polymer become a single linear chain.
The "dense" part in HDPE name stands for the almost linear arrangement and absence of side chains in the HDPE polymer chains.
The fact that these chains lack side branches means that the chains can interlock. The tight fitting of these interlocked chains leads to an appreciable extent of crystallization—usually, the HDPE material contains 60% to 80% crystallinity. This crystalline nature is responsible for providing strength and a sealing function to the HDPE material. The soft and non-crystal parts (amorphous domains) provide it with a property of flexibility and a resistance against sudden impacts. It is very important to have just the right levels of the two states; if there are too many crystalline parts, the material might turn extremely rugged, while a material with an overrepresentation of the amorphous will be weak against stretching. Therefore HDPE's properties are determined by a careful selection of its composition and manufacturing process.
High-density polyethylene (HDPE) resins designed for geomembrance applications are specially processed with the addition of stabilizers and various additives before the final product. It is important to note, these geomembrane resins cannot be considered merely as ordinary plastics with the ability to be used in different situations. The resin is subjected to multiple rigorous test requirements, i.e., test for Melt Flow Index, testing the content of the carbon black filler and the oxidative induction time (OIT) of the resin. From this point of view, OIT plays a crucial role in predicting the stability of the polymer during long-term exposure to heat and light radiation as it reveals how well is the antioxidant protecting the polymer. Thus a high OIT means more durability because of the resistance of the compound to degradation through free radical chain breaking reactions.
HDPE resin as a raw material is essentially inert. Therefore, to provide an efficient UV protection system, carbon black pigment is added to the mixture. This carbon black is not simply a color additive; the carbon particles convert the UV radiation by absorbing it and then converting it to heat energy. In this process, the degradation mechanisms of the polymer through breaking of polymer chains (chain scission) can be prevented. Besides, light stabilizers with hindered amine (HALS) and primary antioxidants are combined into the resin mixture to prevent the formation of reactive free radical particles which are created by the presence of heat and oxygen while extruding the material.
The transformation of powder-like HDPE resin into a large roll of geomembrane is only possible by using a high-precision extrusion method. HDPE geomembranes can be produced via two principal processes: HDPE films blown in form (or Tubular) extrusion process and Cast or Flat Die extrusion process.
During blown film extrusion, the HDPE molten compound is extruded and the circular die will produce the tube. The bubble will be formed by injecting air inside it so it will inflate the pipe to a very big bubble. The bubble then will be drawn to the top and cooled by air rings, the bubble is pressed into flat double layers. After the "lay-flater" tube is ready, a blade will open the tube and the product will be wound onto rolls. The main advantage of blowing films to manufacture geomembranes is the fact that the physical properties of the film are balanced in both machine direction and the transverse direction due to the biaxial orientation. These films usually have better tear resistance and elongation.
Flat die extrusion is characterized by the production of a film by a flat die or die slit which is a rectangular opening horizontally. As such, the molten resin is pressed through the slit onto a highly polished and cold roller. The newly extruded sheet will solidify rapidly because of the heat difference of the hot resin and the cold roller. The film will be very flat and can therefore have a very smooth surface which is usually referred to as smooth liners. However, the film produced from flat die extrusion has a tendency to show directionality i.e., the properties of the film in the machine direction and the transverse direction are not the same. As a result, the flat die extrusion is often preferred as it provides higher output at a lower cost for producing smooth geomembranes.
One of the major geomembrane technological achievements is the development of textured or corrugated HDPE linings. These are produced by a co-extraction technique where a foam layer is simultaneously being extruded on one/surface of the geomembrane. During cooling of the surface, the foam forms peaks and a rough surface texture. Such a surface has an increasing degree of interaction, that is, in the case of a slope construction, the smooth liner may slip over the soil or geotextile. The textured surface will, therefore, increase the frictional resistance to the slip and allow the construction of steeper and more stable geotechnical containment structures.
The specification of an HDPE geomembrane is dictated by a suite of physical and mechanical properties. These are rigorously tested in accordance with standards set by the American Society for Testing and Materials (ASTM) and the Geosynthetic Research Institute (GRI).
Tensile strength is a measure of the maximum stress the material can withstand while being stretched. HDPE geomembranes typically exhibit tensile strengths of 30 to 45 MPa (megapascals). Equally important is the elongation at break. HDPE is a ductile material, with typical elongations exceeding 700%. This ductility is vital; it allows the liner to accommodate differential settlement of the subgrade without tearing. As the ground beneath the liner shifts, the material stretches to bridge voids.
Tear resistance measures the force required to propagate a tear in the sheet. A high tear resistance is crucial during installation and backfilling. Sharp rocks or construction equipment can create nicks in the liner. If the tear resistance is low, a small nick can easily elongate into a catastrophic failure. HDPE geomembranes excel in this regard due to their high molecular weight.
Puncture resistance is the ability to withstand penetration by a sharp object. This is often tested using a hydraulic burst test or a probe puncture test (ASTM D4833). The subgrade must be prepared to remove sharp objects, but the liner is the last line of defense. The high puncture resistance of HDPE ensures that minor protrusions in the subgrade do not compromise the integrity of the barrier.
This is arguably the most critical long-term property for HDPE. Stress cracking is the formation of cracks in the plastic due to the combined effects of tensile stress and environmental agents over time. HDPE geomembranes are subjected to the "Notched Constant Tensile Load" (NCTL) test to evaluate this. High-performance resins are specifically designed to provide superior resistance to slow crack growth, ensuring the liner remains intact for decades.
The deployment of the HDPE geomembrane pond liner in aggressive chemical environments is one of its greatest selling points. It is generally resistant to a wide range of chemicals including acids, bases, salts, alcohols, and hydrocarbons.
While HDPE is highly inert, it is not immune to all chemicals. Oxidation agents, strong oxidizing acids (like concentrated nitric or sulfuric acid), and certain organic solvents can extract plasticizers or cause chain scission. Furthermore, halogenated hydrocarbons—such as chlorinated solvents—can cause swelling or degradation of the polymer. This is why a site-specific chemical compatibility analysis is always recommended before selecting the liner for a specific waste stream.
To verify compatibility, samples of the HDPE liner are submerged in the site-specific fluid at elevated temperatures for extended periods. The properties of the liner are measured before and after exposure. A significant drop in tensile strength or elongation indicates incompatibility. In most municipal and industrial water applications, however, HDPE shows negligible changes in properties, making it an exceptionally safe choice.
Another advantage of HDPE is its resistance to biological degradation. Unlike cellulosic materials or certain polymers, HDPE does not provide a food source for microorganisms. Fungi, bacteria, and algae do not consume or break down the polymer. This makes it ideal for potable water reservoirs and aquaculture ponds where biological contamination from the liner itself is not a concern (provided the resin meets NSF 61 standards for drinking water).
The versatility of the HDPE geomembrane pond liner allows it to serve a vast array of industries. Below are the most prominent applications.

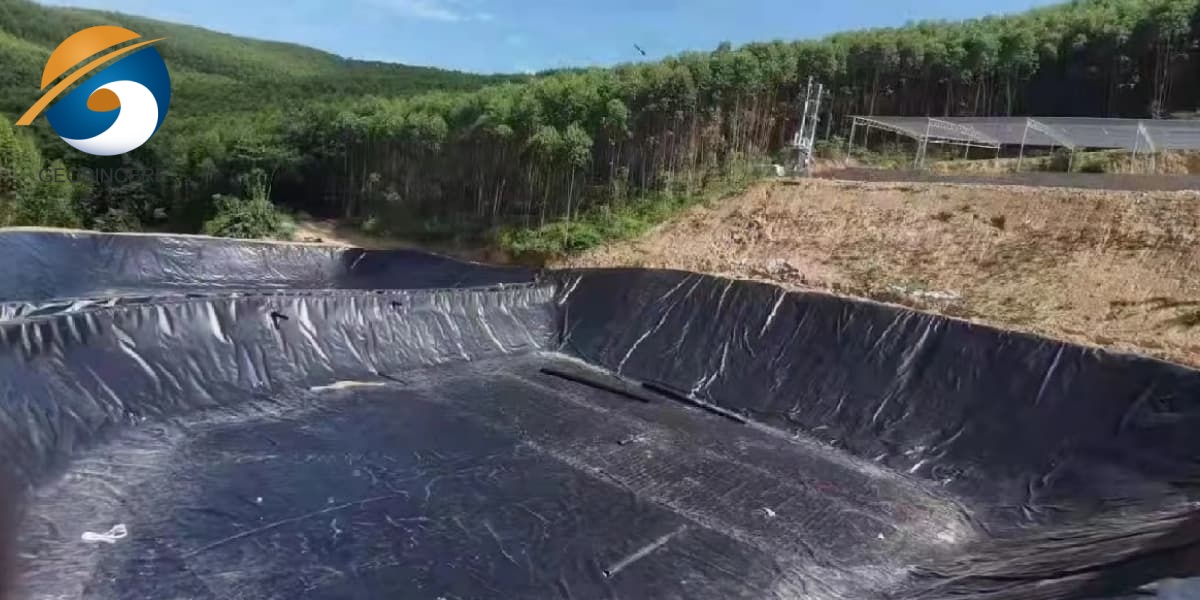

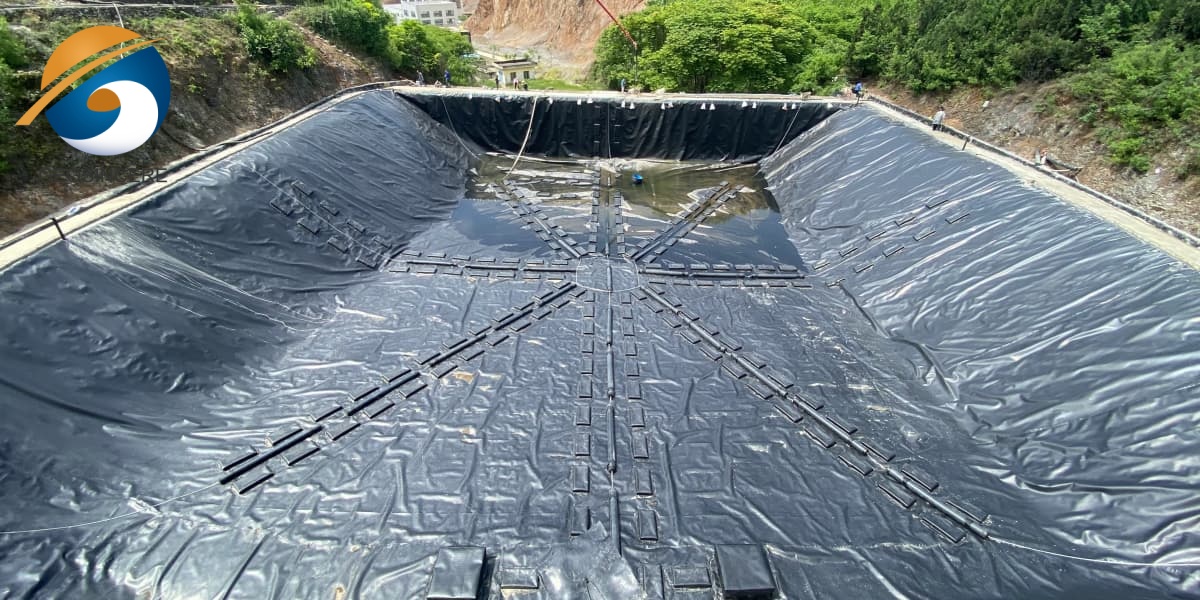

In arid and semi-arid regions, water is gold. Evaporation and seepage are the two main losses in irrigation ponds. HDPE liners prevent seepage, which not only conserves water but also prevents the loss of valuable nutrients from the soil. The liners protect the water from contamination by surrounding soil and are effective in storing potable water, agricultural water, and fire suppression water.
The aquaculture industry relies heavily on HDPE liners for shrimp and fish farming. The liners provide a controlled environment that is easier to manage and harvest. They prevent the interaction between the pond water and the underlying soil, which can contain pathogens or toxic substances. Furthermore, the smooth surface of the liner makes it easier to clean and disinfect between batches, reducing the risk of disease.
The mining industry uses geomembranes extensively, particularly in heap leach pads for gold, copper, and other precious metals. These pads involve piling ore on top of a lined pad and sprinkling it with a leachate solution (such as cyanide for gold). The HDPE liner is the primary barrier preventing these highly toxic solutions from entering the groundwater. Its ability to withstand the weight of the ore heaps (static load) and the harsh chemicals involved is indispensable.
Municipal solid waste (MSW) and hazardous waste landfills are required by regulations like the US EPA’s Resource Conservation and Recovery Act (RCRA) to have a composite liner system. The primary component of this barrier is often an HDPE geomembrane. It prevents leachate—the "garbage juice" produced by decomposing waste—from contaminating the underlying aquifers.
From the pulp and paper industry to petrochemical refineries, industrial processes generate significant volumes of wastewater. These often require containment in evaporation ponds or treatment lagoons. The HDPE liner provides a robust barrier against the complex cocktail of process chemicals.
The fracking industry uses HDPE liners for impoundments to hold produced water and flowback fluids. These fluids contain salt, heavy metals, and sometimes radioactive materials, making secure containment a legal and environmental necessity.
The quality of the raw material is irrelevant if the installation is flawed. The seams are the weakest points in any geomembrane system. The success of the project relies on the proper installation of the HDPE geomembrane pond liner.
Before any liner is unrolled, the subgrade must be meticulously prepared. All sharp rocks, organic debris, and roots must be removed. The surface must be smooth, compacted, and free of standing water. In applications where the subgrade is "soft," a geotextile cushion may be placed beneath the liner to protect it from subgrade movement.

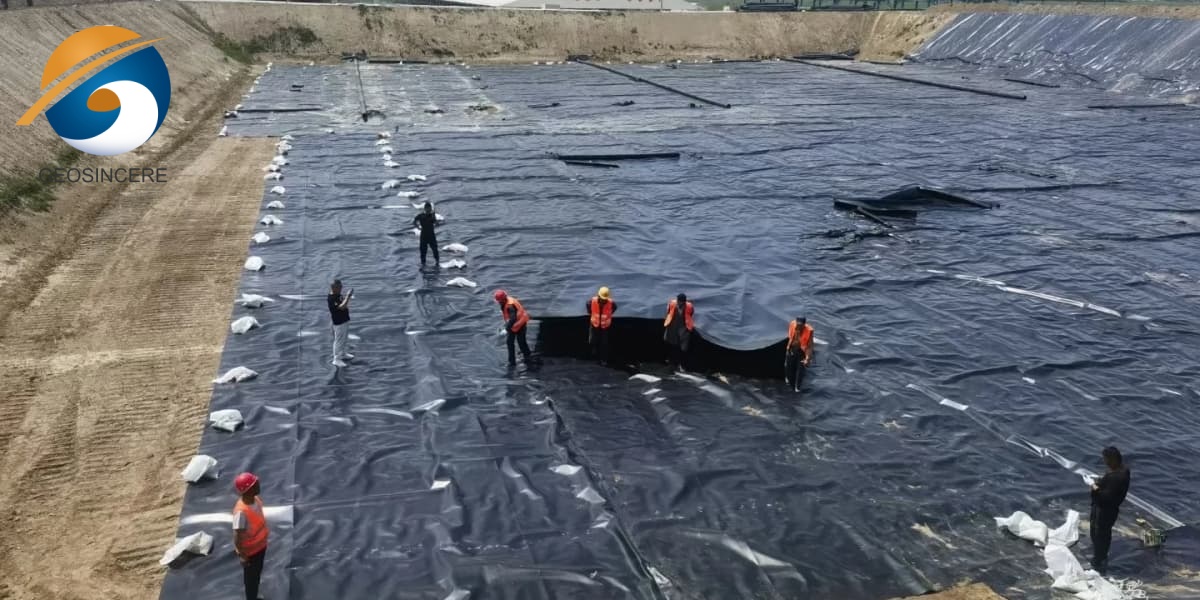

The rolls of geomembrane are typically shipped in large, heavy rolls (up to 20 feet wide and 300 feet long). They must be unrolled carefully to avoid stress cracking. In windy conditions, ballasting (sandbags) is essential to prevent the liner from being lifted and potentially damaged.
This is the critical phase. There are two primary methods for seaming HDPE geomembranes:
This is the most common and reliable method. The machine moves along the seam, clamping the two sheets together while a wedge of hot metal is inserted between them. The surfaces of the two sheets are melted, and a molten bead of HDPE resin is extruded into the gap. The "shoe" of the machine then presses the molten surfaces together. This creates a "double-track" weld with a central air channel. The quality of this weld is tested by pressurizing the air channel; if it holds pressure, the seam is sound.
This method is used for seams that cannot be reached by the heavier fusion welder (e.g., patches, details, and pipe boots). It involves melting the surface of the geomembrane with a hot air gun and extruding a bead of molten resin onto the seam to cover the edge.
The installation must be monitored by a qualified third-party inspector. Non-destructive testing is performed on 100% of the seams. This includes:
Pressurizing the gap in the double-track weld to ensure no leaks.
Used for extrusion welds. A soap solution is sprayed on the seam, and a vacuum box is placed over it. If bubbles form, there is a leak.
Additionally, destructive testing involves cutting samples of the seam and subjecting them to the ASTM D6392 peel and shear tests. These samples are typically removed from the leading edges of the rolls (the "snake bites").
One of the most compelling arguments for using HDPE is its long-term durability. Based on extrapolated data from high-temperature immersion tests (Arrhenius modeling), a properly formulated HDPE liner is projected to last over 100 years in a buried or submerged environment.
While HDPE is sensitive to UV radiation, the addition of carbon black and stabilizers provides a barrier that allows the liner to withstand exposure for up to 6 to 12 months without significant degradation. This is usually sufficient time for construction. If the liner is to be exposed for longer periods, it must be covered with soil or water.
The degradation of HDPE in environmental conditions is typically a slow process. The primary aging mechanism is oxidation. The antioxidants within the resin are consumed over time. Once the antioxidant package is depleted, the polymer begins to oxidize, leading to chain scission (which embrittles the material) or cross-linking (which stiffens it). The rate of this process is highly dependent on temperature; higher temperatures accelerate aging.
ESC remains the primary failure mode for old HDPE liners. However, modern high-performance resins (often referred to as "third generation" HDPE) have been engineered with extremely high resistance to ESC, making failure due to this mechanism highly unlikely within the design life of the facility.
In an era of heightened environmental awareness, the use of HDPE geomembranes raises questions about sustainability.
The most obvious positive environmental impact is the protection of groundwater. By preventing the migration of pollutants, HDPE liners safeguard drinking water sources and aquatic ecosystems. This function alone makes them a critical technology for environmental stewardship.
HDPE is a thermoplastic, meaning it can be melted and re-processed. During manufacturing, scrap is recycled back into the extrusion process. At the end of its service life, the liner can be recovered and recycled, though this is rarely done due to the difficulty in cleaning and separating it from soil.
The production of HDPE relies on fossil fuels, which contributes to its carbon footprint. However, the environmental damage prevented by the liner (e.g., a single gold mine's leach pad failure could cause centuries of ecological damage) outweighs the carbon cost of production. The containment provided by HDPE liners also allows for water recycling, reducing the demand for fresh water pumping and treatment.
The industry is not static. Research continues to push the boundaries of geomembrane technology.
Researchers are experimenting with clay and carbon nanotubes in HDPE to further enhance barrier properties and reduce gas permeability.
The integration of fiber optic sensors within the liner allows for real-time monitoring of temperature and strain. This could provide early warning of settlement or damage.
While still in the research phase, there is interest in developing geomembranes from renewable sources that mimic the properties of HDPE but have a lower carbon footprint.
The HDPE geomembrane pond liner is more than just a plastic sheet; it is a sophisticated, engineered solution to one of humanity's most pressing challenges: the safe and efficient containment of liquids. Its dominance in the geosynthetic market is a testament to its unparalleled combination of strength, chemical resistance, and longevity.
From the high-tech labs where the resins are formulated to the sweltering heat of the field where the seams are welded, the HDPE liner represents a synergy of science and craftsmanship. It plays a silent yet vital role in our daily lives, allowing us to drink clean water, extract minerals, manage our waste, and produce food with minimal environmental intrusion.
As we move toward a more sustainable future, the importance of reliable containment will only grow. The HDPE geomembrane, with its robust track record and continued innovation, stands ready to meet that challenge. It remains the cornerstone of geosynthetic engineering, a quiet champion of the environment, and a testament to human ingenuity in mitigating the impacts of industrialization.

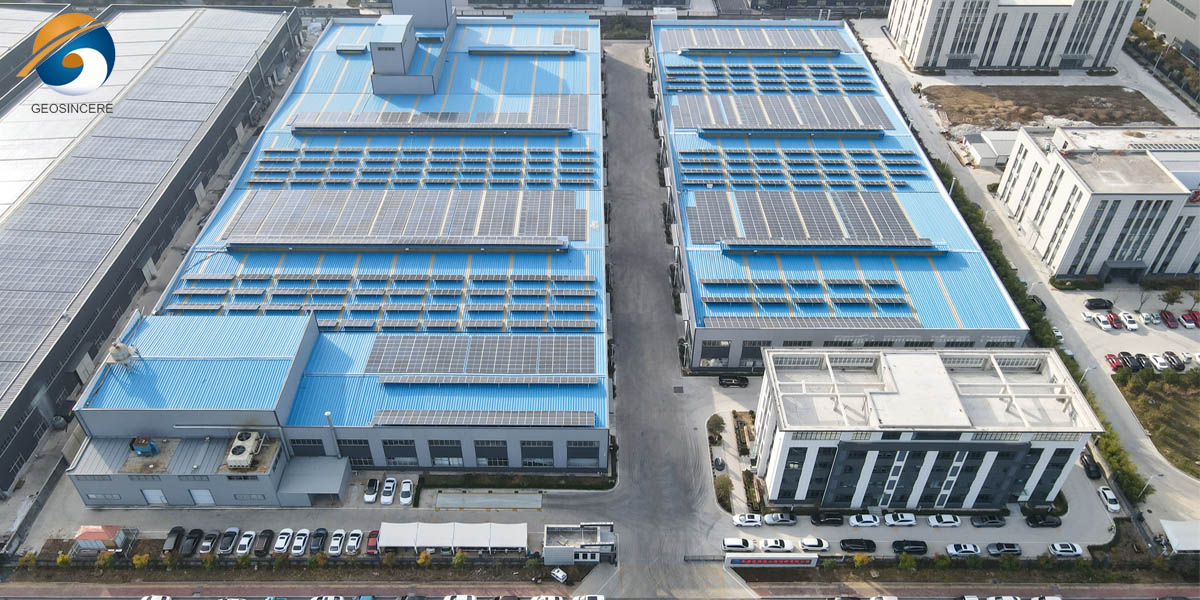

Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality HDPE geomembranes and other geosynthetics with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness.
