In the realm of modern civil and environmental engineering, water containment stands as a cornerstone of sustainable development. Whether for agricultural irrigation, industrial wastewater treatment, municipal water storage, or decorative landscape features, the integrity of the containment system is paramount. Enter the geomembrane pond liner – a synthetic membrane whose evolution over the last half-century has revolutionized how humanity manages liquid resources. This article delves deep into the world of GEOSINCERE Geosynthetics geomembrane pond liners, exploring their material science, manufacturing processes, critical selection criteria, rigorous installation methodologies, and their indispensable role in protecting our groundwater from contamination. By the end of this comprehensive guide, the reader will understand why the geomembrane liner has become the gold standard for lining projects globally, replacing traditional compacted clay liners (CCL) in countless applications.

1. Introduction – The Need for Impermeable Containment

Water scarcity and environmental pollution are two of the most pressing challenges of the 21st century. As populations grow and climates shift, storing water efficiently without loss due to seepage is critical. Simultaneously, storing potentially hazardous liquids—such as leachate from landfills, brine from desalination plants, or manure from concentrated animal feeding operations (CAFOs)—requires absolute isolation from the surrounding ecosystem.

Historically, engineers relied on natural materials. Ponds were lined with thick layers of compacted clay, relying on the low hydraulic conductivity of smectite minerals to slow water loss. However, clay liners have significant limitations: they are thick (often requiring 2-3 feet), prone to cracking during freeze-thaw or desiccation cycles, susceptible to bioturbation (damage by plant roots or burrowing animals), and require specific local soil compositions that are not always available.

The geomembrane pond liner was developed to overcome these deficiencies. A geomembrane is a synthetic, very low permeability liner made of polymeric materials. When factory-seamed and field-installed correctly, a geomembrane pond liner can achieve a hydraulic conductivity of 10^-14 m/s, effectively making it impermeable on an engineering timescale. This performance, combined with flexibility, chemical resistance, and relatively low installation cost, has made geomembranes the default choice for over 90% of new large-scale pond construction projects worldwide.

2. The Material Science – Types of Geomembrane Pond Liner

Not all geomembrane pond liners are created equal. The selection of the polymer resin dictates the liner’s mechanical properties, chemical resistance, UV stability, and lifespan. The three dominant types in the market are High-Density Polyethylene (HDPE), Linear Low-Density Polyethylene (LLDPE), and Polyvinyl Chloride (PVC). A fourth material, Reinforced Polyethylene (RPE), is gaining traction for temporary or agricultural applications.

2.1 High-Density Polyethylene (HDPE) Liners

HDPE is the workhorse of the geomembrane industry. It is the most common geomembrane pond liner used in environmental containment—specifically for landfills, mining heap leach pads, and hazardous waste ponds.

2.1.1 Properties:

HDPE is characterized by its high tensile strength, exceptional durability, and broad chemical resistance. Its crystalline structure makes it very rigid. Standard thicknesses range from 1.0 mm (40 mil) to 2.5 mm (100 mil).

2.1.2 Advantages:

Outstanding resistance to UV radiation, ozone, and weathering. Very long lifespan (estimated >100 years). High resistance to most hydrocarbons and acids. Excellent seam strengths when thermally welded.

2.1.3 Disadvantages:

Stiffness makes it difficult to conform to uneven subgrades or sharp corners. Relatively high coefficient of thermal expansion, requiring careful slack management during installation. It can be susceptible to environmental stress cracking (ESC) if exposed to certain oxidants.

2.2 Linear Low-Density Polyethylene (LLDPE) Liners

LLDPE is a relative of HDPE but with a different molecular structure. While HDPE has long, straight polymer chains with minimal branching, LLDPE has significant short-chain branching. This gives it dramatically different mechanical behavior.

2.2.1 Properties:

LLDPE is much more flexible than HDPE. It exhibits superior elongation (often >700%) and tear resistance. Thickness ranges are similar to HDPE.

2.2.2 Advantages:

Excellent conformability to rough or irregular subgrades. Lower thermal expansion coefficient than HDPE. Same excellent chemical resistance as HDPE. Easier to install on slopes and around penetrations (pipes, columns).

2.2.3 Disadvantages:

Slightly lower tensile strength than HDPE. Requires specialized welding equipment, though this is common in the industry. Historically, slightly less UV resistance than HDPE, though modern additives have closed this gap.

2.3 Polyvinyl Chloride (PVC) Liners

PVC was one of the first synthetic polymers used for pond liners. It remains popular in decorative ponds, aquaculture, and agricultural reservoirs where cost and flexibility are prioritized over absolute chemical resistance.

2.3.1 Properties:

PVC is an amorphous polymer, making it inherently soft and flexible without the need for as much plasticizer as other materials. It is typically manufactured in thinner gauges (0.5 mm to 1.0 mm).

2.3.2 Advantages:

Very low cost per square foot. Extremely easy to fabricate and seamed using solvents or adhesives (no welding machines required). Highly flexible and easy to repair. Good UV resistance if formulated with stabilizers.

2.3.3 Disadvantages:

Susceptible to plasticizer migration over time. As plasticizers leach out, the liner becomes brittle. Lower puncture and tear resistance compared to polyethylenes. Degrades in the presence of hydrocarbons, strong acids, and certain agricultural chemicals (e.g., nitrate fertilizers). Typical lifespan is 20-30 years vs. 50+ for polyethylenes.

2.4 Reinforced Polyethylene (RPE) and Other Materials

RPE combines a polyethylene core with a reinforcing scrim (woven polyester). This creates a material with high tensile strength in a very thin gauge.

2.4.1 Applications:

Temporary sedimentation ponds, agricultural water storage, canal lining.

2.4.2 Pros:

Lightweight, high strength-to-weight ratio, UV stabilized.

2.4.3 Cons:

Seaming is less robust than HDPE; prone to delamination if damaged.

3. Design and Selection – How to Choose the Right Geomembrane Pond Liner?

Selecting the correct geomembrane pond liner is a multi-factorial engineering decision. A poor choice can lead to catastrophic failure, environmental fines, and costly remediation. The following criteria must be evaluated:

3.1 Chemical Compatibility

3.1.1 What liquid is being contained?

- Clean water (irrigation, fire suppression): Any liner works; cost typically drives the decision (PVC or LLDPE).

- Potable water: Only liners certified to NSF/ANSI 61 for drinking water components (certain HDPE and LLDPE grades).

- Wastewater or Leachate: HDPE or LLDPE due to complex organic chemistry and heavy metals.

- Fuels or Solvents: HDPE is generally required; PVC will dissolve.

3.2 Mechanical Demands

3.2.1 Puncture Resistance:

Subgrade preparation is key, but if rocks or roots cannot be removed, a thicker or more puncture-resistant liner (HDPE or RPE) is needed. A geotextile cushioning layer is highly recommended.

3.2.2 Tensile Strength:

For steep slopes (gradient > 3H:1V), higher tensile strength (HDPE) is required to resist down-slope creep.

3.2.3 Flexibility:

For ponds with frequent water level fluctuations (tidal zones, pumped storage), a flexible liner like LLDPE resists cracking from cyclic stresses better than rigid HDPE.

3.3 Environmental Exposure

3.3.1 Ultraviolet (UV) Radiation:

All geomembrane pond liners intended for exposed applications must contain carbon black (2-3%) or UV stabilizers. Black HDPE/LLDPE has the best UV resistance. PVC is darker colored but degrades faster in high-UV climates like Arizona or Australia.

3.3.2 Temperature Extremes:

In sub-arctic conditions, some PVC formulations become brittle. HDPE maintains flexibility better but requires annealing (controlled tension release) during installation.

3.4 Economic Factors

3.4.1 Material Cost:

PVC < LLDPE < HDPE (generally).

3.4.2 Installation Cost:

PVC is cheapest (solvent welding), but HDPE/LLDPE require specialized welding crews, increasing labor cost. However, the lifespan of HDPE may justify the initial premium.

4. Geomembrane Pond Liner Manufacturing and Fabrication

The journey of a geomembrane pond liner from resin to roll is a sophisticated manufacturing process.

4.1 Extrusion Process

Polymer resin pellets (combined with carbon black, antioxidants, and processing aids) are fed into a screw extruder. The screw melts and homogenizes the material, forcing it through a flat die. The molten sheet is then passed through a series of chilled rollers (calendar stack) to achieve precise thickness tolerance (typically ±5-10%). After cooling, the geomembrane is wound onto heavy cardboard cores. Standard roll widths range from 5 to 8 meters (16-26 feet) and lengths up to 200 meters, though "jumbo" rolls are used for large projects.

4.2 Factory Seaming (Prefabrication)

To minimize field seaming (which is costly and quality-control intensive), large panels are prefabricated in a factory. Using hot wedge or extrusion welders, manufacturer welds several rolls together to create panels as large as 5m x 150m. These panels are then folded (accordion style) to facilitate shipping. Prefabrication can reduce field seaming by up to 70%.

4.3 Quality Control and Testing

Every batch of geomembrane must be tested per ASTM or GRI (Geosynthetic Research Institute) standards. Key tests include:

Density (ASTM D1505)

Tensile Properties (ASTM D6693)

Tear Resistance (ASTM D1004)

Puncture Resistance (ASTM D4833)

Carbon Black Content (ASTM D1603)

Factory seam strength must be tested via peel and shear tests (ASTM D6392). Only rolls passing these tests are shipped to the project site.

5. Geomembrane Pond Liner Installation – The Critical Phase

The most expensive, high-quality geomembrane pond liner will fail if installed improperly. Installation is a multi-step orchestrated process requiring trained technicians, specific equipment, and strict quality assurance (QA).

5.1 Subgrade Preparation

This is the single most important step. The subgrade (soil beneath the liner) must be:

Smooth: No rocks, roots, or debris > 6mm (1/4 inch).

Compacted: Typically 90-95% standard proctor density to prevent differential settlement.

De-watered: No standing water during deployment.

Cushioned: For rough subgrades, a non-woven geotextile (e.g., 8-12 oz/yd²) is laid down first.

5.2 Deployment (Unrolling)

Panels are unrolled from the crest of the pond down to the floor. "Anchor trenches" are excavated along the perimeter (typically 0.5m deep x 0.5m wide). The liner edge is placed into the trench, which is backfilled with compacted soil to hold the liner in place.

Best Practice: Allowing "wrinkles" (controlled slack) during deployment is essential, especially for HDPE. As the pond heats in the sun, HDPE expands. Without slack, the liner will stress, potentially cracking at seams.

5.3 Seaming (Welding)

There are two primary methods for HDPE/LLDPE:

5.3.1 Thermal Fusion (Hot Wedge):

A heated wedge is passed between two overlapping sheets (100mm overlap). The wedge melts the surfaces; pressure rollers fuse them. This creates a dual-track seam with a continuous air channel in between.

5.3.2 Extrusion Welding:

Used for patches, repairs, or attaching to pipes. A bead of molten polymer (same resin) is extruded over the overlapped edges.

5.4 Destructive and Non-Destructive Testing (NDT)

Every seam must be tested:

5.4.1 Air Channel Test (NDT):

A needle is inserted into the air channel of a thermal fusion seam. Air is pressurized to 2.0 bar (30 psi). If pressure holds for 2 minutes, the seam is continuous.

5.4.2 Vacuum Box Test (NDT):

For extrusion welds or patches. A soap solution is sprayed on the seam, and a vacuum box is applied. Bubbles indicate leaks.

5.4.3 Shear and Peel Tests (Destructive):
Every 500-2000 linear feet, a 1-foot sample of seam is cut out and pulled in a tensiometer to ensure strength meets or exceeds 90% of the parent material.

5.5 Installation Around Penetrations

Pipes (inlets, outlets) are the weakest points. A "boot" or pipe boot – a prefabricated geomembrane sleeve – is extrusion welded to the liner and clamped to the pipe with stainless steel bands and a waterstop gasket.

6. Geomembrane Pond Liner Applications Across Industries

The versatility of the geomembrane pond liner has led to its adoption across a stunning range of industries.

6.1 Agriculture and Aquaculture

6.1.1 Irrigation Reservoirs:
Farmers use geomembrane liners to prevent loss of precious irrigation water in arid regions (e.g., California’s Central Valley, Israel’s Negev Desert).

6.1.2 Aquaculture:
Shrimp and fish farms use PVC or LLDPE liners to maintain water quality, prevent predation, and facilitate harvest cleaning. The smooth surface also prevents bacterial biofilm accumulation.

6.1.3 Manure Lagoons:
CAFOs for hogs and dairy cows rely on HDPE liners to prevent nitrates and pathogens from leaching into groundwater.

6.2 Mining and Industrial

6.2.1 Heap Leach Pads:
Gold and copper mining uses enormous (multi-million square foot) HDPE geomembrane pond liners as base pads for cyanide or acid leaching solutions. Leak detection systems (double liners with a geonet drainage layer) are standard.

6.2.2 Tailings Storage:
Mining waste (tailings) is deposited behind dams lined with geomembranes to prevent acid mine drainage (AMD) from contaminating rivers.

6.2.3 Brine Ponds:
Salt and potash production uses white or white-on-black geomembranes to reflect sunlight and accelerate evaporation.

6.3 Environmental and Municipal

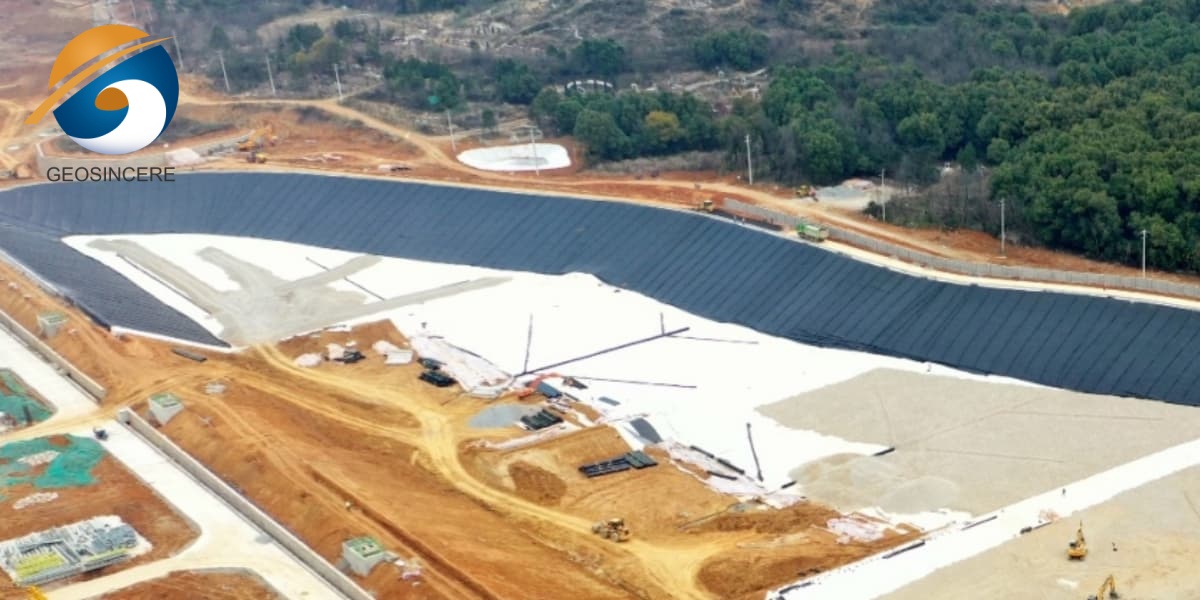

6.3.1 Landfill Liners:
Modern sanitary landfills are constructed with a composite liner: a geomembrane pond liner (typically 1.5mm HDPE) placed directly over a compacted clay liner, with a geonet drainage layer in between to collect leachate.

6.3.2 Stormwater Detention:
Urban stormwater ponds use liners to prevent contaminated runoff (oil, heavy metals) from infiltrating groundwater.

6.3.3 Potable Water Reservoirs:
Municipalities in earthquake zones use flexible LLDPE liners to replace leaking concrete tanks.

6.4 Decorative and Residential

6.4.1 Koi Ponds and Garden Ponds:
Thin PVC or EPDM (ethylene propylene diene monomer – a cousin to geomembranes) liners are used.

6.4.2 Golf Course Water Hazards:
Liners prevent water loss, maintaining aesthetics and playability.

7. Geomembrane Pond Liner Environmental Impact and Sustainability

A legitimate critique of synthetic liners is their reliance on fossil fuel polymers. However, a life-cycle analysis (LCA) reveals a more nuanced picture.

7.1 Benefits to Groundwater Protection

The primary environmental benefit is immense. By using a geomembrane pond liner, industries prevent millions of gallons of contaminated liquid from entering aquifers. The cost to remediate a polluted aquifer can be billions of dollars—far exceeding the cost of a liner.

7.2 Longevity and Resource Conservation

Because geomembranes last 50-100 years, they reduce the need for repeated excavation and re-lining. Furthermore, by preventing water seepage, they reduce the demand for fresh water extraction from rivers and wells. In agriculture, a lined pond saves 20-40% more water compared to an unlined pond.

7.3 Recycling and End-of-Life

Post-consumer recycling of geomembranes is challenging because they are often contaminated with soil or chemicals. However, clean scrap from factory fabrication is recycled back into the production line (post-industrial recycling). Some companies are developing pyrolysis techniques to break down HDPE back into monomers. Currently, most end-of-life liners end up in landfills, though this is a recognized area for improvement.

7.4 The Carbon Footprint

The carbon footprint of producing 1 square meter of HDPE geomembrane is approximately 3.5 kg CO2e. When amortized over 50 years, and weighed against the water saved and pollution prevented, the net environmental impact is positive relative to clay (which has a large excavation/transport carbon footprint) or concrete (which has a very high cement-related CO2 footprint).

8. Geomembrane Pond Liner Maintenance, Repair, and Longevity

Even the most robust geomembrane pond liner requires periodic inspection.

8.1 Routine Inspection

8.1.1 Visual:

Look for holes, abrasions, exposed geotextile, or floating (due to gas buildup underneath).

8.1.2 Leak Detection:

For critical facilities, an Electrical Leak Location (ELL) survey can be performed. A voltage is applied across the liner; leaks create a complete circuit, pinpointing holes with centimeter accuracy.

8.2 Common Failure Modes

8.2.1 UV Degradation:

Occurs only if the liner was not UV stabilized (cheap import materials).

8.2.2 Punctures:

Usually from falling tools, sharp debris left under the liner, or animal bites (rodents, birds).

8.2.3 Seam Failure:

Due to poor welding (incorrect temperature, speed, or pressure) or incompatible materials.

8.3 Repair Techniques

8.3.1 Patch Welding:

Cut a patch of the same material, round the corners (to prevent peel stress), clean the area, and extrusion weld the patch down. Test with a vacuum box.

8.3.2 In-Water Repairs:

For filled ponds, divers can use underwater adhesive patches or magnetic clamps holding a vulcanizing rubber sheet. This is expensive but possible.

9. Geomembrane Pond Liner Case Studies

Case Study 1: The California Water Bank

During the 2012-2016 drought, a cooperative of almond farmers in Kern County constructed a 100-acre-foot irrigation pond. They selected a 1.5mm LLDPE geomembrane pond liner over a geotextile cushion. Post-installation, seepage losses dropped from 25% (unlined) to <0.5%. The $400,000 liner investment paid for itself in water savings within 3 years.

Case Study 2: Landfill Closure, Michigan, USA

A closed municipal landfill required a cap to prevent rainwater infiltration (which creates leachate). Engineers designed a cap with a 1.0mm HDPE geomembrane pond liner overlain by drainage geonet and 2 feet of vegetated soil. The liner reduced leachate generation by 95%, saving the municipality $2 million in annual treatment costs.

Case Study 3: High-Altitude Mining, Andes Mountains

A copper mine at 4,000 meters elevation used a 2.0mm HDPE liner for a heap leach pad. Extreme UV, temperature swings (-20°C night to +25°C day), and seismic activity were challenges. The flexible HDPE with high carbon black content performed flawlessly over 15 years, preventing acidic, copper-laden solution from entering pristine alpine aquifers.

10. The Future of Geomembrane Pond Liner Technology

The industry is not static. Emerging trends include:

10.1 Conductive Geomembranes:

A layer of conductive polyethylene allows for continuous real-time leak detection via electrical monitoring.

10.2 Biodegradable Liners:

For temporary construction ponds (3-6 months), researchers are developing liners made from vegetable oils and biopolymers that degrade harmlessly into CO2 and water.

10.3 Nanocomposite Geomembranes:

Adding nano-clay particles to polyethylene dramatically improves barrier properties against volatile organic compounds (VOCs) like benzene.

10.3 Robotic Seaming:

Automated field seamers with real-time thermal imaging and artificial intelligence (AI) feedback loops are being tested to eliminate human error in welding.

Conclusion

The geomembrane pond liner is far more than a simple plastic sheet. It is a sophisticated, engineered component of modern infrastructure that quietly enables water security, environmental protection, and industrial productivity. From the vast tailings ponds of the Chilean mining sector to the small koi pond in a suburban backyard, these liners perform the same essential function: absolute containment.

Understanding the differences between HDPE, LLDPE, and PVC; respecting the rigorous installation protocols; and committing to ongoing maintenance allows engineers and landowners to harness the full potential of this technology. As water becomes the most valuable resource of the 21st century, the humble geomembrane pond liner will only grow in importance. Whether you are designing a municipal reservoir or a farm pond, investing in a quality geomembrane liner is an investment in durability, sustainability, and peace of mind. The future of water containment is flexible, impermeable, and synthetic – it is the geomembrane pond liner.

Choose a reliable supplier to quote price for you:

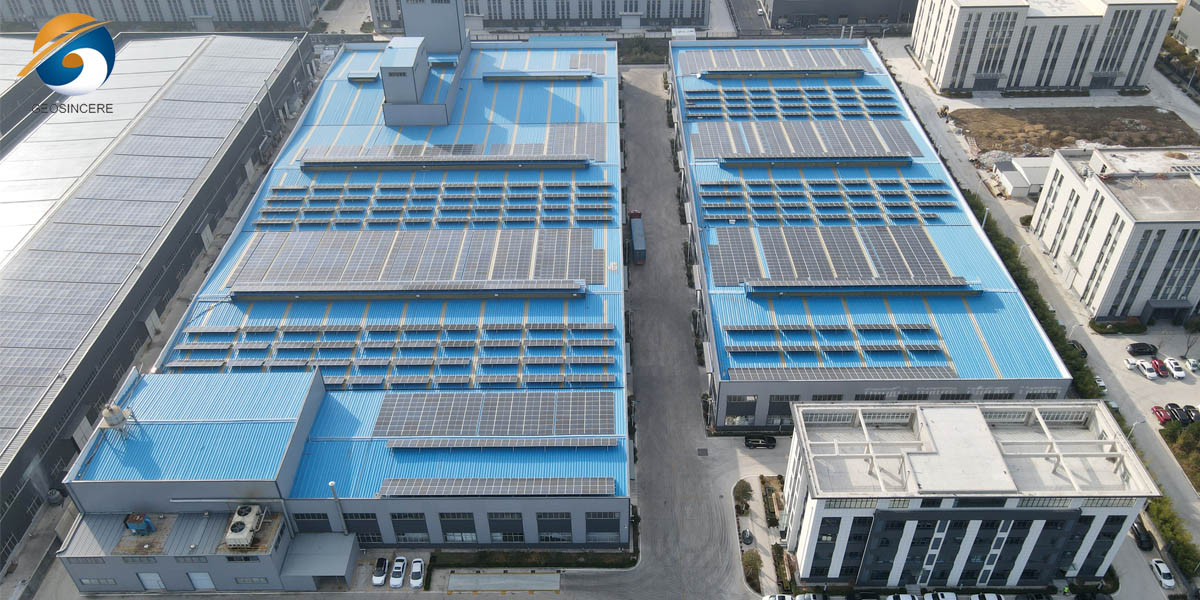

Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics)  is the professional Geosynthetic clay liners and geosynthetics manufacturer and wholesaler located in Shandong Province, China. We are an professional manufacturer, exporter and wholesaler for such geosynthetic products as HDPE Pool Liner, geotextiles, geogrids, geocells, geosynthetic clay liners (geosynthetic clay linerss), drainage boards, etc.
