HDPE Geomembranes have end up one of the most indispensable applied sciences in geosynthetics. These liners are no longer sincerely sheets of plastic however extraordinarily engineered barriers, designed via the convergence of superior polymer chemistry and large-scale civil engineering. Their substantial adoption stems from their potential to supply invulnerable containment in some of the most worrying environments, the place fabric failure ought to lead to catastrophic consequences. The dominance of HDPE geomembranes is defined with the aid of their stability of durability, chemical inertness, and predictable long-term carrier life, making them vital in present day infrastructure and environmental safety projects.
The awesome overall performance of HDPE geomembranes originates at the polymer chain level. HDPE is a semi-crystalline thermoplastic exclusive by means of its minimal chain branching, which approves molecules to align and pack closely. This dense shape creates a set of defining properties:
1.1 High Density (0.940–0.965 g/cm³) HDPE Geomembranes : The dense packing leads to sturdy tensile properties, extremely good puncture resistance, and dimensional steadiness most efficient to LDPE or LLDPE.
1.2 High Crystallinity (60–80%) HDPE Geomembranes : A crystalline matrix imparts stiffness and barrier strength, whilst the amorphous areas preserve restricted flexibility.
1.3 Chemical Resistance HDPE Geomembranes: HDPE is inert to acids, alkalis, salts, and many natural solvents. This makes it an perfect liner for hazardous beverages such as leachate, brines, industrial effluents, and acid mine drainage.
1.4 Low Permeability HDPE Geomembranes : The tight molecular association ensures very low permeability to gases and liquids, validated thru ASTM water vapor transmission and permeation tests.
1.5 Resistance to Stress Cracking (ESCR) HDPE Geomembranes: A essential measure of long-term reliability, ESCR evaluates a polymer’s resistance to cracking beneath sustained stress in aggressive environments. Well-formulated HDPE geomembranes reap excessive ESCR values, making sure sturdiness underneath extended load.
This aggregate of structural density and chemical inertness explains why HDPE geomembranes constantly outperform different polyethylenes and continue to be the benchmark for containment applications.

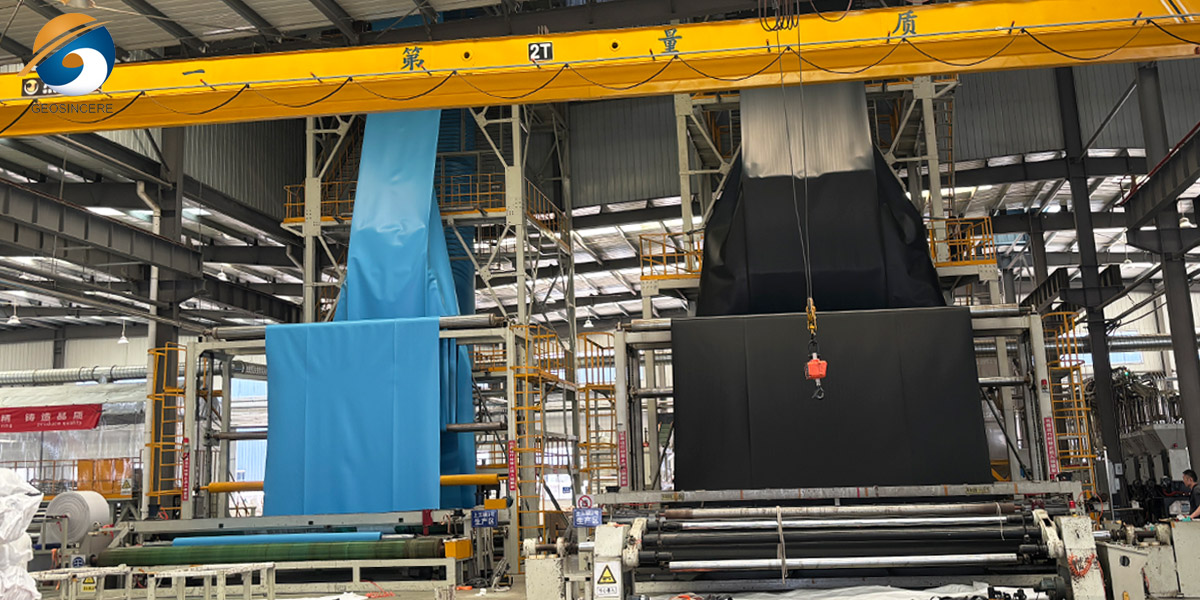

The trip from resin pellets to giant rolls of geomembrane includes cautiously managed extrusion techniques:
2.1 Blown Film Extrusion HDPE Geomembranes: Resin is melted and pressured via a round die, inflated into a bubble with air pressure, and cooled earlier than collapsing into sheets. This procedure offers the sheet bi-axial orientation, frequently enhancing tear resistance and uniformity.
2.2 Flat Die (Cast) Extrusion HDPE Geomembranes: Resin is extruded thru a large slot die and cooled on giant rollers. This technique achieves particular thickness manipulate and excessive manufacturing speeds however with much less transverse orientation in contrast to blown film.
Key manufacturing variables encompass soften temperature, cooling speed, and stress minimization at some point of solidification. Rolls are generally produced in thicknesses between 1.5 mm and 3.0 mm, with widths up to 9 meters. They have to be visually flawless, free from gels, voids, or inclusions, and handy in easy or textured finishes relying on assignment needs.
HDPE geomembranes are predicted to supply dependable overall performance over decades, making strict adherence to worldwide requirements and best manipulate protocols essential. Ensuring constant houses and sturdiness requires complete checking out at some stage in production, coupled with rigorous certification practices. Key measures include:
3.1 GRI-GM13 Standard: This globally identified specification establishes minimal property thresholds and trying out frequency necessities for HDPE geomembranes liner. It covers integral overall performance indications such as tensile strength, puncture resistance, tear strength, carbon black content material and dispersion, oxidative induction time (OIT), and seam integrity. Compliance ensures that liners meet the worrying mechanical and chemical overall performance wished for long-term containment.
3.2 ASTM Test Methods: Numerous ASTM standards outline targeted trying out processes for geomembranes. Examples encompass ASTM D5199 for thickness measurement, ASTM D6693 for tensile properties, and ASTM D4833 for puncture resistance. Adhering to these requirements lets in producers and engineers to quantitatively examine fabric reliability underneath field-like conditions.
3.3 Certification Programs: Reputable HDPE geomembrane producers regularly take part in unbiased third-party audits and trying out programs. These certifications verify that each and every manufacturing batch constantly meets or exceeds the required specifications, offering quit customers with self belief in product performance.
3.4 Controlled Resin Properties: Key resin characteristics, such as Melt Flow Index (MFI) and OIT, are carefully monitored to make certain suited processability, mechanical strength, and long-term oxidative stability. Carbon black, usually integrated at 2–3% by means of weight, is finely dispersed to maximize UV resistance, stopping localized degradation. Together, these measures warranty that HDPE geomembranes can face up to many years of environmental exposure, chemical contact, and mechanical stress.
Even the most superior HDPE geomembranes will fail if set up is inadequate. Proper set up combines cautious web page preparation, specialist handling, and particular seaming techniques. Each step should be meticulously performed to make sure long-term containment integrity:
4.1 Subgrade Preparation: The set up basis is critical. Soil surfaces should be graded, compacted, and smoothed to get rid of sharp rocks, debris, or voids that ought to puncture the liner. Drainage layers or sand cushions are regularly included below the geomembrane to minimize stress factors and stop localized damage.
4.2 Panel Deployment and Alignment: Rolls of HDPE geomembrane are unrolled cautiously and aligned on the organized subgrade. The fabric is allowed to thermally acclimate and relax, minimizing wrinkles, tension, or residual stresses. Reducing the quantity of discipline seams enhances standard liner integrity.
4.3 Seaming Techniques: High-quality seam formation is vital for a leak-proof installation. Common strategies include:
4.4 Dual Hot Wedge Fusion: Produces two parallel fusion seams with an air channel in between, permitting non-destructive testing.
4.5 Extrusion Welding: Uses molten HDPE filler fabric to bond overlaps, perfect for repairs, patches, or complicated junctions.
4.6 Thermal Fusion for Textured Liners: Ensures impervious joints on textured surfaces, maximizing friction and anchorage on slopes or embankments.
4.7 Quality Verification: Every seam undergoes rigorous inspection, which include non-destructive checking out techniques such as vacuum field testing, air channel stress testing, and spark testing. Destructive exams like peel and shear assessments verify seam electricity and durability.
4.8 Anchoring and Protection: Once seamed, HDPE liner is secured inside anchor trenches and regularly blanketed with defensive geotextiles, soil layers, or ballast. These measures protect the geomembrane from mechanical damage, UV degradation, and environmental publicity at some stage in each development and operation.
Through meticulous preparation, deployment, and seam testing, HDPE geomembranes attain their designed performance, supplying dependable containment for many years even underneath severe conditions.
The notable aggregate of impermeability, chemical resistance, and mechanical energy makes HDPE geomembranes a versatile answer for severa high-stakes containment applications. Their adaptability spans environmental, mining, water resource, and industrial sectors:

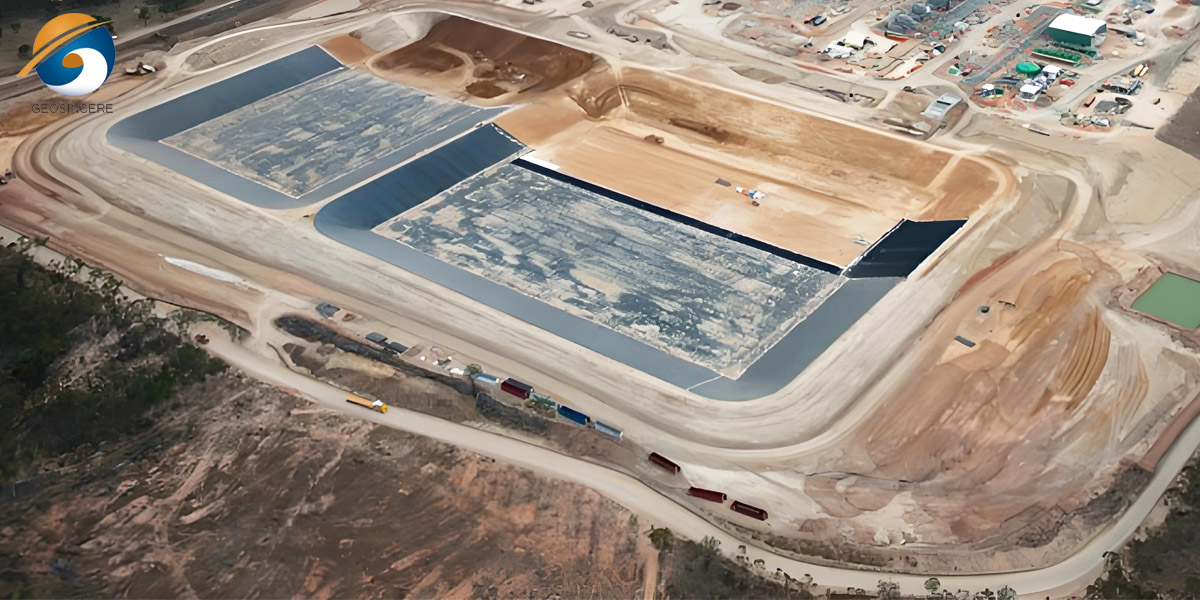

5.1.1 HDPE Geomembranes for Landfill Liners & Caps (Base & Final): HDPE serves as predominant and secondary liners to forestall leachate migration into soil and groundwater. Final covers or caps minimize rainwater infiltration and manipulate the launch of landfill gases, mitigating environmental impact.
5.1.2 HDPE Geomembranes for Contaminated Land Remediation: HDPE geomembranes isolate polluted soils or groundwater plumes, offering an tremendous barrier that prevents in addition illness throughout cleanup or redevelopment.
5.1.3 HDPE Geomembranes for Wastewater Treatment Lagoons: Lining of industrial or municipal lagoons ensures secure containment of influent, effluent, and sludge, lowering the danger of leaks or spills.
5.1.4 HDPE Geomembranes for Potable Water Reservoirs: HDPE liners guard ingesting water through stopping seepage, contamination, and immoderate evaporation.
5.2.1 HDPE Geomembranes for Heap Leach Pads: HDPE geomembranes incorporate aggressive options such as cyanide or acids used in metallic extraction, stopping hazardous leachate from coming into the environment.
5.2.2 HDPE Geomembranes for Tailings Impoundments: Mine waste slurries, frequently in seismically touchy regions, are securely saved the usage of geomembrane liners to stop seepage and structural failure.
5.2.3 HDPE Geomembranes for Pond Liners (Process, Sedimentation, Decant): These liners play a crucial position in water management, controlling air pollution and conserving manner water in mining operations.
5.2.4 HDPE Geomembranes for Secondary Containment Systems: Fuel storage tanks, chemical tanks, and different hazardous substances are blanketed through bunded geomembrane liners, making sure environmental security in case of leaks.

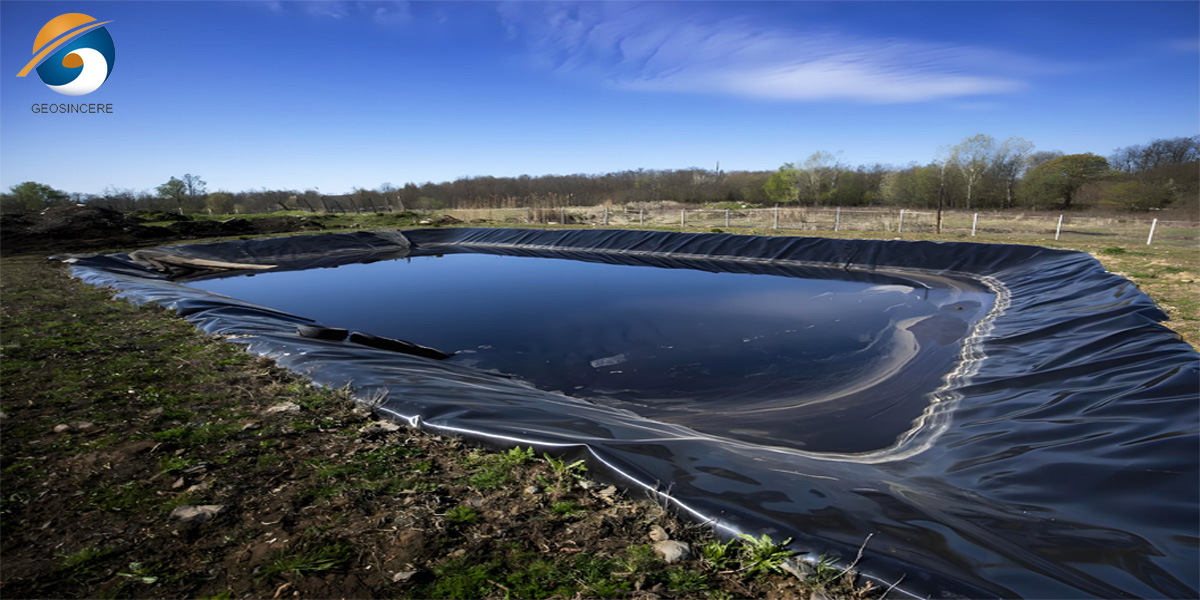

5.3.1 HDPE Geomembranes for Irrigation Canals & Ponds: Reducing seepage losses improves water use effectivity for agriculture and city landscaping.

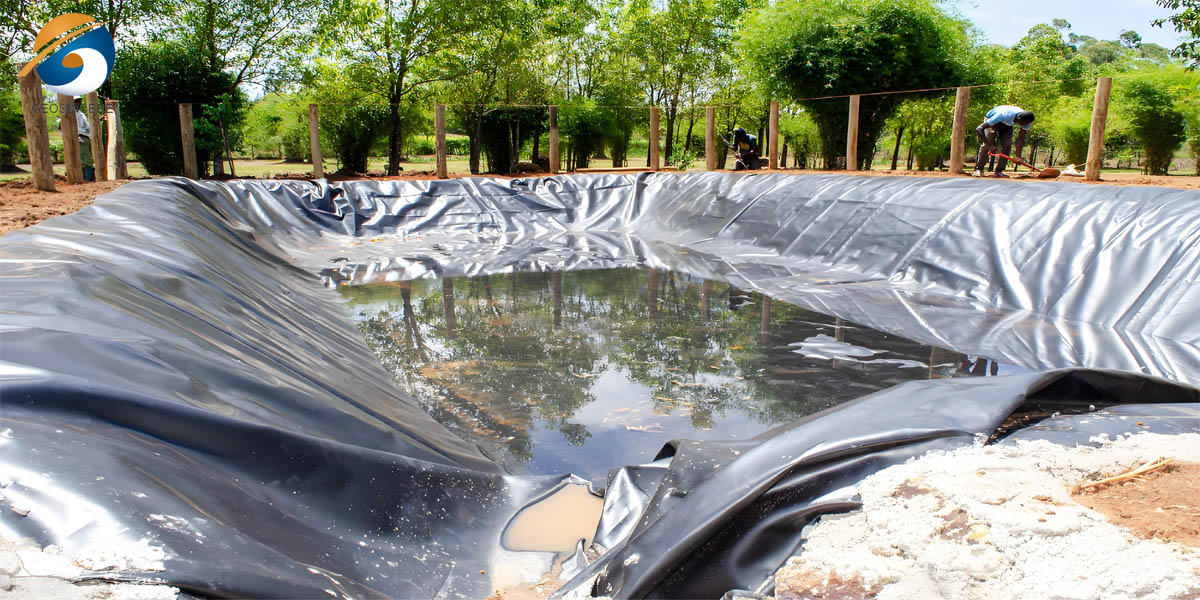

5.3.2 HDPE Geomembranes for Aquaculture Ponds: Maintaining water ranges and first-class for fish or shrimp farms, stopping infection from soil or groundwater.
5.3.3 HDPE Geomembranes for Reservoirs & Dams: HDPE liners help in seepage control, rehabilitation of ageing structures, and building of new reservoirs, making sure water availability and structural stability.
5.3.4 HDPE Geomembranes for Salt Evaporation Ponds: Geomembranes limit water losses and contamination, enhancing salt manufacturing efficiency.
5.4.1 HDPE Geomembranes for Secondary Containment: Provides spill prevention for chemical plants, refineries, and industrial facilities, safeguarding soil and water resources.
5.4.2 HDPE Geomembranes for Decorative Water Features: HDPE liners are perfect for synthetic ponds and fountains, presenting a leak-proof and low-maintenance solution.
5.4.3 HDPE Geomembranes for Manure Storage Lagoons: Containment of agricultural waste reduces nutrient runoff and prevents groundwater contamination.
5.4.4 HDPE Geomembranes for Floating Covers: Used for fuel collection, scent control, and evaporation discount on water surfaces, growing operational effectivity in wastewater or agricultural applications.
While different geomembrane substances such as PVC, LLDPE, fPP, and EPDM are available, HDPE famous countless special advantages that make it the favored preference in many projects:
6.1 Superior Chemical Resistance: HDPE is pretty resistant to hydrocarbons, sturdy acids, alkalis, and oxidizing agents, outperforming LLDPE and fPP in aggressive environments.
6.2 High Rigidity and Puncture Resistance: The material helps heavy cowl soils, industrial waste, or dynamic hundreds besides deformation, making sure structural stability.
6.3 Outstanding Long-Term Durability & ESCR: HDPE liners reveal provider lives exceeding 50 years beneath perfect conditions, retaining power and impermeability over time.
6.4 Broad Temperature Range: Performs reliably in intense warmness and cold, enabling use in numerous climatic conditions.
6.5 Cost-Effectiveness for Large Areas: Lower fabric and set up price per unit region makes HDPE liners perfect for huge initiatives such as landfills, mining pads, or reservoirs.
- Lower Flexibility: Its pressure requires meticulous subgrade training to keep away from stress cracking, mainly over uneven surfaces or slopes.
- Thermal Expansion/Contraction: Designers should accommodate enlargement and contraction thru strategic folding, anchoring, and seam placement to forestall wrinkles or stress points.
- Seaming Complexity: Proper seam welding needs notably professional technicians and rigorous QA/QC strategies to make sure leak-free connections and long-term performance.
In summary, HDPE geomembranes provide a robust, reliable, and versatile containment solution. Their aggregate of chemical resistance, mechanical strength, and established toughness makes them the fabric of preference for essential environmental, mining, water, and industrial applications, whilst cautious sketch and set up are crucial to maximize performance.
GEOSINCERE Geomembrane is a ways extra than impermeable plastic sheets; they characterize a cautiously engineered containment answer combining cloth science, precision manufacturing, strict fine assurance, and professional installation. Their tested music file of chemical resistance, structural strength, impermeability, and durability has made them crucial in landfill engineering, mining operations, water useful resource management, and industrial containment.
Serving as an enduring protecting shield, HDPE geomembranes guard herbal resources, defend communities, and assist integral infrastructure worldwide. With ongoing innovation and non-stop refinement, their function in geosynthetic engineering will solely strengthen, making sure dependable containment options for a long time to come.
