The geomembrana 2mm represents a cornerstone technology in modern environmental engineering and construction. This synthetic geomembrane, primarily manufactured from high-density polyethylene (HDPE), serves as a critical impermeable barrier in applications ranging from landfill liners and mining tailings containment to water resource management and industrial wastewater treatment. This article provides a comprehensive examination of the GEOSINCERE Geosynthetics geomembrana HDPE 2mm, exploring its material properties, performance characteristics, manufacturing standards, and diverse application scope. Drawing upon technical specifications and industry data, the analysis demonstrates why this specific thickness grade has emerged as the preferred choice for demanding containment projects where long-term durability, chemical resistance, and mechanical strength are non-negotiable requirements.

1. Introduction

In an era of increasingly stringent environmental regulations and growing awareness of groundwater protection needs, the role of geosynthetic containment systems has never been more critical. Among the various grades and specifications available, the 2mm geomembrane—often marketed under the Spanish-derived term "geomembrana 2mm"—has established itself as a gold standard for heavy-duty containment applications.

Geomembranes are synthetic membrane liners designed to control fluid migration in engineering projects. The "2mm" designation refers to the nominal thickness of the liner, a specification that fundamentally determines its mechanical strength, puncture resistance, and overall durability. While thinner membranes (0.75mm to 1.5mm) may suffice for less demanding applications such as decorative ponds or agricultural irrigation channels, the 2mm grade is purpose-engineered for environments where failure is not an option.

This article aims to provide a comprehensive technical overview of the 2mm geomembrane, examining its material composition, key performance characteristics, manufacturing standards, installation considerations, and the diverse range of applications that rely upon its performance. The discussion is grounded in technical data from industry sources and international testing standards.

2. Geomembrana 2mm Material Composition and Manufacturing

2.1 Base Materials

The overwhelming majority of 2mm geomembranes are manufactured from High-Density Polyethylene (HDPE) resin. HDPE is a thermoplastic polymer known for its excellent chemical resistance, high tensile strength, and low permeability. The polymer chains in HDPE are characterized by minimal branching, which allows for tight molecular packing and contributes to the material's density (typically ≥0.94 g/cm³) and resistance to environmental stress cracking.

While HDPE is the predominant material, other polymers may be specified for particular applications. These include:

- LLDPE (Linear Low-Density Polyethylene): Offers enhanced flexibility and elongation characteristics

- PVC (Polyvinyl Chloride): Provides good flexibility but generally lower chemical resistance compared to HDPE

- EPDM (Ethylene Propylene Diene Monomer): A synthetic rubber with excellent elasticity, used in specialized applications

However, for heavy-duty containment—particularly in landfill, mining, and industrial wastewater applications—HDPE remains the undisputed material of choice.

2.2 Additives and Formulation

The performance of a 2mm geomembrane depends not only on its base polymer but also on the additive package incorporated during manufacturing. Key additives include:

2.2.1 Carbon Black (2.0–3.0% by weight):

Carbon black is the primary UV stabilizer, protecting the polymer from photodegradation caused by prolonged sunlight exposure. The addition of carbon black gives the geomembrane its characteristic black color and is essential for applications where the liner will be exposed to sunlight during installation or as a final cover. Industry standards typically require carbon black content to fall within the 2.0–3.0% range and to be well-dispersed to avoid localized weaknesses.

2.2.2 Antioxidants:

These compounds prevent thermal oxidation during both the manufacturing process (extrusion) and the service life of the product. Two types of oxidative induction time (OIT) tests—Standard OIT and High-Pressure OIT—are used to quantify the antioxidant content. A 2mm HDPE geomembrane meeting typical specifications will demonstrate a Standard OIT of ≥100 minutes and a High-Pressure OIT of ≥400 minutes.

2.2.3 UV Stabilizers:

In addition to carbon black, other UV inhibitors may be added to further enhance resistance to sunlight degradation. Testing protocols such as UV resistance retention after 1,600 hours of exposure ensure that the material maintains its structural integrity even after extended outdoor use.

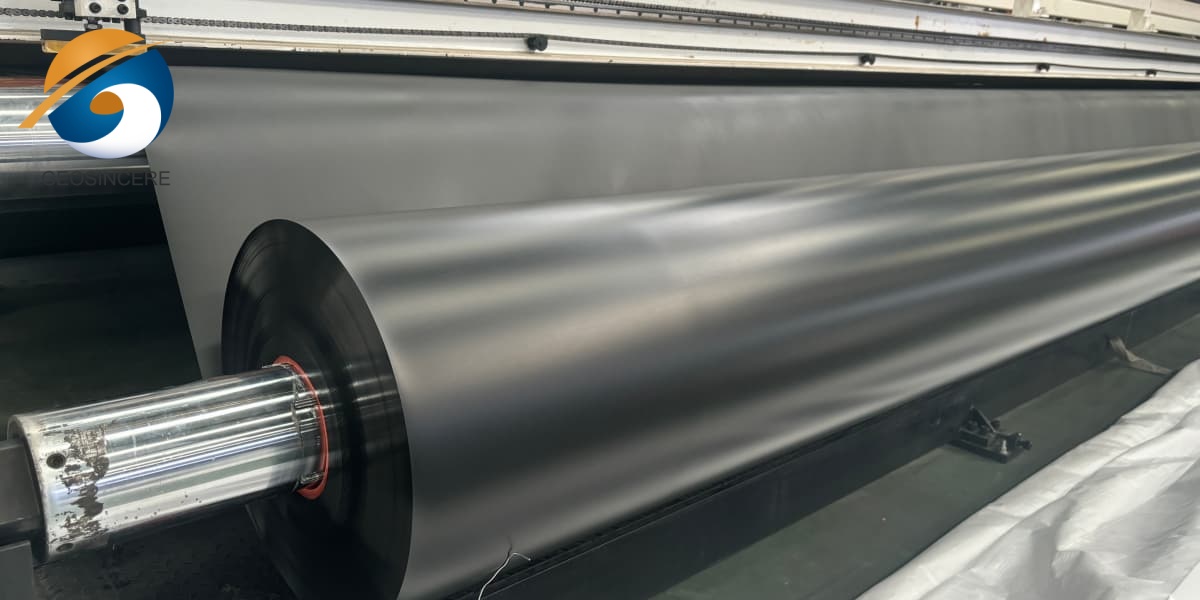

2.3 Geomembrana 2mm Manufacturing Process

Most 2mm geomembranes are manufactured using either a flat-die extrusion process or a blown-film (blown-extrusion) process. In both methods, the raw HDPE resin is heated to a molten state, combined with the additive package, and formed into a continuous sheet of the desired thickness. The 2mm specification is achieved and maintained through precise process controls, with ASTM D5199 being the standard test method for thickness measurement.

2.3.1 Surface Texture Options:

- Smooth Surface: The standard finish, suitable for most applications where friction is not a primary concern

- Textured Surface (Single or Double-Sided): Created by additional processing to create a textured profile on one or both surfaces. The texture increases the coefficient of friction between the geomembrane and adjacent materials—a critical consideration for slope stability in landfill and reservoir applications. Typical textured heights for 2mm membranes range around 0.25–0.30mm.

3. Geomembrana 2mm Key Performance Characteristics

The 2mm geomembrane's technical specifications are the foundation of its suitability for demanding applications. The following analysis examines the performance characteristics most critical to engineers and project designers.

3.1 Mechanical Strength Properties

3.1.1 Tensile Strength and Elongation

Tensile properties are among the most important indicators of a geomembrane's ability to withstand installation stresses, service loads, and ground movement. For a 2mm HDPE geomembrane, the minimum average values (as tested under ASTM D638 or ASTM D6693) are:

These figures reveal a critical design consideration: the material must be both strong and ductile. The high elongation at break (often exceeding 700% for virgin HDPE) allows the liner to accommodate significant ground settlement, differential movement, and localized stresses without failing.

3.1.2 Puncture Resistance

Puncture resistance (ASTM D4833) measures the force required for a standardized probe to penetrate the membrane. For a 2mm geomembrane, the minimum average puncture resistance is typically ≥640 N. This property is crucial for applications where the liner may come into contact with sharp aggregates, construction debris, or equipment traffic.

3.1.3 Tear Resistance

Tear resistance (ASTM D1004) indicates the material's ability to resist tear propagation once a cut or notch has been introduced. A 2mm geomembrane typically achieves ≥249 N, providing a safety margin against damage during installation and service.

3.2 Chemical Resistance

The chemical resistance of HDPE is one of its defining characteristics, making it suitable for contact with a wide range of aggressive substances encountered in environmental and industrial applications. The 2mm geomembrane is capable of withstanding exposure to:

- Strong acids and alkalis (pH range approximately 2–13)

- Landfill leachate, with its complex mixture of organic and inorganic compounds

- Hydrocarbons and oils

- Industrial wastewater containing heavy metals and chemical byproducts

After extended exposure (e.g., 1,000 hours immersion in corrosive solutions), a 2mm geomembrane can retain ≥90% of its tensile strength, demonstrating its long-term chemical stability.

3.3 Weathering and UV Resistance

Outdoor exposure is a reality for most geomembrane installations, either during construction or as part of the final system design. The 2mm geomembrane is engineered to withstand:

3.3.1 UV Radiation:

The carbon black content and UV stabilizers ensure that the material retains ≥90% of its tensile strength after 2,000 hours of accelerated UV exposure, which simulates approximately 10 years of outdoor service in a moderate climate.

3.3.2 Temperature Extremes:

HDPE geomembranes remain functional across a wide temperature range, from -70°C to 110°C. This resilience is particularly important for projects in cold regions, where freeze-thaw cycling can stress containment systems.

3.4 Permeability and Barrier Performance

The fundamental purpose of any geomembrane is to act as an impermeable barrier. The 2mm HDPE geomembrane achieves an exceptionally low hydraulic conductivity of approximately 1 × 10⁻¹⁷ cm/s, making it essentially impervious to liquid migration under typical engineering conditions. This low permeability is consistent across the thickness of the membrane, provided the material remains intact and free from defects.

3.5 Long-Term Durability

The service life of a properly installed 2mm geomembrane is a key consideration in its selection. Industry data and field experience suggest a lifespan of 25–50 years for properly designed, installed, and maintained systems. This longevity is supported by the material's chemical resistance, UV stability, and the incorporation of antioxidants that resist oxidative degradation over time.

4. Quality Assurance and Testing Standards

Ensuring that a 2mm geomembrane meets its specified performance characteristics requires rigorous quality assurance (QA) and quality control (QC) protocols. These are typically based on international testing standards.

4.1 Key International Standards

4.2 Critical Testing Parameters

Thickness Verification: Thickness is measured at multiple points across the roll width, with the minimum average thickness and the minimum individual value specified. For a 2mm geomembrane, the minimum individual reading typically cannot be less than 1.95mm.

4.2.1 Oxidative Induction Time (OIT):

This test measures the antioxidant content and is an indicator of the material's resistance to oxidative degradation. Both Standard OIT and High-Pressure OIT are often measured to provide comprehensive assessment.

4.2.2 Carbon Black Dispersion:

Proper dispersion of carbon black is critical for UV resistance. Microscopic evaluation ensures that agglomerates do not create weak points in the membrane.

4.2.3 Seam Testing:

During installation, panels are joined using heat welding. The seam strength must meet specified criteria (often ≥90% of the parent material's strength), with both non-destructive (air pressure) and destructive (peel and shear) testing methods employed.

5. Geomembrana 2mm Application Scope

The 2mm geomembrane's combination of mechanical strength, chemical resistance, and durability makes it suitable for a remarkably diverse range of applications.

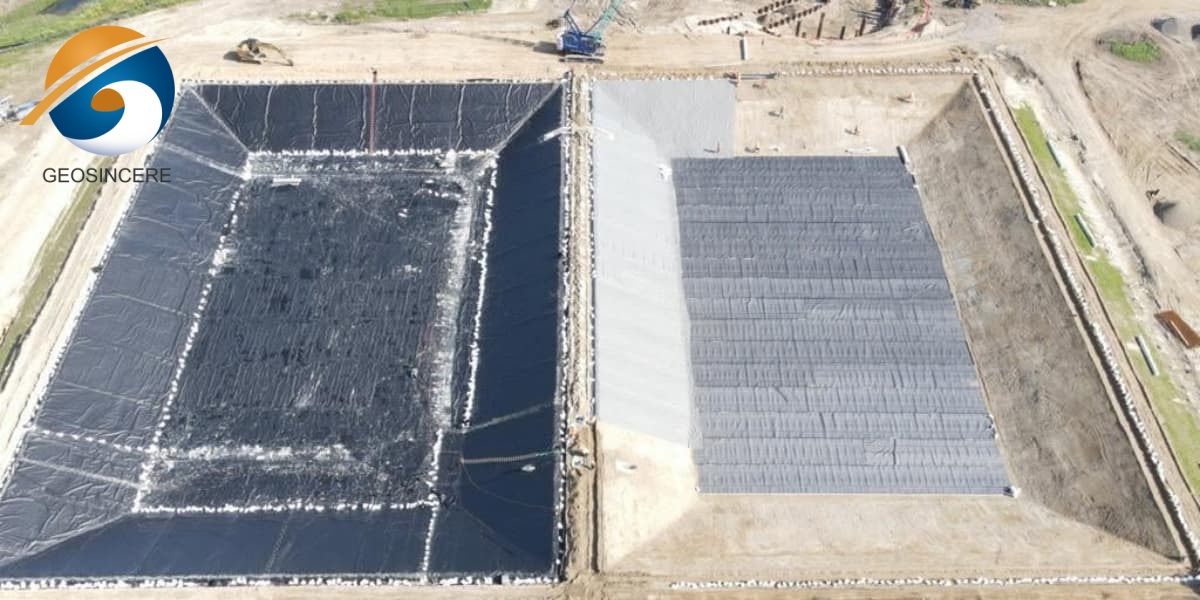

5.1 Landfill Lining and Capping Systems

Landfills represent one of the most demanding and critical applications for 2mm geomembranes. The modern engineered landfill relies on a composite liner system, typically consisting of a 2mm HDPE geomembrane overlying a geosynthetic clay liner (GCL) or compacted clay layer. The 2mm geomembrane serves as the primary hydraulic barrier, performing several essential functions:

5.1.1 Leachate Containment:

By creating an impermeable barrier, the geomembrane prevents leachate—the potentially toxic liquid formed when water percolates through waste—from infiltrating the surrounding soil and groundwater resources. This is essential for protecting drinking water sources and preventing the spread of environmental contamination.

5.1.2 Gas Migration Control:

While primarily designed as a liquid barrier, the geomembrane also restricts the uncontrolled migration of landfill gases such as methane and carbon dioxide. In modern facilities, these gases are captured for energy recovery or flaring.

5.1.3 Regulatory Compliance:

Many jurisdictions require the use of geomembranes of at least 2mm thickness in primary liner systems for hazardous waste landfills, making this specification a regulatory necessity rather than an optional design choice.

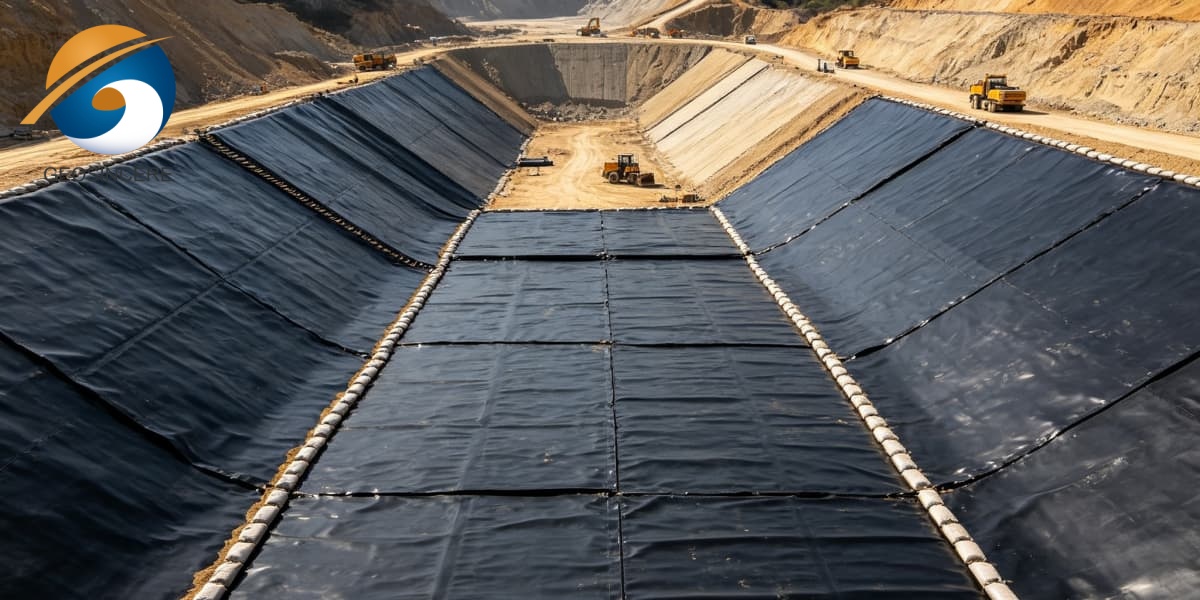

5.2 Mining Applications

The mining industry faces unique environmental challenges, particularly regarding the containment of tailings, process water, and heap leach solutions. The 2mm geomembrane is widely specified for:

5.2.1 Tailings Ponds:

The final impoundment area for mine tailings slurry requires robust containment to prevent seepage of potentially toxic materials into surrounding soil and water bodies. A 2mm HDPE geomembrane's puncture resistance and chemical stability make it well-suited to this demanding environment.

5.2.2 Heap Leach Pads:

In precious metal mining, leaching solutions (often acidic or cyanide-bearing) are applied to ore piles to extract metals. The geomembrane serves as a containment foundation, preventing these process solutions from contacting the underlying ground.

5.2.3 Evaporation Ponds:

Used for water management in arid mining regions, these ponds contain water with elevated mineral content. The 2mm geomembrane provides reliable long-term containment.

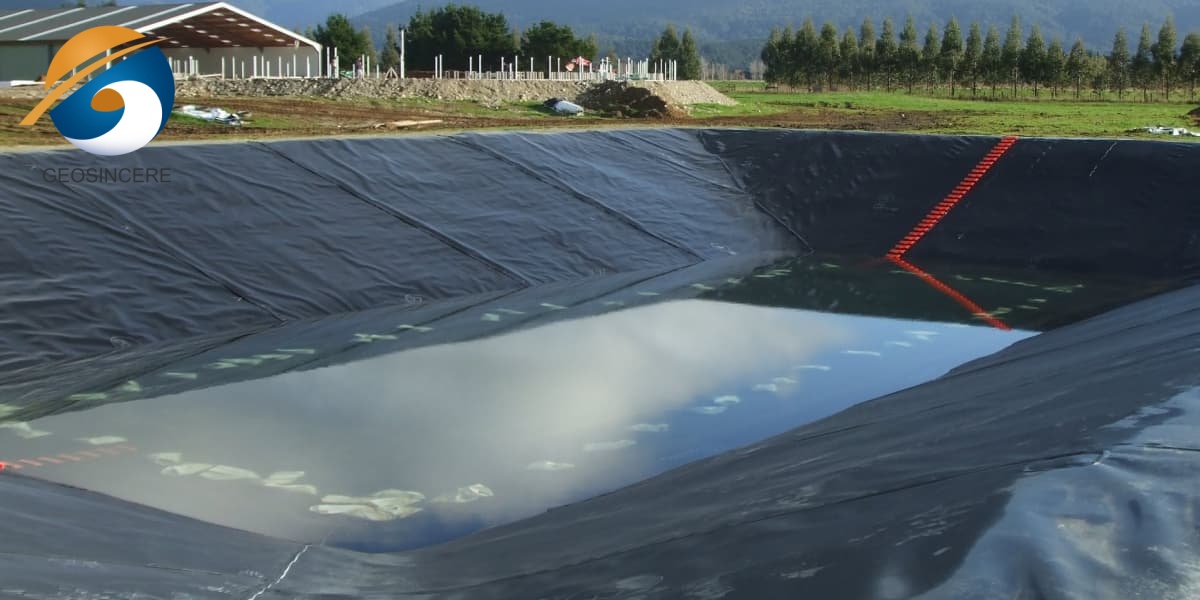

5.3 Water Resource Management

Water conservation is a critical concern in many parts of the world, and geomembranes play an increasingly important role in water storage and distribution systems. The 2mm grade is used for:

5.3.1 Reservoirs and Dams:

The 2mm geomembrane can be applied to the surface or internal face of dam embankments, preventing seepage and ensuring water storage efficiency.

5.3.2 Irrigation Canals:

In areas with high evaporation and seepage losses, lining canals with geomembranes can significantly improve water delivery efficiency. The 2mm thickness provides the durability needed for canals subject to periodic maintenance and cleaning activities.

5.3.3 Potable Water Storage:

HDPE geomembranes are often approved for contact with drinking water, providing a safe and durable lining material for municipal water storage reservoirs.

5.4 Industrial and Hazardous Waste Containment

Beyond landfills, the 2mm geomembrane is used for a variety of industrial containment applications:

5.4.1 Wastewater Treatment Lagoons:

Industrial wastewater treatment facilities require reliable containment to prevent groundwater contamination and to protect the integrity of the treatment process. The 2mm geomembrane's chemical resistance ensures long-term performance in these aggressive environments.

5.4.2 Chemical Storage Tank Secondary Containment:

Many chemical storage facilities use geomembranes as secondary containment barriers to capture spills and prevent their migration into the environment.

5.4.3 Biogas Digesters and Manure Pits:

In agricultural and renewable energy applications, the 2mm geomembrane provides containment for digesters and storage facilities handling organic waste with corrosive byproducts like hydrogen sulfide and ammonia.

5.5 Aquaculture and Agriculture

The 2mm thickness provides the durability needed for aquaculture ponds, particularly those subject to cleaning activities and exposed to the elements. Applications include:

5.5.1 Fish and Shrimp Ponds:

The geomembrane prevents water loss, maintains sanitary conditions, and allows for efficient harvesting.

5.5.2 Irrigation Reservoirs:

Providing reliable water storage for agricultural irrigation.

5.6 Additional Applications

The versatility of the 2mm geomembrane extends to numerous other sectors:

- Tunnel Waterproofing: Protecting underground transportation infrastructure from groundwater ingress

- Road Base Isolation: Preventing intermixing of soil layers and providing a moisture barrier in road construction

- Landscape and Decorative Water Features: Artificial lakes, ponds, and golf course water hazards

- Salt Production: Lining salt crystallization ponds

6. Geomembrana 2mm Installation Considerations and Best Practices

The successful performance of a 2mm geomembrane depends as much on proper installation as on the quality of the material itself.

6.1 Site Preparation

The subgrade on which the geomembrane is to be installed must be properly prepared. Sharp rocks, roots, and debris must be removed, and the surface should be smooth and compacted to prevent stress concentrations that could lead to punctures or excessive stretching. In many applications, a protective geotextile (non-woven fabric) is placed over the prepared subgrade to provide an additional layer of protection.

6.2 Panel Deployment and Seaming

Geomembrane panels are deployed from rolls, typically 6–8 meters in width and 50–200 meters in length. The panels are laid out with overlap sufficient for seaming, usually 75–150mm.

Seaming is typically accomplished using one of two heat-welding methods:

- Thermal Fusion (Double Wedge Welding): A specialized welding machine passes a heated wedge between two overlapping panels, melting the material, which is then compressed to form a continuous bond. This is the most common method for production welding.

- Hot Air Welding: A hand-held tool directs hot air between the panels, which are then pressed together. This is typically used for repairs, tie-ins to penetrations, or in areas inaccessible to the wedge welder.

Seam quality is critical. All field seams must be tested, typically using both:

- Non-Destructive Testing:

Air pressure testing of the continuous seam channel (for double-wedge welds) to verify an airtight seal.

- Destructive Testing:

Samples of the seam are cut from the installation and tested for peel and shear strength in a laboratory, ensuring the seam meets or exceeds specified strength criteria.

6.3 Handling and Weather Constraints

Although the 2mm geomembrane is a robust material, careful handling is required to prevent damage during transport and installation. The material should be protected from puncture and excessive drag.

Installation may be constrained by weather conditions. Wind can complicate deployment of large panels, and rainfall can compromise the cleanliness of surfaces to be welded-5. The recommended temperature range for installation is typically between 5°C and 40°C, with modifications to welding parameters required in extreme cold or heat.

7. Conclusion

The geomembrana 2mm has established itself as a foundational technology in modern environmental and civil engineering. Its specific thickness represents a carefully considered balance between material properties, performance requirements, and practical installation considerations. The data from industry standards and testing protocols demonstrates that the 2mm HDPE geomembrane provides an exceptional combination of mechanical strength, chemical resistance, and long-term durability.

The range of applications—from critical landfill liners preventing groundwater contamination, to mining tailings impoundments, to water storage reservoirs—speaks to the versatility and reliability of this engineered material. As environmental regulations continue to tighten globally, and as the demand for reliable water and waste management solutions grows, the role of the 2mm geomembrane will only expand.

For engineers, contractors, and environmental professionals, understanding the specifications, testing requirements, and installation best practices associated with the 2mm geomembrane is essential for specifying and deploying systems that protect environmental resources and comply with regulatory requirements. The 2mm geomembrane is not merely a construction material; it is a critical component of sustainable infrastructure in the 21st century.
