As global infrastructure continues to expand, industries are facing increasing challenges related to environmental protection, water conservation, waste management, and resource efficiency. Selecting the right geomembrane has become a critical decision for engineers, contractors, and project owners. Among the most widely used polyethylene-based solutions, HDPE Liner and LLDPE geomembrane are two leading choices for containment applications.
GEOSINCERE Geosynthetics geomembrane is synthetic barrier materials designed to control the migration of liquids, gases, and contaminants. According to industry research, geomembranes represent one of the largest segments within the global geosynthetics market, driven by increasing demand from sectors such as mining, landfill management, wastewater treatment, agriculture, and water infrastructure.
Among these materials, HDPE Liner has become one of the most commonly specified geomembrane products because of its combination of strength, chemical resistance, and long-term durability. Meanwhile, LLDPE geomembrane has gained popularity in applications where flexibility and high elongation are more important.
Although both materials are made from polyethylene polymers, their different molecular structures create significant differences in performance. Understanding these differences helps project owners choose the most suitable liner solution based on environmental conditions, mechanical requirements, and lifecycle costs.

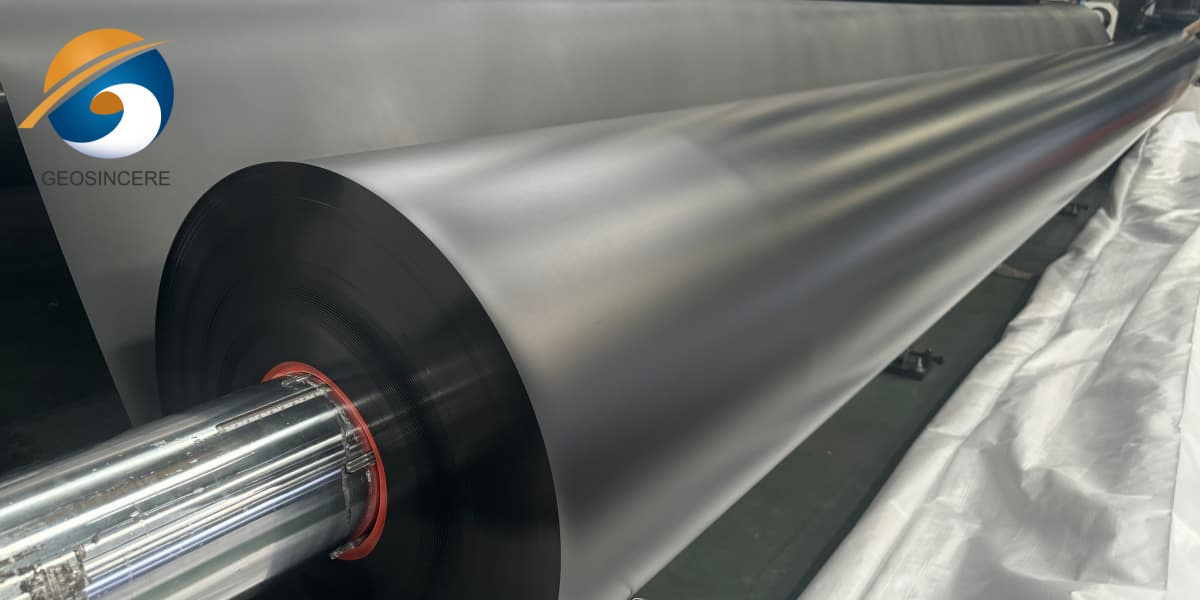

An HDPE Liner is a high-density polyethylene geomembrane manufactured from polyethylene resin through advanced extrusion technology. It creates an impermeable barrier layer that prevents liquids and contaminants from penetrating into surrounding soil or groundwater.
HDPE liners are commonly produced in thicknesses ranging from:
- 0.75 mm (30 mil)
- 1.0 mm (40 mil)
- 1.5 mm (60 mil)
- 2.0 mm (80 mil)
- 2.5 mm and above
The thickness selection depends on project requirements, including chemical exposure, mechanical loading, installation conditions, and expected service life.
According to the Geosynthetic Research Institute (GRI GM13 specification), HDPE geomembranes are evaluated based on important technical parameters including:
- Thickness consistency
- Tensile strength
- Elongation
- Tear resistance
- Puncture resistance
- Carbon black content
- Stress crack resistance
These standards help ensure consistent quality for large-scale engineering projects.
A typical HDPE liner consists mainly of polyethylene resin combined with stabilizing additives.
Typical composition:
|
Material Component |
Approximate Percentage |
Function |
|
HDPE Resin |
Around 97% |
Provides strength and chemical resistance |
|
Carbon Black |
Approximately 2–3% |
Improves UV resistance |
|
Antioxidants & Stabilizers |
Small percentage |
Enhances aging resistance |
Carbon black is particularly important because many geomembranes are installed outdoors and may experience years of sunlight exposure before being covered or placed underground.
Linear Low-Density Polyethylene (LLDPE) geomembrane is another polyethylene-based liner material designed for containment applications. Compared with HDPE liner, LLDPE has a less dense, branched molecular structure, which provides:
- Higher flexibility and pliability
- Greater elongation characteristics
- Better adaptability to irregular surfaces and contours
Because of these unique mechanical properties, LLDPE is often selected for applications where ground movement, differential settlement, or significant seismic activity may occur, ensuring the liner maintains its integrity under stress.
The main advantages of LLDPE geomembrane include:
LLDPE can adapt better to uneven surfaces, sharp contours, and complex geometries. This high flexibility makes installation significantly easier and faster in complex terrain or tight corners where rigid materials fail.
LLDPE typically offers much higher multi-axial elongation performance than HDPE. This allows the liner to stretch and deform extensively without immediate puncture or failure under severe localized settlement or load deformation conditions.
Like HDPE, LLDPE provides excellent, reliable impermeability and robust chemical resistance, making it a highly dependable barrier against water, hazardous liquids, and various chemical contaminants in environmental protection projects.
One of the biggest differences between HDPE liner and LLDPE is mechanical performance.
|
Property |
HDPE Liner |
LLDPE Geomembrane |
|
Density |
Higher |
Lower |
|
Tensile Strength |
Higher |
Moderate |
|
Flexibility |
Moderate |
Excellent |
|
Elongation |
Lower |
Higher |
|
Chemical Resistance |
Excellent |
Excellent |
|
Dimensional Stability |
Excellent |
Good |
HDPE liner is generally preferred for projects requiring high structural stability, while LLDPE is selected when flexibility is a priority.
Stress crack resistance is an important factor in long-term geomembrane performance.
HDPE liners designed according to GRI GM13 requirements typically require strong resistance against environmental stress cracking.
This makes HDPE suitable for:
- Mining containment
- Landfills
- Industrial wastewater systems
where long-term exposure to stress conditions is expected.

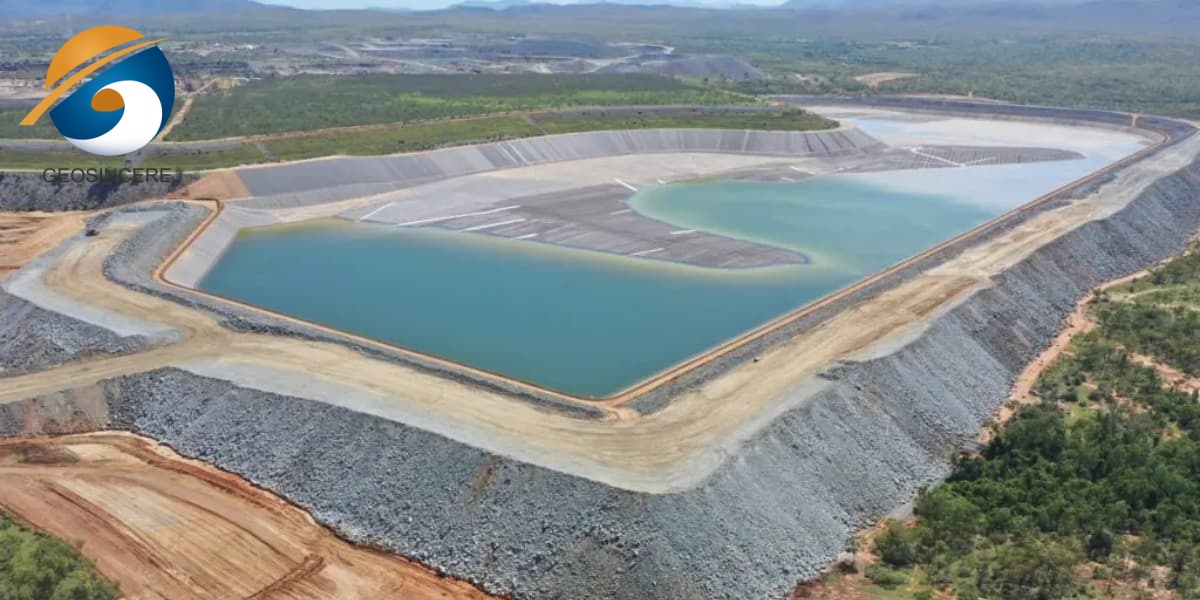

The mining industry is one of the largest consumers of HDPE geomembranes.
Applications include:
- Heap leach pads
- Tailings storage facilities
- Process water ponds
- Chemical containment areas
According to mining industry practices, heap leach projects commonly use HDPE liners with thicknesses of:
- 1.5 mm (60 mil)
- 2.0 mm (80 mil)
because these thicknesses provide improved puncture resistance under heavy ore loading.
With global mineral demand increasing due to renewable energy technologies and infrastructure development, mining companies continue investing in reliable containment systems.
Modern landfill systems require effective liners to prevent leachate contamination.
HDPE liners are widely used because they provide:
- Extremely low permeability
- Chemical resistance
- Long service life
Environmental agencies worldwide increasingly require engineered landfill systems with synthetic liners to protect groundwater resources.

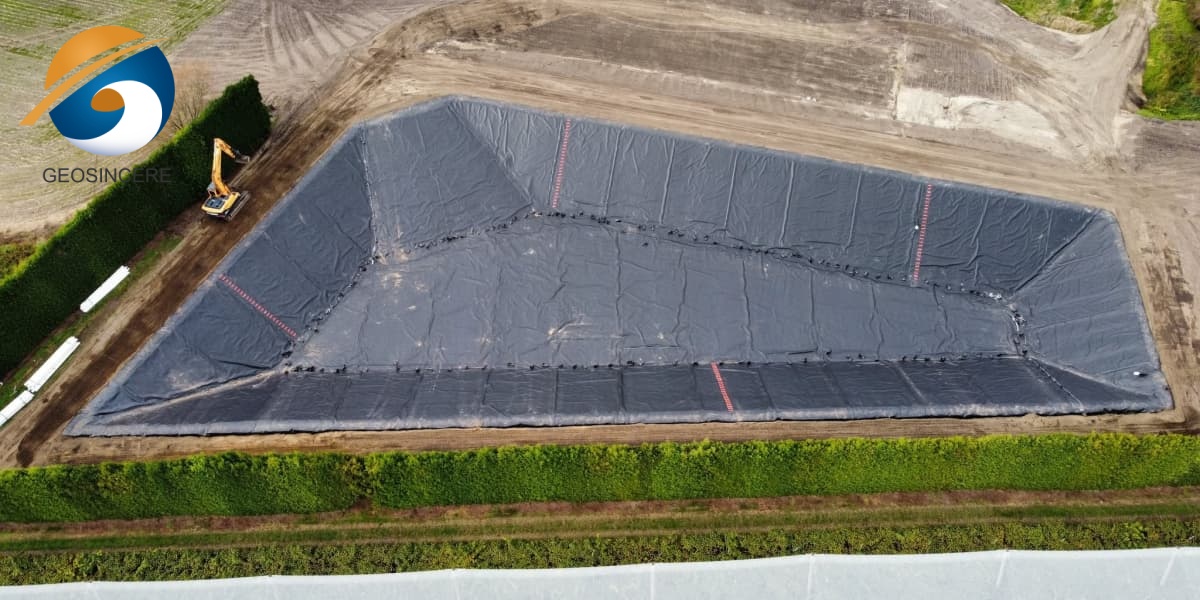

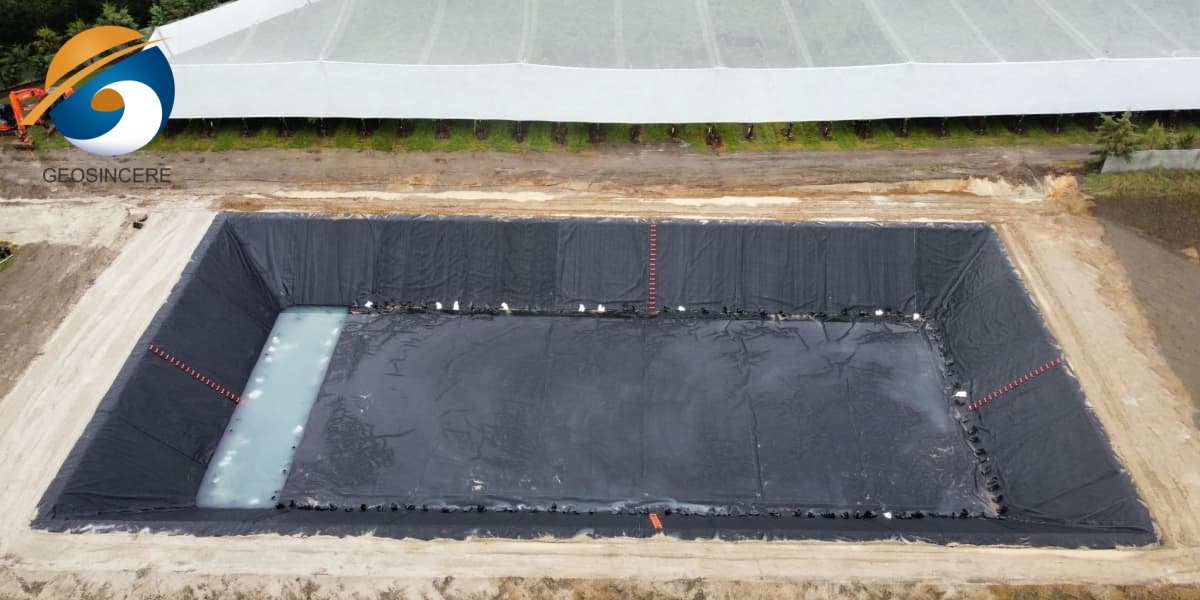

Water scarcity has increased demand for efficient water storage solutions.
HDPE liners are commonly used in:
- Irrigation reservoirs
- Agricultural ponds
- Water storage facilities
By reducing seepage losses, geomembranes help improve water utilization efficiency.
The United Nations has reported that agriculture accounts for approximately 70% of global freshwater withdrawals, highlighting the importance of effective water management technologies.
LLDPE is often used where the liner must accommodate frequent structural movement, thermal expansion, or continuous shifting without tearing. Its unique pliability allows it to be prefabricated into large panels in the factory, reducing field-welding time and costs. Common examples include:
Where irregular shapes, steep slopes, and complex aesthetics require a highly contour-conforming material.
Such as temporary wastewater storage or frac pits, where rapid deployment and easy foldability are crucial.
Used in reservoirs and anaerobic digesters to capture gases or prevent evaporation, where the liner must constantly move with changing liquid levels.
Projects involving significant ground settlement, subgrade shifting, or irregular surfaces benefit immensely from LLDPE because of its superior multi-axial flexibility and high elongation.
As the underlying waste decomposes and settles over decades, LLDPE stretches to accommodate the sinking ground without cracking
In these environments, differential settlement is inevitable. LLDPE's ability to deform under heavy loads without immediate localized puncture ensures a long-lasting, puncture-resistant barrier that protects the surrounding environment from hazardous seepage.
The price of geomembrane depends on:
- Polymer raw material costs
- Thickness
- Production technology
- Order volume
- Transportation distance
A thinner or cheaper liner may reduce initial investment but could increase long-term risks if it does not meet project requirements.
Professional engineering projects evaluate:
- Installation cost
- Maintenance requirements
- Expected service life
- Failure risk
A high-quality HDPE liner can provide more than 50 years of service life under suitable conditions, reducing replacement frequency and maintenance costs.
Proper installation requires:
- Smooth subgrade
- Removal of sharp objects
- Proper compaction
Poor site preparation can damage any geomembrane regardless of material type.
Geomembrane seams are critical to containment performance.
Common welding methods include:
- Hot wedge welding
- Extrusion welding
Professional projects use testing methods such as:
- Air pressure testing
- Vacuum testing
to verify seam integrity.
Stricter environmental regulations are increasing the use of geomembranes in:
- Waste management
- Mining
- Water treatment
Geomembranes are becoming essential components in sustainable infrastructure by:
- Protecting groundwater
- Reducing water loss
- Supporting resource conservation
Future developments focus on:
- Higher durability
- Better stress crack resistance
- Improved recyclability
- Smart monitoring systems
Both HDPE Liner and LLDPE geomembranes provide reliable containment performance, but the best choice ultimately depends on your specific project requirements, site conditions, and regulatory standards.
HDPE liner remains the industry-standard preferred option for demanding, high-risk applications requiring:
- High mechanical strength and robust puncture resistance
- Excellent chemical resistance against aggressive hazardous liquids
- Long-term durability and superior UV resistance
These properties make it ideal for major infrastructure like mining heap leach pads, primary landfill liners, and critical industrial containment projects.
Conversely, LLDPE is more suitable when material flexibility, tight contour adaptability, and high elongation are the primary engineering challenges, such as in landfill capping, irregular landscape ponds, or regions prone to soil settlement.
By carefully evaluating site-specific geological conditions, environmental exposure factors, installation complexity, and overall lifecycle costs, engineers and project managers can select the most suitable Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) geomembrane solution. Making the right choice ensures long-term barrier integrity, resulting in safer, more sustainable, and cost-effective infrastructure performance.
