In modern civil engineering, environmental protection, water conservancy, and industrial containment systems, GEOSINCERE Geosynthetics Membrane HDPE (High-Density Polyethylene Geomembrane) has become the core barrier material for anti-seepage, pollution isolation, and liquid storage. With ultra-high impermeability, excellent chemical stability, outstanding mechanical strength, and long service life, HDPE membrane replaces traditional clay, concrete, and PVC liners, becoming the preferred solution for global infrastructure, environmental governance, and resource development projects. This article will comprehensively interpret the material characteristics, technical parameters, application scenarios, installation specifications, quality control, and industry trends of Membrane HDPE, providing a full-cycle reference for engineers, contractors, project owners, and procurement teams.
Membrane HDPE, fully known as High-Density Polyethylene Geomembrane, is a thermoplastic polymer barrier material made from 100% virgin high-density polyethylene resin as the main raw material, added with carbon black, antioxidants, UV stabilizers, and other functional additives, processed by blow molding or three-layer co-extrusion process. Its density is not less than 0.94g/cm³, with a semi-crystalline molecular structure, which endows it with high rigidity, tensile strength, and environmental stress cracking resistance (ESCR).
Different from LDPE (Low-Density Polyethylene) and LLDPE (Linear Low-Density Polyethylene), Membrane HDPE has fewer molecular branches, tighter molecular arrangement, and higher crystallinity, so it has better impermeability, corrosion resistance, and aging resistance. It is a non-toxic, odorless, and environmentally friendly geosynthetic material that complies with international environmental protection standards and can be safely used in drinking water storage, aquaculture, and food-grade liquid containment projects.
The standard production process of Membrane HDPE includes resin purification, high-speed mixing, melt extrusion, film blowing/calendering, cooling forming, thickness control, winding, and inspection. The entire production process strictly follows ASTM, ISO, and GRI-GM13 standards to ensure the uniformity of material performance, thickness accuracy, and stability of physical and chemical indicators. High-quality Membrane HDPE contains 2%-3% uniformly dispersed carbon black, which can effectively resist UV radiation and oxidative degradation, ensuring long-term performance in exposed or buried environments.
Compared with traditional anti-seepage materials and other polymer membranes, Membrane HDPE has obvious comprehensive performance advantages, which are verified by a large number of engineering practices and laboratory tests.
The hydraulic conductivity of Membrane HDPE is as low as 10⁻¹³cm/s to 10⁻¹⁴cm/s, which is 10,000 times lower than that of compacted clay liners. It can block the penetration of liquids and gases with almost 100% efficiency, reducing seepage loss by more than 99%. In landfill, mining tailings pond, and chemical storage tank projects, it can effectively prevent leachate, toxic liquid, and sewage from infiltrating the soil and groundwater, avoiding environmental pollution and meeting the world's strictest environmental protection regulations (such as US EPA Subtitle D, EU Waste Framework Directive).
Membrane HDPE has stable chemical inertness and can resist the corrosion of more than 80 kinds of chemical substances, including strong acids (sulfuric acid, hydrochloric acid), strong alkalis (sodium hydroxide, ammonia water), inorganic salts, hydrocarbons, oils, and organic solvents. It will not swell, dissolve, or degrade in a pH 2-12 environment, and can maintain structural integrity in high-salt, high-oxidation, and high-corrosion media for a long time. This characteristic makes it widely used in chemical plants, oil refineries, mining leaching pads, and hazardous waste treatment projects.
High-quality Membrane HDPE has excellent tensile strength, tear resistance, and puncture resistance. The tensile yield strength of 1.5mm thick Membrane HDPE reaches 22-29kN/m, the elongation at break is more than 700% (smooth surface), the puncture resistance is more than 400N, and the tear resistance is more than 125N. It can adapt to the uneven settlement of the foundation, the extrusion of soil and gravel, and the impact of construction loads without cracking or breaking. At the same time, it has good low-temperature resistance and can maintain flexibility at -60°C without embrittlement, suitable for alpine, polar, and high-altitude projects.
With the protection of carbon black and antioxidant systems, Membrane HDPE has strong anti-aging and anti-ultraviolet capabilities. It can retain more than 80% of its mechanical properties after 1600 hours of UV exposure, and its service life can reach 20-50 years in exposed environments; when buried under soil or protected by geotextile, its service life can exceed 100 years. Compared with concrete liners (service life 15-20 years) and PVC membranes (service life 10-15 years), Membrane HDPE greatly reduces the cost of replacement, maintenance, and repair in the later stage of the project, with higher long-term cost-effectiveness.

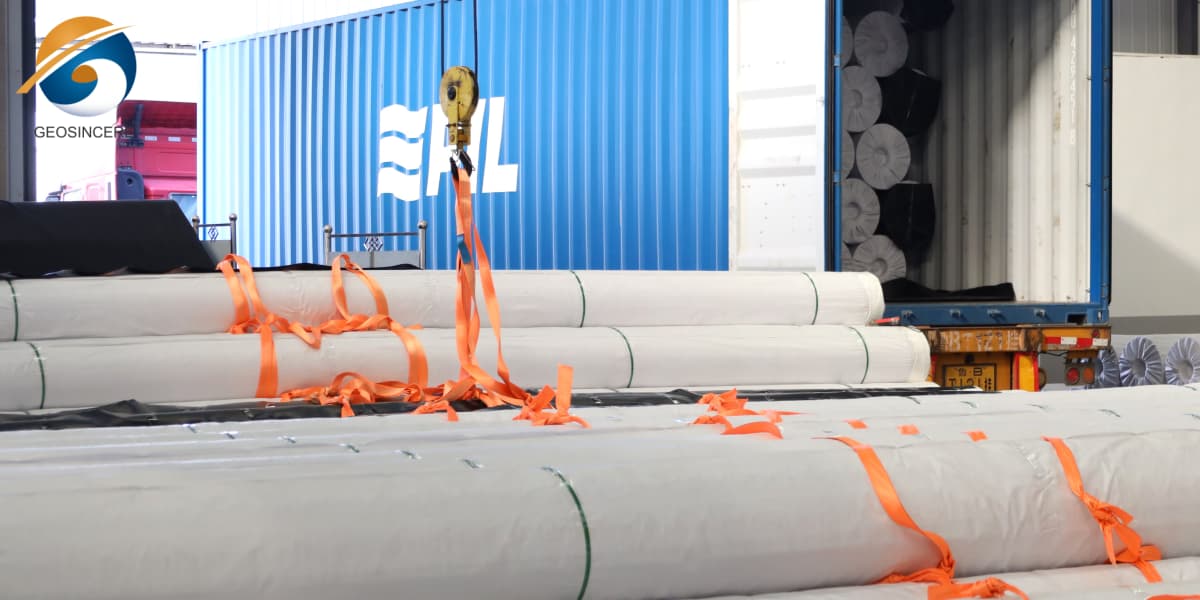

Membrane HDPE is produced in rolls, with a width of 5-8m and a length of 50-200m, lightweight (1.1-1.8kg/m²), easy to transport and unfold. It can adapt to irregular surfaces such as slopes, curves, and depressions, and does not require complex foundation treatment. The connection between membranes adopts hot wedge welding or extrusion welding technology, and the seam strength can reach more than 80% of the base material strength, forming a seamless whole barrier system. The construction efficiency is 30% higher than that of clay liners and concrete liners, suitable for large-scale and rapid construction projects.
Membrane HDPE is made of non-toxic and harmless polyethylene material, does not contain plasticizers, heavy metals, and other harmful substances, and will not pollute water sources and soil. It is 100% recyclable, and some manufacturers can produce high-performance Membrane HDPE with 20% recycled content without reducing product performance. The carbon emission in the production process is 30% lower than that of concrete liners, which helps projects reduce carbon footprints and meet global sustainable development and green building requirements.
The performance of Membrane HDPE directly affects the safety and service life of the project. When selecting and purchasing, it must be based on international and industry standards to confirm the core technical parameters. The following are the key indicators of Membrane HDPE that comply with GRI-GM13, ASTM D6693, ASTM D5887, and ISO 12236 standards:
- Thickness: 0.5mm-3.0mm (20mil-120mil), conventional engineering uses 1.0mm, 1.5mm, 2.0mm; landfill and hazardous waste projects use 1.5mm-2.0mm; mining and tailings ponds use 2.0mm-3.0mm; aquaculture and landscape ponds use 0.5mm-1.0mm.
- Density: ≥0.94g/cm³ (ASTM D792), ensuring high strength and impermeability.
- Melt Flow Index (MFI): ≤1.0g/10min, representing high molecular weight and excellent ESCR.
- Color: Mainly black (carbon black added for UV resistance), and white, green, and other colors can be customized for special scenarios.
- Surface: Smooth surface (for flat areas, low cost) and textured surface (for slopes ≥15°, increasing friction and preventing slippage).
- Tensile Strength at Yield: 22-35kN/m (ASTM D6693)
- Elongation at Break: Smooth surface ≥700%, textured surface ≥250%
- Puncture Resistance: ≥320N (1.0mm), ≥400N (1.5mm), ≥600N (2.0mm) (ASTM D4833)
- Tear Resistance: ≥120N (1.5mm) (ASTM D1004)
- Environmental Stress Crack Resistance (ESCR): ≥500 hours (NCTL test), high-grade products ≥2000 hours
- UV Resistance: Retain ≥80% tensile strength after 1600 hours of UV exposure (ASTM D7238)
- Oxidation Induction Time (OIT): ≥100 minutes (ASTM D3895), ensuring anti-oxidation performance
- Operating Temperature: -60°C to +60°C, adapting to extreme climate environments
- Hydraulic Conductivity: ≤10⁻¹³cm/s (ASTM D5887), ensuring ultra-high anti-seepage effect
Thanks to its comprehensive performance advantages, Membrane HDPE is widely used in environmental protection, water conservancy, mining, construction, agriculture, aquaculture, and other fields, becoming a universal barrier material for global engineering projects.

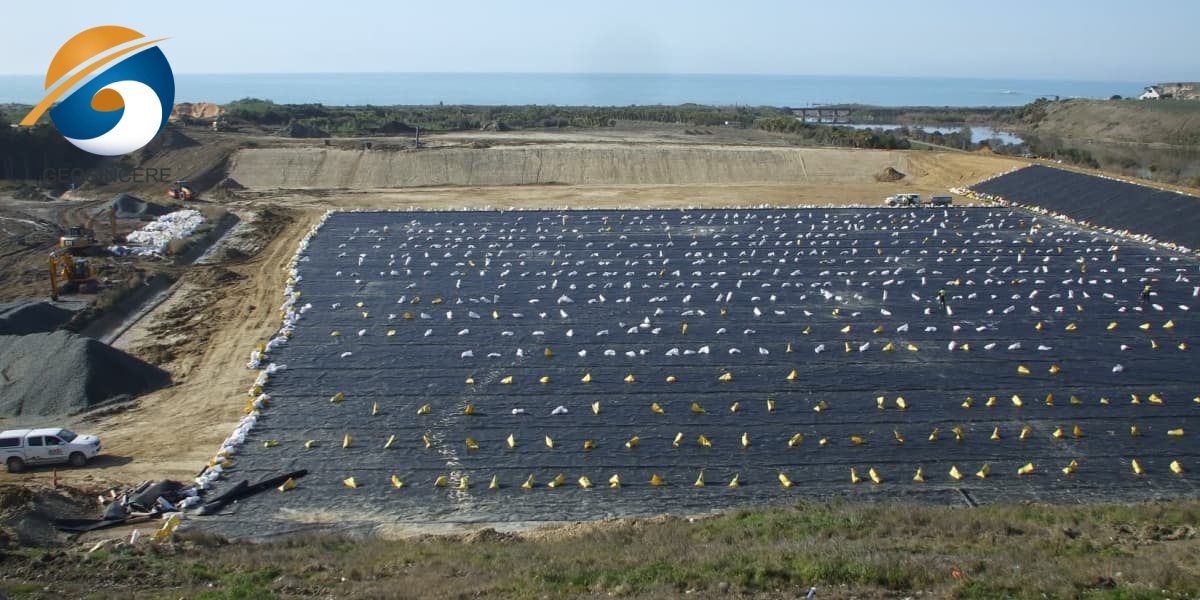

Membrane HDPE is the core material of modern sanitary landfills, used as primary liners, secondary liners, and landfill cover layers. It blocks the infiltration of garbage leachate, prevents groundwater pollution, and collects biogas for energy utilization. According to US EPA regulations, municipal landfills must use Membrane HDPE with a thickness of not less than 1.5mm as a flexible barrier liner. In hazardous waste landfills, double-layer Membrane HDPE (2.0mm) is usually used with a leak detection layer to achieve 99.9% isolation efficiency.

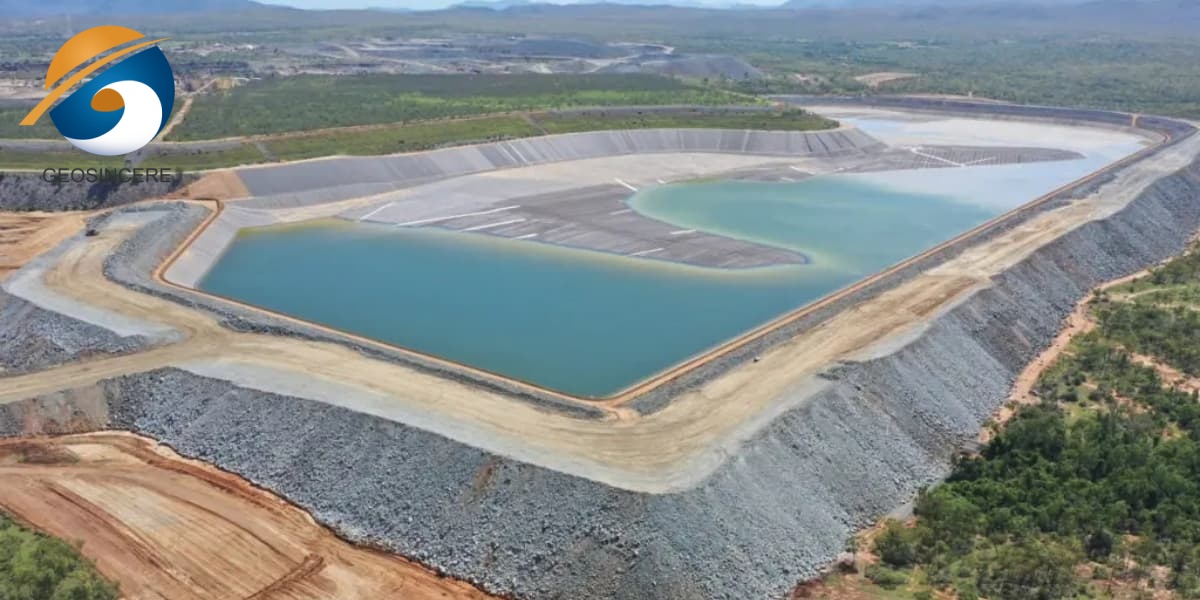

The mining industry is one of the largest application fields of Membrane HDPE, accounting for 25% of the global demand. It is used for lining tailings storage facilities (TSFs), heap leaching pads, evaporation ponds, and acid mine drainage (AMD) containment systems. Resistant to acidic and alkaline mining wastewater, it prevents toxic heavy metals from polluting the environment. Textured Membrane HDPE is suitable for steep slopes of mining areas, with stable anti-slip performance, ensuring the safety of tailings ponds.
In arid and water-scarce regions, Membrane HDPE is used for lining irrigation canals, reservoirs, drinking water storage tanks, and artificial lakes, reducing water seepage loss by more than 95%. Compared with concrete lining, it is not affected by freeze-thaw cycles and foundation settlement, does not crack or leak, and has a lower cost. It is widely used in water conservancy projects in Africa, the Middle East, Central Asia, and other regions, solving the problem of water resource shortage.
In infrastructure projects, Membrane HDPE is used for waterproofing of tunnels, subways, underground garages, bridge foundations, and roof gardens. It has good flexibility and adaptability to structural deformation, blocks groundwater and rainwater infiltration, and protects building structures. It is also used for waterproofing of oil depots, chemical storage tanks, and secondary containment areas, preventing liquid leakage and environmental pollution.
Membrane HDPE is non-toxic and harmless, suitable for aquaculture ponds such as fish, shrimp, and crabs. It prevents water seepage, isolates soil pathogens, reduces the use of drugs, improves water quality, and increases breeding yields. In agriculture, it is used for lining agricultural irrigation ponds, biogas digesters, and fertilizer storage tanks, saving water resources and preventing soil pollution. It is widely used in aquaculture bases in Southeast Asia, South America, and China.
Artificial lakes, landscape ponds, and urban wetlands use Membrane HDPE as an anti-seepage layer to maintain water levels and beautify the environment. In polluted soil and groundwater remediation projects, it is used as a isolation layer to block the spread of pollutants and achieve rapid environmental restoration.
The performance of Membrane HDPE is excellent, but improper construction will lead to seam leakage, membrane surface damage, and other problems, affecting the project effect. Standard construction is the key to ensuring the long-term stable operation of Membrane HDPE.
- Site Treatment: Level the foundation, remove sharp stones, roots, and debris, compact the soil to ensure the compactness is more than 90%, and avoid uneven settlement.
- Material Inspection: Check the thickness, appearance, and performance parameters of Membrane HDPE, and refuse to use products with defects such as cracks, bubbles, and thickness deviations.
- Tool Preparation: Prepare hot wedge welding machines, extrusion welding guns, vacuum detectors, spark detectors, cutting tools, and other equipment, and calibrate the welding machine parameters.

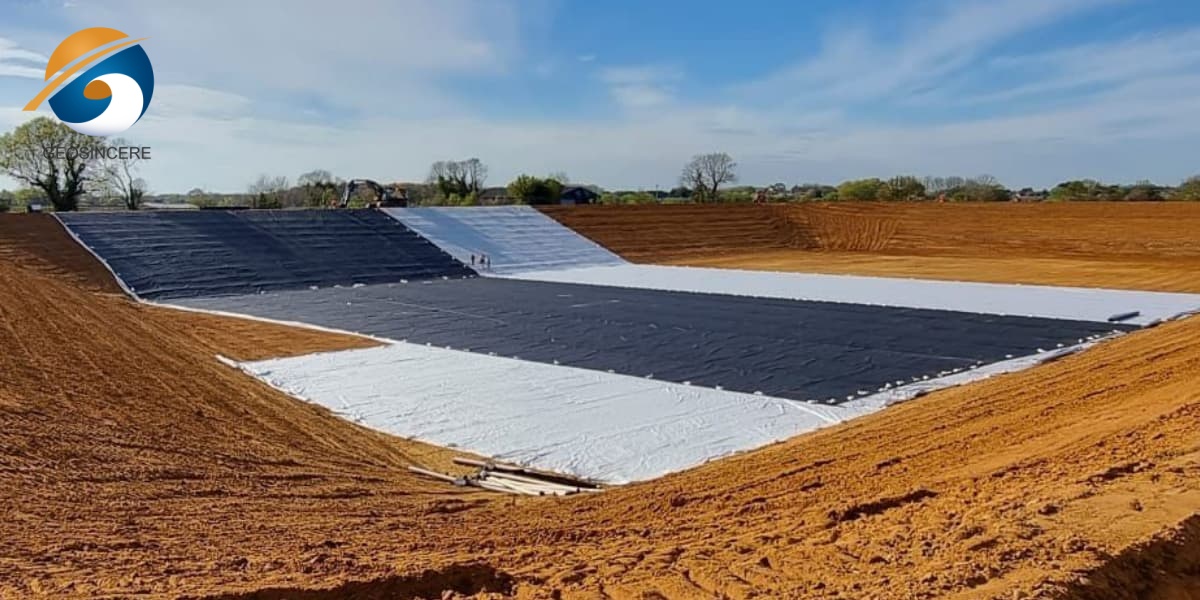

- Lay Membrane HDPE along the slope direction or the length direction of the site, reserve 10%-15% margin for thermal expansion and contraction, avoid tight laying, and prevent cracking caused by temperature changes.
- The overlapping width of membranes is 10-15cm, ensure the overlapping part is flat and free of wrinkles, dust, and water stains.
- Hot Wedge Welding: The main welding method for long straight seams, the welding temperature is 350-450°C, forming double-track welding seams, with an air channel in the middle for pressure test detection.
- Extrusion Welding: Used for irregular parts, repair, and corner welding, extruding molten HDPE strips to fill gaps, with firm bonding.
- All welding seams must be tested: air pressure test for double-track seams (0.15-0.2MPa pressure holding for 5 minutes without pressure drop), vacuum box test or spark test for single-track seams, to ensure 100% no leakage.
- After laying and welding, cover with non-woven geotextile (200-600g/m²) or sand layer in time to avoid UV exposure and mechanical damage.
- Prohibit heavy vehicles from rolling on the membrane surface, and avoid sharp tools scratching the membrane during construction.
- For damaged parts, use Membrane HDPE of the same material for extrusion welding repair, and the repair area should be larger than the damaged area by more than 20cm.
- Conduct full appearance inspection, seam detection, and thickness sampling inspection, and issue a construction acceptance report.
- Provide construction records, material certificates, and test reports to ensure project traceability.
The quality of Membrane HDPE products on the market is uneven. Selecting high-quality products is crucial for project safety. The following selection skills can help you identify genuine and inferior products:
High-quality Membrane HDPE uses 100% virgin polyethylene resin, with a smooth surface, uniform color, and no impurities; inferior products use recycled materials, with a rough surface, color spots, and pungent odors, and their performance is greatly reduced.
Use a thickness gauge to detect the thickness uniformity, the deviation of high-quality products is within ±5%, while inferior products have large thickness deviations and cannot meet anti-seepage requirements.
Tear the membrane by hand: high-quality products have high toughness, large elongation, and are not easy to break; inferior products are brittle, easy to tear, and have low strength.
Regular manufacturers provide ASTM, ISO, GRI-GM13 standard test reports, material safety certificates, and environmental protection certifications, which can be verified by third-party testing.
Select manufacturers with mature production technology, complete quality control system, and rich engineering experience, and avoid choosing small workshops with low prices but no quality assurance.
With the global emphasis on environmental protection and the rapid development of infrastructure, the demand for Membrane HDPE is growing year by year, and technological innovation is constantly promoting product upgrading:
Add functional additives to improve high-temperature resistance, flame retardancy, and gas barrier properties, suitable for more extreme industrial environments.
Add conductive layers inside the membrane to realize real-time monitoring of membrane integrity and rapid leak location, reducing maintenance costs.
Use recycled HDPE resin to produce low-carbon and environment-friendly products, meeting the requirements of carbon neutrality and sustainable development.
Develop wider (≥8m) and thicker (≥3.0mm) Membrane HDPE to reduce welding seams, improve construction efficiency, and adapt to super-large projects.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) Membrane HDPE is an epoch-making barrier material that integrates ultra-high impermeability, chemical corrosion resistance, mechanical strength, and long service life. It is widely used in global environmental protection, water conservancy, mining, construction, agriculture, and other fields, and is an indispensable core material for modern engineering projects. For any project requiring anti-seepage, pollution isolation, and liquid containment, Membrane HDPE can provide safe, reliable, and cost-effective solutions.
When selecting and using Membrane HDPE, it is necessary to strictly follow international standards, choose high-quality virgin resin products, and implement standard construction and quality control. With the advancement of technology and the expansion of applications, Membrane HDPE will continue to play an important role in global infrastructure construction and environmental governance, creating greater economic, social, and environmental benefits for human development.
Whether you are an engineer designing a project, a contractor constructing a project, or a purchaser selecting materials, understanding the core characteristics and application specifications of Membrane HDPE will help you make better decisions, ensure project quality, reduce costs, and achieve long-term stable operation of the project.
