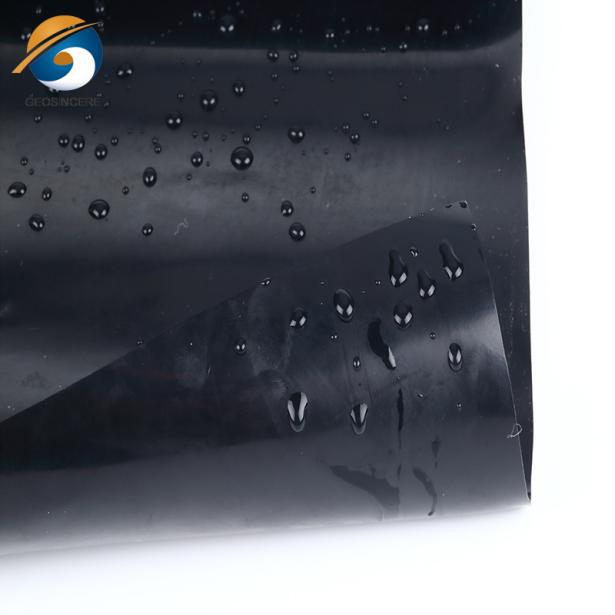

A reinforced polyethylene liner refers to an HDPE (High-Density Polyethylene) Geomembrana roll that incorporates reinforcement materials for added strength and durability. The addition of reinforcement materials enhances the strength and tear resistance of the HDPE geomembrana liner. This makes it more resistant to punctures, tears, and mechanical stresses, providing increased durability and longevity.
The reinforcement layer improves the puncture resistance of the liner, making it more resistant to sharp objects or rough subgrade conditions. This is particularly beneficial in applications where the liner may be exposed to potential puncture hazards.The reinforcement materials help minimize dimensional changes and improve stability, allowing the liner to maintain its shape and integrity even under varying environmental conditions, including temperature fluctuations and settlement.
Product Description:
A reinforced polyethylene liner refers to an HDPE (High-Density Polyethylene) geomembrana roll that incorporates reinforcement materials to enhance its strength and durability. This type of liner is commonly used in various applications that require additional tensile strength and puncture resistance.
The reinforcement in the liner improves its tear resistance, reducing the likelihood of accidental tears or damage during installation or use. This is particularly beneficial in applications where the liner may be exposed to sharp objects or abrasive materials. Despite being reinforced, HDPE geomembrana rolls retain a certain degree of flexibility, allowing them to conform to the shape and contours of the application site. This flexibility facilitates easier installation, especially for projects with irregular or complex geometries.

HDPE is known for its excellent chemical resistance, and the reinforced liner retains this property. It can withstand exposure to various chemicals, including acids, alkalis, and industrial or agricultural substances, ensuring long-term durability and performance.Reinforced HDPE geomembrana rolls are typically designed to have good UV resistance. This helps protect the liner from degradation caused by prolonged exposure to sunlight, extending its lifespan and maintaining its performance.
The enhanced strength and durability of reinforced HDPE geomembrana rolls make them suitable for a wide range of applications, such as landfills, ponds, reservoirs, canals, and containment systems for hazardous materials. They provide a reliable solution for projects that require a robust liner with added reinforcement.
Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
Reinforced Polyethylene Liner HDPE Geomembrana Roll Features


- High-Density Polyethylene (HDPE): The HDPE material provides excellent strength, chemical resistance, and durability. It offers resistance to punctures, tears, and UV radiation, ensuring long-lasting performance in various environments.
- Thickness and Weight: The liner is available in different thicknesses and weights, allowing selection based on the specific application requirements and level of reinforcement needed.
- Weldable and Flexible: The HDPE liner can be easily welded or seamed to create a seamless liner system tailored to the project's dimensions. It is also flexible, enabling it to conform to irregular surfaces and contours.
- Chemical Resistance: The HDPE liner exhibits resistance to a wide range of chemicals, making it suitable for applications where chemical compatibility is essential, such as in containment systems for liquids or hazardous materials.
Product Benefits
- Enhanced strength and stability due to the reinforcement layer, providing improved tensile strength and tear resistance.
- Excellent resistance to punctures, tears, and UV radiation, ensuring durability and longevity.
- Weldable and flexible, allowing for easy installation and customization to fit project requirements.
- Chemical resistance, ensuring compatibility with various liquids and hazardous substances.
- Provides an impermeable barrier to prevent seepage and leakage in containment applications.
Applications of Reinforced Polyethylene Liner HDPE Geomembrana Roll

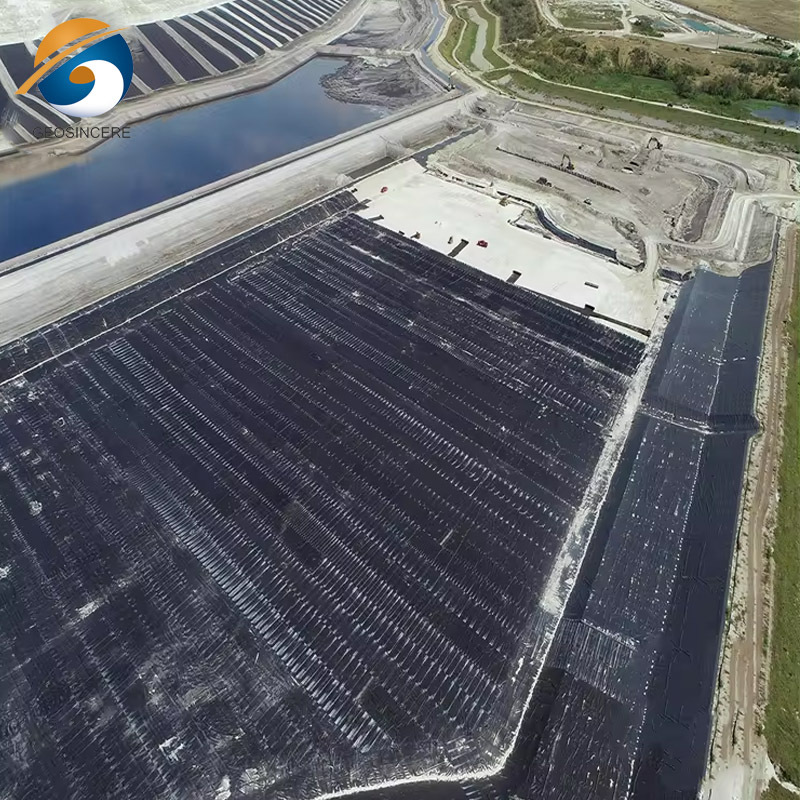

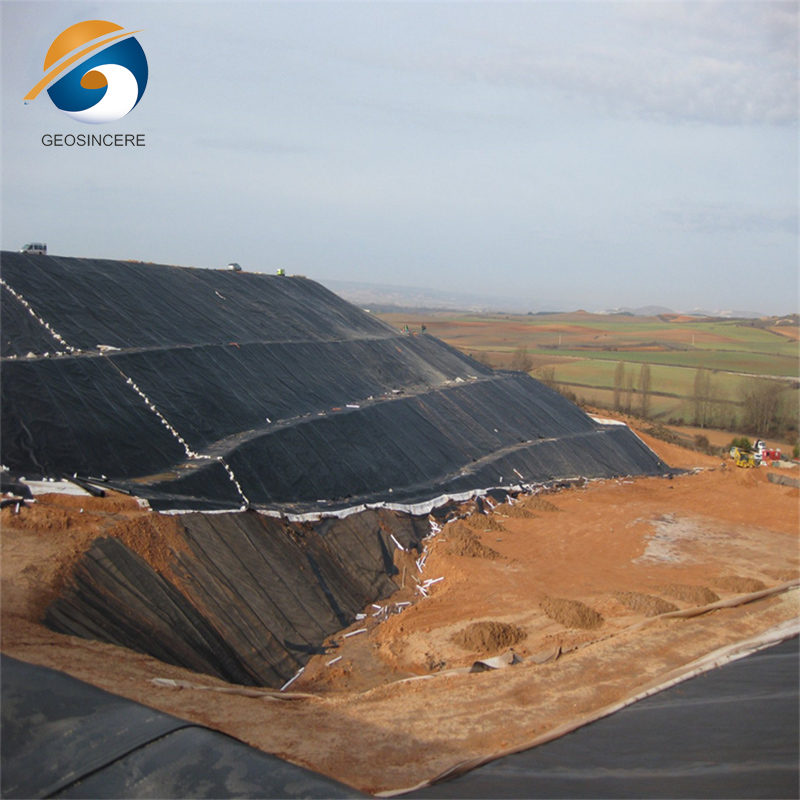

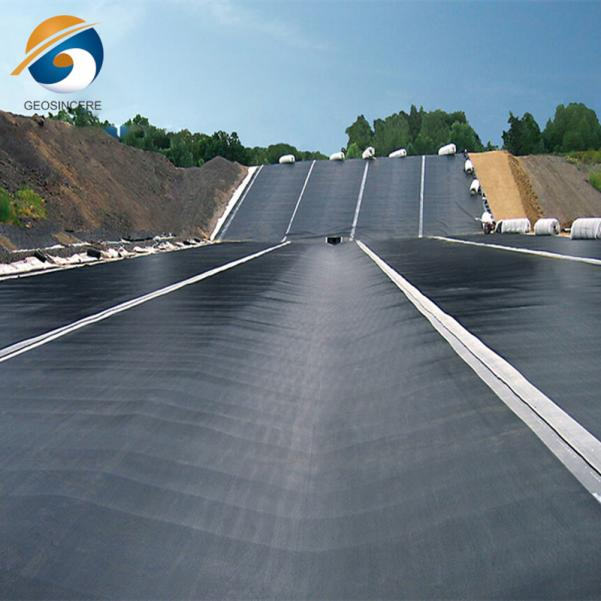

- Landfills and waste containment systems: The reinforced HDPE liner is suitable for lining landfills and waste containment sites, providing an impermeable barrier against seepage and preventing environmental contamination.
- Mining and tailings ponds: It can be used in mining operations to line tailings ponds, ensuring the containment of mining by-products and preventing the release of contaminants into the environment.

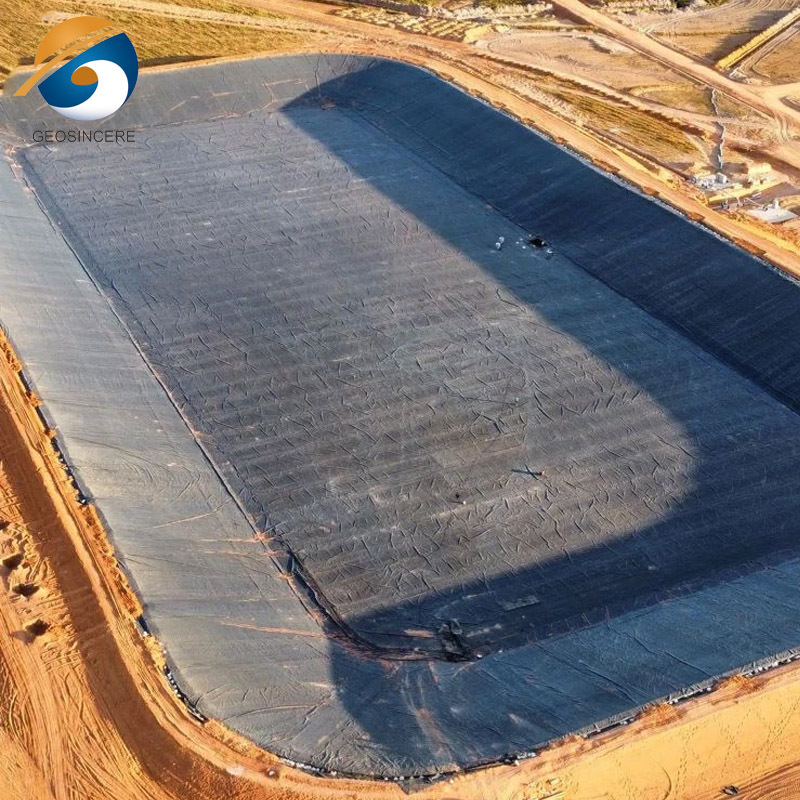

- Pond and lagoon liners: The reinforced liner is suitable for lining ponds, lagoons, and reservoirs used for water storage, irrigation, aquaculture, or wastewater treatment.
- Secondary containment: It is utilized in secondary containment systems for storage tanks or containers, providing an additional layer of protection against leaks or spills.
- Environmental protection and remediation: The liner can be used in environmental remediation projects, such as lining contaminated soil or groundwater containment areas.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.

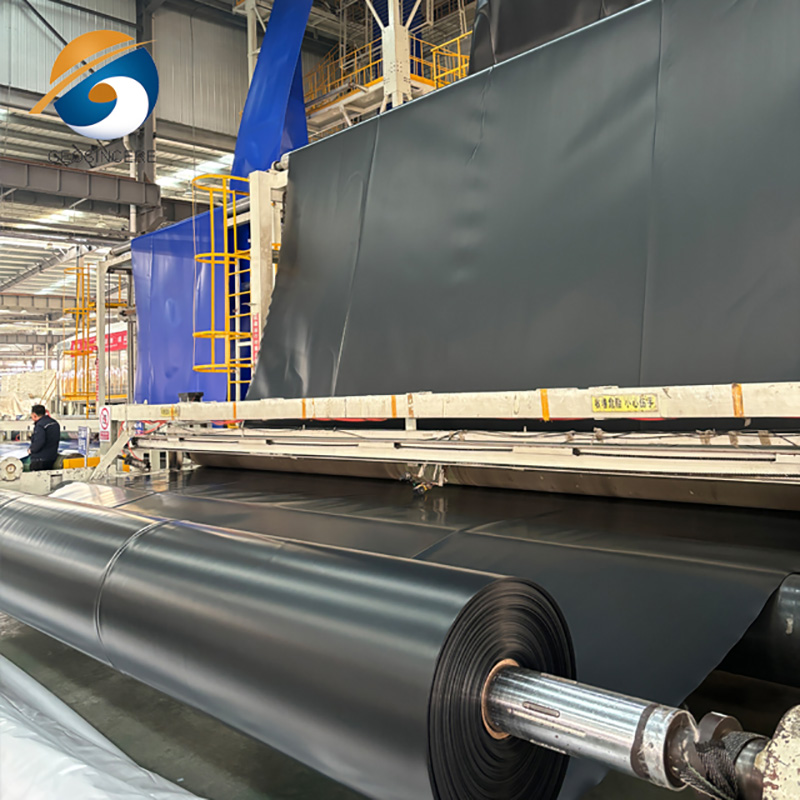

Company Profile

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrana manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrana. GEOSINCERE is always committed to geomembrana research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranas for civil, mining, environmental and aquaculture engineering applications.

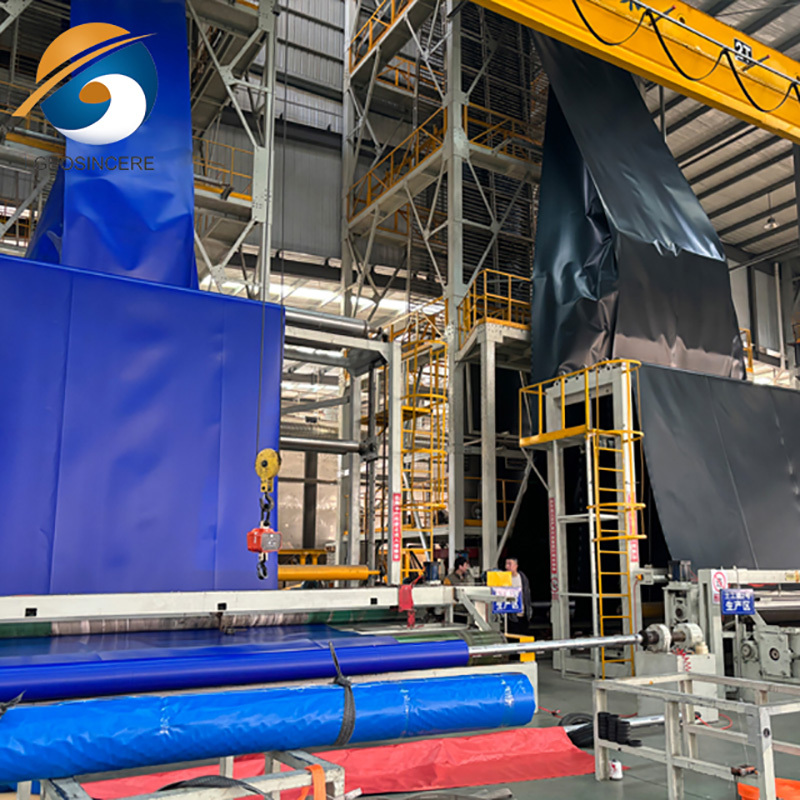

GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranas with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranas products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
