An outdoor industrial landfill liner made of HDPE (High-Density Polyethylene) geomembrane is a common solution for containing and isolating waste materials within a landfill site. HDPE geomembranes provide a robust and impermeable barrier that prevents the leakage of waste materials into the surrounding environment.
HDPE is highly resistant to a wide range of chemicals typically found in landfill environments, including acids, alkalis, and organic solvents. This resistance ensures the integrity and effectiveness of the liner over time.HDPE geomembranes are designed to withstand the harsh conditions found in landfill sites, such as UV exposure, temperature variations, and chemical contact. They offer exceptional resistance to punctures, tears, and stress cracking, ensuring long-term performance.
Product Description:

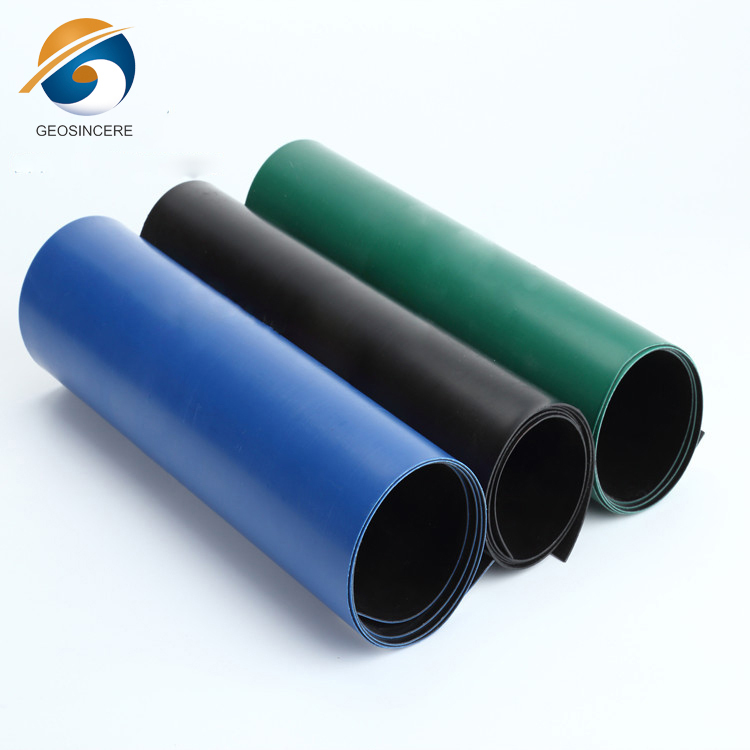

The Outdoor Industrial Landfill Liner HDPE Geomembrane is a high-quality liner specifically designed for use in industrial landfills and waste containment systems. It is made from high-density polyethylene (HDPE) material, known for its exceptional impermeability and durability.
The use of HDPE geomembranes in landfill liners helps protect the surrounding environment by preventing the migration of hazardous substances. By containing and isolating waste materials, they reduce the risk of soil and groundwater contamination.HDPE geomembranes can be heat-welded together to create large, seamless panels. This welding process ensures a continuous and watertight liner system, minimizing the potential for leakage or failure points.
HDPE geomembranes are available in various thicknesses and can be custom fabricated to suit the specific requirements of the landfill project. This flexibility allows for efficient installation, accommodating the site's topography and waste containment needs.
Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
Outdoor Industrial Landfill Liner HDPE Geomembrane Features
- Impermeability: The HDPE geomembrane offers excellent impermeability, effectively preventing the seepage of liquids and gases in industrial landfill applications. It acts as a reliable barrier, minimizing the risk of environmental contamination.
- Durability: Manufactured from high-quality HDPE material, this geomembrane liner exhibits exceptional strength, puncture resistance, and tear resistance. It is designed to withstand the harsh conditions and chemical exposures commonly found in industrial waste disposal sites.
- Chemical Resistance: The HDPE geomembrane is highly resistant to a wide range of chemicals, including acids, alkalis, and hydrocarbons. This feature ensures the integrity of the liner and protects against chemical degradation and leachate formation.
- UV Resistance: Equipped with UV stabilizers, the HDPE liner provides excellent resistance to UV radiation. This protects the liner from the deteriorating effects of sunlight exposure, ensuring its longevity and performance in outdoor landfill applications.
- Customizable: The geomembrane can be customized to fit the specific dimensions and requirements of the industrial landfill site. It can be easily joined or seamed to create a seamless liner system tailored to the project's needs.
Product Benefits
- Reliable containment of liquids and gases in industrial landfill applications.
- Minimizes the risk of environmental contamination and protects groundwater resources.
- Exceptional durability and resistance to punctures, tears, and chemical exposures.
- Provides a barrier against leachate formation and prevents the migration of contaminants.
- UV resistant, ensuring extended lifespan and performance in outdoor landfill environments.
- Customizable to suit various landfill sizes and shapes, facilitating proper installation.
Applications of Outdoor Industrial Landfill Liner HDPE Geomembrane
- Industrial landfills and waste containment systems
- Hazardous waste disposal sites
- Municipal solid waste (MSW) landfills
- Construction and demolition (C&D) waste landfills
- Containment of contaminated soils and sediments
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.
