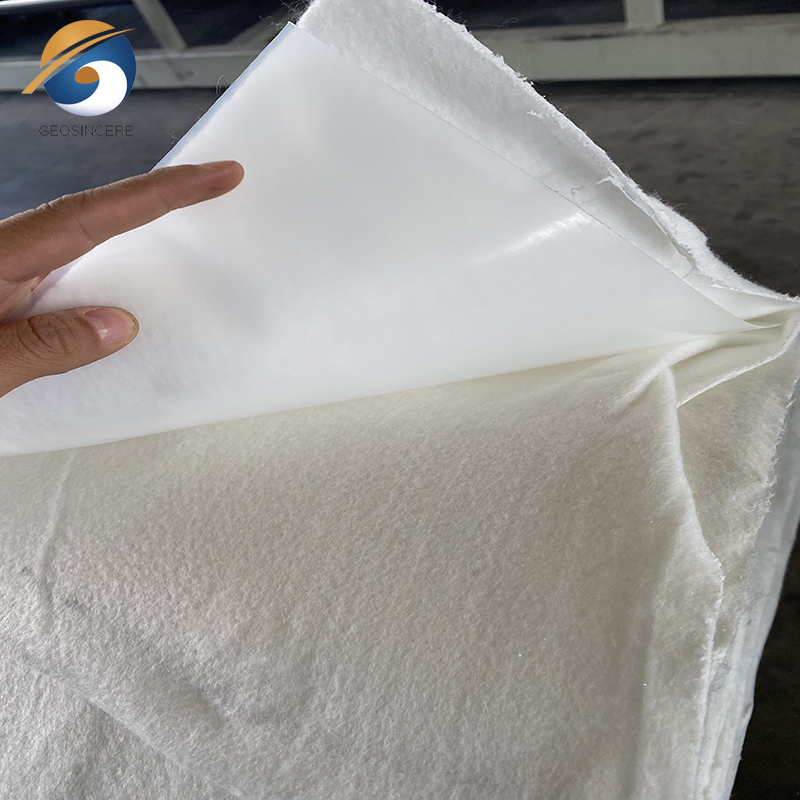

Product Description:

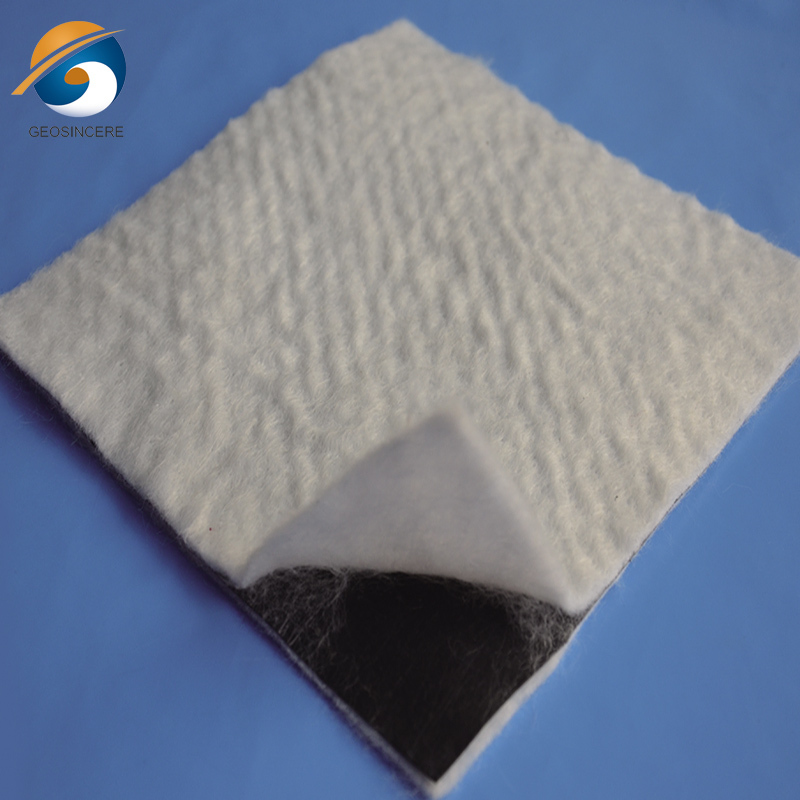

The Non-Woven Geotextile Drainage Fabric Composite Geomembrane is a high-quality product designed for effective drainage and soil stabilization in geotechnical applications. Combining the benefits of non-woven geotextile and geomembrane materials, this composite offers excellent filtration, drainage, and separation capabilities.

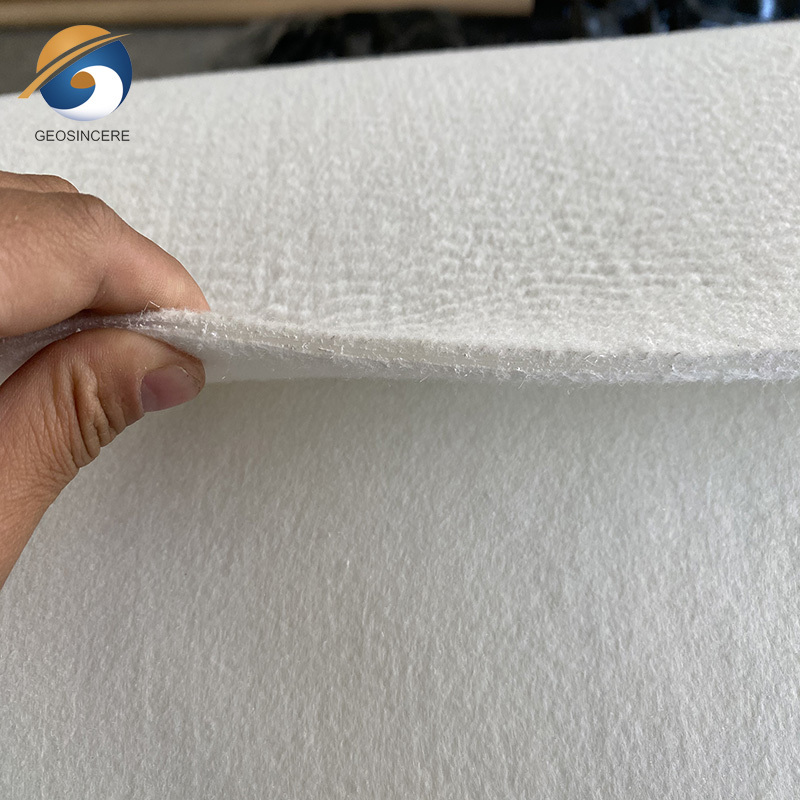

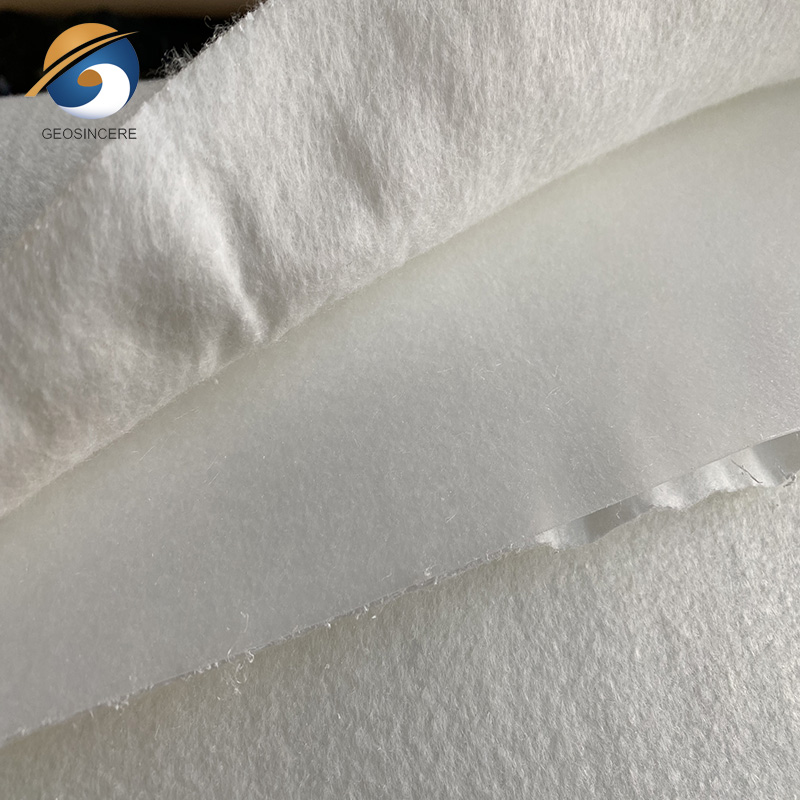

The geotextile component is made from synthetic fibers that are mechanically bonded together, providing high tensile strength and puncture resistance. It acts as a filter, allowing water to pass through while preventing soil particles from clogging the drainage system. The geotextile also helps in distributing load and reinforcing the soil structure.The geomembrane layer, on the other hand, acts as a barrier, preventing water seepage and providing excellent chemical resistance. It is made from durable synthetic materials that ensure long-term performance and protection against contaminants.
With its superior strength, filtration properties, and barrier performance, the Non-Woven Geotextile Drainage Fabric Composite Geomembrane is a reliable solution for geotechnical engineering projects requiring efficient drainage and soil protection.This composite geomembrane is commonly used in applications such as road construction, landfills, retaining walls, and drainage systems. It effectively controls water flow, reduces soil erosion, and enhances the overall stability of the project.
Product Parameter
|
Test ltem
|
Test Properties
|
Unit
|
BCM4
|
BCM5
|
BCM5
|
BCM7
|
BCM8
|
|
Weight
|
g/m2
|
400
|
500
|
600
|
700
|
800
|
|
Film Thickness
|
Mm
|
0.25-0.35
|
0.30-0.50
|
|
Mechanical
Properties
|
Break Strength
|
kN/m
|
5.0
|
7.5
|
10.0
|
12.0
|
14.0
|
|
Break Elongation
|
%
|
30-100
|
30-100
|
30-100
|
30-100
|
30-100
|
|
CBR Burst
Strength
|
KN
|
1.1
|
1.5
|
1.9
|
2.2
|
2.5
|
|
Tear Resistance
|
KN
|
0.15
|
0.25
|
0.32
|
0.40
|
0.48
|
|
Peel Strength
|
N/cm
|
≥6
|
≥6
|
≥6
|
≥6
|
≥6
|
|
Hydrostatic
Pressure
|
Film Thickness
|
mm
|
0.2
|
0.3
|
0.4
|
0.5
|
0.6
|
|
One cloth one
film
|
Mpa
|
0.4
|
0.5.
|
0.6
|
0.8
|
1.0
|
|
Two cloth one
film
|
Mpa
|
0.5
|
0.6
|
0.8
|
1.0
|
1.2
|
Non Woven Geotextile Drainage Fabric Composite Geomembrane Features
The Non-Woven Geotextile Drainage Fabric Composite Geomembrane is a high-quality material designed for drainage and erosion control. This composite product combines non-woven geotextile fabric and geomembrane to provide excellent filtration, drainage, and barrier properties.
- Non-Woven Geotextile Fabric: Offers high permeability, allowing water to flow through while preventing soil particles from clogging the drainage system.
- Geomembrane Layer: Acts as a water barrier, preventing water penetration into underlying layers.
- Effective Drainage: Promotes efficient water drainage, maintaining soil stability and preventing erosion.
- Erosion Control: Stabilizes soil and prevents the migration of fine particles, protecting slopes and other soil structures.
- Versatile Applications: Suitable for retaining walls, road construction, landfills, landscaping, and subsurface drainage systems.

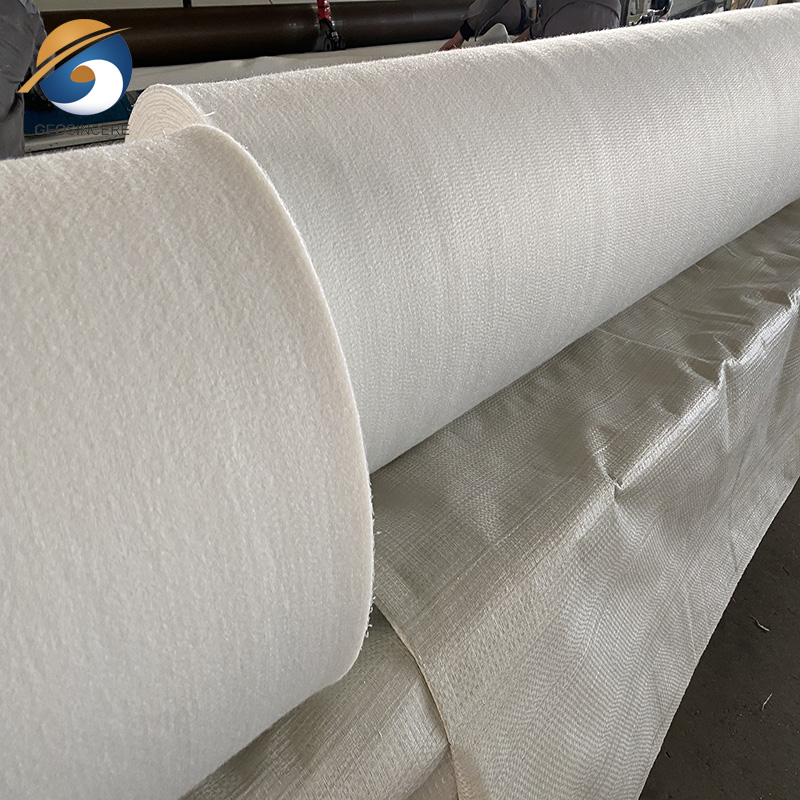

- Easy Installation: Supplied in rolls of various widths for customizable installation.
- Environmentally Friendly: Does not release harmful substances into the soil or water.

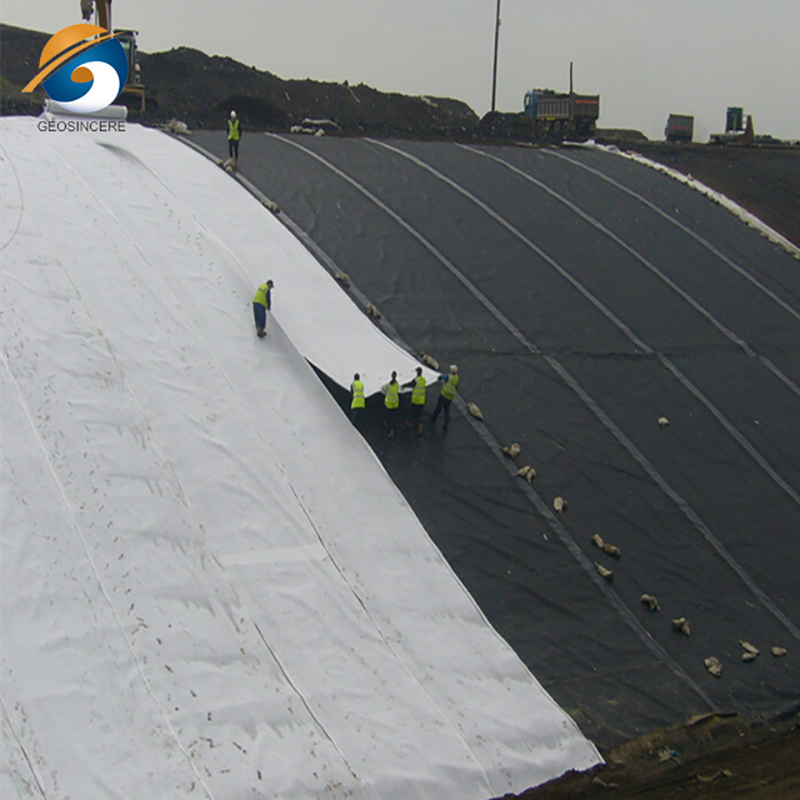

Applications of Non Woven Geotextile Drainage Fabric Composite Geomembrane

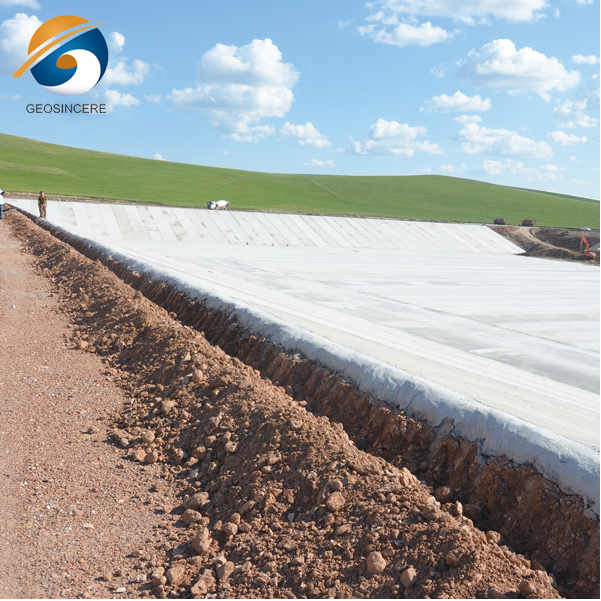

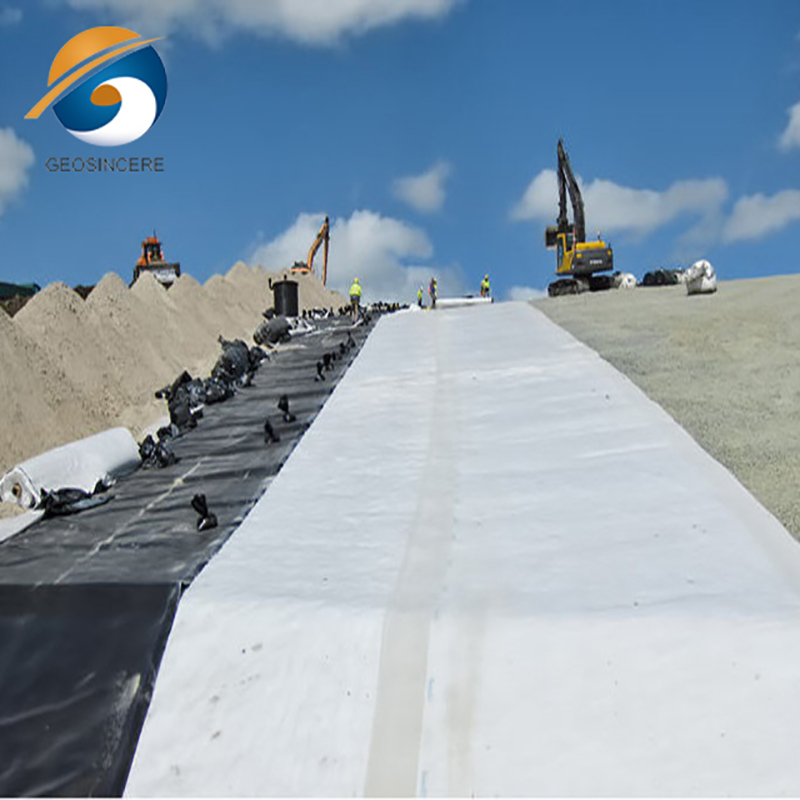

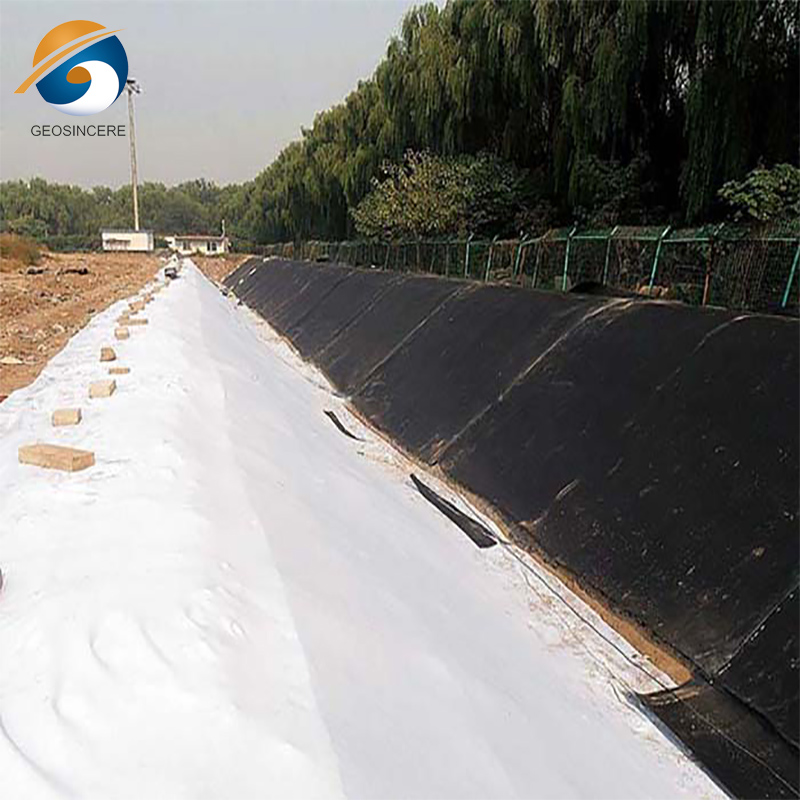

The Non-Woven Geotextile Drainage Fabric Composite Geomembrane has versatile applications in geotechnical engineering. It is commonly used in road construction, landfills, retaining walls, drainage systems, and environmental protection projects. This composite provides effective drainage, soil stabilization, filtration, and barrier functions. It prevents water accumulation, reduces soil erosion, and ensures the containment of contaminants. Whether it's for subgrade stabilization, leachate control, retaining wall drainage, or environmental preservation, this composite geomembrane is a reliable solution for a wide range of geotechnical applications.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.
Company Profile
Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.
GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
We have been exporting geomembranes to over 60 countries such as Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Switzerland, Mongolia, etc.
Hope to be your partner!
