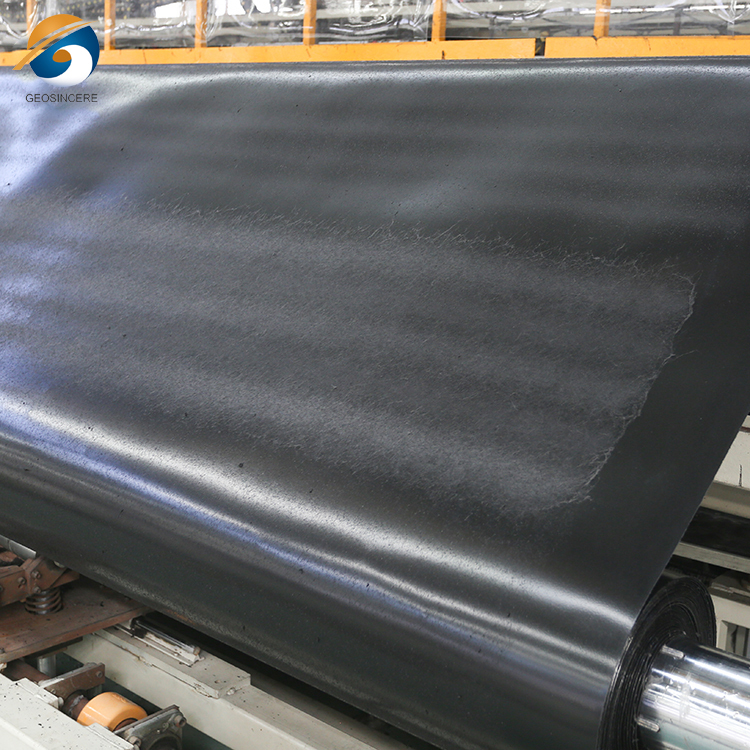

Name: HDPE Impermeable Membrane Polyethylene Sheet for Biogas Digester
Brand: GEOSINCERE
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Description:

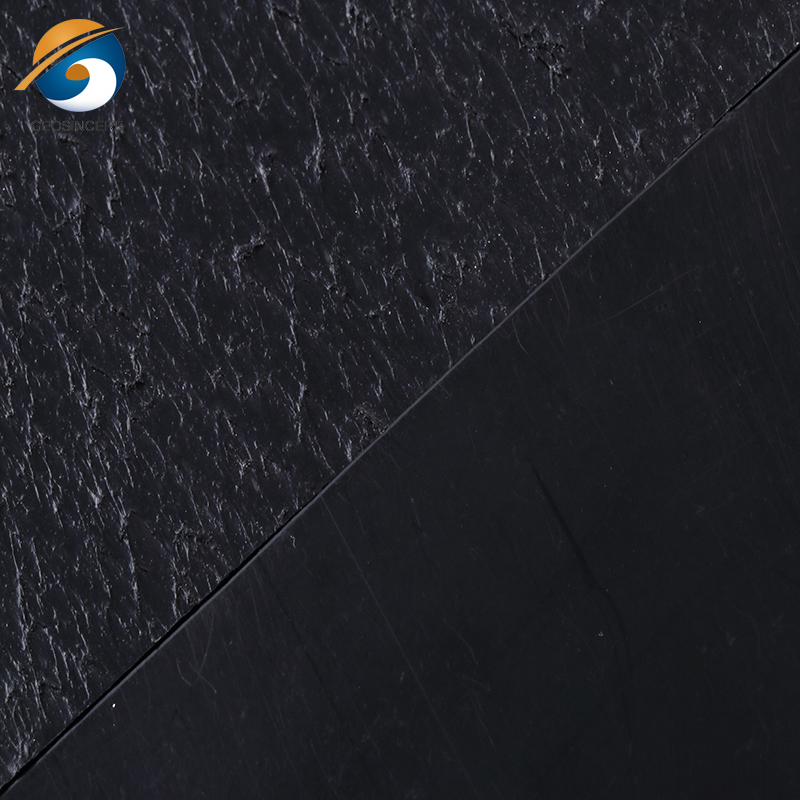

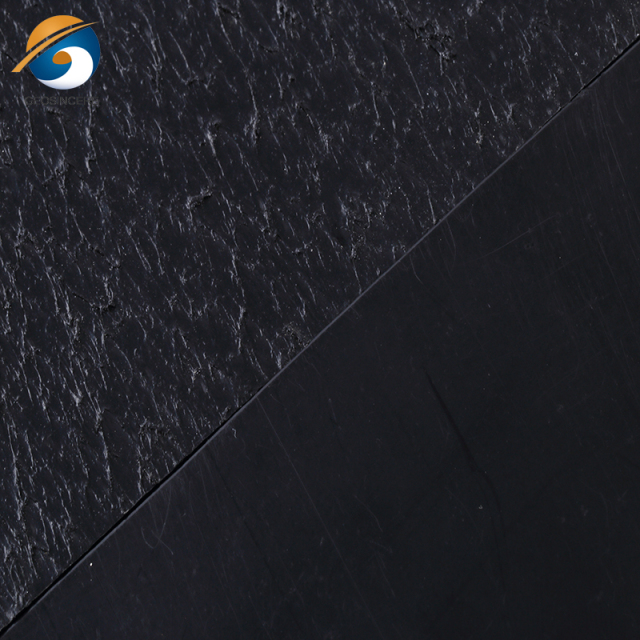

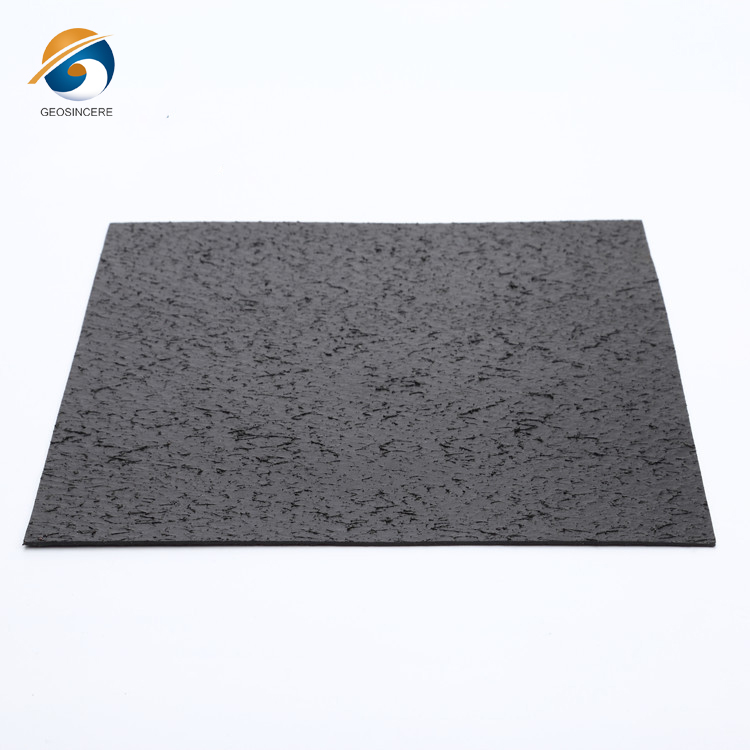

The HDPE Impermeable Membrane Polyethylene Sheet is a specially designed liner used in biogas digester applications.HDPE is known for its durability and resistance to various environmental conditions. The membrane is engineered to withstand the harsh conditions within biogas digesters, such as temperature variations, chemical exposure, and mechanical stress. Its durable nature allows for long-term use without compromising its integrity.

The HDPE membrane possesses excellent resistance to a wide range of chemicals, including those found in biogas digesters. It can withstand exposure to acidic or alkaline substances, as well as corrosive byproducts created during the digestion process. This chemical resistance ensures the membrane's long lifespan and reliable performance.

The HDPE membrane can be manufactured in various sizes and shapes to suit the specific requirements of different biogas digester designs. It can be fabricated as large continuous sheets or prefabricated panels, ensuring a precise fit and minimizing the need for field seaming.

Product Parameter

Test Properties	Unit	Standard	Test frequency	GSO 10	GSO 15	GSO 20	GSO 25
Thickness	mm	D5994	per roll	1.00	1.50	2.00	2.50
Asperity Height	mm	D7446	Every 2^nd roll (2)	0.25
Density	g/cc	D1505/0792	90.000kg	0.94
Tensile Properties
Yield Strength	Kn/m	D6693 Type Iv	9.000 kg	15	22	29	37
Break Strength	Kn/m			10	16	21	26
Yield Elongation	%			12	12	12	12
Break Elongation	%			100	100	100	100
Tear Resistance	N	D1004	20.000kg	125	187	249	311
Puncture Resistance	N	D4883	20,000kg	267	400	534	667
Stress Crack Resistance	hr	D5397(App)	per GRlGM-10	300 hr
Carbon black content	%	D4218	9.000kg	2.0-3.0%
Carbon black dispersion		D5596	20.000kg	For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3
0xidative Induction Time
Standard OlT	min	D3895	90.000kg	100 min
High pressure OlT	min	D5885	90.000kg	400 min
Oven Aging at 85°C retained after 90 days	%	D5721	per each formulation	55%
Standard 0lT		D3895		80%
High pressure OlT		D5885		80%
UV Resistance
High Pressure OlT -% retained after 1600 hrs	%	D5885	per each formulation	50%
Roll Width	m			7	7	7	7
Roll Length	m			210	140	105	70
Size stability	%			2%

HDPE Impermeable Membrane Polyethylene Sheet for Biogas Digester Features

Impermeability: The HDPE membrane provides exceptional impermeability, effectively containing biogas within the digester. It prevents the escape of gas and protects against the intrusion of moisture, contaminants, or other substances that could compromise the digester's performance.

Chemical Resistance: HDPE is known for its high resistance to chemicals, acids, and alkalis. This makes the membrane suitable for biogas digester applications, where the presence of corrosive substances is common. It ensures the long-term integrity and performance of the liner, even in the presence of aggressive biogas byproducts.

Durability: The HDPE membrane is highly durable and can withstand the demanding conditions of biogas digester environments. It is resistant to punctures, tears, and abrasion, providing long-lasting protection. This durability reduces the need for frequent maintenance or replacement, contributing to cost savings.

UV Resistance: The HDPE membrane has excellent resistance to ultraviolet (UV) radiation. This property is crucial for biogas digesters exposed to sunlight, as it prevents degradation and ensures the longevity of the liner even in outdoor installations.

Customizable: The HDPE membrane can be custom fabricated to fit the specific dimensions and shape of the biogas digester. It can be tailored to accommodate various designs and configurations, ensuring a precise fit and optimal performance.

Easy Installation: The HDPE membrane is flexible and easy to install. It can be deployed as a continuous sheet or prefabricated panels, simplifying the installation process. This feature helps to minimize installation time and costs.

Applications of HDPE Impermeable Membrane Polyethylene Sheet for Biogas Digester

The HDPE Impermeable Membrane Polyethylene Sheet is commonly used in biogas digester applications, including:

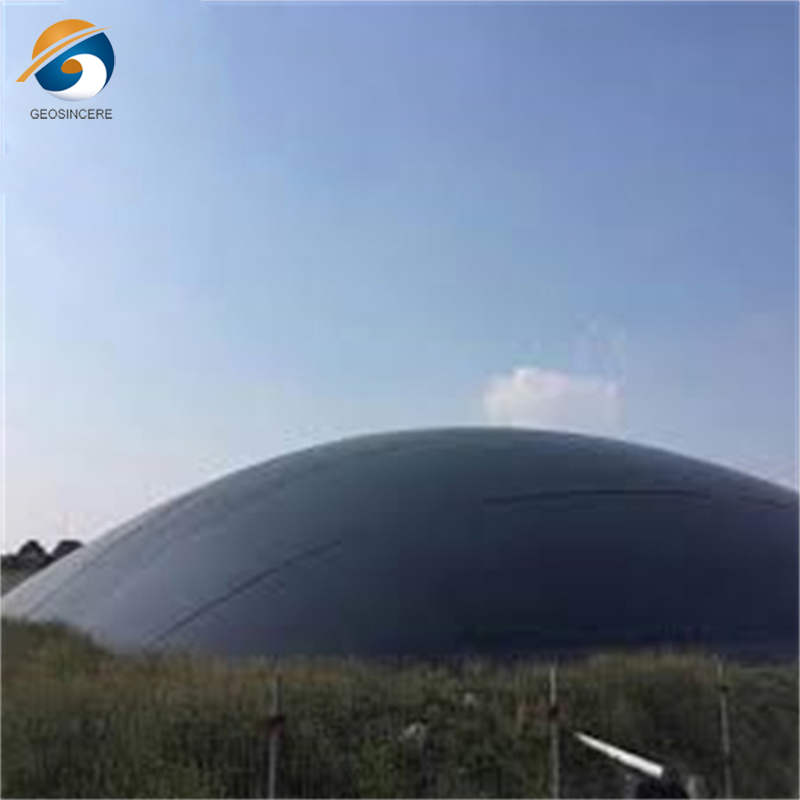

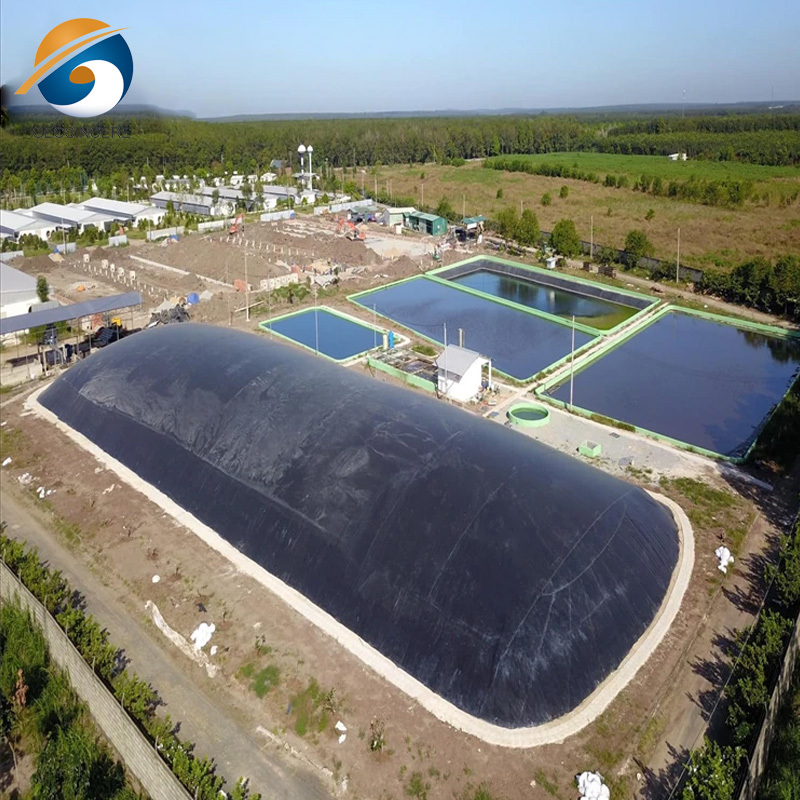

Anaerobic Digesters: It is used as a liner in anaerobic digesters, which convert organic waste into biogas through a fermentation process. The impermeable membrane prevents biogas leakage and ensures efficient gas collection and utilization.

Biogas Storage Tanks: The membrane can be employed as a liner in biogas storage tanks, maintaining the integrity of the tank and preventing gas losses due to permeation.

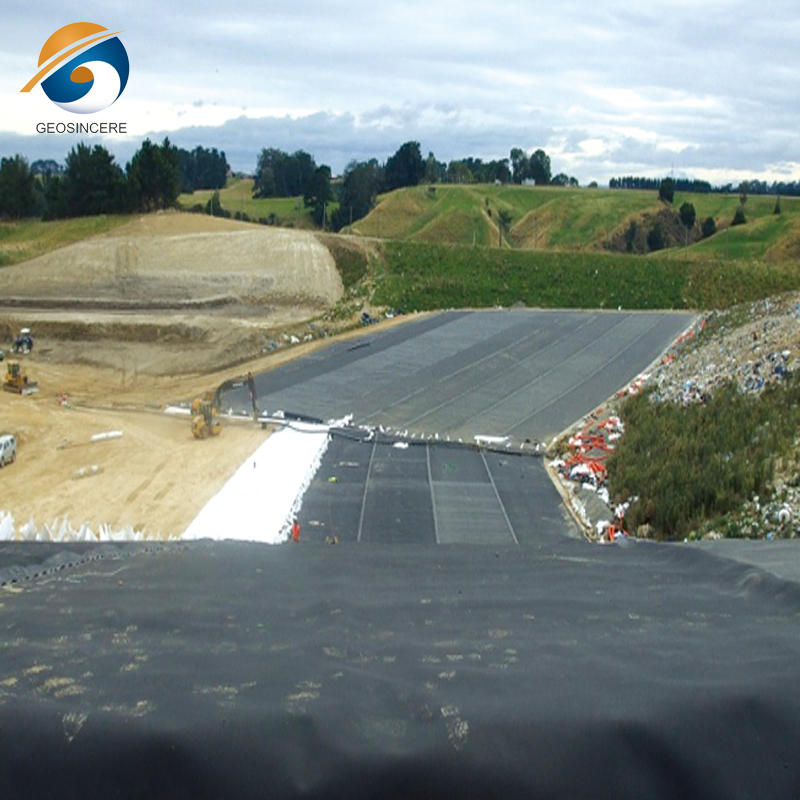

Landfills: It is used as a liner in landfill sites with biogas collection systems. The impermeable membrane helps in efficient gas capture and prevents its release into the atmosphere, reducing greenhouse gas emissions.

Wastewater Treatment Plants: The HDPE membrane can be used in wastewater treatment plants with anaerobic digesters to capture and utilize biogas produced during the treatment process.

Overall, the HDPE Impermeable Membrane Polyethylene Sheet is a reliable and durable solution for biogas digester applications. Its impermeability, chemical resistance, durability, and easy installation make it well-suited for containing and protecting biogas within the digester, contributing to efficient biogas production and utilization.

Product Packing

Selling Packing:Customer's company Logo mark can be designed and added.

Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.

Transport Packing: Put in the container.

Company Profile

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.

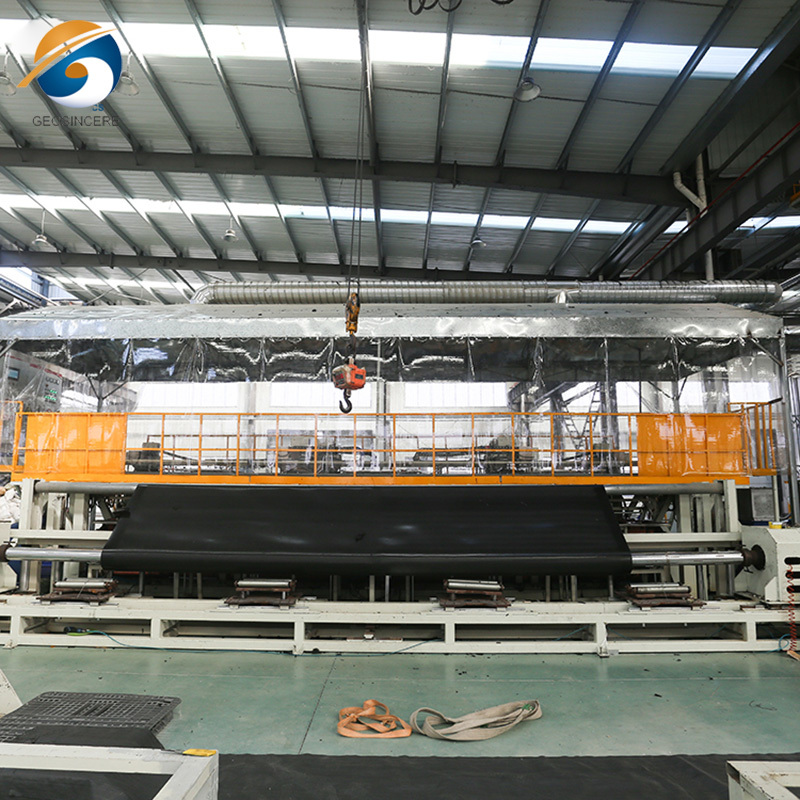

GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
