HDPE (High-Density Polyethylene) geosynthetic plastic liner pond membrane is a type of plastic pond liner commonly used in aquaculture applications. It is designed to provide a durable and impermeable barrier that prevents water from seeping into or out of the pond.HDPE is a robust and long-lasting material that can withstand harsh environmental conditions, including exposure to UV radiation, chemicals, and abrasion. It offers excellent resistance to punctures and tears, ensuring the integrity of the pond liner.
HDPE is considered an environmentally friendly material. It is inert and does not release harmful substances into the water, making it safe for aquatic life. HDPE liners can also be recycled, reducing their impact on the environment.
Product Description:
The HDPE Geosynthetic Plastic Liner Pond Membrane is a high-quality liner specifically designed for aquaculture applications such as fish farming and aquaculture ponds. It is made from high-density polyethylene (HDPE) material, known for its excellent impermeability and durability.
Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
HDPE Geosynthetic Plastic Liner Pond Membrane for Aquaculture Features
- Impermeability: The HDPE geosynthetic pond membrane offers exceptional impermeability, effectively preventing water seepage and ensuring reliable containment of water within the aquaculture pond. It helps maintain the desired water levels and prevents water loss.
- Durability: Manufactured from high-quality HDPE material, this pond liner is highly durable and resistant to punctures, tears, and chemical degradation. It is designed to withstand the harsh conditions of aquaculture environments, ensuring long-lasting performance.
- Fish-Friendly: The HDPE pond membrane is fish-friendly and safe for aquatic life. It does not release harmful substances into the water, ensuring a healthy environment for fish and other aquatic organisms.
- UV Resistance: The HDPE liner is equipped with UV stabilizers, providing excellent resistance to UV radiation. This feature protects the liner from the deteriorating effects of prolonged sun exposure, ensuring its longevity and performance in outdoor aquaculture settings.
- Customizable: The geosynthetic pond membrane can be customized to fit the specific dimensions and requirements of the aquaculture pond. It can be easily joined or seamed to create a seamless liner system tailored to the project's needs.
Product Benefits
- Reliable water containment and prevention of seepage in aquaculture ponds.
- Maintains water levels and prevents water loss, supporting the aquatic environment.
- Durable and resistant to punctures, tears, and chemicals.
- Safe for fish and aquatic life, providing a healthy environment.
- UV resistant, ensuring longevity and performance in outdoor settings.
- Customizable to fit various pond sizes and shapes.
Applications of HDPE Geosynthetic Plastic Liner Pond Membrane for Aquaculture
- Fish farming and aquaculture ponds
- Shrimp and prawn farming systems
- Hatcheries and nurseries for aquatic organisms
- Water storage and containment for aquaculture purposes
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.
Company Profile

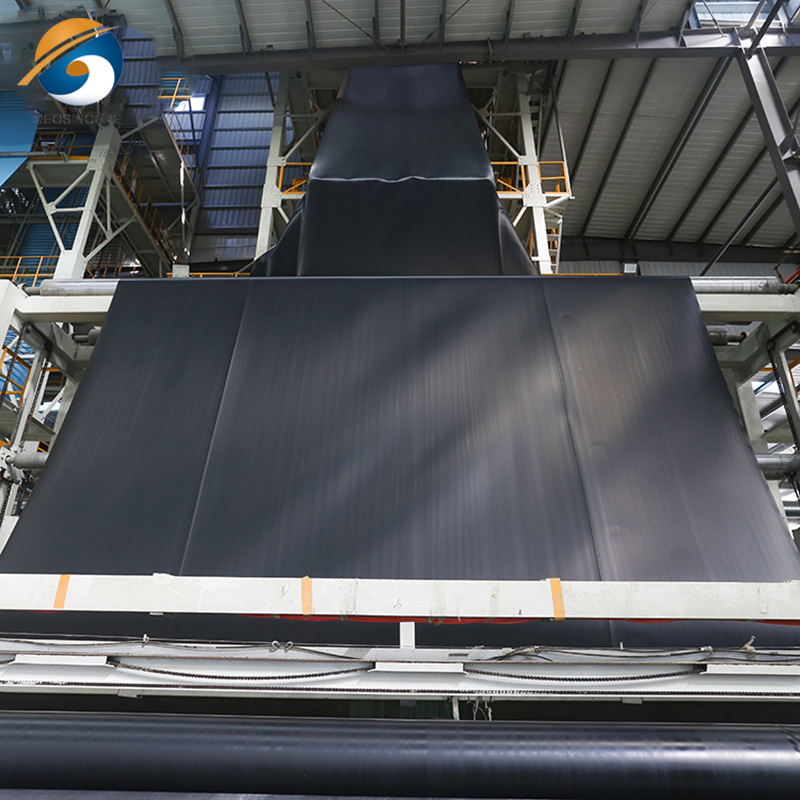

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.
GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
We have been exporting geomembranes to over 60 countries such as Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Switzerland, Mongolia, etc.
