A 2mm HDPE (High-Density Polyethylene) geomembrane liner refers to a type of impermeable liner used in various applications where containment and barrier properties are required. HDPE geomembranes are highly impermeable, meaning they prevent the passage of liquids and gases. The 2mm thickness provides an effective barrier against the escape or intrusion of contaminants, fluids, or gases in applications such as landfill liners, reservoirs, ponds, and industrial containment systems.
HDPE liners are known for their excellent chemical resistance. They can withstand exposure to a wide range of chemicals, including acids, alkalis, and industrial waste, without significant degradation or loss of performance.HDPE geomembranes offer high tensile strength and puncture resistance, making them durable and capable of withstanding various environmental and mechanical stresses.
Product Description:
A 2mm HDPE (High-Density Polyethylene) geomembrane liner refers to a type of impermeable liner used in various applications that require containment of liquids or gases.HDPE geomembranes are highly impermeable, preventing the migration of liquids and gases. The 2mm thickness provides an effective barrier against the escape or intrusion of contaminants, leachate, or other substances.
HDPE is known for its excellent chemical resistance, making it suitable for applications where exposure to various chemicals is expected. The 2mm HDPE liner can withstand the corrosive nature of chemicals found in industrial, agricultural, or waste management environments.HDPE geomembranes offer high tensile strength, puncture resistance, and dimensional stability. The 2mm thickness provides additional strength and durability, making it suitable for applications that require a robust liner, such as landfills, ponds, or reservoirs.
HDPE geomembranes are designed to have good UV resistance, allowing them to withstand prolonged exposure to sunlight without significant degradation or loss of performance. This ensures the longevity of the liner in outdoor applications.Despite its thickness, HDPE geomembranes retain a certain degree of flexibility, allowing them to conform to the contours and irregularities of the application site. This flexibility simplifies installation and ensures a proper fit, reducing the risk of liner displacement.
Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
Geomembrane HDPE 2mm High Density Polyethylene Liner Features
- High-Density Polyethylene (HDPE): The liner is constructed using high-density polyethylene (HDPE), a thermoplastic material known for its exceptional strength, durability, and resistance to chemicals and punctures.
- Thickness: The geomembrane has a thickness of 2mm, providing enhanced strength and durability for demanding applications.
- Waterproofing: The HDPE liner acts as an impermeable barrier, preventing the seepage and leakage of liquids. It ensures efficient containment of water, chemicals, or other substances, minimizing environmental risks.
- UV Resistance: The HDPE material used in the liner is UV stabilized, providing protection against the damaging effects of sunlight exposure. This extends the lifespan of the liner and allows for long-term outdoor use.
- Chemical Resistance: The HDPE liner offers excellent resistance to a wide range of chemicals, making it suitable for applications involving contact with corrosive substances or hazardous materials.
- Weldable and Flexible: The HDPE liner is weldable, allowing for easy installation and the creation of a seamless liner system. It is also flexible, enabling it to conform to the shape and contours of the application area.
Product Benefits
- Reliable containment and waterproofing, minimizing the risk of seepage and leakage.
- Exceptional strength and durability, ensuring long-term performance in demanding environments.
- UV resistance, allowing for outdoor applications without degradation from sunlight exposure.
- Chemical resistance, making it suitable for applications involving contact with various chemicals or hazardous substances.
- Weldable and flexible, facilitating easy installation and customization.
Applications of Geomembrane HDPE 2mm High Density Polyethylene Liner
- High-Density Polyethylene (HDPE): The liner is constructed using high-density polyethylene (HDPE), a thermoplastic material known for its exceptional strength, durability, and resistance to chemicals and punctures.
- Thickness: The geomembrane has a thickness of 2mm, providing enhanced strength and durability for demanding applications.
- Waterproofing: The HDPE liner acts as an impermeable barrier, preventing the seepage and leakage of liquids. It ensures efficient containment of water, chemicals, or other substances, minimizing environmental risks.
- UV Resistance: The HDPE material used in the liner is UV stabilized, providing protection against the damaging effects of sunlight exposure. This extends the lifespan of the liner and allows for long-term outdoor use.
- Chemical Resistance: The HDPE liner offers excellent resistance to a wide range of chemicals, making it suitable for applications involving contact with corrosive substances or hazardous materials.
- Weldable and Flexible: The HDPE liner is weldable, allowing for easy installation and the creation of a seamless liner system. It is also flexible, enabling it to conform to the shape and contours of the application area.
Product Benefits
- Reliable containment and waterproofing, minimizing the risk of seepage and leakage.
- Exceptional strength and durability, ensuring long-term performance in demanding environments.
- UV resistance, allowing for outdoor applications without degradation from sunlight exposure.
- Chemical resistance, making it suitable for applications involving contact with various chemicals or hazardous substances.
- Weldable and flexible, facilitating easy installation and customization.
Applications of Geomembrane HDPE 2mm High Density Polyethylene Liner
Company Profile

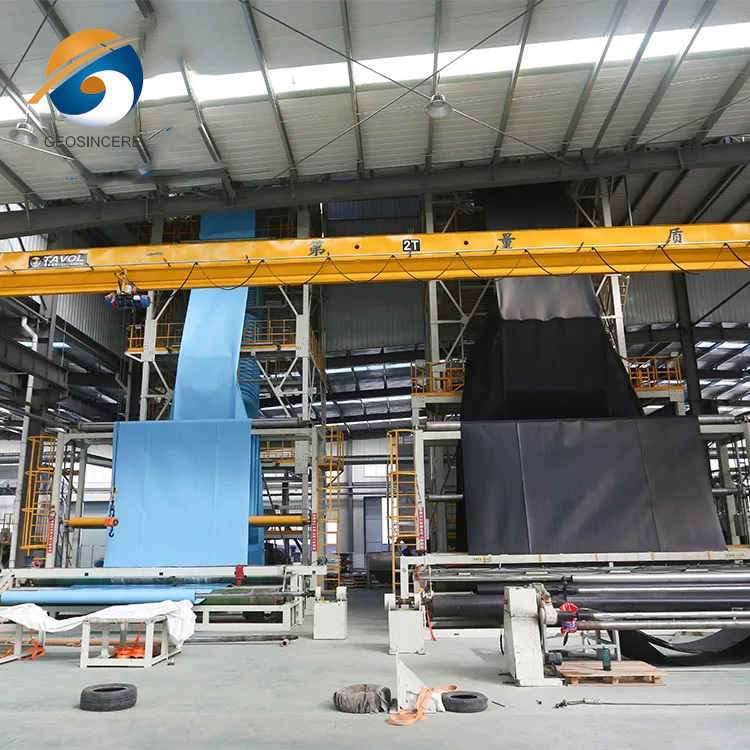

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.
