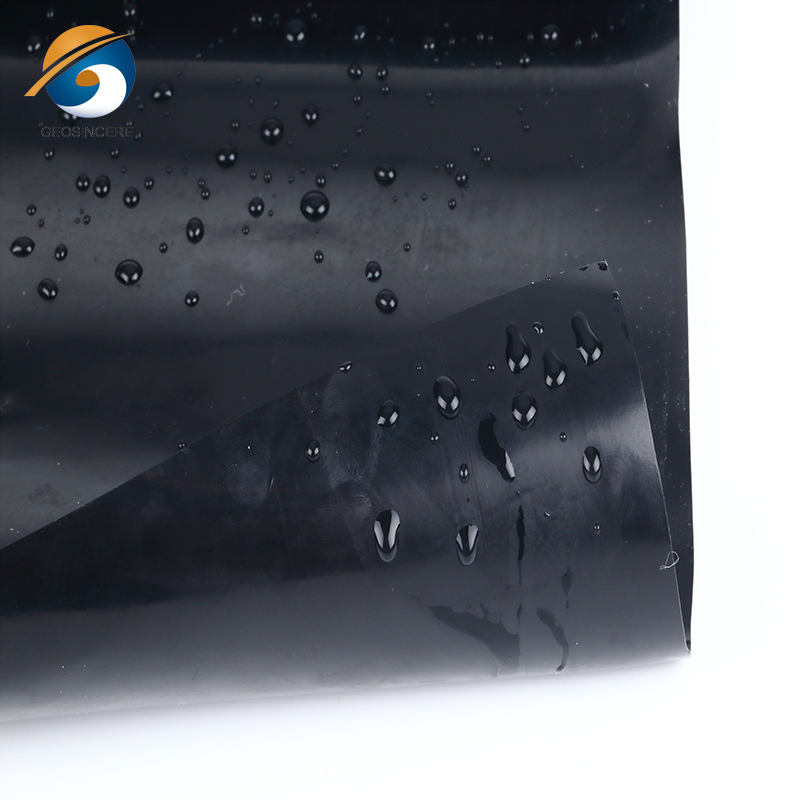

A 0.5mm geomembrane retention pond liner made of high-density polyethylene (HDPE) is commonly used in fish farming tanks to create a watertight barrier for the containment of water and aquatic livestock. HDPE geomembranes are known for their durability and resistance to punctures and tears. The 0.5mm thickness offers adequate strength to withstand the rigors of fish farming operations, including fish movement and handling.
HDPE geomembranes are considered safe for fish and aquatic organisms. They do not release harmful chemicals or substances that could negatively impact the health of the fish or the water quality in the tank.HDPE is resistant to a wide range of chemicals, including those commonly used in fish farming, such as fish medications and disinfectants. This chemical resistance protects the liner from degradation and ensures its longevity in the presence of aquatic substances.
Product Description:
A 0.5mm geomembrane retention pond liner made from materials like HDPE (High-Density Polyethylene) is commonly used in fish farming tanks to create a reliable containment system. The primary function of a geomembrane retention pond liner is to prevent water seepage and ensure water retention in the fish farming tank. The 0.5mm thickness provides a sufficient barrier to minimize water loss and maintain optimal water levels for fish cultivation.
The geomembrane liner acts as a protective barrier, preventing contaminants or pollutants from entering or leaving the fish farming tank. It helps maintain water quality and protects fish from external factors that could harm their health.While 0.5mm is relatively thin, HDPE geomembrane liners are known for their durability and strength. They can withstand the rigors of fish farming operations, including fish movement, cleaning processes, and potential impacts from equipment.
HDPE liners offer excellent chemical resistance, ensuring they can withstand exposure to fish waste, cleaning agents, and other chemicals used in fish farming. This resistance helps protect the liner from degradation and ensures long-term performance.The smooth surface of the geomembrane liner prevents the growth of algae, bacteria, and parasites, which can be detrimental to fish health. Additionally, the liner's easy-to-clean surface supports good hygiene practices in the fish farming tank.
HDPE geomembrane liners are flexible and can be easily customized to fit the specific shape and size of the fish farming tank. This flexibility simplifies the installation process and ensures a snug fit, minimizing the risk of liner displacement.A 0.5mm geomembrane liner provides a cost-effective solution for fish farming operations. It offers a balance between cost and performance, making it suitable for small to medium-sized fish farms or specific sections of larger fish farming systems.
Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
Fish Farming Tank 0.5mm Geomembrane Retention Pond Liner Features

- Thickness: The 0.5mm thickness of the geomembrane liner offers a lightweight and flexible solution for fish farming applications. It provides sufficient strength and flexibility while ensuring water containment.
- Geomembrane Material: The liner is typically made from high-density polyethylene (HDPE) or other materials specifically designed for fish farming. These materials offer excellent resistance to punctures, tears, and UV radiation.
- Waterproofing: The geomembrane liner acts as an impermeable barrier, preventing water seepage and leakage from the retention pond or fish tank. It ensures efficient water containment and maintains desired water levels for fish farming operations.
- Fish-Safe: The liner is specifically designed to be fish-safe, meaning it does not release harmful substances or chemicals into the water that could harm fish or other aquatic organisms.
- Flexible and Weldable: The geomembrane liner is flexible, allowing it to conform to the shape and contours of the fish tank or retention pond. It can be easily welded or seamed to create a seamless liner, ensuring reliable waterproofing.
- Easy Installation: The lightweight and flexible nature of the liner make it easy to handle and install, reducing installation time and effort.
Product Benefits
- Reliable water containment, preventing seepage and leakage from fish tanks or retention ponds.
- Lightweight and flexible, allowing for easy handling, installation, and customization to fit the specific dimensions of the fish farming setup.
- Excellent resistance to punctures, tears, and UV radiation, ensuring durability and longevity in fish farming environments.
- Fish-safe, ensuring the liner does not release harmful substances or chemicals that could harm fish or other aquatic organisms.
- Flexible and weldable, allowing for easy customization and ensuring a seamless liner system.

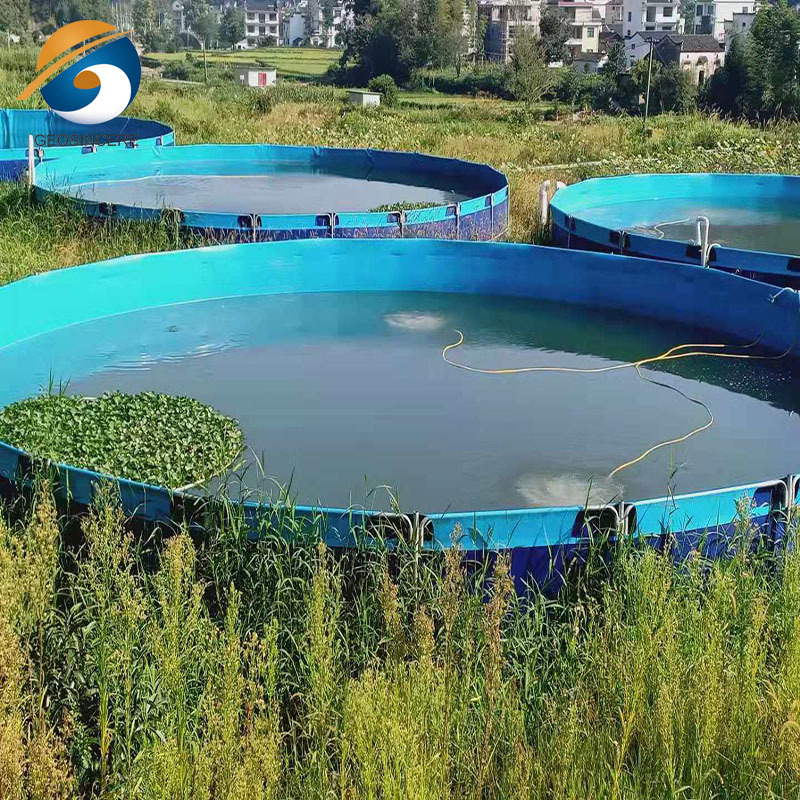

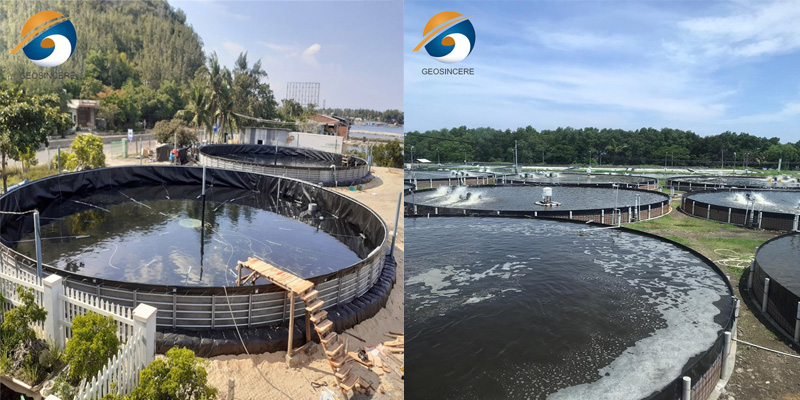

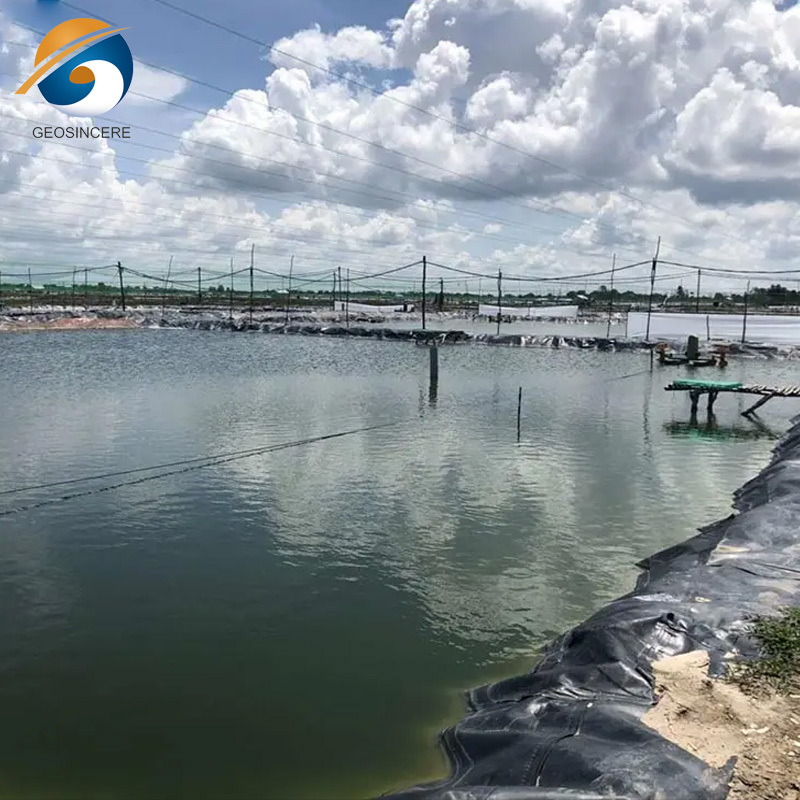

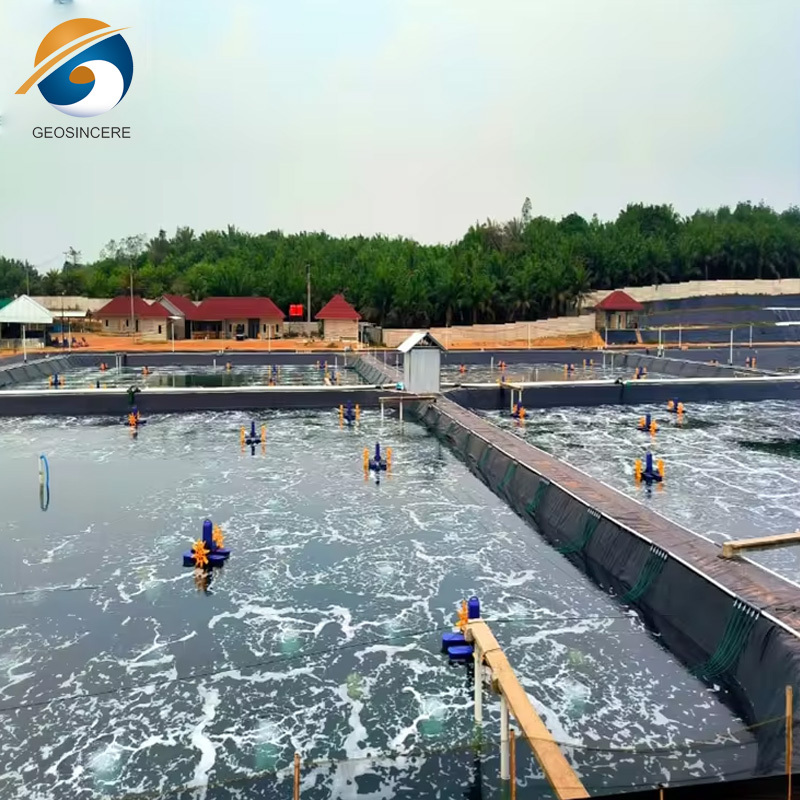

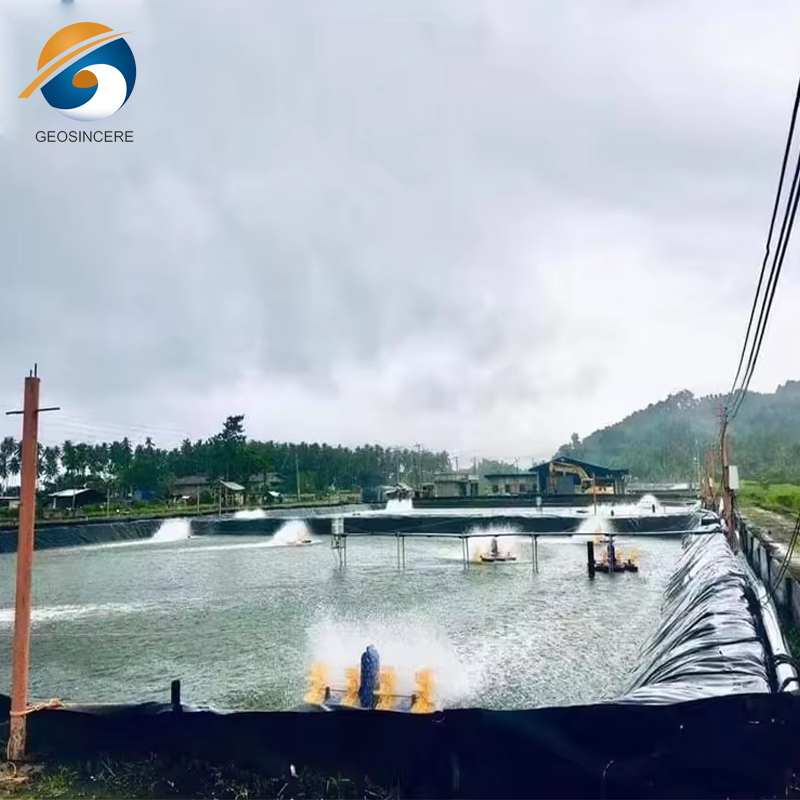

Applications of Fish Farming Tank 0.5mm Geomembrane Retention Pond Liner

- Fish farming and aquaculture: The geomembrane liner is specifically designed for fish tanks, fish ponds, and other aquaculture systems, providing a reliable waterproofing solution to maintain water levels and prevent seepage.
- Retention ponds and reservoirs: It can be used in retention ponds or reservoirs used for water storage in fish farming operations, ensuring efficient water containment and preventing water loss due to seepage.
- Hatcheries and nurseries: The liner can be used in fish hatcheries and nurseries to create controlled environments for fish breeding and early-stage development.
- Recirculating aquaculture systems (RAS): It is suitable for lining RAS tanks and systems, which require precise water quality control and containment.
- Ornamental ponds and water features: The geomembrane liner can be utilized in ornamental ponds and water features where fish or aquatic plants are present, ensuring water containment and preventing leakage.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.

Company Profile

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.



GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.



We have been exporting geomembranes to over 60 countries such as Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Switzerland, Mongolia, etc.



Hope to be your partner!
