2mm Plastic Film HDPE Landfill Liner Geomembrane

2mm thick HDPE landfill liner film has excellent anti-seepage performance, effectively preventing harmful substances from penetrating and protecting soil and groundwater. Its excellent chemical resistance and UV resistance enable it to work stably for a long time in harsh environments, ensuring long-lasting use. Meanwhile, the high strength and tear resistance of the film greatly enhance its reliability and safety during the construction process. The design using environmentally friendly materials not only conforms to the principles of sustainable development, but also effectively reduces environmental pollution, providing an economical and effective solution for various landfill projects.

Landfill liners are used to form a barrier between the waste in the landfill and the surrounding environment, preventing the migration of pollutants and protecting the underlying soil and groundwater from pollution. HDPE has become a popular material for landfill liners due to its excellent chemical resistance, durability, and impermeability.
  • 2mm Plastic Film HDPE Landfill Liner Geomembrane
  • 2mm Plastic Film HDPE Landfill Liner Geomembrane
  • 2mm Plastic Film HDPE Landfill Liner Geomembrane
  • 2mm Plastic Film HDPE Landfill Liner Geomembrane
  • 2mm Plastic Film HDPE Landfill Liner Geomembrane

Description

2mm Plastic Film HDPE Landfill Liner Geomembrane丨GEOSINCERE

The 2mm HDPE plastic film landfill liner has excellent chemical resistance and high strength, which can effectively resist corrosive substances and heavy pressure in the landfill. Its superior anti leakage performance ensures that harmful liquids do not penetrate, protecting soil and groundwater. The lightweight design makes the installation process efficient and convenient, with a wide range of applications suitable for various landfills and sewage treatment facilities, providing reliable protection.

Excellent Chemical Resistance
HDPE material has excellent chemical resistance and can effectively resist various corrosive substances in landfills, ensuring long-term stability.

High Strength and Durability
The 2mm thick design provides extremely high tensile strength, capable of withstanding heavy pressure and mechanical damage, suitable for harsh environments.

Anti Leakage Performance
Through tight seams and leak proof design, harmful liquids are effectively prevented from penetrating, protecting soil and groundwater resources.
Environmentally friendly and safe use of non-toxic materials, in compliance with environmental protection standards, ensuring the safety and sustainability of landfills.

Easy to Install
Lightweight material design makes the installation process simple and fast, helping to reduce construction costs and time.

Wide Applicability
Suitable for various landfill sites, composting sites, and sewage treatment facilities, flexibly meeting different engineering needs.
Choose GEOSINCERE's 2mm HDPE plastic film landfill liner to provide reliable protection and support for your project.

Product Description:

The 2mm HDPE plastic film landfill liner geomembrane is indeed designed to be a high-quality liner specifically for landfill applications. It is made from high-density polyethylene (HDPE), which is known for its superior strength, durability, and impermeability. These properties make HDPE geomembranes highly effective in containing and controlling waste materials within landfills.

HDPE geomembrane allow it to withstand the stresses and pressures exerted by the waste materials, as well as environmental factors such as temperature variations, chemical exposure, and ultraviolet (UV) radiation.The impermeability of the geomembrane is crucial in preventing the migration of liquids and gases from the landfill into the surrounding environment, particularly the soil and groundwater. This helps to protect the environment from potential contamination and pollution.The strength and durability of the

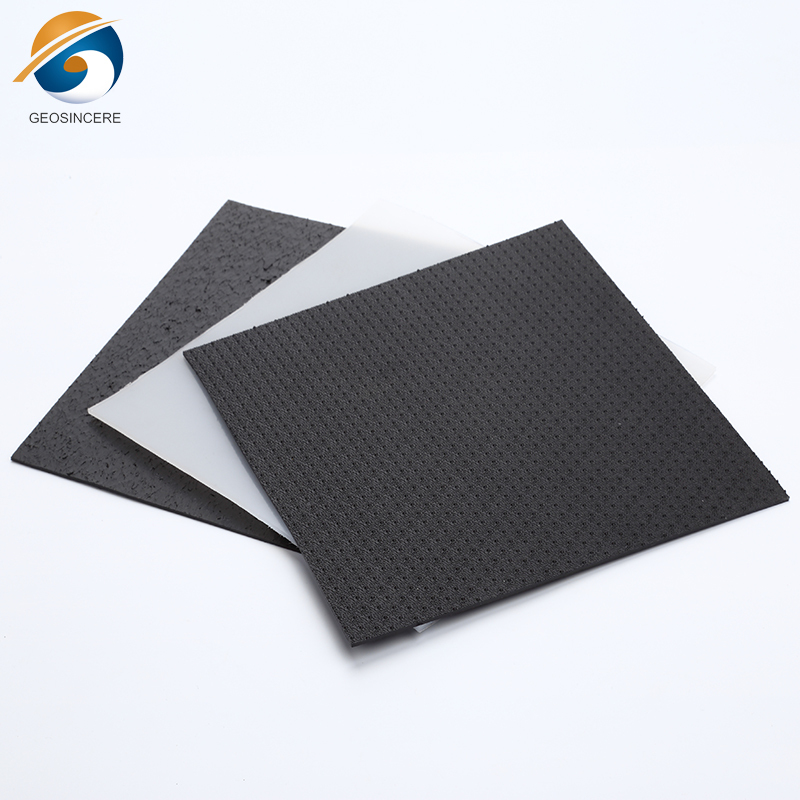

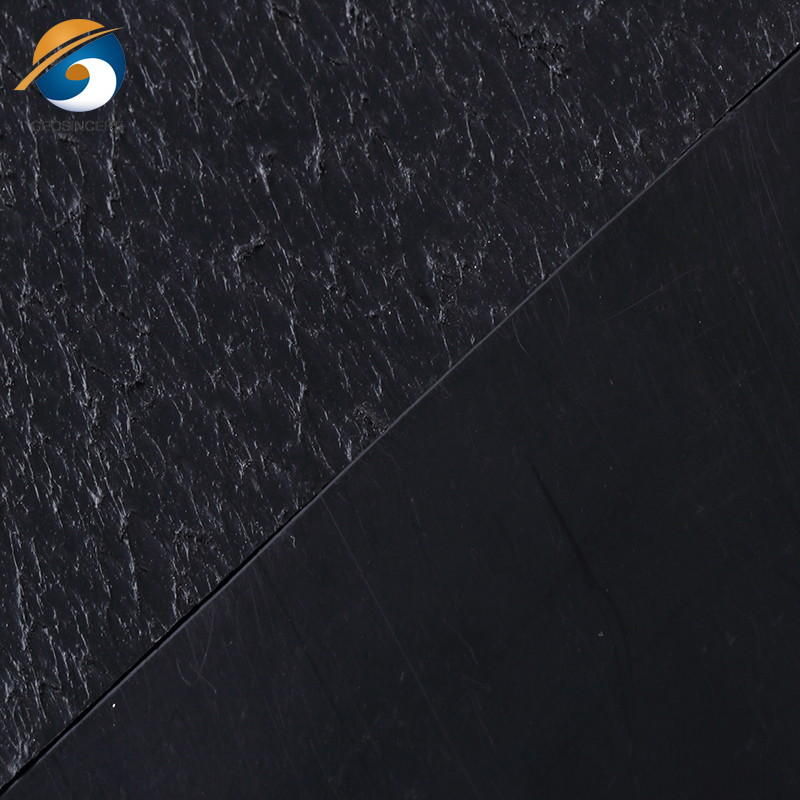

HDPE geomembranes are often manufactured with additional features to enhance their performance. These features can include textured surfaces to improve friction and stability, as well as additives to enhance resistance to chemicals, punctures, and UV degradation.The 2mm HDPE plastic film landfill liner geomembrane is designed to meet the stringent requirements of landfill applications, providing an effective and reliable barrier to contain waste materials and protect the environment.



Product Parameter

Test Properties

Unit

Standard

Test frequency

GSO

10

GSO

15

GSO

20

GSO

25

Thickness

mm

D5994

per roll

1.00

1.50

2.00

2.50

Asperity Height

mm

D7446

Every 2nd roll (2)

0.25

Density

g/cc

D1505/0792

90.000kg

0.94

Tensile Properties

Yield Strength

Kn/m

D6693

Type Iv

9.000 kg

15

22

29

37

Break Strength

Kn/m

10

16

21

26

Yield Elongation

%

12

12

12

12

Break Elongation

%

100

100

100

100

Tear Resistance

N

D1004

20.000kg

125

187

249

311

Puncture Resistance

N

D4883

20,000kg

267

400

534

667

Stress Crack Resistance

hr

D5397(App)

per GRlGM-10

300 hr

Carbon black content

%

D4218

9.000kg

2.0-3.0%

Carbon black dispersion



D5596

20.000kg

For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3

0xidative Induction Time

Standard OlT

min

D3895

90.000kg

100 min

High pressure OlT

D5885

90.000kg

400 min

Oven Aging at 85°C retained after 90 days

%

D5721

per each formulation

55%

Standard 0lT

D3895

80%

High pressure OlT

D5885

80%

UV Resistance

High Pressure OlT -% retained after 1600 hrs

%

D5885

per each formulation

50%

Roll Width

m





7

7

7

7

Roll Length

m





210

140

105

70

Size stability

%





2%



2mm Plastic Film HDPE Landfill Liner Geomembrane Features

The 2mm plastic film HDPE landfill liner geomembrane offers several features that make it suitable for landfill applications:




  1. Thickness: The liner has a thickness of 2mm, providing a robust barrier against the infiltration of liquids and gases in landfills.
  2. Material: It is made of High-Density Polyethylene (HDPE), which is known for its strong chemical resistance and durability. HDPE can withstand the harsh conditions typically found in landfills, such as exposure to chemicals, UV radiation, and physical stresses.
  3. Impermeability: The HDPE geomembrane liner is highly impermeable to liquids and gases, preventing the migration of contaminants into the surrounding environment and protecting groundwater resources.
  4. Flexibility: The liner offers good flexibility, allowing it to conform to the contours of the landfill. This helps ensure complete coverage and minimizes the risk of gaps or weak points in the containment system.
  5. Weldability: HDPE geomembranes can be heat-welded together to form strong and continuous seams, creating a reliable and watertight barrier.
  6. Longevity: The liner has a long service life, providing long-term protection for the landfill. It is resistant to degradation, UV exposure, and chemical attack, ensuring the integrity of the containment system over time.

These features make the 2mm plastic film HDPE landfill liner geomembrane an effective solution for creating a reliable and durable barrier in landfill applications, protecting the environment and groundwater from potential contamination.

Applications of 2mm Plastic Film HDPE Landfill Liner Geomembrane






The 2mm plastic film HDPE landfill liner geomembrane is specifically designed for landfill applications and is widely used in the following areas:

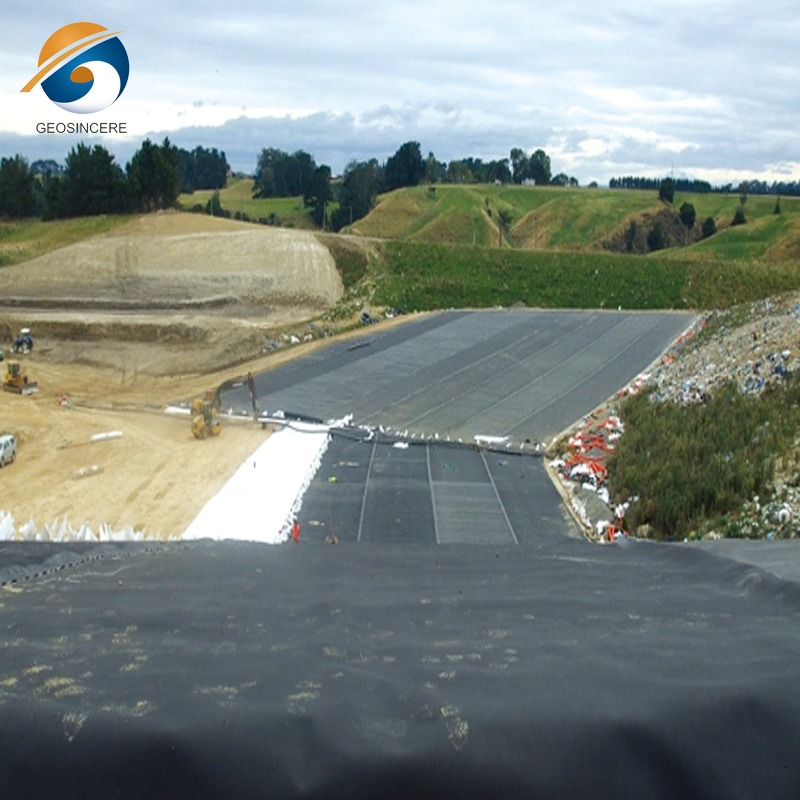

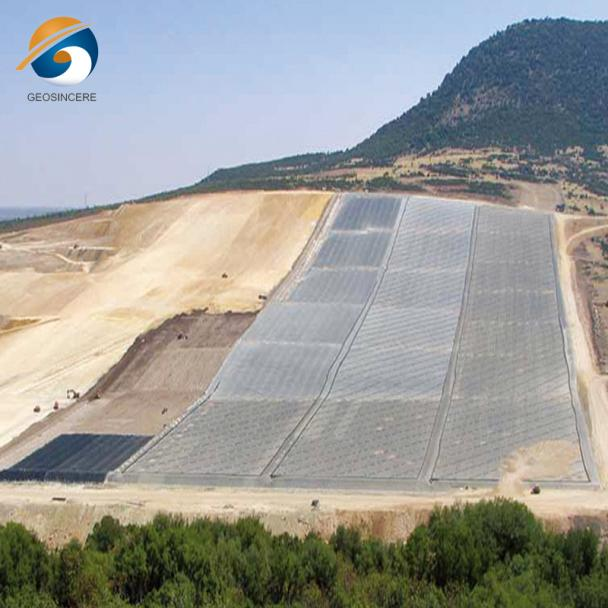

  1. Landfill base lining: The geomembrane is installed as a liner at the base of the landfill to prevent the leakage of liquids and gases into the surrounding soil and groundwater.

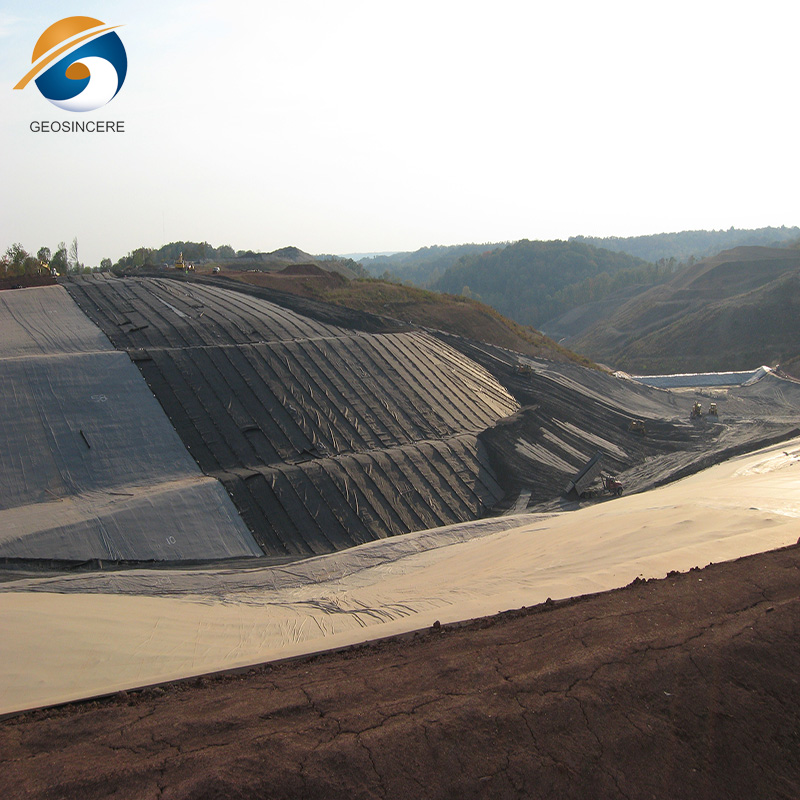

  2. Landfill cover systems: It can be used as a cover or cap for landfills to minimize infiltration of precipitation and control the release of gases, such as methane, produced by the decomposing waste.

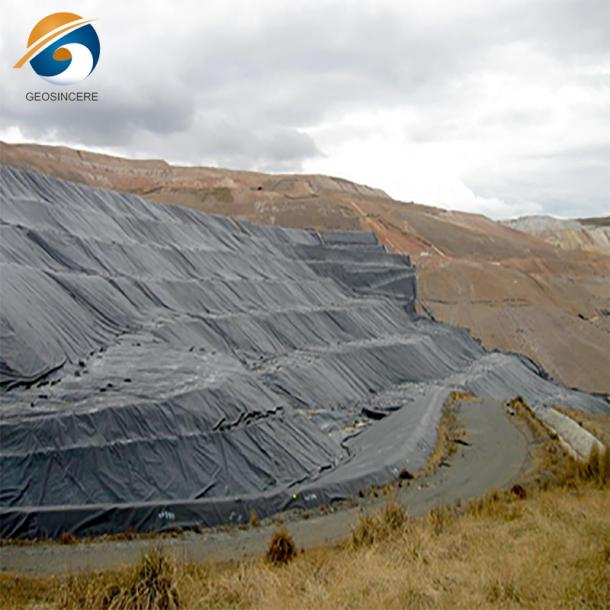

  3. Landfill slope protection: The geomembrane is employed on landfill slopes to provide stability and prevent erosion, ensuring the integrity of the landfill structure.
  4. Leachate collection and containment: The liner helps in the collection and containment of leachate, which is the liquid generated by the decomposition of waste in the landfill. It prevents leachate from percolating into the surrounding environment and contaminating groundwater.
  5. Gas management: The HDPE liner aids in the implementation of gas management systems in landfills. It prevents the escape of gases, such as methane, by providing an impermeable barrier, allowing for effective gas collection and control.

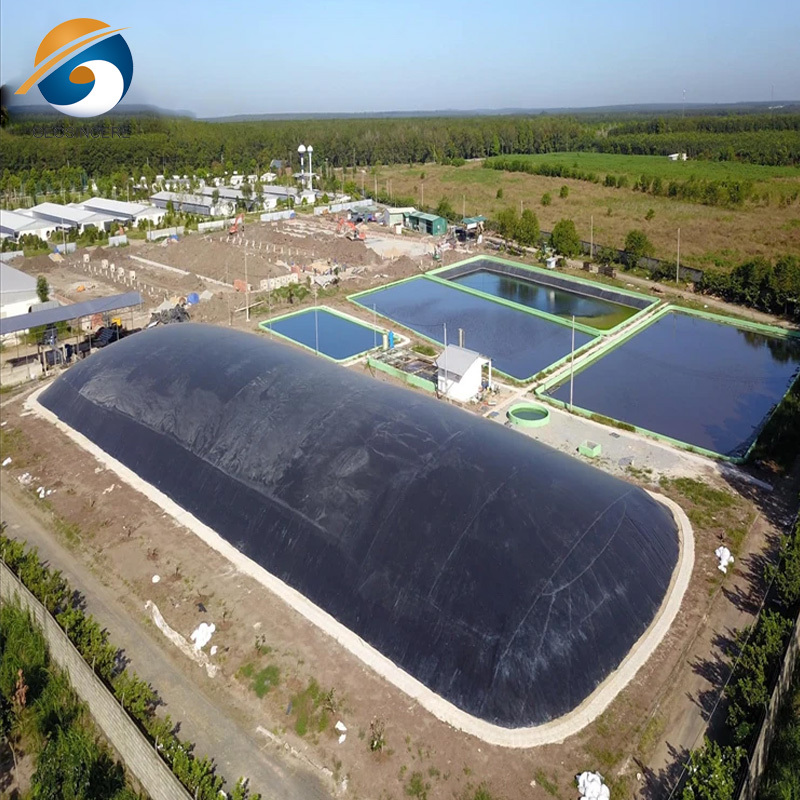

  6. Environmental containment: Apart from landfills, the 2mm HDPE liner can be used in various environmental containment applications. These include industrial ponds, hazardous waste storage facilities, wastewater treatment plants, and other areas where impermeability and chemical resistance are essential.



The 2mm plastic film HDPE landfill liner geomembrane provides a reliable and durable barrier, ensuring the safe containment and management of waste in landfill environments. It helps protect the environment, prevent contamination of groundwater, and supports sustainable waste management practices.



Product Packing

Selling Packing:Customer's company Logo mark can be designed and added.

Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.

Transport Packing: Put in the container.
