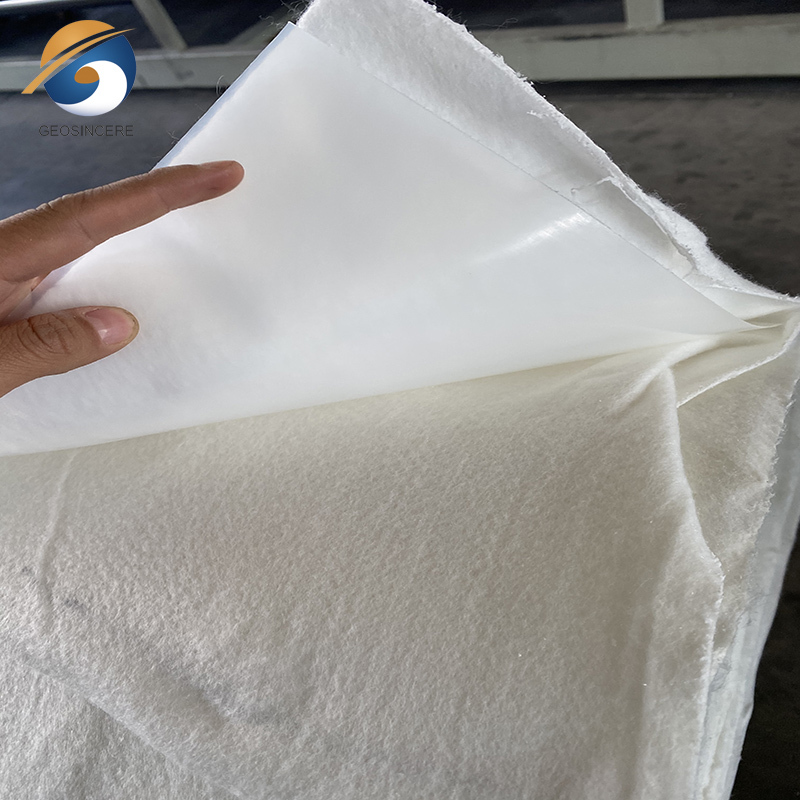

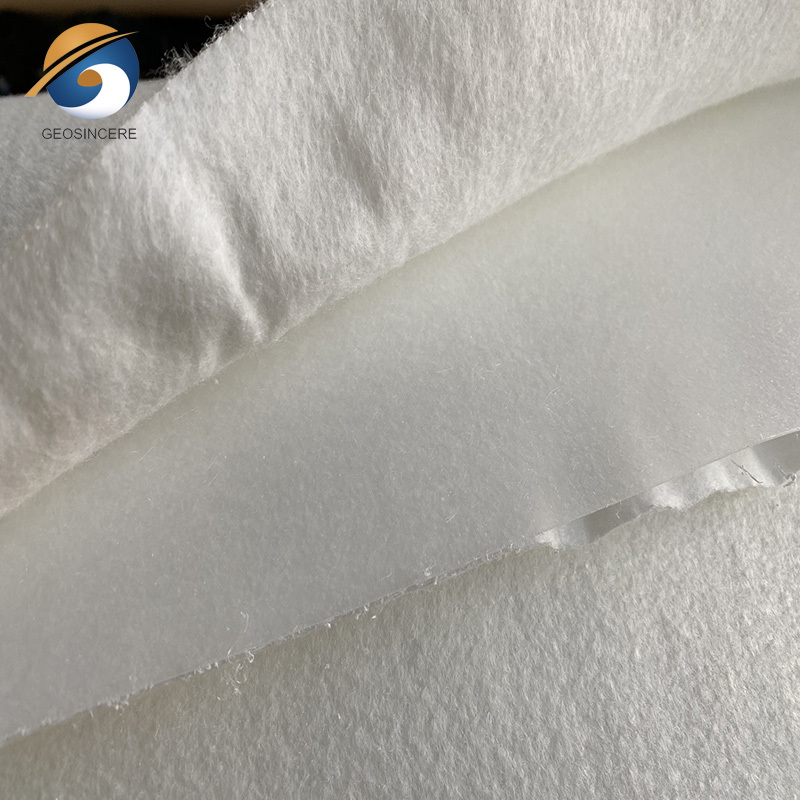

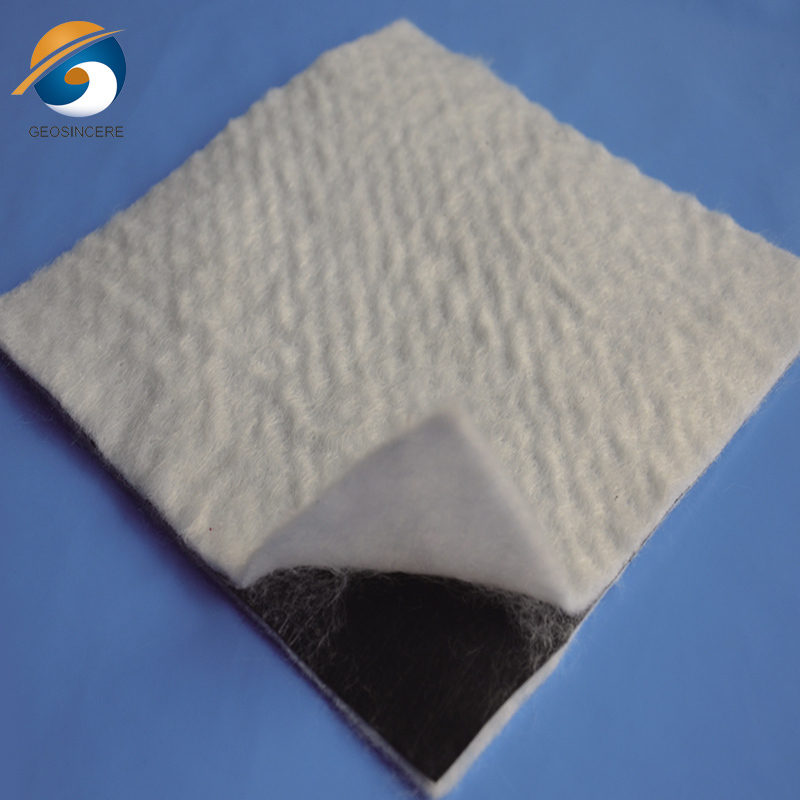

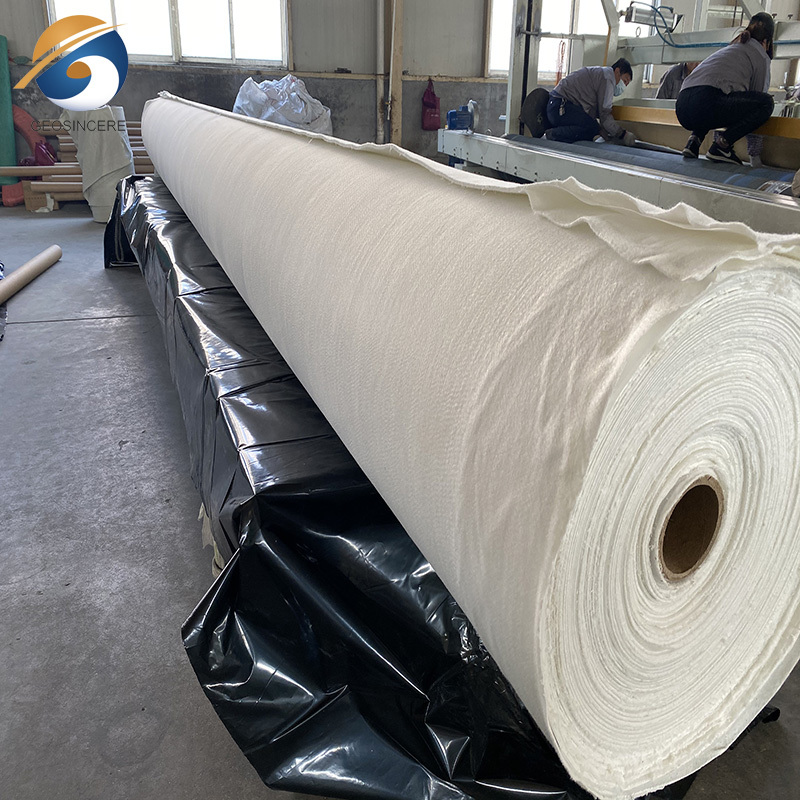

Name: Woven Geotextile Composite Geomembrane for Driveway
Brand: GEOSINCERE
Availability: InStock
Rating: 5 (1 reviews)

Description

Product Description:

A woven geotextile composite geomembrane for driveways is a specialized geosynthetic product designed to provide reinforcement, separation, and filtration in driveway construction. It consists of a woven geotextile layer and a geomembrane layer bonded together to enhance the performance and durability of driveways. The woven geotextile layer in the composite geomembrane adds strength and stability to the driveway. It helps distribute loads and prevents the mixing of different soil layers, reducing the risk of rutting, cracking, and other forms of pavement distress. The reinforcement provided by the geotextile layer improves the overall structural integrity of the driveway.

The combination of the woven geotextile and geomembrane layers provides enhanced durability to the driveway. The geomembrane layer acts as a protective barrier, minimizing the intrusion of moisture, chemicals, and other contaminants that can degrade the driveway's structural integrity over time. The composite geomembrane helps extend the lifespan of the driveway and reduces the need for frequent maintenance.

Overall, a woven geotextile composite geomembrane for driveways offers reinforcement, separation, and filtration benefits, improving the durability and performance of the driveway. Its ability to distribute loads, prevent soil mixing, provide filtration, and offer easy installation makes it a valuable geosynthetic product for driveway construction.

Product Parameter

Test ltem	Test Properties	Unit	BCM4	BCM5	BCM5	BCM7	BCM8
Weight		g/m²	400	500	600	700	800
Film Thickness		Mm	0.25-0.35			0.30-0.50
Mechanical Properties	Break Strength	kN/m	5.0	7.5	10.0	12.0	14.0
	Break Elongation	%	30-100	30-100	30-100	30-100	30-100
	CBR Burst Strength	KN	1.1	1.5	1.9	2.2	2.5
	Tear Resistance	KN	0.15	0.25	0.32	0.40	0.48
	Peel Strength	N/cm	≥6	≥6	≥6	≥6	≥6
Hydrostatic Pressure	Film Thickness	mm	0.2	0.3	0.4	0.5	0.6
	One cloth one film	Mpa	0.4	0.5.	0.6	0.8	1.0
	Two cloth one film	Mpa	0.5	0.6	0.8	1.0	1.2

Woven Geotextile Composite Geomembrane for Driveway Features

Woven Geotextile Fabric: The woven geotextile component is made of high-strength synthetic fibers, such as polypropylene or polyester. It provides reinforcement to the soil, distributes loads, and helps prevent the mixing of different soil layers.
Geomembrane Layer: The geomembrane layer is typically made of materials like HDPE or LDPE. It acts as a waterproof barrier, preventing water infiltration into the driveway structure.
Composite Structure: The woven geotextile fabric and geomembrane layer are combined through a lamination or bonding process, ensuring a robust and durable composite product.
Soil Stabilization: The woven geotextile component enhances soil stability by distributing loads and reducing the potential for differential settlement. It helps improve the load-bearing capacity of the driveway structure.
Separation: The composite geomembrane provides a separation layer between the subgrade and the overlying aggregate or fill material. It prevents the mixing of fine-grained soil particles with the coarser aggregate, maintaining the integrity and performance of the driveway.
Filtration: The woven geotextile fabric acts as a filter, allowing water to pass through while retaining soil particles. It helps prevent clogging of the drainage system and maintains the long-term performance of the driveway.
Erosion Control: The composite geomembrane with woven geotextile fabric minimizes soil erosion by stabilizing the soil and reducing surface runoff. It helps maintain the integrity of the driveway, even during heavy rainfall events.

Applications of Woven Geotextile Composite Geomembrane for Driveway

Residential Driveways: The woven geotextile composite geomembrane is suitable for residential driveways, providing soil stabilization, separation, and erosion control.
Commercial and Industrial Driveways: It is also used in commercial and industrial driveways to improve performance, durability, and load-bearing capacity.
Parking Lots: The composite geomembrane can be employed in parking lots to enhance soil stability, reduce rutting, and improve overall surface integrity.
Access Roads: It is used for access roads in construction sites or remote areas, providing stability and preventing soil erosion.
Pathways and Walkways: The woven geotextile composite geomembrane can be utilized for pathways and walkways, ensuring stability and reducing maintenance requirements.

In summary, a woven geotextile composite geomembrane for driveways offers a combination of reinforcement, separation, and filtration properties. It provides soil stabilization, separation of soil layers, and erosion control to enhance the performance and longevity of driveways. Whether for residential driveways, commercial parking lots, or access roads, this composite geomembrane contributes to the durability and stability of the driveway structure while reducing maintenance needs.

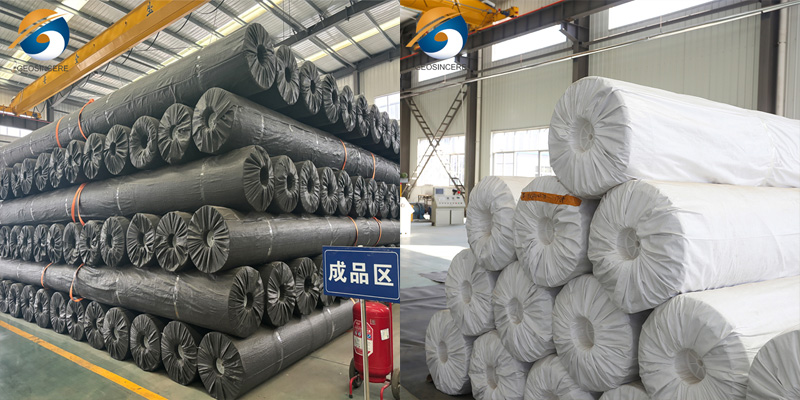

Product Packing

Selling Packing:Customer's company Logo mark can be designed and added.

Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.

Transport Packing: Put in the container.

Company Profile

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.

We have been exporting geomembranes to over 60 countries such as Australia, France, Sweden, UK, Hong Kong, Hungary, New Zealand, Poland, Mexico, Ecuador, Brazil, Pakistan, Bangladesh, Thailand, Vietnam, Malaysia, Indonesia, Singapore, Philippines, Sri Lanka, India, UAE, Saudi Arabia, Qatar, Kenya, Ghana, Ethiopia, Somalia, Nigeria, South Africa, Switzerland, Mongolia, etc.

Hope to be your partner!
