Product Description:
HDPE geomembranes offer exceptional impermeability, preventing the passage of liquids and gases through the liner. This impermeability is crucial in landfill applications to ensure the containment of waste materials and prevent their leachate from polluting the soil and groundwater.HDPE is known for its excellent chemical resistance, making it suitable for withstanding the corrosive nature of landfill leachate and various chemicals present in waste materials. It helps protect the liner from degradation and ensures long-term durability.
HDPE geomembranes offer high tensile strength, puncture resistance, and dimensional stability. The 1.5mm thickness provides sufficient strength to withstand the stresses and pressures exerted by waste materials and construction activities within the landfill.Landfill geomembranes are exposed to outdoor environments, including UV radiation. HDPE liners are designed to have good UV resistance, allowing them to maintain their integrity and performance over time.HDPE geomembranes can be heat-welded together to form large, continuous liner panels. This welding process creates a strong and reliable seam, ensuring a watertight and gas-tight barrier throughout the landfill.

Product Parameter
|
ltem |
Detailed item |
Unit |
Standard |
Test Frequency |
GS0 75 |
GS0 10 |
GS0 15 |
GS0 20 |
GS0 30 |
|
Mechanical Properties |
Thickness |
mm |
D5199 |
per roll |
0.75 |
1.00 |
1.50 |
2.00 |
3.00 |
|
Density |
|
D1505/D792 |
90.000kg |
0.94 |
|||||
|
Tensile Properties |
|||||||||
|
Yield Strength |
KN/m |
D6693 Type Iv |
9.000 kg |
11 |
15 |
22 |
29 |
44 |
|
|
Break Strength |
KN/m |
20 |
27 |
40 |
53 |
80 |
|||
|
Yield Elongation |
% |
12 |
12 |
12 |
12 |
12 |
|||
|
Break Elongation |
% |
700 |
700 |
700 |
700 |
700 |
|||
|
Tear Resistance |
N |
D1004 |
20.000kg |
93 |
125 |
187 |
249 |
374 |
|
|
Puncture Resistance |
N |
D4883 |
20.000kg |
240 |
320 |
480 |
640 |
960 |
|
|
Stress Crack Resistance |
Hr. |
D5397 |
per GRl GM-10 |
300 hr. |
|||||
|
Carbon black content |
% |
D4218 |
9.000kg |
2.0-3.0% |
|||||
|
Carbon black dispersion |
|
D5596 |
20.000kg |
For 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 |
|||||
|
Reference Properties |
Oxidative Induction Time |
||||||||
|
Standard OlT |
min |
D3895 |
90.000kg |
100 min |
|||||
|
High pressure OlT
|
D5885 |
90.000kg |
400 min |
||||||
|
Oven Aging at 85°C retained after 90 days
|
% |
D5721 |
per each formulation |
55% |
|||||
|
Standard OlT |
D3895 |
80% |
|||||||
|
High pressure OlT |
D5885 |
80% |
|||||||
|
UV Resistance |
|||||||||
|
High Pressure OlT_% retained after 1600 hrs |
% |
D5885 |
per each formulation |
50% |
|||||
|
Roll Size |
Roll widthe |
m |
|
|
7 |
7 |
7 |
7 |
7 |
|
Roll Length |
m |
|
|
280 |
210 |
140 |
105 |
70 |
|
|
Size stability |
% |
|
|
2% |
|||||
1.5mm Landfill Geomembrane HDPE Roll Impermeable Liner Features

- Thickness: The 1.5mm thickness of the HDPE liner offers a robust barrier against the seepage of liquids and gases, ensuring effective containment of landfill waste.
- High Density Polyethylene: The HDPE material provides excellent strength, puncture resistance, and tear resistance. It is capable of withstanding the demanding conditions of landfills and resisting damage from sharp objects or external forces.
- Chemical Resistance: The HDPE liner exhibits high resistance to a wide range of chemicals, including acids, alkalis, and leachate from waste materials. This chemical resistance is crucial in landfill applications to prevent contamination of the surrounding environment.
- Impermeability: The geomembrane liner is impermeable, preventing the migration of liquids and gases through the liner and into the surrounding soil or groundwater.
- Roll Format: The liner is supplied in a roll format, allowing for easy transportation, handling, and installation. The roll format also minimizes the number of seams, reducing the potential for leakage points.
Product Benefits
- Effective containment of landfill waste, preventing seepage and potential environmental contamination.
- Exceptional strength, puncture resistance, and tear resistance for long-lasting performance and durability.
- Resistance to a wide range of chemicals, ensuring compatibility with landfill waste.
- Impermeability, preventing the migration of liquids and gases through the liner.
- Roll format for convenient transportation, handling, and installation.
Applications of 1.5mm Landfill Geomembrane HDPE Roll Impermeable Liner

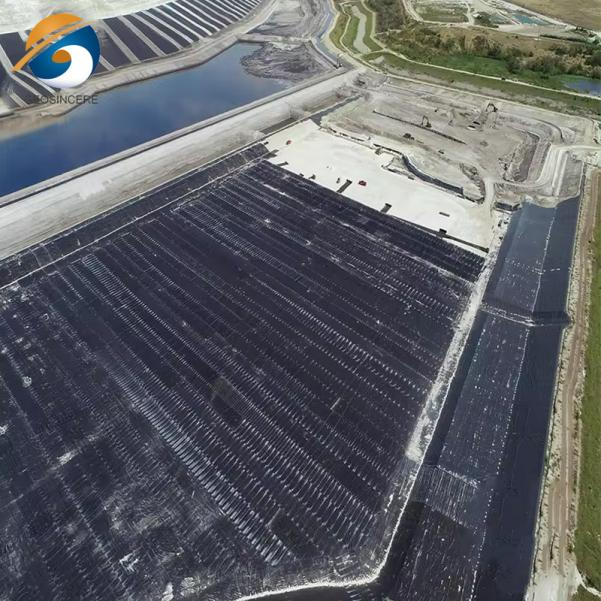

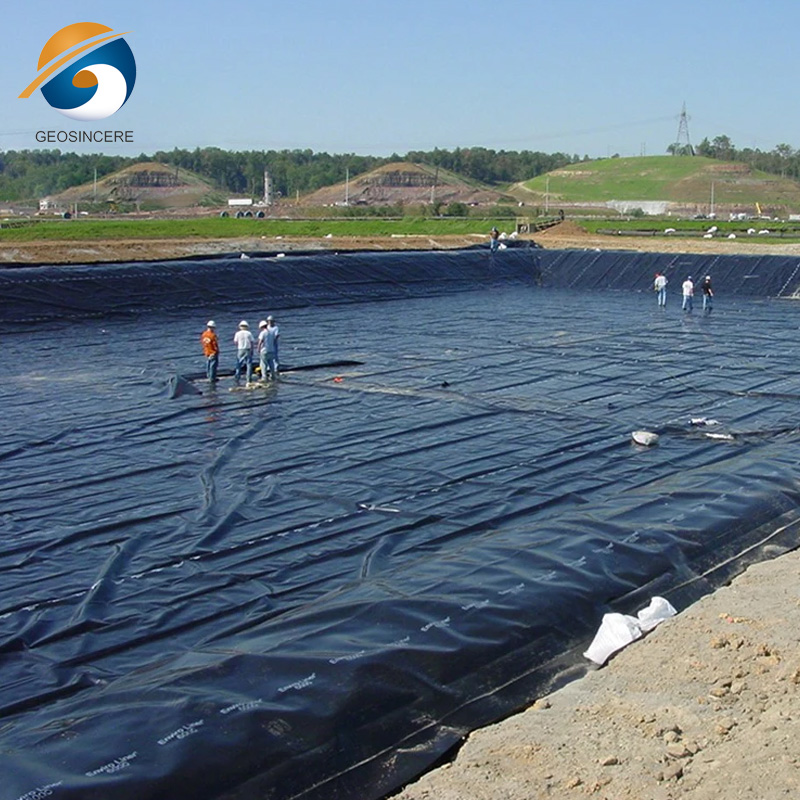

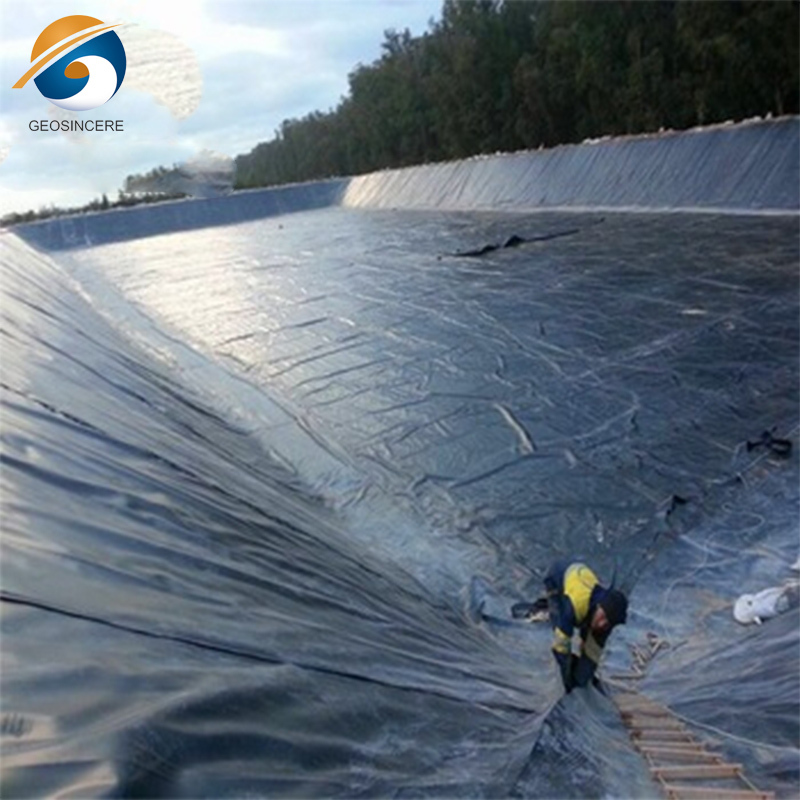

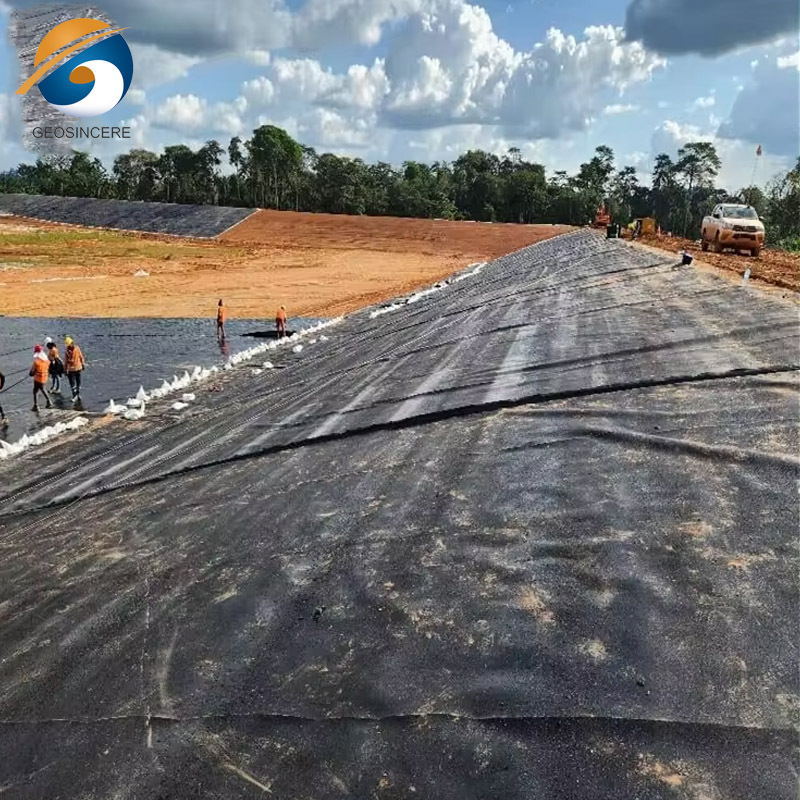

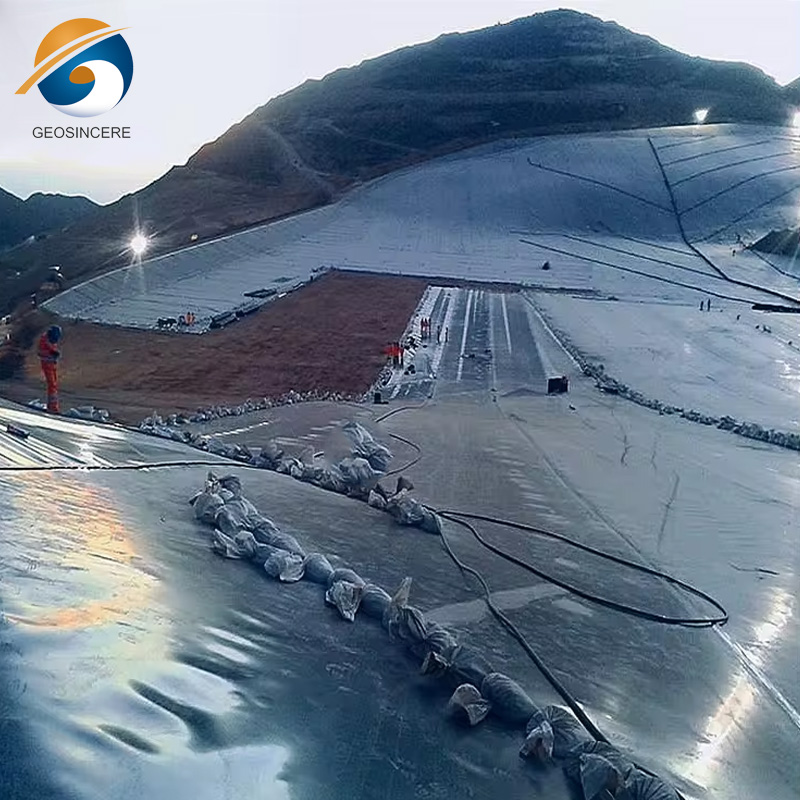

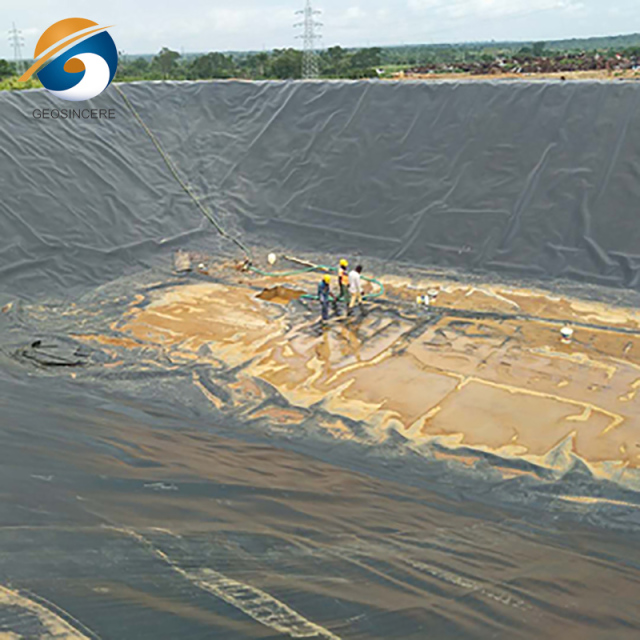

- Landfill sites: The geomembrane liner is specifically designed for use in landfill sites, providing an impermeable barrier to contain waste materials and prevent environmental contamination.
- Leachate collection systems: It can be used in the construction of leachate collection systems within landfills, preventing the migration of leachate into the surrounding soil or groundwater.
- Hazardous waste containment: The impermeable liner is suitable for the containment of hazardous waste, ensuring that harmful substances do not escape into the environment.
- Environmental remediation: It can be utilized in environmental remediation projects to create impermeable barriers for the containment of contaminated soil or groundwater.
Product Packing
Selling Packing:Customer's company Logo mark can be designed and added.
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling.
Transport Packing: Put in the container.

Company Profile

Shandong GEOSINO New Material Co.,Ltd (Brand:Geosincere) is the professional geomembrane manufacturer and wholesaler located in Taian City, Shandong Province, PRChina. We are not a local overseas distributer, we are an professional manufacturer, exporter and wholesaler for geomembrane. GEOSINCERE is always committed to geomembrane research and development, manufacturing and installation services. We can provide our customers with most extensive lines of geomembranes for civil, mining, environmental and aquaculture engineering applications.

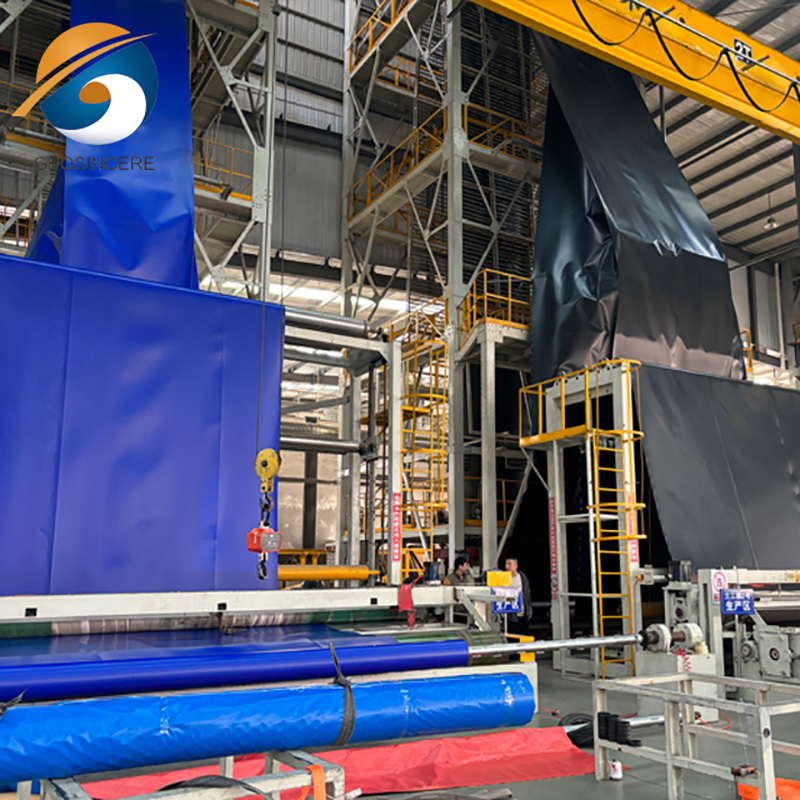

GEOSINCERE has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality geomembranes with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness. GEOSINCERE brand geomembranes products and solutions can meet your requirements by our solid technologies, innovative engineering solutions and excellent customer services. GEOSINCERE always tries our best to solve the most complex civil, mining and environmental challenges with our innovative and high performance geosynthetic products. Quality assurance, factory price and fast delivery time are our competitive advantages.
