Among various materials used in geosynthetic engineering and environmental safeguarding, 2mm HDPE liner stand out as one of the most flexible and reliable ones. GEOSINCERE Geosynthetics geomembrane made of high-density polyethylene, precisely crafted to be two millimeters thick, serve as a mainstay for containment applications in numerous sectors like waste management, mining, agriculture, and aquaculture. With the enforcement of stricter environmental rules and a continuously increasing need for dependable and durable containment systems, it is essential to be well-informed about the performance, uses, and correct installation of geomembrane HDPE 2mm.
The term "2mm HDPE liner" is used to describe a geomembrane that is made of high-density polyethylene (HDPE) resin and has been either extruded or calendared to attain a consistent thickness of two millimeters. HDPE is a thermoplastic polymer that is well-recognized for its excellent strength-to-density ratio, great chemical resistance, and outstanding durability. The 2mm thickness is considered as one of the best compromise between being thick enough to offer high resistance to puncturing and act as a barrier, while still being thin enough to allow flexibility and thus, adaptation to various substrates as well as minor settlements or movements.
Production criteria for these liners are set by institutions such as the Geosynthetic Research Institute (GRI) and ASTM International.
- Typical standards comprise GRI-GM13 for HDPE smooth geomembranes and GRI-GM17 for textured types.
- A premium 2mm HDPE liner generally possesses features such as a minimum density of 0.94 g/cm³, carbon black content of 2-3% which provides UV resistance, and remarkable resistance to environmental stress cracking.
Thanks to 2mm HDPE liners, tensile strength values as high as 25-30 kN/m can be obtained in both machine and cross-machine directions. Thus, such liners can be relied upon not only for resisting stresses during installation and capacity to bear heavy loads but also for the capability of structural deformation over time without failure. With an elongation at break level as high as 700%, 2mm HDPE liners can effectively cope with thermal changes and movements caused by uneven layers of soil or changes in volume of the ground.
The greatest benefit one can derive from using 2mm HDPE liner is that it offers superb chemical resistance. It can be used in contact with acids, alkalis, hydrocarbons, salts, and industrial wastes without any problems. Due to the non-polar nature of its molecules, HDPE chemically interacts with substances only to a very limited extent which is why it is the best choice for mining operations, landfill leachate containment, as well as industrial wastewater.
The permeability of 2mm HDPE liners is exceptionally low usually ranging from 10⁻¹³ to 10⁻¹⁴ cm/s. They can, therefore, be welded and installed in such a manner as to create an almost impervious barrier that not only prevents leakage but also protects groundwater from contamination. Such performance over the long term supports their typical service life of 50–100 years within well-designed systems.
Due to the array of features offered by geomembrane hdpe 2mm, they have become a fundamental part of sanitary landfills that are equipped according to the latest standards. Besides being used as primary liners under the waste compaction cells, they are also employed in the landfill cap systems. The combination of their high resistance to puncturing, which allows them to cope with even the heaviest waste that is stacked on them, hybridized with their strong chemical resistance that helps protect against the aggressive leachate produced by the decaying waste are what make them so highly favored in waste management.

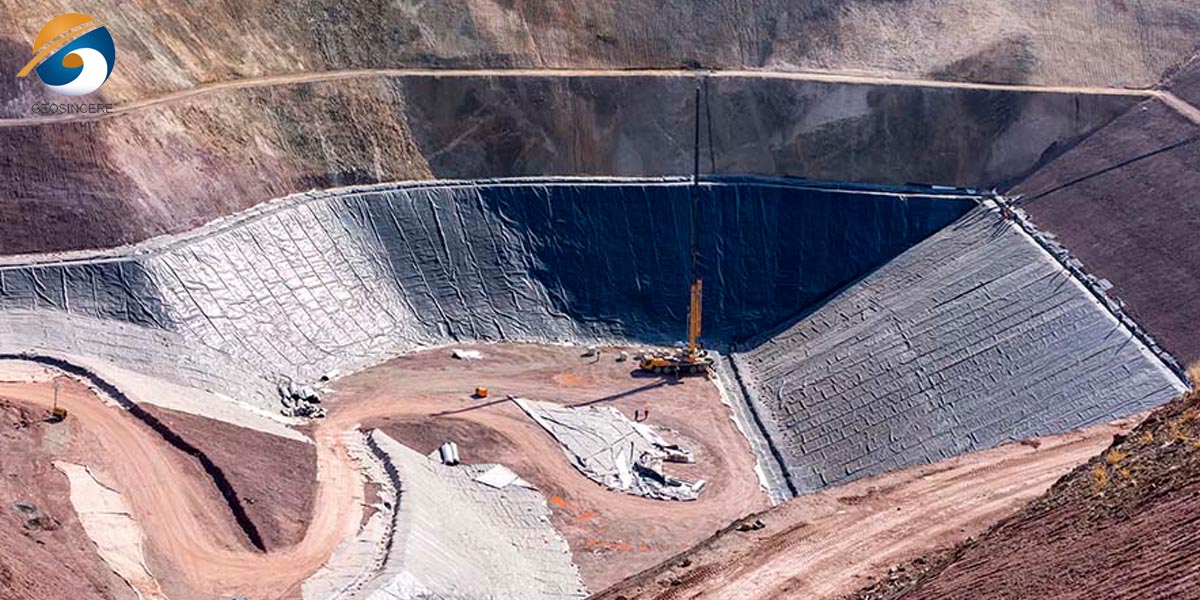

Mining sectors typically line heap leach pads, tailings storage, solution ponds, and drainage systems with hdpe geomembrane 2mm thick. These liners are durable as they withstand strong chemicals like acids and cyanide, and at the same time, suffer less damage from the movement of heavy equipment and the presence of large materials. This combination of features makes them quite dependable in mining.

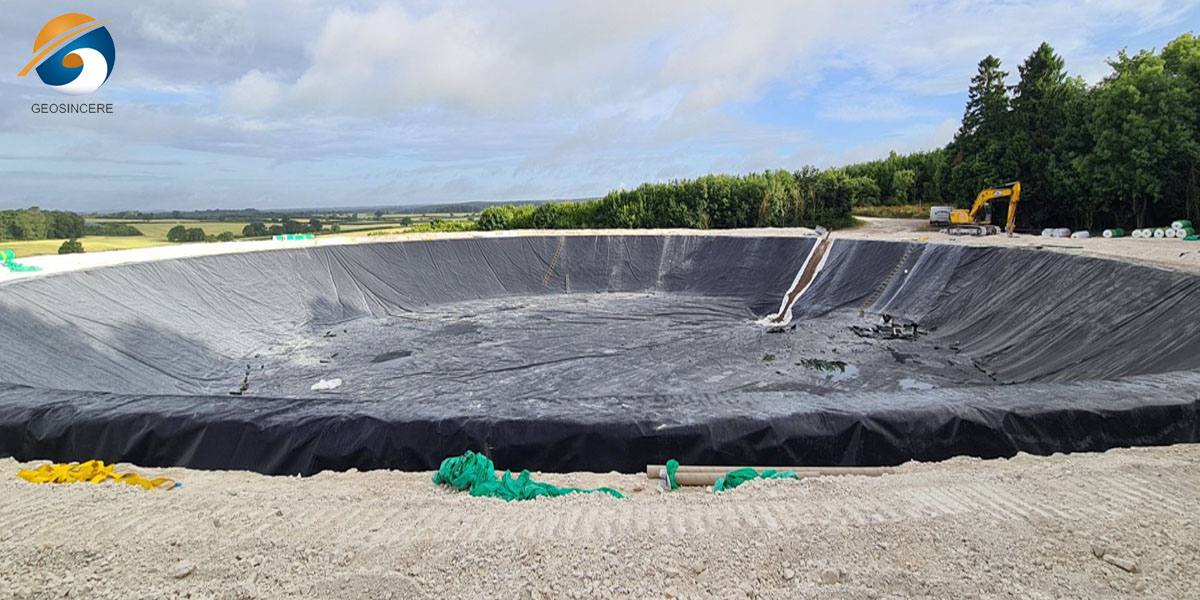

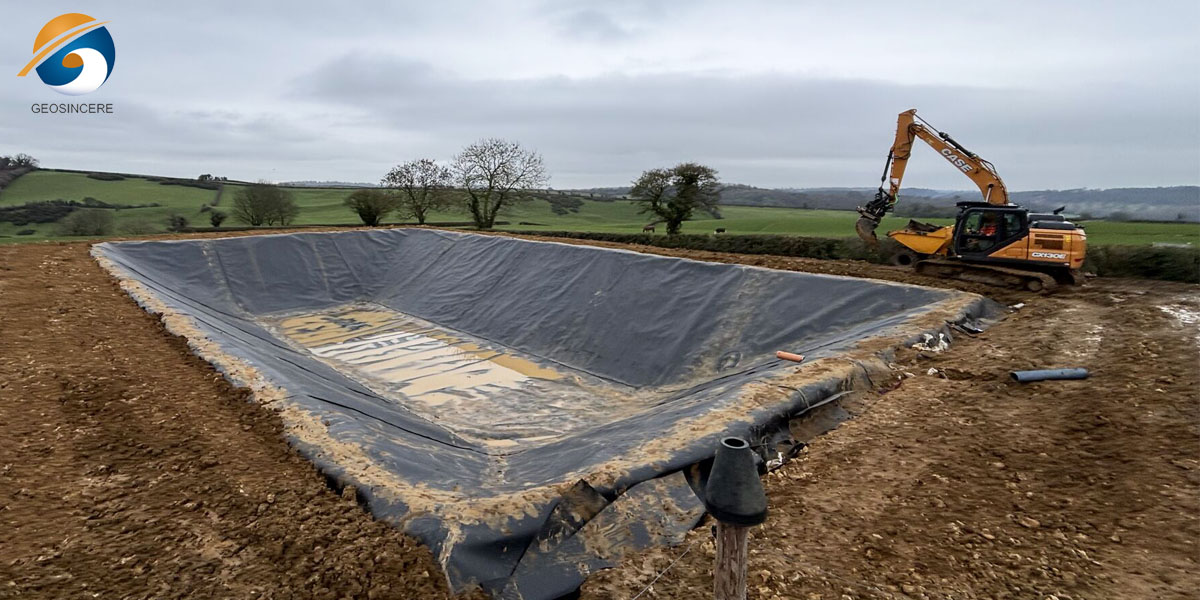

There are many uses for 2mm geomembrane pond liner in water containment such as potable water reservoirs, irrigation ponds, fire protection tanks, and decorative lakes. They not only minimize water loss through seepage but also maintain the quality of water. Besides, they provide excellent protection against potential damages from roots, rocks, and animals.
Industrially, these geomembrane sheet is a part of secondary containment systems, wastewater treatment lagoons, and evaporation ponds, among other applications. In the arena of oil and gas, they are used effectively for drilling pits and storing produced water, thus helping the conservation of soil and groundwater.
Meticulous subgrade preparation forms the basis of correct 2mm hdpe geomembrane liner installation. It is important for the floor to be smooth, compact, and without any sharp stones, roots, debris, or any kind of irregularities that might injure a liner. A geotextile cushion is usually placed under the liner for extra protection from punctures and to make the system last longer.
Seaming plays a very important role in making sure that the barrier is continuous and impermeable. Dual-track thermal fusion welding and extrusion welding are the main methods utilized. Dual-track welding results in two seams in parallel with an air channel for pressure testing, thus, ensuring weld perfection. Overlapping sheets are bonded through extrusion welding that employs molten HDPE filler material. It is a strong way to reinforce complex or irregular areas.
Continuous quality control must be maintained during the installation phase. Air pressure decay methods are employed to test dual-track welds, while peel and shear strength are confirmed through destructive testing. Seam numbering, recording, and inclusion in as-built documentation are done for every seam. For repair and patch areas, additional testing is done using vacuum or spark testing to verify complete system integrity.
Choosing between textured or smooth 2mm HDPE liners is a major specification decision. Textured liners have a pattern—either single-side or double-side—that enhances surface friction and the coefficient of sliding resistance. Without this texture, the liner would hardly be able to resist gravitational forces and shear interface with overlying or underlying geosynthetics on slopes. Landfill side slopes, heap leach pad slopes, and dam facings, among others, are examples that still remain stable under the weight of overlying waste, cover soils, or ore thanks to the use of textured liners.
Double-sided textured 2mm liners offer the greatest friction on both sides, which makes them suitable for steep slope situations where both the subgrade and cover soil may slide. Textured on top but smooth on the bottom, single-sided textured liners, are a middle ground that raises the stability of cover materials while making seaming easier (smooth-to-smooth welding at overlap areas).
Smooth 2mm HDPE liners, by contrast, cost slightly less and can be easier to seam. They are appropriate for flat or gently sloping applications where friction requirements are minimal, such as pond bottoms, flat landfill bases, or horizontal covers. Many large containment systems use a hybrid approach—smooth liner on the floor where the material lies flat, transitioning to textured liner on the surrounding berms and slopes.
A properly installed 2mm HDPE liner offers exceptional durability and long-term service performance. In real-world field conditions, many installations remain fully functional for 30 years or more, demonstrating strong resistance to mechanical stress and environmental exposure.
Accelerated laboratory testing—simulating elevated temperatures, sustained stress loading, and aggressive chemical environments—indicates that the theoretical service life can exceed 100 years under normal operating conditions. This long lifespan is primarily attributed to the inherent stability of high-density polyethylene and its engineered formulation.
Modern HDPE geomembranes incorporate antioxidant stabilizer systems that significantly delay oxidative aging processes. In addition, carbon black additives provide excellent UV resistance, making the material suitable for both buried and exposed applications where sunlight exposure may occur.
Together, these stabilization mechanisms ensure that the liner maintains its structural integrity, flexibility, and impermeability over extended periods of service.
Beyond containment performance, 2mm HDPE liners play a critical role in environmental protection and sustainable engineering practices.
By acting as an impermeable barrier, they effectively prevent the migration of contaminants into surrounding soil and groundwater systems. This is particularly important in applications such as landfills, mining operations, and industrial waste containment, where leachate control is essential for environmental safety.
In landfill engineering, HDPE liners enable the secure isolation of municipal and hazardous waste, significantly reducing the risk of long-term soil and water pollution. In mining applications, they support responsible tailings and heap leach management, helping minimize ecological disturbance during resource extraction.
Another important advantage is the recyclability of HDPE material. The polymer can be reprocessed, and many manufacturers now incorporate post-industrial recycled content into new liner production, reducing overall material waste and supporting circular economy principles.
While HDPE liners provide significant environmental protection benefits, certain impacts must also be acknowledged. These include energy consumption during polymer manufacturing and the long-term management of liners after their operational lifespan.
However, when evaluated over a full lifecycle, the environmental advantages of HDPE containment systems are generally far greater than their production impacts. Compared to unlined or inadequately lined systems, HDPE liners help prevent groundwater contamination that could persist for decades or even centuries.
As a result, the use of 2mm HDPE liners is widely regarded as a net positive solution in modern environmental engineering, combining long-term durability with strong ecological protection performance.
While a 2mm HDPE liner represents a significant upfront investment—typically priced between per square foot depending on quantity, texturing, and additives—the long-term economic benefits are compelling. Compared to alternative containment systems such as concrete, clay liners, or steel tanks, HDPE geomembranes generally offer lower installation costs, faster construction schedules, and superior long-term performance.
Clay liners, for example, require large quantities of high-quality clay that may need to be imported, placed in thick lifts, and compacted precisely to achieve low permeability. Even then, clay liners are susceptible to cracking from desiccation, leaching of fines over time, and biological activity. Concrete structures are expensive to form and pour, susceptible to cracking from thermal or settlement stresses, and require significant construction time. Steel tanks and liners corrode over time, particularly in chemically aggressive environments, requiring ongoing maintenance and eventual replacement.
The 2mm HDPE liner, by comparison, offers predictable, verifiable, and consistent properties. The material cost is transparent, installation is rapid with properly equipped crews, and the liner provides immediate containment upon completion. When considered over a 30-year project life, the annualized cost of a 2mm HDPE liner system is often a fraction of alternative approaches.
Selecting the appropriate 2mm HDPE liner begins with a careful assessment of the chemical environment in which it will operate. Although standard HDPE geomembranes demonstrate strong resistance to a wide range of chemicals, specific conditions may require enhanced formulations.
Highly aggressive environments—such as exposure to strong oxidizing agents (e.g., concentrated nitric acid), certain chlorine-based compounds, or elevated-temperature hydrocarbon systems—can accelerate material degradation if not properly accounted for. In such cases, specially engineered resin grades or enhanced antioxidant packages may be recommended to ensure long-term stability.
To ensure material reliability, it is important to verify compliance with recognized industry standards such as GRI-GM13, which defines key physical, mechanical, and durability requirements for HDPE geomembranes. Proper certification provides assurance that the liner meets minimum performance benchmarks for critical containment applications.
Physical conditions at the installation site play a major role in liner selection and system design. Factors such as subgrade roughness, cover material type, and operational loading must all be considered.
For example, high static loads, including deep waste containment systems or thick soil cover layers, increase the risk of puncture or long-term stress deformation. While a 2mm HDPE liner already offers strong puncture resistance compared to thinner alternatives, additional protective measures—such as geotextile cushioning layers or geocomposite protection systems—may be necessary in demanding conditions.
In addition, dynamic loads from construction equipment, haul trucks, or maintenance machinery can introduce temporary but significant stresses during installation and operation. Proper design typically includes protective soil layers or engineered separation systems to reduce direct mechanical impact on the liner surface.
The scale and layout of a project also influence liner selection strategy. Large-scale installations often benefit from consistent production runs, which ensure uniform material properties across the entire site. This consistency improves weld performance, quality control, and long-term reliability.
For major infrastructure projects, bulk ordering of standardized material can also provide economic advantages through manufacturing efficiency and reduced variation between liner rolls.
In contrast, smaller or segmented projects may need to rely on available stock specifications. In such cases, selecting from standard grades of 2mm HDPE liner is often sufficient, provided that compatibility with project conditions is properly verified.
Ultimately, optimizing liner selection involves balancing performance requirements, site conditions, and procurement efficiency to achieve a reliable and cost-effective containment system.
The geosynthetics industry continues to innovate around 2mm HDPE liners. Conductive geomembranes incorporate carbon-based conductive layers that enable arc testing using electrical leak location methods, providing continuous quality assurance over entire installed liner areas. These systems can detect pinholes and small installation damage that might otherwise go unnoticed, dramatically improving long-term performance.
Enhanced additive packages extend service life even further, with new antioxidant systems that provide greater resistance to thermal and oxidative degradation. Some next-generation resins improve flexibility at low temperatures, allowing installation and service in arctic and sub-arctic conditions that previously challenged conventional HDPE.
Smart geosynthetics with embedded sensors promise to enable real-time monitoring of liner integrity, leak detection, and even chemical sensing in the future. While still in research and development stages, these technologies could transform liner maintenance from periodic inspection to continuous condition assessment.
The 2mm HDPE liner stands as a proven, reliable, and versatile solution for containment challenges across the environmental, mining, industrial, and agricultural sectors. Its remarkable combination of chemical resistance, mechanical strength, impermeability, and durability—all achieved at reasonable cost—explains its widespread adoption as the containment material of choice for critical applications. As environmental standards continue to tighten and society demands better protection of water resources and ecosystems, the 2mm HDPE liner will undoubtedly remain an essential tool in the engineer’s arsenal. Proper specification, quality manufacturing, careful installation, and routine inspection combine to deliver containment systems that perform reliably for decades, protecting our environment while enabling essential industrial and waste management activities. Whether you are designing a landfill, constructing a mining heap leach pad, lining an agricultural pond, or building industrial secondary containment, the 2mm HDPE liner deserves serious consideration as the foundation of your containment system.
