In contemporary civil engineering, mining operations, aquaculture, and environmental management projects, HDPE liner sheets serve a critical role in ensuring waterproofing, containment, and environmental protection. Whether it involves a landfill, aquaculture pond, dam, canal, or mining tailing site, HDPE liners act as a durable, chemical-resistant barrier between liquids and the underlying soil.
As a trusted geosynthetics manufacturer and exporter, GEOSINCERE Geosynthetics supplies HDPE liner sheets to over 100 countries worldwide, supporting clients in constructing long-lasting, sustainable infrastructure. This article will provide a comprehensive guide on HDPE liner sheets, including their characteristics, production methods, applications, benefits, and guidance on selecting the appropriate type for your project.
HDPE stands for High-Density Polyethylene, a thermoplastic polymer derived from petroleum. It is widely recognized for its high strength-to-density ratio, chemical resistance, and longevity. When fabricated into liner sheets (also known as HDPE geomembranes), it forms a flexible yet robust waterproof layer used to prevent liquid migration across a variety of containment scenarios.
HDPE liner sheets generally come in thicknesses ranging from 0.3mm to 3.0mm and widths of up to 8 meters. They are supplied in rolls and are joined on-site using hot wedge welding or extrusion welding machines, creating a continuous, leak-resistant membrane.
In essence, HDPE liner sheets provide protection + durability + impermeability — an invisible yet essential layer that safeguards our environment.
At GEOSINCERE Geosynthetics, stringent quality control is applied at every stage, from raw material selection to final inspection. The production process involves:
We use 100% virgin HDPE resin sourced from reputable suppliers such as Sinopec, Sabic, or ExxonMobil. Carbon black, antioxidants, and stabilizers are added to enhance UV protection and long-term performance.
The HDPE pellets are melted and extruded through a flat die to produce uniform sheets. Both extrusion temperature and speed are closely monitored to maintain molecular stability and consistent quality.
The extruded sheet passes through rollers to achieve precise thickness and smoothness. It is then cooled and trimmed for further processing.
For projects requiring better slope stability and anti-slip performance, such as embankments or steep pond linings, HDPE liners can be embossed using specialized rollers.
Each roll undergoes rigorous testing for thickness, density, tensile strength, elongation, and puncture resistance before being rolled and packaged for shipment.
GEOSINCERE Geosynthetics’s production lines employ automatic extrusion systems, guaranteeing consistent quality, efficiency, and traceability. Each roll is certified according to ASTM, GRI-GM13, and ISO standards.
|
Property |
Unit |
Typical Value |
|
Density |
g/cm³ |
≥ 0.94 |
|
Thickness |
mm |
0.3 – 3.0 |
|
Tensile Strength |
N/5cm |
≥ 900 |
|
Elongation at Break |
% |
≥ 700 |
|
Puncture Resistance |
N |
≥ 480 |
|
Tear Strength |
N |
≥ 125 |
|
Carbon Black Content |
% |
2 – 3 |
|
Water Vapor Transmission |
g/m²·24h |
≤ 0.1 |
|
Service Life |
years |
70+ (with proper use) |
HDPE liners resist most acids, alkalis, and salts, making them ideal for landfills, chemical storage, and mining leachate ponds. This ensures long-term containment even in harsh chemical environments, preventing soil and groundwater contamination.
With a permeability coefficient as low as 1×10⁻¹⁴ cm/s, HDPE liners provide a reliable waterproof barrier. This extremely low permeability ensures that liquids cannot seep through, maintaining environmental safety and structural integrity.
The addition of 2–3% carbon black and stabilizers enables the liner to withstand prolonged sunlight exposure and harsh environmental conditions. As a result, HDPE liners maintain their strength and flexibility over decades, even in outdoor installations.
HDPE maintains flexibility even at low temperatures, accommodating various terrains and climatic conditions without cracking. This combination of strength and elasticity allows it to adapt to ground movement and irregular surfaces.
Compared with traditional barriers like clay or concrete, HDPE liners are lighter, quicker to deploy, and more economical. Installation efficiency reduces labor costs and project timelines while maintaining superior performance.
Non-toxic, safe for aquatic life, and recyclable, HDPE liners offer sustainable containment solutions. Using HDPE supports eco-friendly construction practices and contributes to long-term environmental protection.
HDPE liners are widely used across civil engineering, agriculture, mining, and environmental projects:

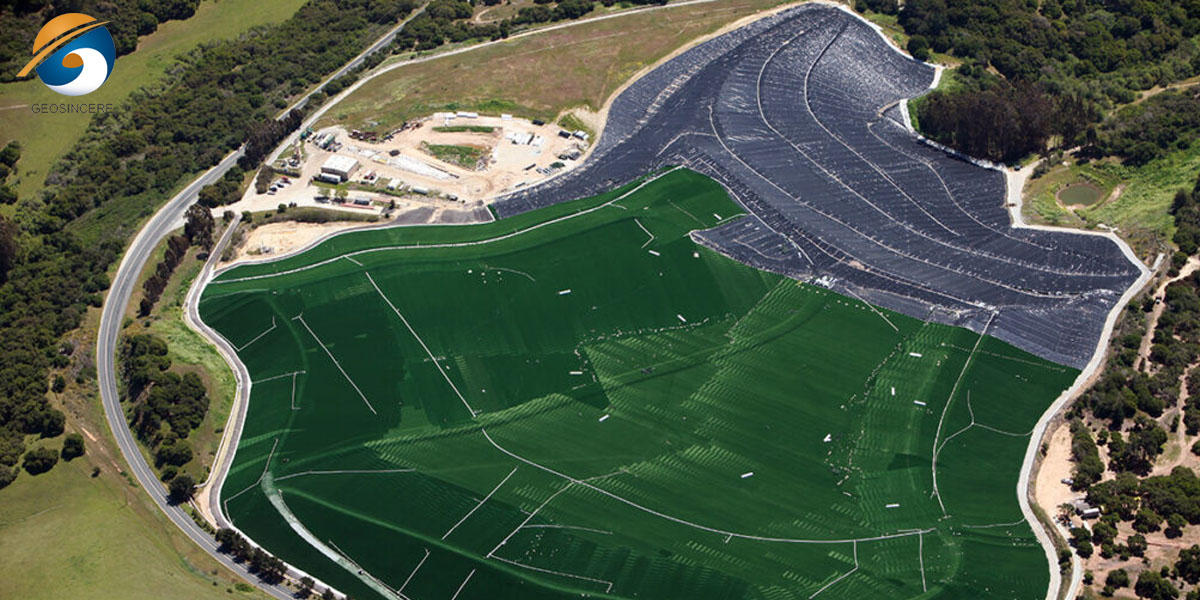

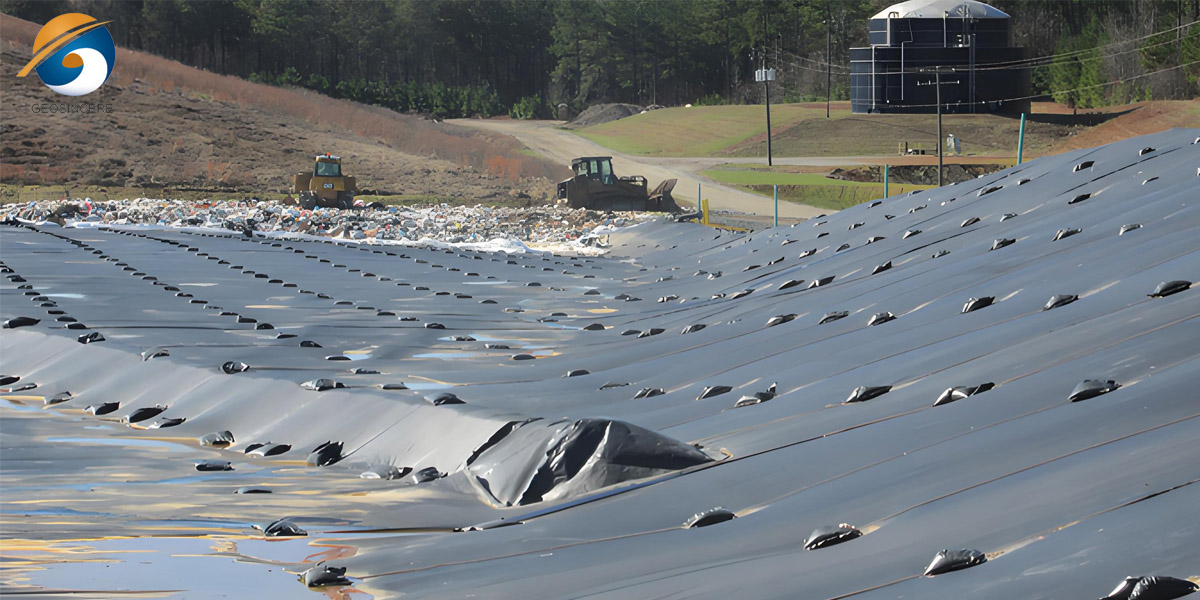

Function as primary liners and leachate collection layers, preventing groundwater contamination. They provide a durable barrier that ensures waste containment meets regulatory standards and environmental safety.
Used in heap leach pads, tailing ponds, and solution ponds to safely contain chemical solutions. HDPE liners protect soil and water resources from hazardous mining effluents while supporting efficient resource extraction.

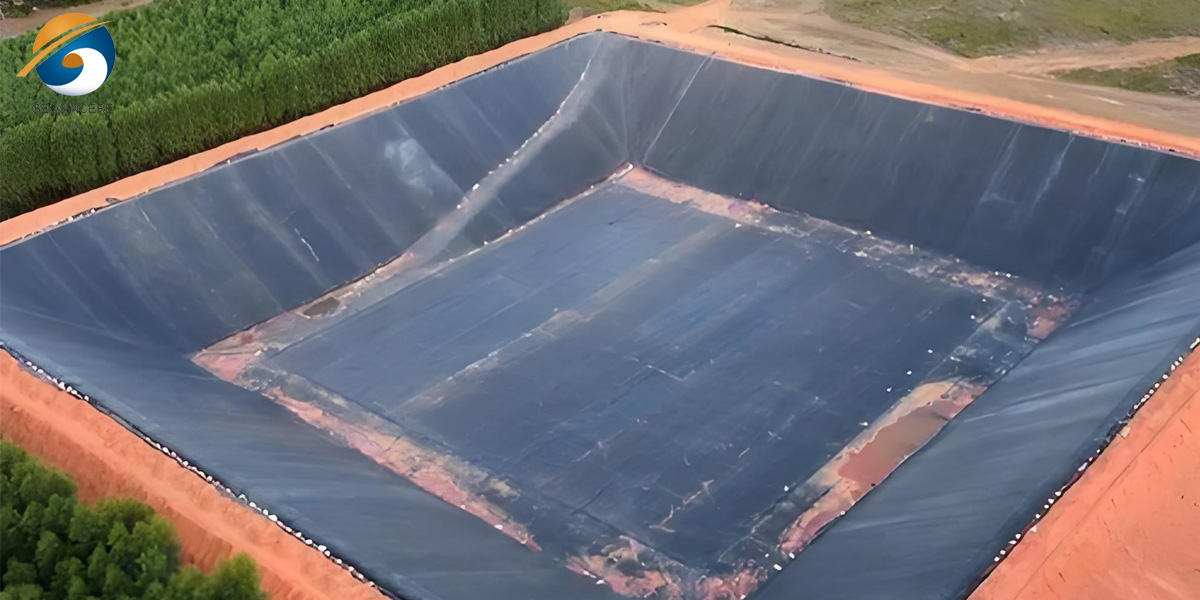

Ideal for fish ponds, shrimp farms, irrigation canals, and reservoirs, enhancing water conservation. By reducing seepage and water loss, HDPE liners help maintain optimal water levels and improve yield efficiency.

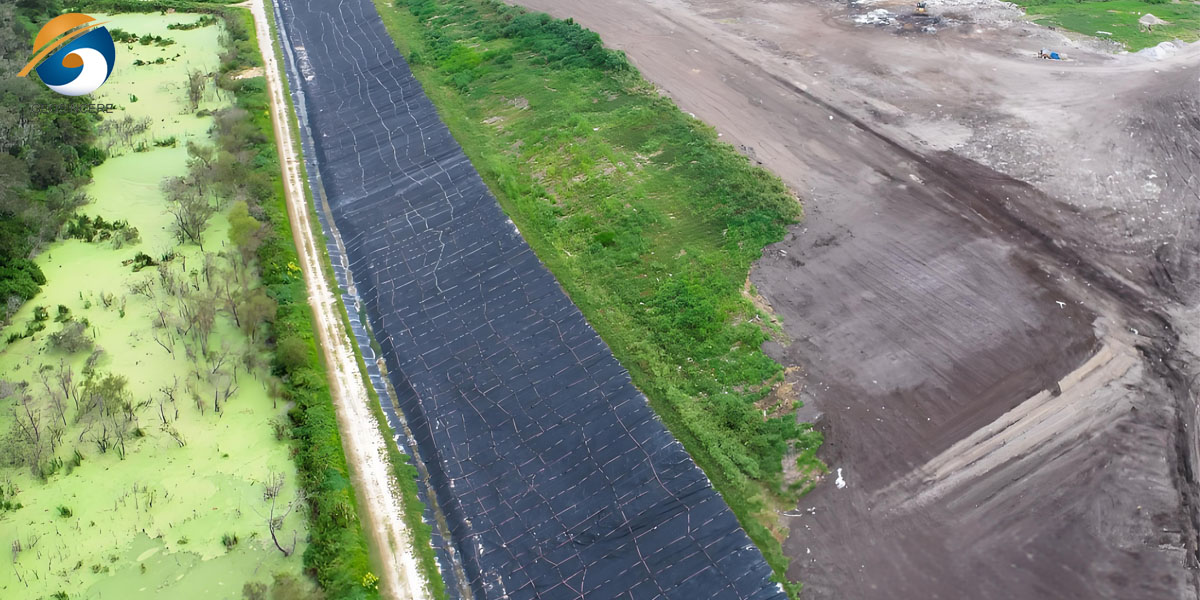

Applied in canals, dams, and artificial lakes to minimize water infiltration and losses. They provide an essential solution for sustainable water management, particularly in arid or high-demand regions.
Suitable for chemical plants, refineries, and wastewater treatment facilities to prevent leakage. HDPE liners ensure the safe containment of hazardous liquids, reducing the risk of environmental incidents.
Used in biogas digesters, constructed wetlands, and stormwater systems for effective containment. Their flexibility and impermeability make them a reliable component in eco-engineering projects aimed at pollution control and water management.
|
Property |
HDPE Liner |
PVC Liner |
LDPE Liner |
Clay / Concrete |
|
Durability |
Excellent |
Moderate |
Good |
Good |
|
UV Resistance |
Excellent |
Poor |
Moderate |
Good |
|
Chemical Resistance |
Excellent |
Moderate |
Moderate |
Good |
|
Flexibility |
Good |
Excellent |
Excellent |
Poor |
|
Service Life |
50–70 years |
20–30 years |
30–40 years |
40+ years |
|
Cost |
Moderate |
Low |
Moderate |
High |
HDPE liner sheets combine superior durability, chemical resistance, and impermeability, making them the preferred solution for most engineering and containment projects over alternatives such as PVC, LDPE, clay, or concrete.
The long-term performance of HDPE liners depends not only on material quality but also on proper installation techniques. At GEOSINO, we provide technical support and on-site guidance to ensure optimal results.
- Surface Preparation: The base must be smooth, compacted, and free from sharp rocks or debris to prevent punctures.
- Layout and Positioning: Liner rolls are spread using mechanical equipment to reduce handling damage and improve efficiency.
- Welding: Adjacent sheets are joined via hot wedge welding or extrusion welding. Seam integrity is verified using vacuum testing or air pressure testing.
- Anchoring and Protection: Edges are secured in trenches, and protective layers such as geotextiles or soil coverings are applied if needed.
Proper installation guarantees that the HDPE liner delivers decades of reliable service.
Selecting the appropriate HDPE liner depends on several critical factors:
Project Type – Is the application a pond, landfill, or mining pad?
Liquid Type – Freshwater, wastewater, or chemicals?
Soil Conditions – Flat, rocky, or sloped terrains?
UV Exposure – Outdoor installation or covered?
Thickness Requirement –
0.5–1.0mm: ponds, canals
1.0–1.5mm: reservoirs, tanks
2.0–3.0mm: landfills, mining areas
Certification Needs – ASTM, ISO, or local standards?
If uncertain, GEOSINCERE Geosynthetics’s engineering team can recommend the best specification based on project drawings and local conditions.
Professional Manufacturer: Over 15 years of geosynthetics production experience
Global Supply: Exported to 90+ countries across Asia, Africa, the Middle East, and South America
Consistent Quality: Advanced automated production lines ensure uniform thickness and performance
Competitive Pricing: Direct factory supply with large monthly capacity
Reliable Service: Fast quotations, timely delivery, and full after-sales support
At GEOSINCERE Geosynthetics, we deliver not only products but also long-term environmental protection and project reliability.
HDPE liner sheets are more than just a plastic membrane; they serve as the primary barrier system protecting soil, water, and the environment from contamination.
From landfills to fish ponds, mining to agriculture, HDPE liners offer exceptional performance, longevity, and cost efficiency.
As an experienced geosynthetics manufacturer and exporter, GEOSINCERE Geosynthetics is committed to supplying high-quality HDPE liner solutions tailored to every project. Whether you are a distributor, contractor, or end-user, we support you through every stage — from initial quotation to professional installation.
