In civil engineering, environmental protection, and water administration projects, one of the most essential but regularly left out substances is the impermeable geomembrane. Acting as a barrier in opposition to fluid or gasoline migration, geomembrane hdpe liner play a central function in functions ranging from landfill containment to water reservoir protection. Selecting an inappropriate geomembrane can end result in environmental hazards, structural failures, and sizeable economic losses. This information ambitions to grant engineers, assignment managers, and environmental authorities with a complete framework for deciding on the most appropriate GEOSINCERE Geosynthetics impermeable geomembrane for their projects.
An impermeable geomembrane is a synthetic, low-permeability liner designed to manipulate the motion of beverages or gases inside a venture site. Usually fabricated from high-performance polymer materials, these hdpe liner sheet membranes are furnished in rolls and welded on-site to structure a non-stop barrier. They are specifically used for containment and isolation, supplying safety towards leakage, contamination, or seepage in a large range of engineering scenarios.
The predominant position of hdpe geomembrane sheet is containment, performing as a dependable defend between probably hazardous materials and the environment. HDPE geomembrane is vital in stopping water contamination, maintaining treasured resources, and making sure long-term structural integrity in functions such as:
- Landfill liners and caps
- Reservoirs and canals

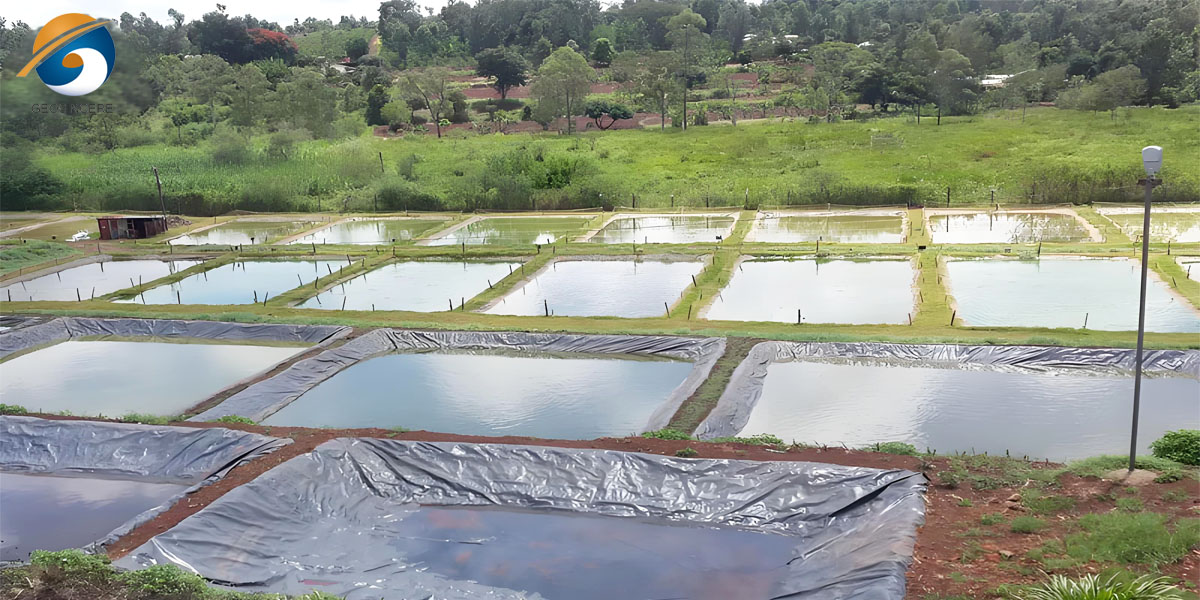

- Industrial wastewater lagoons
- Mining tailings containment
Selecting the proper impermeable geomembrane is now not a one-step choice — it requires a complete grasp of the project’s environmental, chemical, and structural demands. Each issue without delay influences the hdpe geomembrane liner’s performance, lifespan, and cost-effectiveness. The following concerns will assist make certain that the chosen cloth performs reliably underneath each set up and long-term carrier conditions.
Chemical compatibility is the primary consideration when deciding on a hdpe membrane due to the fact its failure to face up to aggressive components can lead to catastrophic environmental contamination. The geomembrane sheet need to hold its integrity when uncovered to the unique chemical substances it will include or come into contact with.
The pond liner should withstand publicity to complicated leachate combos containing heavy metals, natural compounds, risky chemicals, and corrosive substances. HDPE geomembrane liner is extensively used due to their excessive chemical resistance and long-term stability.
When used for ingesting water storage, the geomembrane hdpe should be totally inert — it have to now not launch any unsafe components or risky materials into the water. HDPE and LLDPE are perfect due to the fact they meet stringent potable water standards.
These purposes regularly face severe pH prerequisites — from rather acidic (in coal or copper mining) to strongly alkaline (in gold mining). The membrana impermeable epdm ought to suffer these corrosive environments for years besides dropping electricity or flexibility.
The geomembrane pond liner need to withstand non-stop publicity to organic agents, natural matter, and chemical compounds used in water treatment. LLDPE and fPP substances grant the essential resistance blended with excessive flexibility.
To make certain compatibility, continually seek advice from chemical resistance charts furnished via the producer and, for essential projects, habits long-term immersion checking out to affirm cloth overall performance beneath genuine conditions.
The bodily and mechanical electricity of the dam liner geomembrane is necessary to its typical performance. It have to live to tell the tale handling, installation, and operational stresses whilst keeping its impermeable characteristics.
During installation, hdpe membrane may also come into contact with sharp stones, roots, or coarse aggregates. High puncture resistance ensures the liner stays intact. Flexible substances such as LLDPE geomembrane and fPP normally grant higher puncture resistance than HDPE of the equal thickness.
Tensile electricity determines how a good deal stress the cloth can withstand, whilst elongation measures flexibility. HDPE presents excessive tensile power however decrease elongation, making it appropriate for flat, secure surfaces. In contrast, LLDPE and PVC can elongate significantly, making them best for uneven terrain or settling zones.
This property prevents small tears or cuts from spreading throughout or after installation. Strong tear resistance is critical for preserving long-term integrity, specifically in tasks involving heavy mechanical hundreds or slope applications.
By deciding on a geomembrane with balanced strength, flexibility, and toughness, engineers can stop untimely screw ups and reduce upkeep costs.
ESCR is a key indicator of sturdiness for polyethylene-based geomembranes (HDPE and LLDPE). It measures the material’s capacity to withstand crack formation and propagation when subjected to sustained tensile stress in the presence of environmental retailers such as surfactants or chemicals.
In formerly generations of HDPE liners, low ESCR regularly led to cracking and untimely failure below stress. However, current resin formulations and expanded manufacturing approaches have dramatically better this property. When choosing an HDPE or LLDPE geomembrane, make certain it meets ASTM D5397 or equal ESCR trying out standards. A greater ESCR cost interprets without delay to longer provider life, specifically in high-stress or chemically aggressive environments.
For geomembranes uncovered to sunlight, UV resistance is a primary component influencing longevity. Prolonged UV publicity can reason polymer degradation, ensuing in floor cracking, embrittlement, and coloration fading.
Typically stabilized with 2–3% carbon black, which acts as a herbal UV absorber and antioxidant. This formula approves HDPE liners to stand up to long-term exposure, making them best for reservoirs, canals, and evaporation ponds.
These substances frequently comprise inherent stabilizers or delivered UV inhibitors, offering ample safety for medium-term publicity except the want for extra additives.
Proper UV stabilization ensures that the geomembrane keeps its flexibility, strength, and impermeability even after years of publicity in open-air installations.
Although referred to as “impermeable,” geomembranes truly possess extraordinarily low permeability, that means that fluid or gasoline transmission thru them happens solely by means of molecular diffusion. For most engineering applications, this permeability is negligible — however, when containing risky natural compounds (VOCs) or hazardous gases, cloth determination turns into critical.
HDPE geomembranes are broadly diagnosed for having one of the lowest permeability coefficients amongst polymer liners, making them the desired desire for hazardous waste containment, landfill barriers, and gasoline series systems. The dense molecular shape of HDPE efficaciously blocks fuel and vapor transmission, making sure long-term containment and environmental protection.
Advantages: High tensile strength, chemical resistance, low permeability, cost-effective, extensively used globally.
Limitations: Relatively rigid; difficult set up on complicated slopes; requires appropriate manufacturing to keep away from stress cracking.
Applications: Landfill liners, tailings dams, potable water reservoirs, evaporation ponds.
Advantages: Flexible, incredible puncture and tear resistance, greater ESCR, adaptable to uneven subgrades.
Limitations: Slightly decrease tensile energy and fuel barrier in contrast to HDPE.
Applications: Landfill caps, secondary containment, aquaculture ponds.
Advantages: Highly flexible, effortless to weld, bolstered versions available, appropriate puncture resistance.
Limitations: Susceptible to plasticizer loss, narrower chemical resistance range.
Applications: Decorative ponds, irrigation canals, transient covers.
Advantages: Excellent chemical resistance, excessive UV stability, flexible, very excessive ESCR.
Limitations: Higher cost, welding requires specialised equipment.
Applications: Industrial tanks, brine containment, uncovered chemical applications.
Advantages: Extreme flexibility, UV and cold-temperature resistance.
Limitations: Poor oil resistance; seams be counted on adhesives.
Applications: Decorative ponds, roofing, irrigation canals.
Identify the contained substance, design life, exposure, and temperature ranges.
Gather full chemical profiles and examine with fabric compatibility charts.
Examine subgrade conditions, agreement potential, puncture risks.
Match chemical and mechanical necessities with HDPE, LLDPE, PVC, fPP, or EPDM.
Typically 0.75mm–3.0mm, chosen based totally on puncture resistance, tensile stresses, and set up durability.
Include polymer type, thickness, mechanical properties, and seam energy requirements.
Factory fantastic certificates, on-site welding inspection, adverse and non-destructive seam testing.

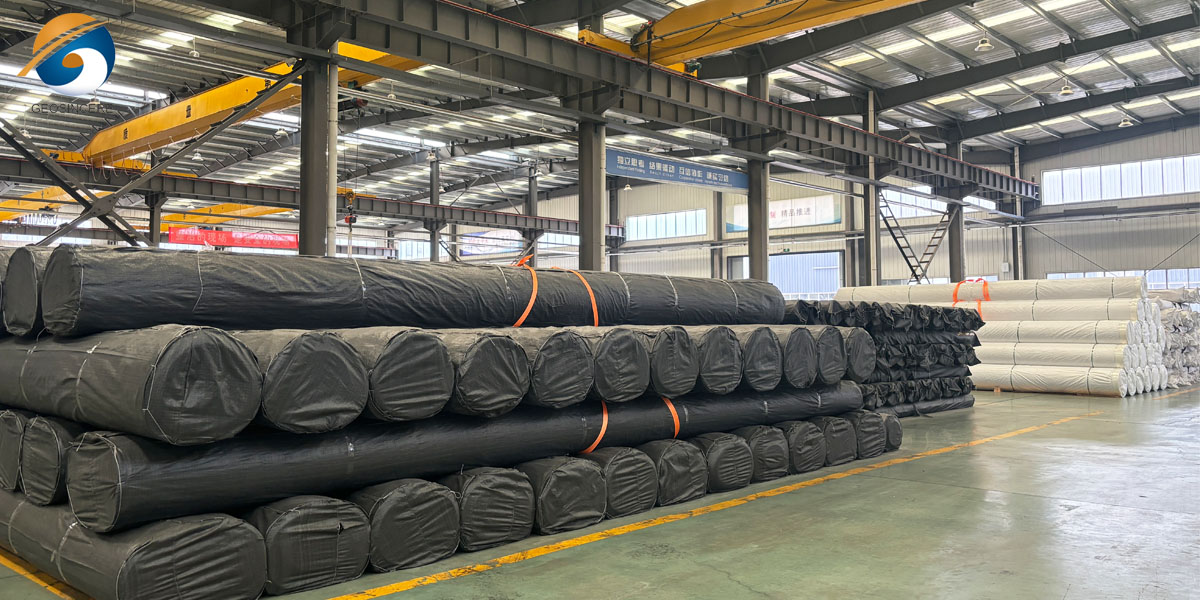

GEOSINCERE Geosynthetics has invested over $10 million in superior manufacturing facilities, geared up with today's automated manufacturing strains to manufacture incredible HDPE geomembranes and different geosynthetics. Key blessings include:
- Extensive Product Range: HDPE liners, LLDPE, fPP, PVC, geotextiles for civil, mining, agriculture, aquaculture, and environmental projects.
- Technological Innovation: Continuous R&D ensures optimized performance and durability.
- Quality Assurance: Strict manufacturing unit QA and on-site CQA for welding, seam testing, and subgrade preparation.
- Fast Delivery & Cost Efficiency: Factory-direct pricing with international logistics support.
- Comprehensive Engineering Support: Turnkey solutions, set up guidance, and troubleshooting for complicated civil, mining, and environmental challenges.
Selecting an impermeable geomembrane is no longer a mere buy however an funding in assignment success, environmental protection, and regulatory compliance. By cautiously evaluating chemical compatibility, mechanical requirements, environmental conditions, and cloth properties, and by way of deciding on a dependable provider like Shandong GEOSINO New Material Co.,Ltd (GEOSINCERE Geosynthetics) , engineers can make certain their geomembrane will grant dependable containment, durability, and peace of thinking for decades.
