In the realm of geosynthetic engineering, the battle against unwanted fluid migration is fought with high-tech polymers. Among the arsenal of containment solutions, the PVC geomembrane liner stands out as a veteran material that continues to prove its worth across a diverse spectrum of applications. From conserving precious water in irrigation canals to acting as a critical component in waste containment, polyvinyl chloride PVC membranes offer a unique balance of performance, cost-effectiveness, and installability.
This article explores the intricacies of PVC geomembrane liners, delving into their material composition, key properties, common applications, installation techniques, and how they compare to other popular geomembranes like HDPE.
A PVC geomembrane liner is a flexible, impermeable sheet manufactured from polyvinyl chloride resin. Used primarily as a barrier to control fluid migration, it is engineered to prevent seepage in various containment projects such as ponds, landfills, canals, and reservoirs .
The use of PVC in containment is not new. It has a long history in geotechnical applications, with documented use in large-scale projects dating back to the early 1980s . Over the decades, the formulations have evolved significantly. Modern PVC geomembranes are sophisticated composites of PVC resin mixed with plasticizers, stabilizers, pigments (like carbon black for UV protection), and sometimes biocides to prevent fungal or bacterial attack . This specific blend is what gives the liner its characteristic flexibility and durability.
A homogenous sheet that relies on the polymer formulation for its strength. It is highly flexible and conforms easily to terrain .
This type incorporates a scrim, or mesh, of polyester or fiberglass sandwiched between two layers of PVC. This reinforcement dramatically increases tensile strength and dimensional stability, making it ideal for high-stress applications like steep slopes or tailings ponds .
The widespread adoption of PVC geomembrane liners is due to a distinct set of physical and mechanical properties that make them suitable for challenging environments.
Perhaps the most celebrated characteristic of PVC is its inherent flexibility. Unlike stiffer materials, a PVC geomembrane liner remains pliable even in colder temperatures (with service ranges cited as low as -70°C) . This allows the liner to conform perfectly to subgrade irregularities, settling with the soil without cracking. This high elongation at break means it can withstand significant ground movement or subsidence, a critical feature in areas with unstable geology .
Modern PVC formulations are engineered to resist a broad spectrum of chemicals. They stand up well to acids, alkalis, and salts found in natural waters and many industrial effluents . Furthermore, the inclusion of UV stabilizers ensures that the liner can withstand prolonged exposure to sunlight without becoming brittle or losing its mechanical strength, making it suitable for uncovered reservoirs and canals .
PVC liners are notably easy to install. They are lightweight compared to many alternatives, reducing transportation and handling costs . More importantly, they are easy to seam. PVC can be welded using thermal methods (hot wedge or hot air) or, in some cases, chemical solvents, creating bonds that are as strong as the parent material. This ease of seaming allows for faster installation times and reduces the risk of leaks at panel connections .
When compared to rigid engineered structures like concrete or compacted clay liners, PVC offers significant cost savings. It eliminates the need for heavy earth-moving equipment and extensive material processing. As a factory-manufactured product with a relatively quick installation process, it reduces both initial construction costs and long-term maintenance expenses related to water loss .
The versatility of PVC geomembrane liners allows them to be used in a wide array of industries.
In agriculture, water is gold. PVC liners are extensively used to line irrigation canals, reservoirs, and farm ponds. By creating an impermeable barrier, they can improve water retention efficiency by up to 95%, preventing the 30-50% seepage loss common in unlined earthen channels . This ensures that water intended for crops arrives at its destination, which is critical for sustainable farming in arid regions.
For fish and shrimp farming, maintaining a controlled environment is paramount. PVC geomembrane liners provide a smooth, non-porous surface that prevents predators from burrowing in and diseases from harboring in the soil. They stabilize water quality by preventing interaction with problematic subsoils and make harvesting significantly easier .
In the environmental sector, PVC plays a crucial role. It is used as a liner for landfill caps and closures, wastewater treatment lagoons, and industrial containment basins . While HDPE is often preferred for harsh chemical waste, specially formulated PVC (like PRG - Petroleum Resistant Geomembrane) is used for secondary containment of petroleum products and in soil remediation projects .
Large-scale projects, such as dam lining and reservoir rehabilitation, frequently utilize PVC. The material"s ability to conform to the contours of a dam face and its high puncture resistance make it ideal for preserving structural integrity and preventing water loss in hydroelectric or potable water reservoirs .
- The Verdict: For projects requiring quick installation, adaptability to settling ground, and cost sensitivity (such as agricultural ponds or decorative lakes), PVC is often the best choice. For hazardous waste landfills or projects demanding the absolute maximum lifespan and chemical resistance, HDPE is the industry standard .

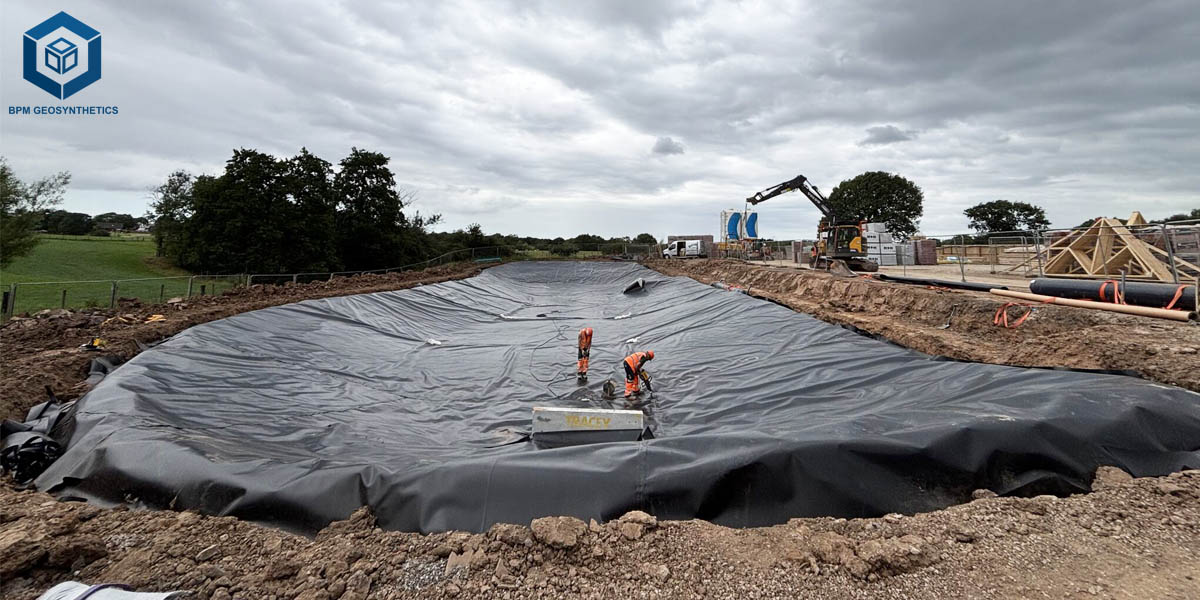

The performance of a PVC geomembrane liner is only as good as its installation. To ensure a leak-free system, several critical steps must be followed :
The surface must be smooth and free of sharp rocks, roots, or debris that could puncture the liner. Often, a nonwoven geotextile cushion layer is placed down first to provide additional protection .
Panels are unrolled and positioned with the specified overlap (typically 50-100 mm) to allow for effective seaming.
This is the most critical step. Thermal welding (hot wedge or hot air) is the preferred method for creating a homogeneous, leak-proof seam. All welds should be tested non-destructively, using air pressure tests for double-track seams or vacuum box testing.
The edges of the liner must be securely anchored. This is typically done by burying the edges in a perimeter trench (anchor trench) and backfilling with compacted soil to prevent wind uplift or mechanical pull-out .
Depending on the final use, a protective cover layer of soil or geotextile may be added to shield the liner from UV light (if not exposed) and physical damage .
To ensure reliability, PVC geomembranes are manufactured according to strict standards. The primary specification for non-reinforced PVC sheets used in buried applications is ASTM D7176 . This standard covers requirements for thickness (typically 0.25 mm to 1.5 mm), tensile properties, tear resistance, and volatile loss. It ensures that the material meets a baseline quality for its intended use.
Quality control doesn't stop at the factory. On-site, installers must verify material certifications, conduct weld tests, and often perform post-installation leak location surveys (such as electrical methods) to confirm the integrity of the entire lined area .
The PVC geomembrane liner remains a cornerstone of the geosynthetic industry. Its proven track record, combined with modern advancements in polymer formulation, provides engineers and project owners with a reliable tool for water conservation and environmental protection. While materials like HDPE dominate in specific high-stress sectors, PVC's unmatched flexibility, ease of installation, and cost-effectiveness secure its place as the material of choice for agricultural, aquacultural, and general water containment projects. By understanding its properties and adhering to proper installation practices, a PVC liner can deliver decades of dependable service.

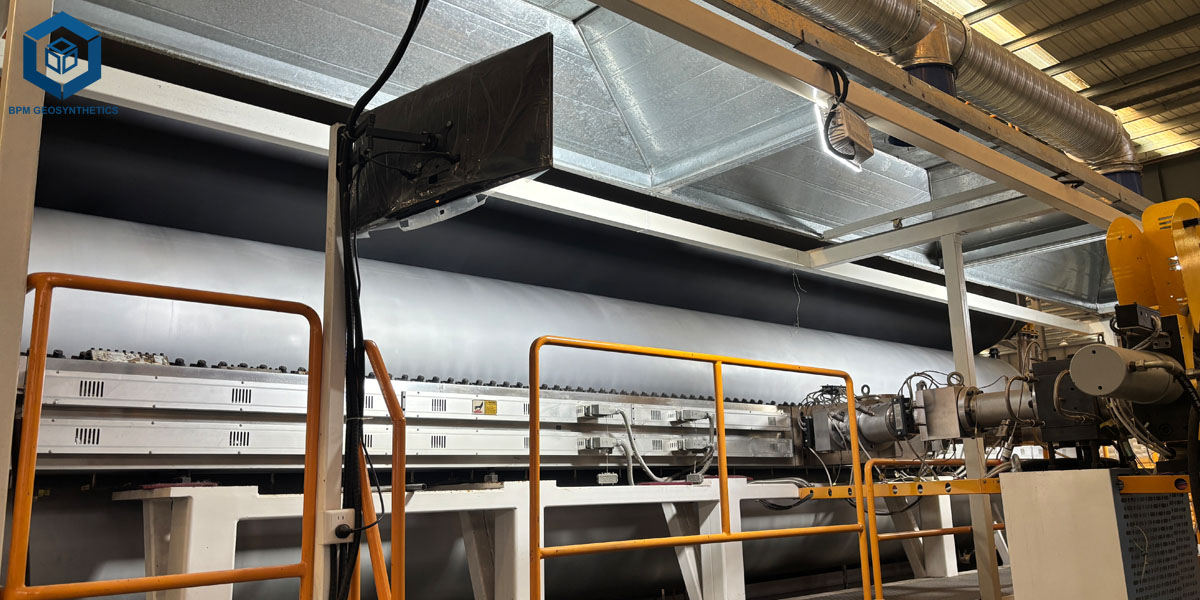

Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality HDPE geomembranes and other geosynthetics with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness.
