In the world of geosynthetic engineering, containment solutions have evolved significantly over the past decades. Among the various materials available, LLDPE geomembrane liner have emerged as a versatile and high-performance solution for a wide range of applications. Whether you are an environmental engineer, a contractor, or a project manager dealing with fluid containment, understanding this material is crucial for project success.
This comprehensive guide will walk you through everything you need to know about LLDPE geomembrane liner—from their basic definition and molecular structure to their technical properties, manufacturing process, and diverse applications across industries.
An LLDPE Geomembrane Liner is a flexible synthetic membrane manufactured from Linear Low-Density Polyethylene (LLDPE) resin, designed primarily for containment applications in civil and environmental engineering projects. These liners function as impermeable barriers, preventing the migration of fluids, gases, and contaminants from one area to another .
The term "geomembrane" itself refers to a class of materials that are impermeable sheets used in geotechnical engineering. When combined with "LLDPE," it specifies the exact type of polyethylene used in their production.
To truly appreciate what makes LLDPE special, we must look at its molecular structure. LLDPE is similar to High-Density Polyethylene (HDPE), but with a critical distinction: its carbon chains have significant numbers of short branches .
These short branches act like tiny springs along the main polymer chain. They prevent the molecules from packing too tightly together, which results in two fundamental characteristics:
- Lower density (typically 0.915–0.940 g/cm³)
- Greater flexibility compared to HDPE
This structural difference means that while HDPE offers high stiffness and strength, LLDPE provides superior conformability and elongation capabilities. Think of HDPE as a rigid steel beam and LLDPE as a flexible chain link—both strong, but suited for different types of movement and stress.
The use of LLDPE in geomembrane applications represents an evolution in materials science. Early geomembranes were made from materials like PVC and butyl rubber, which had limitations in chemical resistance and longevity.
In the 1990s, researchers began exploring peroxide-modified LLDPE for thick-sheet applications. Prior to this, LLDPE was primarily used in thin films for packaging—grocery sacks, bread bags, and shrink wrap. The challenge was that traditional LLDPE lacked the melt strength to be extruded into thick sheets (30-100 mils) without breaking apart during processing .
Through innovations in polymer modification—particularly peroxide treatment—manufacturers successfully developed LLDPE resins that could be formed into durable geomembrane sheets, combining the flexibility of traditional materials with the chemical resistance of polyethylenes.
An LLDPE geomembrane liner is not pure polyethylene. It is a carefully engineered composite of several components:
The primary component is LLDPE resin, a copolymer of ethylene and alpha-olefins such as butene, hexene, or octene. The choice of comonomer affects the final properties, with hexene and octene typically providing enhanced toughness.
This additive serves multiple critical functions:
- Provides UV protection by absorbing and dissipating harmful radiation
- Enhances weatherability for exposed applications
- Typically requires a carbon black content of 2.0-3.0% to meet industry standards
These compounds prevent oxidative degradation during both manufacturing and the liner's service life. They protect the polymer from thermal oxidation and extend longevity.
Added to further enhance resistance to sunlight exposure, particularly important for applications where the liner will remain uncovered .
Importantly, quality LLDPE geomembranes are manufactured without plasticizers, fillers, or expanding agents. Plasticizers are particularly problematic as they can migrate out of the material over time, leading to embrittlement and failure. The absence of these additives ensures long-term performance stability.

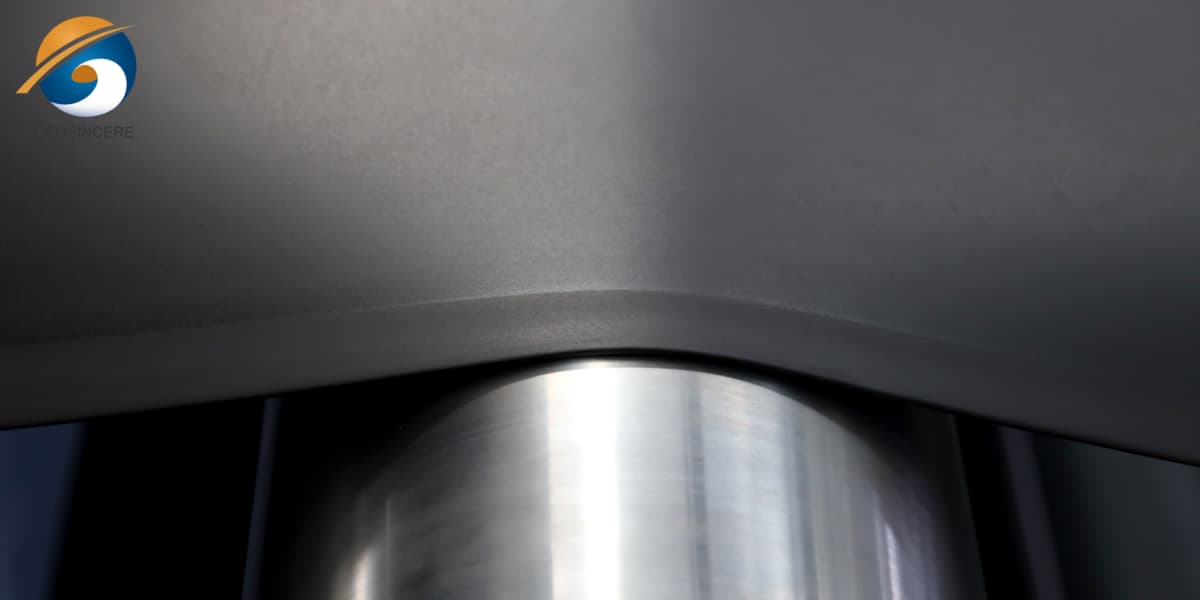

Modern LLDPE geomembranes are typically produced through a sophisticated manufacturing process:
- Establish precise thickness
- Create surface texture if required
- Cool the material in a controlled manner to set properties
2.3 Available Forms
LLDPE geomembranes are available in two primary surface finishes:
Some advanced products now feature "multi-tier" texturing with friction spikes of varying heights (from nano-scale to macro-scale) to optimize shear resistance under different normal loads.
2.4 Thickness Range and Roll Dimensions
LLDPE geomembranes are manufactured in thicknesses typically ranging from 0.5 mm (20 mil) to 3.0 mm (120 mil) , with common thicknesses including 0.75 mm, 1.0 mm (40 mil), 1.5 mm (60 mil), and 2.0 mm (80 mil) .
Roll widths can extend up to 8 meters, and lengths vary based on thickness and weight specifications. This wide format reduces the number of field seams required, enhancing installation efficiency and reducing potential leak paths.
3. Key Properties of LLDPE Geomembrane Liner
Understanding the technical properties of LLDPE geomembranes is essential for proper material selection and design. Here are the critical characteristics that define their performance.
3.1 Physical Properties
LLDPE geomembranes typically have a density between 0.915 and 0.940 g/cm³. This is lower than HDPE (0.94-0.96 g/cm³), which directly contributes to their enhanced flexibility .
Quality manufacturers maintain tight thickness tolerances, typically within ±5-10% of nominal values, ensuring consistent performance across the entire sheet.
3.2 Mechanical Properties
- Tensile Strength at Break: Ranges from 13 N/mm for 0.5 mm liners to 80 N/mm for 3.0 mm liners
- Stress at Break: Typically 27-35 MPa, providing robust resistance to mechanical loads
- Elongation at Break:This is where LLDPE truly excels. With elongation values of 800% or greater, LLDPE geomembranes can stretch significantly without failure. This compares to HDPE which typically offers 500-700% elongation.
This exceptional elongation means the liner can accommodate:
- Differential settlement of underlying soils
- Seismic activity without rupture
- Puncturing objects by stretching around them rather than tearing
- Tear Resistance: LLDPE liners offer tear resistance ranging from 50 N for thin membranes to 300 N for thicker products, ensuring durability during installation and service.
- Puncture Resistance: With puncture strengths of 120-750 N depending on thickness, these liners withstand the rigors of installation and overlying materials.
3.3 Barrier Properties
LLDPE geomembranes exhibit extremely low permeability, with hydraulic conductivity values of <1 × 10⁻¹¹ cm/s. This means virtually no fluid migration through the intact sheet, making them effective barriers for water and contaminants.
The materials demonstrate minimal water absorption (<0.2% in 24 hours), maintaining their barrier properties even in constant contact with moisture.
3.4 Durability Properties
The carbon black and UV stabilizers in quality LLDPE geomembranes provide excellent resistance to ultraviolet degradation. Testing shows they retain at least 50% of original strength after 2,000 hours of UV exposure, translating to 20-30 years of service life in exposed applications .
LLDPE resists a wide range of chemicals, including:
- Acids and alkalis (pH range 2-12)
- Hydrocarbons and oils
- Many industrial chemicals
This chemical resistance makes them suitable for hazardous waste containment and industrial applications .
LLDPE geomembranes perform reliably across a broad temperature range, from -70°C to 110°C, maintaining flexibility in cold conditions and stability at elevated temperatures .
The molecular structure of LLDPE, with its short chain branches, provides inherent resistance to stress cracking—a significant advantage over some other polyethylenes in applications involving constant stress .
The unique combination of flexibility, durability, and chemical resistance makes LLDPE geomembranes suitable for an extraordinary range of applications. Here's a comprehensive look at how different industries utilize these liners.

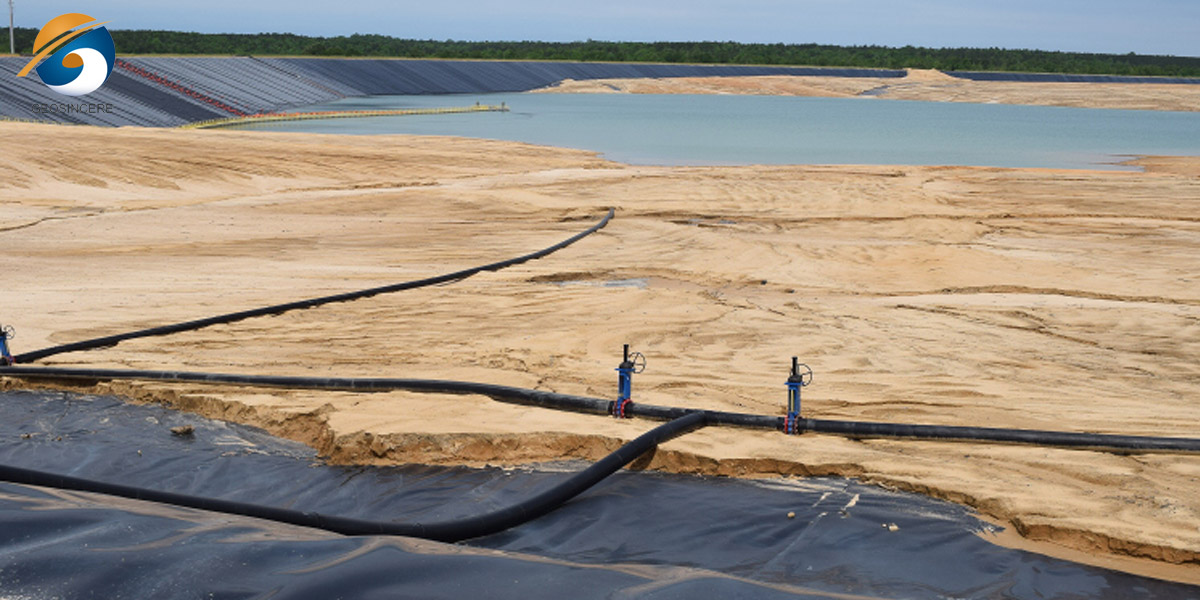

LLDPE geomembranes serve as critical components in modern landfill design. As bottom liners, they prevent leachate—the contaminated liquid that forms as water percolates through waste—from escaping into groundwater. As final caps, they minimize rainfall infiltration, reducing leachate generation.
The flexibility of LLDPE is particularly valuable in landfill applications because waste settlements are rarely uniform. The liner must stretch and conform to differential settlements without tearing—a task at which LLDPE excels.
Industrial facilities storing hazardous liquids use LLDPE liners as secondary containment around tanks, pipelines, and chemical storage areas. These systems act as a safety net, capturing any spills or leaks before they can contaminate soil or water.

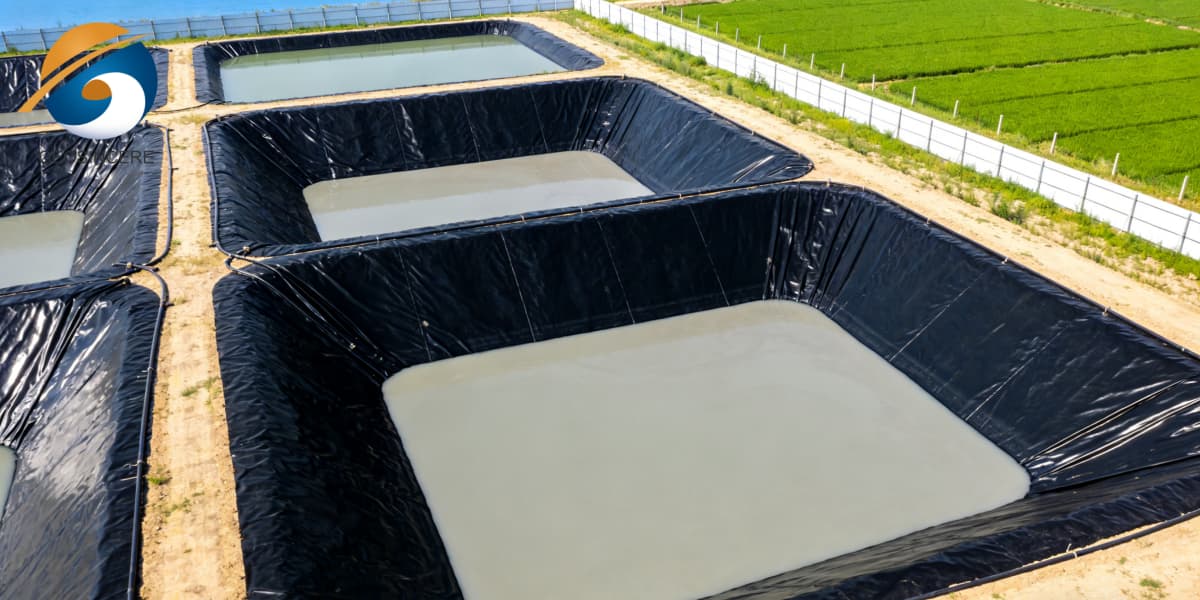

Municipal and industrial wastewater treatment facilities rely on LLDPE liners to contain treated and untreated wastewater, preventing seepage and protecting surrounding ecosystems.
The performance of any geomembrane depends heavily on proper installation. Here are the key considerations for LLDPE geomembrane installation.
Before liner deployment, the subgrade must be properly prepared:
- Remove all rocks, roots, and debris that could puncture the liner
- Compact the soil to at least 95% standard Proctor density
- Consider a geotextile underlay (8-12 oz/yd²) for additional puncture protection on rough subgrades

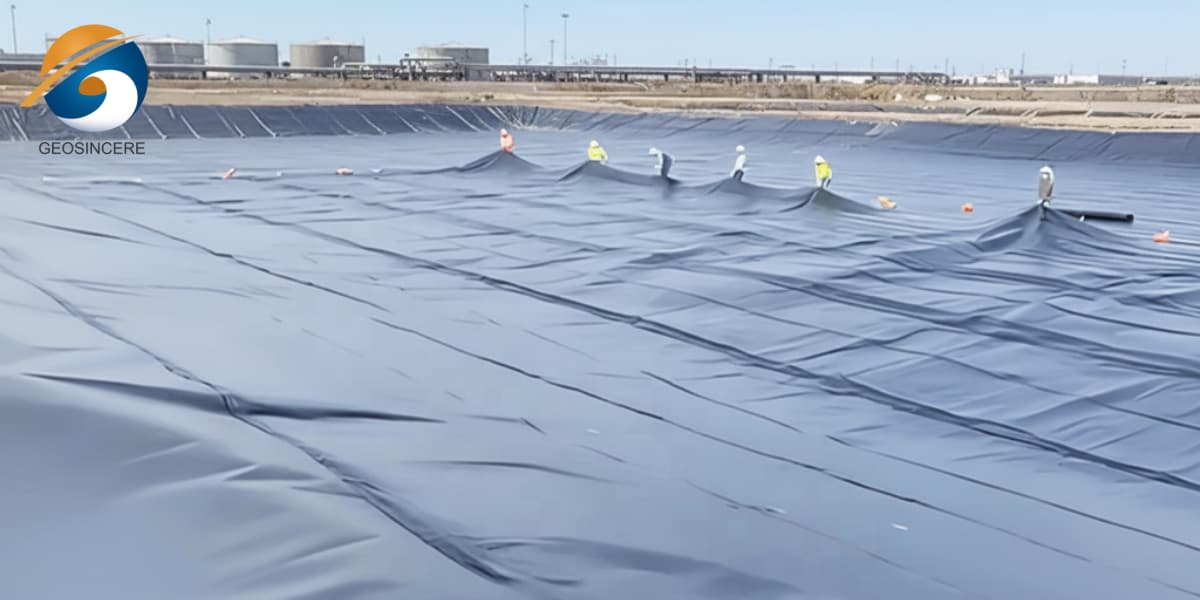

LLDPE geomembranes arrive at the jobsite in large rolls. Deployment typically involves:
- Using mechanical equipment with spreader bars to unroll panels
- Minimizing wrinkles and folds during placement
- Allowing proper overlap (typically 4-6 inches) for seaming
Seams are the most critical potential weak points in any geomembrane installation. LLDPE liners are typically joined using:
This is the preferred method for long straight seams. A heated wedge travels between two overlapping liner sheets, melting the surfaces, while pressure rollers fuse them together. This creates a seam as strong as the parent material.
Used for repairs, detail work, and areas where hot wedge equipment cannot access. This process extrudes molten polyethylene bead along the seam edge, bonding the sheets together.
Quality seaming should achieve 90-95% of the parent material's strength.
Proper installation includes rigorous testing:
- Destructive testing: Sample seams are cut out and tested to failure in a laboratory
- Non-destructive testing: Air pressure testing of double-track seams, vacuum box testing, and spark testing verify seam continuity
- Visual inspection: All seams are visually examined for defects
LLDPE geomembranes should only be installed by qualified professionals. The performance of the finished system depends on proper deployment, seaming, and quality control. Attempting to cut corners with inexperienced installers almost inevitably leads to premature failure .
With 800%+ elongation, LLDPE conforms to irregular surfaces and accommodates settlement better than any other polyethylene geomembrane .
The material's flexibility makes it easier to handle and conform to site conditions, potentially reducing installation time by 15-20% compared to stiffer alternatives .
LLDPE liners typically cost 20-30% less than HDPE liners of equivalent thickness, while offering comparable chemical resistance and better flexibility .
The molecular structure provides inherent resistance to stress cracking, enhancing long-term reliability .
Quality LLDPE geomembranes maintain performance for decades in exposed applications .
- Lower Tensile Modulus: While flexibility is an advantage, LLDPE has lower stiffness than HDPE. This may affect performance in applications requiring high resistance to concentrated loads.
- Not Suitable for All Chemicals: While chemically resistant to many substances, specific concentrated chemicals may affect LLDPE. Always verify compatibility for specific applications.
- Requires Skilled Installation: Like all geomembranes, proper installation by qualified professionals is essential for performance.
Quality LLDPE geomembranes are manufactured to meet rigorous industry standards:
- GRI-GM17: The Geosynthetic Research Institute's standard for LLDPE geomembranes, specifying properties for thickness, density, tensile strength, tear resistance, and more .
- ASTM Testing Methods: Various ASTM standards govern testing procedures, including:
- ASTM D5199 for thickness measurement
- ASTM D6693 for tensile properties
- ASTM D1004 for tear resistance
- ASTM D4833 for puncture resistance
- Carbon Black Dispersion: Standards require specific dispersion quality, with testing typically requiring 9 out of 10 views in categories 1 or 2 (on a scale of 1-3) .
- Oxidative Induction Time (OIT): Standard OIT should be ≥100 minutes, with high-pressure OIT ≥400 minutes, ensuring long-term resistance to oxidative degradation .
LLDPE geomembrane liners represent a remarkable synthesis of polymer science and practical engineering. By combining the chemical resistance of polyethylene with exceptional flexibility and elongation, they provide reliable containment solutions across an extraordinary range of applications—from landfills protecting groundwater to aquaculture ponds supporting sustainable food production.
The key to their performance lies in their molecular structure—those short branches along the polymer chain that prevent tight packing and confer flexibility without sacrificing durability. When properly manufactured with appropriate additives and installed by qualified professionals, LLDPE geomembranes deliver decades of reliable service.
As environmental regulations become increasingly stringent and the demand for sustainable water management grows, the role of LLDPE geomembranes will only expand. Whether you're designing a new landfill cell, lining an irrigation reservoir, or creating a decorative water feature, understanding this versatile material is the first step toward project success.
