When environmental containment demands absolute reliability, HDPE geomembrane sheet has become the global industry standard. From lining hazardous waste landfills to securing freshwater reservoirs, GEOSINCERE Geosynthetics HDPE geomembranes offer an unbeatable combination of chemical resistance, mechanical strength, and long-term durability. This guide covers everything you need to know—from composition and key specifications to real-world applications, installation practices, and market trends—so you can confidently choose the right HDPE membrane sheet for your project.
An HDPE membrane sheet is a synthetic, impermeable liner manufactured from high-density polyethylene resin. Geomembranes are thin two-dimensional sheets with extremely low permeability, engineered to prevent liquids, gases, and chemicals from migrating through soil. Think of it as a highly engineered plastic barrier designed specifically for demanding containment applications.

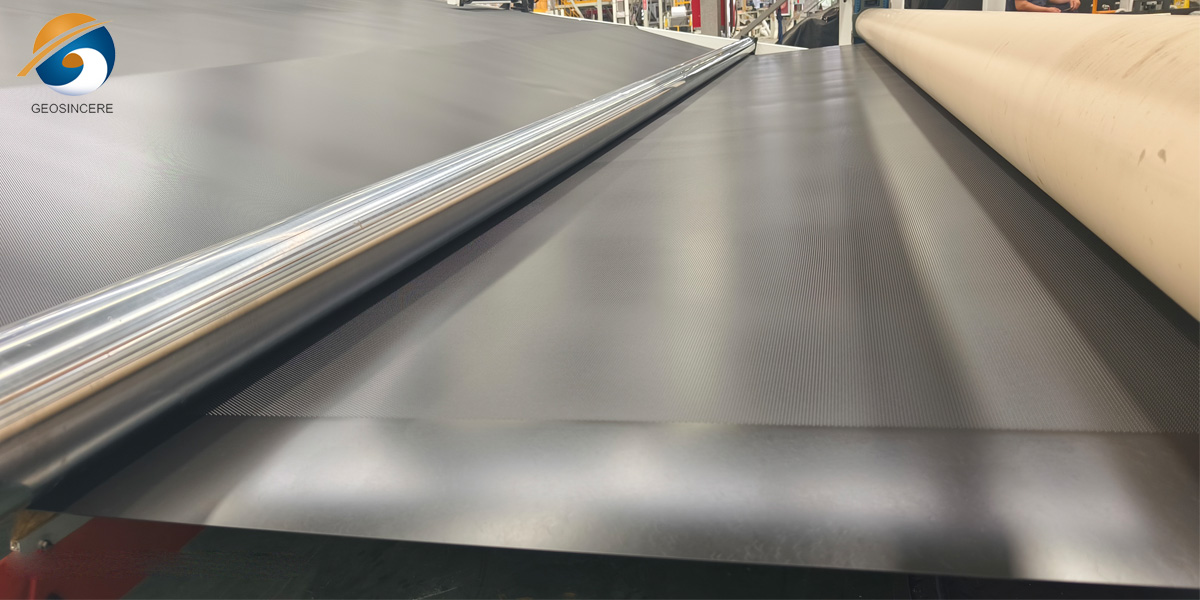

The standard composition of an HDPE geomembrane is approximately 97.5% high-density polyethylene resin combined with about 2.5% carbon black, plus antioxidants, UV absorbers, and processing stabilizers. This precise formulation creates a dense molecular structure that delivers exceptional strength, chemical resistance, and long-term durability.
HDPE membrane sheets are available in thicknesses ranging from 0.2 mm to 3.0 mm, with common specifications including 0.5 mm for aquaculture, 1.0–1.5 mm for landfills and mining heap leach pads, and 2.0–3.0 mm for high-stress or hazardous applications. Roll widths can reach up to 8 meters, with roll lengths typically between 50 m and 400 m depending on thickness和customer requirements.
HDPE has a higher density (0.94–0.96 g/cm³) compared to LLDPE (≤0.939 g/cm³), which gives it superior tensile strength, puncture resistance, and chemical stability. However, it is stiffer and less flexible than LLDPE, requiring on-site thermal welding rather than shop prefabrication.
A quality HDPE membrane sheet must deliver consistent, verifiable performance across several critical mechanical and hydraulic parameters.
Tensile strength for HDPE geomembranes typically ranges from 20 to 55 kN/m (ASTM D6693), with yield strength varying by thickness——a 1.5 mm sheet typically delivers around 22 kN/mm yield strength and over 40 kN/m break strength. Elongation at break exceeds 700%, allowing the liner to accommodate ground movement and settlement without tearing.
Puncture resistance (ASTM D4833) ranges from 320 N for 1.0 mm thick material to over 960 N for 3.0 mm thickness, with tear resistance (ASTM D1004) likewise increasing proportionally. This robust puncture performance allows HDPE membranes to withstand significant physical stress during installation and throughout their service life.
HDPE geomembranes offer an exceptionally low permeability coefficient—typically ≤ 1×10⁻¹³ cm/s (GRI method). This effectively prevents leachate, chemicals, or contaminants from migrating into surrounding soil and groundwater.
HDPE membranes exhibit outstanding resistance to acids, alkalis, organic solvents, leachates (pH 1–14), crude oil, refined hydrocarbons, and saline solutions. This broad-spectrum chemical resistance makes them the material of choice for hazardous waste containment, mining leach pads, and industrial wastewater treatment.
Carbon black content of 2.0–3.0% (ASTM D4218) provides excellent UV stabilization, ensuring reliable performance even in exposed applications. The service temperature range extends from -70°C to +110°C, allowing HDPE membranes to function reliably in freezing Canadian plains, high-altitude regions, and hot desert environments alike.
HDPE geomembranes are engineered with excellent environmental stress crack resistance, a critical property for long-term performance in chemically aggressive environments.
Thickness is the primary design parameter.
0.5–1.0 mm: Suitable for aquaculture ponds, garden water features, and light-duty applications.
1.0–1.5 mm: Standard for landfill liners, mining heap leach pads, reservoirs, and industrial wastewater containment.
1.5–3.0 mm: Specified for high-risk hazardous waste cells, heavily loaded tailings storage, and critical secondary containment.
Smooth HDPE membrane: Offers optimal anti-seepage performance with minimal friction, typically installed with protective geotextile layers on slopes.
Textured (roughened) HDPE membrane: Surface treatment enhances friction coefficient by up to 30%, preventing slippage of adjacent materials and stabilizing steep slope installations.
While HDPE dominates heavy-duty containment, related material variations include:
LLDPE (Linear Low-Density Polyethylene): Softer and more flexible, ideal for uneven ground or sites requiring adaptation to foundation deformation, such as fish ponds and farm reservoirs.
Composite membranes: Combine geomembrane with geotextile in configurations like “one cloth one membrane” or “two cloths one membrane,” providing both anti-seepage and mechanical protection functions.
HDPE membrane sheets serve as reliable low-permeability barriers across multiple sectors. Below are the primary applications:
Landfills account for approximately 40% of HDPE liner applications. Municipal solid waste landfills, hazardous waste cells, construction demolition debris sites, landfill caps, closure covers, and leachate storage ponds all rely on HDPE membranes to prevent contaminant migration. Their ultra-low permeability effectively stops leachate contamination of soil and groundwater, ensuring regulatory compliance.

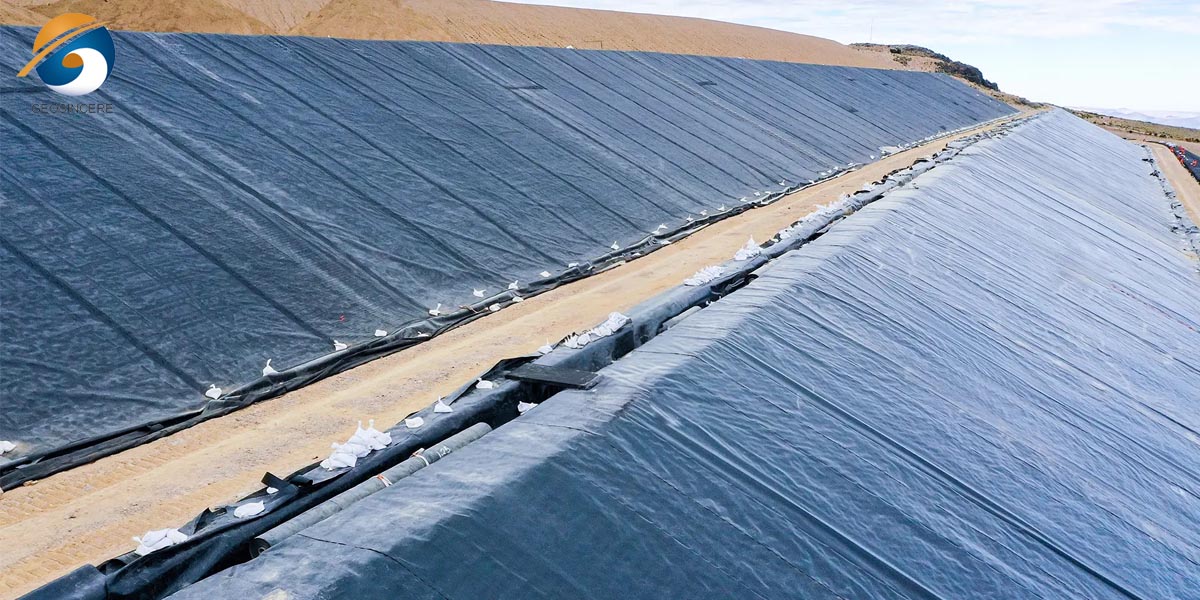

Mining applications represent approximately 25% of HDPE liner usage. Heap leach pads, pregnant leach solution ponds, tailings storage facilities, process solution ponds, and brine lagoons all specify HDPE geomembranes. HDPE anti-seepage geomembranes play a crucial role in mining by preventing leakage of hazardous substances, protecting soil and groundwater, and ensuring environmental safety.

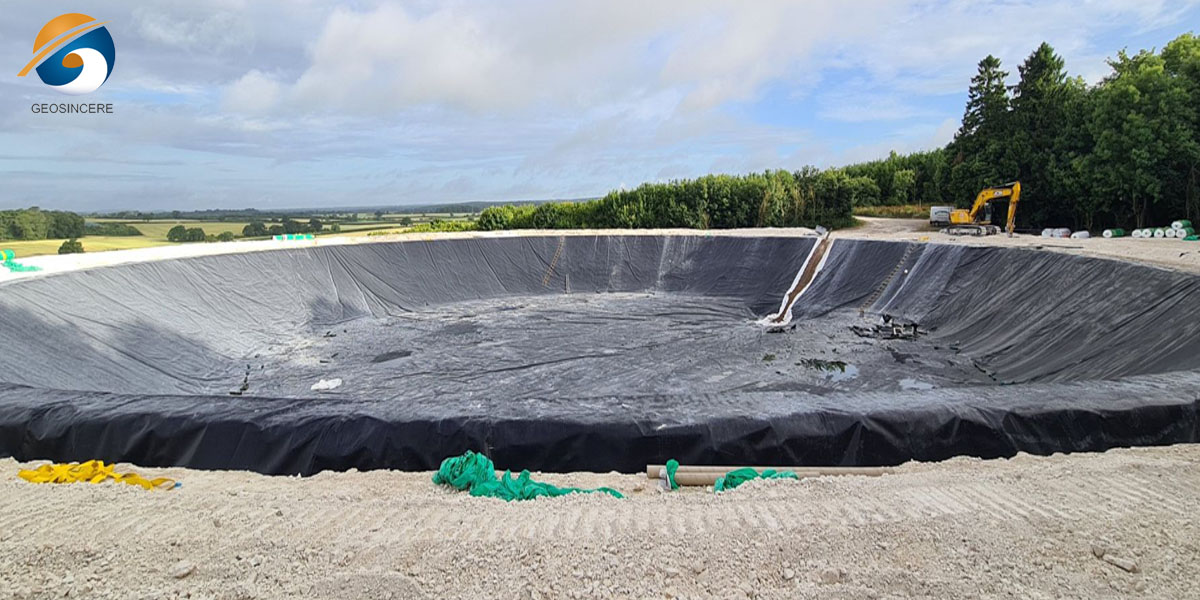

Water management accounts for approximately 20% of applications. Drinking water reservoirs, irrigation canals, dams and embankments, raw water treatment reservoirs, and retention ponds all use HDPE liners to prevent water loss through seepage.
HDPE membranes are widely installed in municipal sewage lagoons, industrial effluent ponds, chemical reaction tanks, and biogas digesters.
Industrial facilities install HDPE liners for spill containment berms around fuel storage tanks, chemical processing areas, reaction tank linings, and sedimentation tanks, providing a secondary barrier that contains any leaks before they reach the environment.
Fish and shrimp farming operations use HDPE liners to maintain water quality, prevent contamination from surrounding soil, and reduce water consumption. Agricultural applications include lining irrigation ditches, channels, storage tanks, and biogas digesters.
HDPE geomembranes are extensively adopted in environmental remediation projects such as industrial brine lagoons and chemical solution ponds at mine sites. Their exceptional flexibility, outstanding mechanical properties, and high durability provide an effective and economical containment solution even at extreme altitudes up to 2,600 meters.

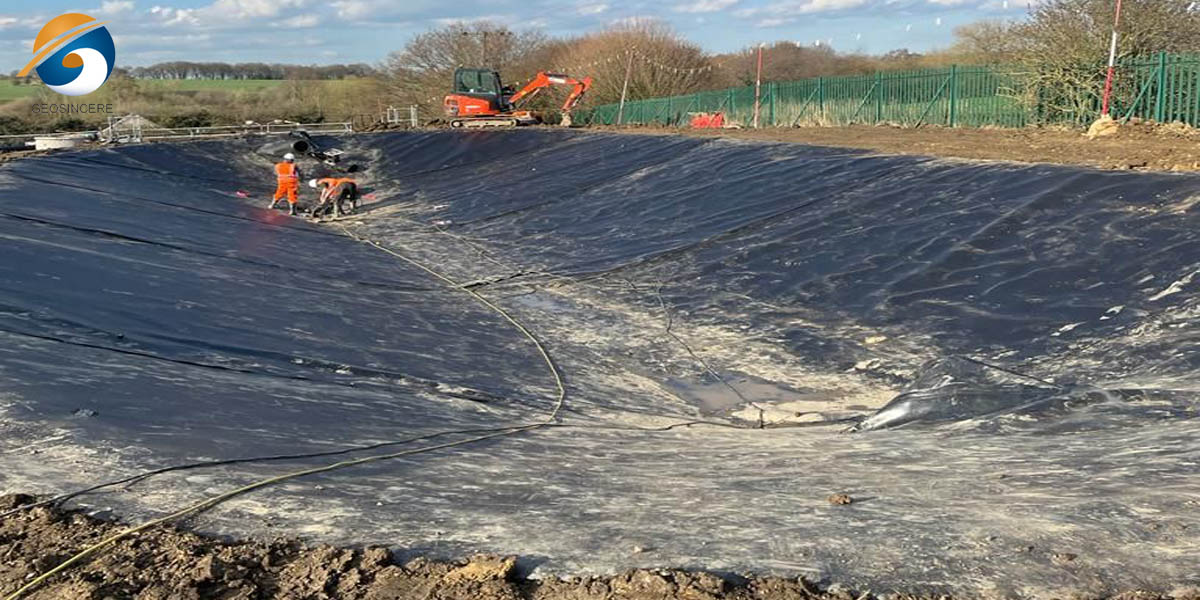

Proper installation is just as critical as material selection. Even the highest-quality HDPE sheet will fail to perform if not installed correctly.
The subgrade must be heavily compacted, smooth, and completely free of sharp rocks, roots, debris, or standing water. Subgrade compaction should achieve a minimum of 95% Standard Proctor density. A geotextile cushion layer is often installed beneath the HDPE membrane for added puncture protection. The golden rule of panel layout is to align seams parallel to the slope (running up and down), never across the slope, to prevent shear stress from compromising weld integrity.
HDPE membrane sheets are joined using thermal fusion welding techniques:
Hot wedge (fusion) welding is the primary method for long, straight seams. A machine-driven heated metal wedge (wiped clean between passes) is inserted between overlapping panels, with overlap typically measuring 100–150 mm (4–6 inches). The wedge melts the inner surfaces, and trailing pressure rollers immediately press them together. The hot wedge machine produces a dual-track seam with an unbonded air channel between the two weld tracks—an engineered feature that allows 100% non-destructive testing.
Extrusion welding is a manual process used for detail work, repairs, pipe boots, corners, T-joints, sumps, patches, and any location where a fusion welder cannot operate. The surfaces to be welded must be thoroughly abraded and cleaned, and the extrusion machine must be purged of heat-degraded extrudate for at least one minute before use.
Before any production welding begins, operators must perform trial seams (test welds) under actual field conditions, typically every morning, afternoon, and whenever weather conditions change.
A comprehensive quality control protocol is essential:
- Air channel testing (non-destructive) : For dual-track seams, the unbonded channel between weld tracks is pressurized to 30 psi (200 kPa). A pressure drop of no more than 2 to 3 psi over a 5-minute testing period is considered a passing result.
- Destructive seam testing: Seam strength must achieve at least 90% of parent material strength.
- Vacuum testing is used for extrusion welds, patches, and irregular detail areas.
- Visual inspections should confirm that the liner is free of physical defects such as holes, blisters, wrinkles, or fish mouths.
- Document all test results for traceability and regulatory compliance.
During seaming, continuous visual inspection and regular hand peel testing are standard practice. The installation site manager must verify that welding personnel are attentive and professional and that all equipment is well-maintained and functioning properly.
Despite a wider selection of geomembrane materials available today, HDPE remains the preferred choice for most primary containment applications due to its superior chemical resistance·and mechanical strength.
|
Material |
Chemical Resistance |
UV Stability |
Puncture Resistance |
Typical Applications |
|
HDPE |
Excellent |
Excellent (with carbon black) |
Excellent |
Landfills, mining, reservoirs |
|
LLDPE |
Very good |
Good |
Good (flexible) |
Fish ponds, uneven ground |
|
PVC |
Moderate |
Fair (ages faster) |
Moderate |
Tunnels, decorative ponds, temporary projects |
|
EPDM |
Good |
Good |
Good (highly elastic) |
Roof gardens, cold climates (higher cost) |
Under proper installation and operating conditions, 50–70 years. When buried, lifespans can reach 80 to 100 years.
0.5–1.0 mm for aquaculture ponds and light landscaping; 1.0–1.5 mm for standard landfills, mining heap leach pads, and reservoirs; 1.5–3.0 mm for high-risk hazardous waste cells, heavy traffic areas, and critical secondary containment.
Yes. Qualified technicians can repair punctures or tears using extrusion welding or patch application following proper surface preparation and welding procedures.
Yes. Manufactured from non-toxic virgin polyethylene resins, HDPE membranes prevent contaminant migration and protect soil and groundwater. The material itself is chemically inert and poses no environmental hazard.
Look for ASTM compliance (D6693 for tensile strength, D4833 for puncture resistance, D4218 for carbon black content), GRI-GM13 certification for landfill-grade materials, and ISO 9001 for manufacturing quality management.
Smooth surfaces offer optimal anti-seepage performance with minimal friction and are typically installed with protective geotextile layers on slopes. Textured surfaces are specially treated to form a rough texture, enhancing friction with adjacent soil by up to 30%, making them ideal for steep slope installations such as landfill caps and high-angle embankments.
HDPE membrane sheets offer an unmatched combination of chemical resistance, extremely low permeability, high mechanical strength, UV durability, and decades-long service life. As the most widely used geomembrane material globally, HDPE has proven its reliability across hundreds of thousands of installations—from landfills and mining operations to water reservoirs and environmental remediation sites.
With global demand rising and environmental regulations steadily tightening, choosing the right HDPE geomembrane today means fewer compliance risks tomorrow, lower lifecycle costs, and peace of mind that your containment system will perform as designed for decades to come.
Every containment project is unique. Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) team of geosynthetics experts is ready to help you select the optimal HDPE membrane thickness, surface type (smooth or textured), and specifications for your specific application—whether landfill, mining, water reservoir, or industrial containment.
Tell us your project requirements—thickness, surface type, surface area, application type, and delivery destination—and we will respond within 24 hours with a customized proposal and pricing.
Choose the proven performance of HDPE membrane sheets. Contact us today and build with confidence.
