Modern landfill engineering is no longer just about waste disposal. It is about environmental protection, regulatory compliance, operational efficiency, and long-term asset management. Municipal solid waste landfills, industrial waste cells, mining residue sites, and hazardous waste containment areas all require reliable barrier systems that can prevent contaminants from migrating into soil and groundwater.
Among all containment materials available today, HDPE liner material has become one of the most trusted solutions for landfill applications. High-Density Polyethylene (HDPE) geomembranes are widely used because of their excellent chemical resistance, low permeability, strong mechanical properties, and long service life. When properly designed and installed, HDPE liners significantly improve landfill performance while reducing environmental risks and maintenance costs.
At GEOSINCERE Geosynthetics, we understand that choosing the right liner system is critical for project success. In this article, we explain how HDPE liner material helps maximize landfill performance and why it remains the preferred choice for reliable containment solutions worldwide.
Landfills create a number of problems not only when they are in use but also after they have been closed. If the problems are not controlled properly, they may cause environmental damages that could become quite expensive and result in penalty fines from regulators.
Leachate is produced when water from rain and waste moisture get mixed. The liquid may contain organics, metals, ammonia, and various other harmful constituents. Failure to install a good liner system would allow the leachate to reach water bodies underground through the soil.
When waste decomposes, landfill gas is produced mainly consisting of methane and carbon dioxide. Since there are gas collection units, barrier systems must fit well with the same.
The volume of waste gets altered due to decomposition and compaction. In order for the liners to accommodate the movement, they have to possess both flexibility and tensile strength.
Under ground, exposed to chemicals and mechanical stress, the landfill liner should be able to perform not only now but even after decades.
That is the reason why using a material that has been proven time and again for containment, such as HDPE, is very important.
HDPE liner material refers to geomembranes manufactured from high-density polyethylene resin. These sheets are engineered to create an impermeable barrier between waste materials and the surrounding environment.
- 1.0 mm
- 1.5 mm
- 2.0 mm
- 2.5 mm
The required thickness depends on project design, waste type, subgrade condition, regulatory standards, and expected stress loads.
- Smooth surface geomembranes for low-friction applications
- Textured geomembranes for slope stability and higher interface friction
- Conductive liners for spark testing and quality control applications
Because of their versatility, HDPE liners are used in base liners, side slope liners, capping systems, leachate ponds, and secondary containment systems.
Landfill leachate chemistry can vary greatly depending on waste composition. HDPE demonstrates strong resistance to many acids, alkalis, salts, and organic compounds commonly found in waste environments.
This makes HDPE suitable for:
- Municipal solid waste landfills
- Industrial waste cells
- Hazardous waste containment
- Wastewater lagoons
- Mining tailings storage facilities
One of the most important functions of a landfill liner is preventing liquid migration. HDPE geomembranes provide extremely low permeability, making them highly effective barriers against leachate escape.
Landfills impose heavy loads from waste placement equipment, cover soil, drainage layers, and waste settlement. HDPE geomembrane is engineered to resist puncture, tearing, and tensile stress during installation and operation.
During installation, liners may be exposed to sunlight and weather before cover materials are placed. Carbon black stabilized HDPE materials offer good UV resistance for outdoor handling.
When manufactured with quality raw materials and installed correctly, geomembrane sheet can provide reliable performance for many years under buried landfill conditions.
The primary purpose of a landfill liner is environmental safeguarding. HDPE liners help isolate waste from surrounding ecosystems, reducing risks of groundwater contamination and soil pollution.
This is especially critical near:
- Agricultural zones
- Urban developments
- Rivers and lakes
- Sensitive groundwater recharge areas
HDPE geomembrane liner work together with drainage geocomposites, gravel layers, and perforated pipes to improve leachate collection system performance. Because the liner forms a smooth barrier, liquids can be directed efficiently toward sump points.
Textured geomembrane HDPE liners increase friction angles between interfaces such as geotextiles, drainage layers, and cover soils. This improves side slope stability in landfill cells and caps.
A properly installed hdpe geomembrane sheet reduces future remediation risks, leakage repair expenses, and environmental compliance costs. Prevention is significantly less expensive than post-failure correction.
Many environmental regulations require engineered liner systems. HDPE geomembranes are commonly specified in landfill designs because they meet recognized technical standards when tested and certified.
Due to its remarkable impermeability, resistance to chemicals, and durability over the long term, hdpe geomembrane sheet is the first choice for the entire landfill infrastructure. With their help, the engineers can configure containment systems that are both safe for soil and groundwater and that also satisfy the regulatory requirements.

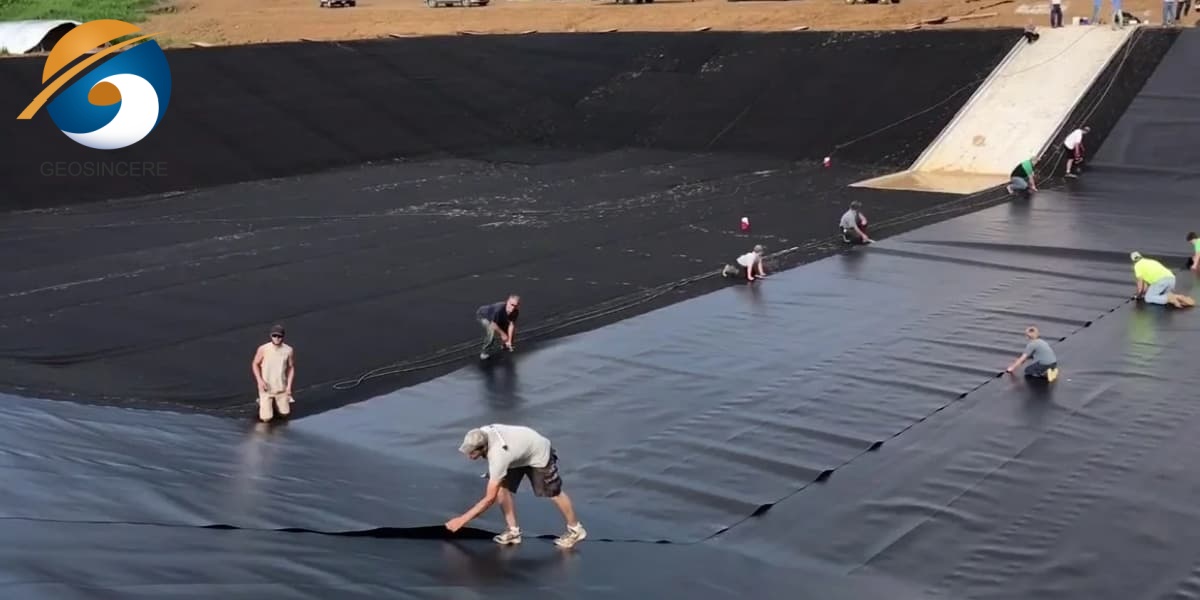

The use of hdpe membrane sheet at landfill cell bottoms serves as the first line of defense against the spread of leachate. Together with geotextiles, drainage cores, and a layer of compacted soil, they constitute a containment system that effectively keeps the pollution of groundwater substances at bay. Also, their high puncture resistance attribute allows them to bear the weight of the waste and the moving of the construction machinery without damage.

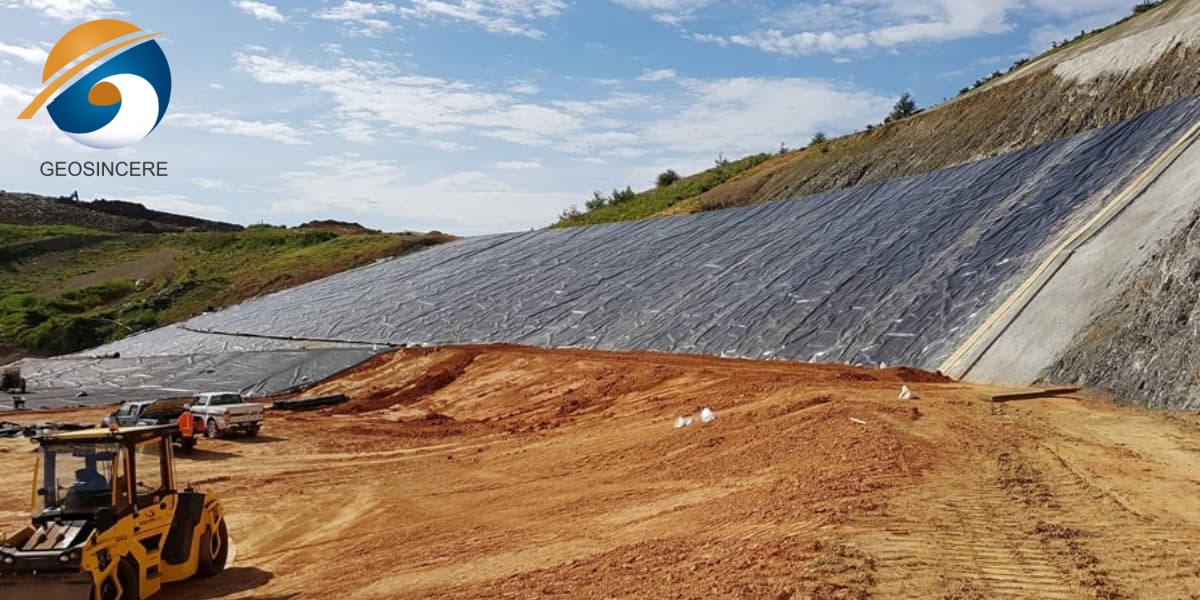

Application of hdpe geomembrane pond liner along the slopes of landfill, embankments, and walls of excavation is a means of manufacturing a full containment envelope. Thanks to their malleability, they can be used to get the shape of even the most intricate slopes. Textured HDPE liners are sometimes applied on the steepest slopes to raise the level of friction and to keep the body stable.
When it comes to closing landfills, high density polyethylene liner is part of the capping system that serves to reduce, if not to completely stop, the infiltration of rainwater and the emission of landfill gases. Because less water enters, the generation of leachate is also minimized, thus making the environmental risks, the maintenance expenses, and the post-closure costs all go down.
Temporary containment of collected landfill liquids before treatment or disposal is one of the main reasons why leachate ponds and storage lagoons are lined with high density polyethylene geomembrane in most cases. When exposed to tough leachate blends and changing environmental circumstances, the chemical resistance of the liners ensures a lasting and successful outcomes.
In landfill facilities, hdpe landfill liner is placed under chemical storage tanks, fuel handling zones, and waste transfer areas to deliver secondary containment. If a spill or leak happens, the liner system is there to keep the contaminants from getting into the soil and the environment around.
The majority of landfill sites make use of polyethylene geomembrane in the stormwater retention ponds and evaporation basins. The liner reduces the seepage losses, makes water management more efficient, and helps the facilities to be in line with environmental regulations concerning runoff control and wastewater handling.
HDPE geo membrane is often involved in landfill expansions and environmental remediation of contaminated sites. By acting as isolation barriers they help in containing pollution, thus supporting environmental restoration over the long term.
Thanks to this multitasking feature, landfilling agents and other stakeholders can harmonize the use of containment materials for different application needs, simplify their procurement chain, and reduce the complexity of the installation process. At the same time, they can continue to ensure environmental protection with one reliable solution.
For landfill applications, selecting the right HDPE liner material involves various environmental and engineering concerns apart from thickness selection only. With a good design, containment will be secured over time, risks will be minimized and the facility will continue to meet regulatory requirements.
Different landfill projects are destined to accept municipal solid waste, industrial sludge or hazardous materials. Each type of waste can have various chemicals in it and so the compatibility of the hdpe liner thickness with these chemicals must be checked to be sure the liner will not get degraded, swollen or stress cracked over time.
Subgrade plays a very important role in the performance of the liner. The base surface must be smooth, compacted well, and it should also be free of sharp stones, roots or other debris. Very often a protective geotextile sheet is laid down before the hdpe smooth geomembrane to protect it from getting punctured and also to enhance its longevity.
Since the design of landfill slopes depends largely on the performance of the liner, the former have to be carefully taken into account. For one thing, if slopes are made too steep the chances of a slip will be higher and that is why textured HDPE liners are usually put in place to raise the friction between the interface. Besides that, anchoring devices that are correctly installed will be indispensable to make sure the stability is upheld even under heavy loads.
Since landfill liner material is a material that changes its dimensions when heated or cooled, it is a must to take into account the temperature of the surroundings, the thermal expansion, and the exposure to UV radiation when planning the installation of the liner. Selecting the time of the day for putting the liners down becomes a convenient way of helping the geomembrane for landfill to stay away from stress and deformation after they have been installed.

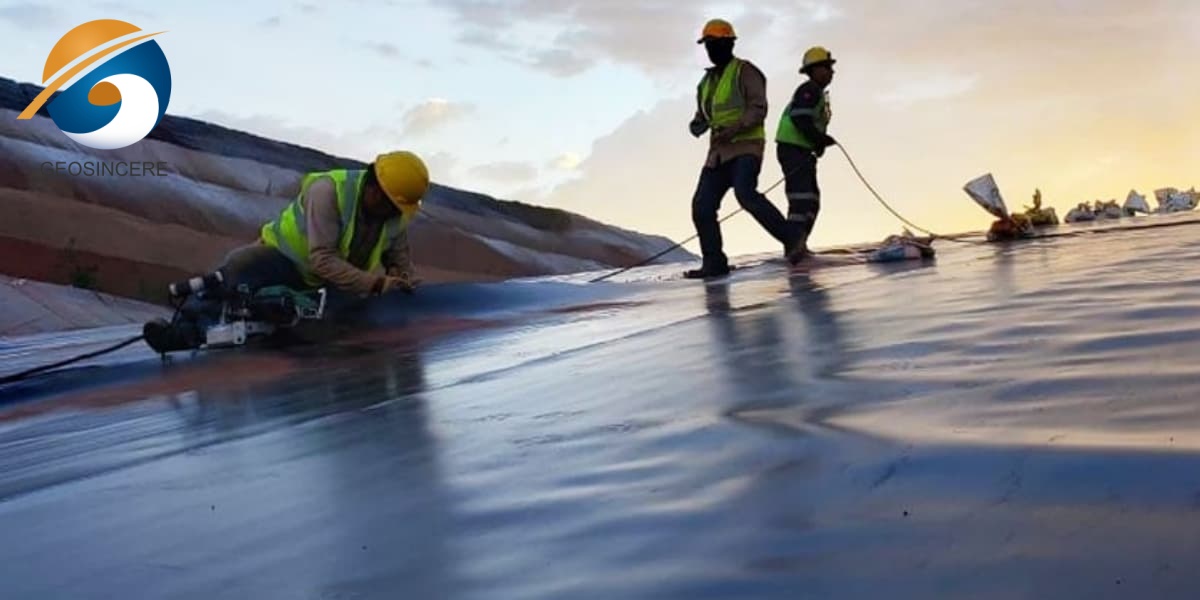

The seaming of hdpe landfill liner is a crucial stage of the installation. Using advanced fusion welding techniques like hot wedge welding and extrusion welding is a must to produce an uninterrupted, leak-proof junction between two pieces. If the weld is of poor quality, it may jeopardize the whole containment system.
To ensure that the installation is intact, rigorous QA/QC processes must be followed. The best HDPE materials installed by untrained people and without thorough checking will hardly be able to perform to the same level as a professionally installed and carefully inspected product.
The following are some examples of tests carried out:
- Vacuum box seam testing
- Air pressure seam testing
- Destructive peel and shear tests
- Spark testing (for conductive systems)
It takes a professional installation and well-thought-out inspection to make a top-level material work in a real, quite demanding, environment.
Proper installation supervision and long-term monitoring are the requirements that go beyond the mere fact of constructing a facility. Checking seams for possible leakages, identifying damages caused by mechanical means, and settlement effects detection are some of the examples of what regular inspections consist of. The aim is to keep the liner system functioning efficiently for the landfill operations as well as during the closure time.
Compared with some alternative liner materials, HDPE often offers a strong balance of durability, chemical resistance, and cost efficiency.
Typical reasons engineers specify HDPE include:
- Proven global performance history
- Wide availability of thickness options
- Compatibility with geosynthetic systems
- Strong mechanical performance
- Competitive lifecycle value
- Established installation methods
For demanding containment environments, this balance makes HDPE a practical long-term investment.
At HDPE Liner Material, we supply high-quality HDPE geomembrane solutions for landfill, mining, water, and environmental containment projects worldwide.
Our strengths include:
- Reliable Manufacturing
We use advanced production lines and strict quality control processes.
- Export Experience
We support contractors, distributors, and project owners across many countries.
- Custom Specifications
Available in multiple thicknesses, widths, lengths, and surface types.
- Technical Support
Our team assists with material selection, logistics planning, and project documentation.
- Consistent Quality
Every shipment is prepared to meet project expectations and international standards.
We understand that landfill projects demand dependable materials because failures are costly. That is why quality matters from raw material selection to final delivery.
Landfill performance depends heavily on the integrity of its containment system. A weak liner can create environmental liabilities, expensive repairs, and regulatory problems. A high-quality HDPE liner, however, delivers long-term protection, efficient leachate control, strong mechanical performance, and reliable chemical resistance.
From new landfill cell construction to closure caps and leachate ponds, HDPE geomembranes continue to be one of the most effective solutions available. Their proven track record makes them a preferred choice for engineers and landfill operators worldwide.
If your goal is to maximize landfill performance with reliable containment solutions, selecting the right HDPE liner material is one of the smartest decisions you can make.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) is ready to support your next project with professional geomembrane products and dependable export service.
