In contemporary civil engineering, water management, and environmental protection projects, HDPE geomembrane liners have become essential for reliable containment solutions. Among the various thickness options, the 80 mil HDPE liner is recognized for its exceptional durability and high performance under demanding conditions.
An 80 mil HDPE liner is a high-density polyethylene (HDPE) geomembrane designed to form a strong, impermeable, and chemical-resistant barrier for a variety of containment purposes. The term “80 mil” refers to the liner’s thickness:
1 mil = 0.001 inch
80 mil = 0.080 inch ≈ 2.0 mm
This thickness provides superior puncture resistance and mechanical strength, making it suitable for heavy-duty applications such as landfills, mining tailings ponds, reservoirs, and industrial effluent containment.
HDPE geomembranes are manufactured using either extrusion or blown film processes. In this process, virgin HDPE resin, often enhanced with carbon black, antioxidants, and stabilizers, is melted and formed into continuous sheets. The sheets are cooled, rolled, and installed on-site, where they are welded to create a seamless, leak-proof barrier.
The effectiveness of an HDPE liner largely depends on its mechanical and chemical characteristics. The 80 mil liner is highly regarded due to the following properties:
The HDPE liner exhibits strong tensile resistance and elongation capacity, allowing it to adapt to uneven foundations and structural stresses without cracking.
Resistant to acids, alkalis, and hydrocarbons, HDPE liners are suitable for chemical storage, industrial waste containment, and hazardous effluent ponds.
Incorporating 2–3% carbon black significantly improves resistance to ultraviolet degradation, ensuring long-term performance even under continuous sun exposure. This feature is crucial for reservoirs, open-air ponds, and floating covers.
The liner has an extremely low permeability (≤ 1×10⁻¹³ cm/s), preventing seepage of liquids into the soil and protecting groundwater from contamination.
With proper installation, an 80 mil HDPE liner can last over 40 years, reducing maintenance requirements and lowering long-term project costs.
The 2 mm thickness allows the liner to withstand punctures from rocks, roots, or mechanical handling during installation.
The geomembrane can be joined using thermal welding methods, including hot wedge and extrusion welding, producing continuous, leak-proof seams that ensure high installation reliability.
GEOSINCERE Geosynthetics employs state-of-the-art extrusion and blown film technologies to manufacture HDPE geomembrane sheets that meet stringent ASTM GM13 standards. Each step of the production process is carefully controlled to ensure high performance, durability, and consistency. Key stages include:
3.1 Selection of Raw Materials
We use only 100% virgin HDPE resin sourced from globally recognized suppliers such as SABIC, Sinopec, or Dow. Choosing premium virgin resin ensures that the geomembrane has superior mechanical strength, chemical resistance, and long-term stability. Raw material selection also allows for uniform melting, smooth extrusion, and optimal compatibility with additives.
During formulation, carbon black, antioxidants, and anti-aging agents are carefully incorporated into the HDPE resin. Carbon black provides excellent UV protection, preventing degradation from prolonged sunlight exposure. Antioxidants and stabilizers extend the material’s lifespan, ensuring the liner maintains its flexibility, strength, and impermeability over decades. The precise formulation is tailored to meet different environmental and chemical exposure conditions.
The molten HDPE resin is processed through advanced extrusion or calendering systems to achieve precise thicknesses ranging from 0.5 mm to 3.0 mm. This process ensures uniformity across the entire roll, with no weak spots that could compromise the liner’s performance. Calendering also allows for optional texturing or smoothing of the surface to match specific project requirements.
Depending on the application, the geomembrane sheet can be produced with either a smooth or textured surface. Smooth liners are ideal for aquaculture, reservoirs, or water storage projects where easy cleaning and minimal friction are desired. Textured liners provide enhanced friction with soil or aggregate layers, improving slope stability and reducing the risk of liner slippage in landfills, embankments, or steep slopes.
Every roll of HDPE geomembrane undergoes strict quality control procedures before shipment. Testing includes measurement of thickness, tensile strength, tear resistance, puncture resistance, and permeability. Each parameter is verified to ensure compliance with ASTM, GSI, or ISO standards. Only materials that pass all tests are approved for delivery, guaranteeing reliable performance and long-term containment safety for the client’s project.
Thanks to its mechanical robustness and low permeability, the 80 mil HDPE liner is widely used in civil, industrial, and environmental projects.
In landfills, the liner prevents leachate leakage and protects groundwater. It serves as a primary bottom barrier and top cap, offering long-term UV stability and compatibility with geotextile and drainage layers.

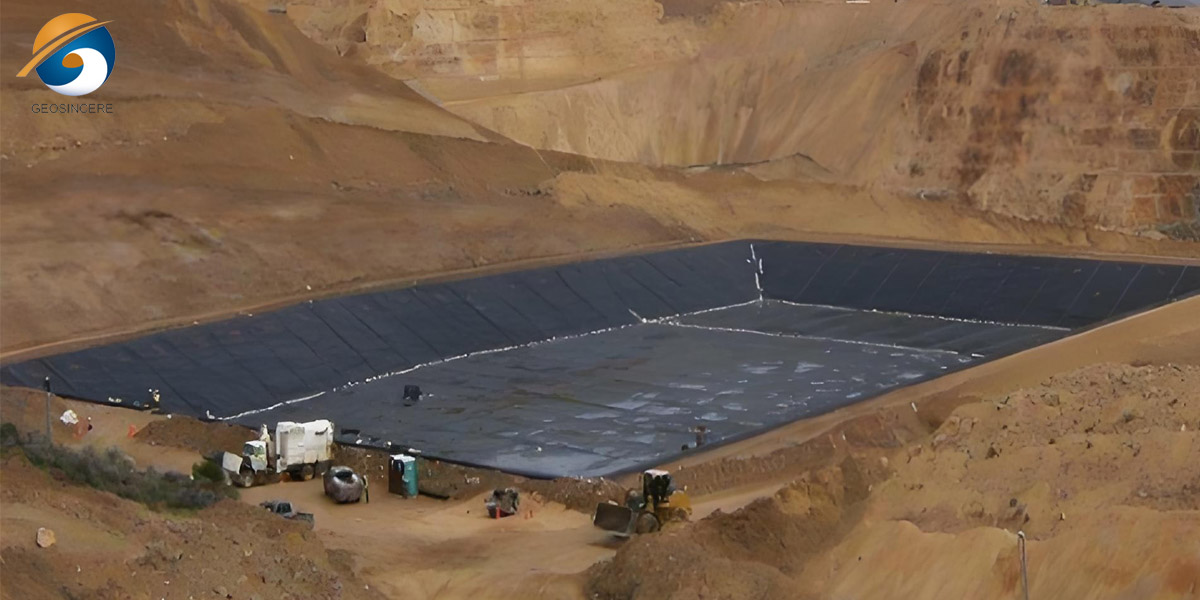

Mining operations use HDPE liners to contain acidic tailings and process water. Their chemical resistance and durability make them ideal for heap leach pads, tailings storage facilities, solution ponds, and secondary containment systems.
For agricultural and municipal water projects, the liner reduces seepage, preserves water storage, and prevents soil erosion along canal banks and reservoir embankments.
Municipal and industrial wastewater ponds rely on HDPE liners to contain treated or untreated effluent, ensuring protection from chemical and biological degradation.
The liner is used as secondary containment beneath storage tanks and in evaporation ponds, reducing hydrocarbon leakage and supporting environmental compliance.
Smooth HDPE liners provide a clean, easy-to-maintain surface for fish and shrimp farms, minimizing seepage and the risk of disease.
HDPE liners in biogas digesters and agricultural lagoons function as liquid and gas barriers, retaining methane and preventing nutrient loss from fertilizers and manure.
GEOSINCERE offers two surface types to meet project-specific needs:
|
Surface Type |
Description |
Suitable Applications |
|
Smooth |
Glossy, low-friction, easy to clean |
Reservoirs, aquaculture ponds, water tanks |
|
Textured |
Rough surface, high friction |
Slopes, landfills, embankments, retaining structures |
Textured liners improve soil-membrane friction, enhancing slope stability in steep terrain.
- Proper installation is critical for performance:
- Site Preparation: Remove rocks, roots, and debris to create a smooth foundation.

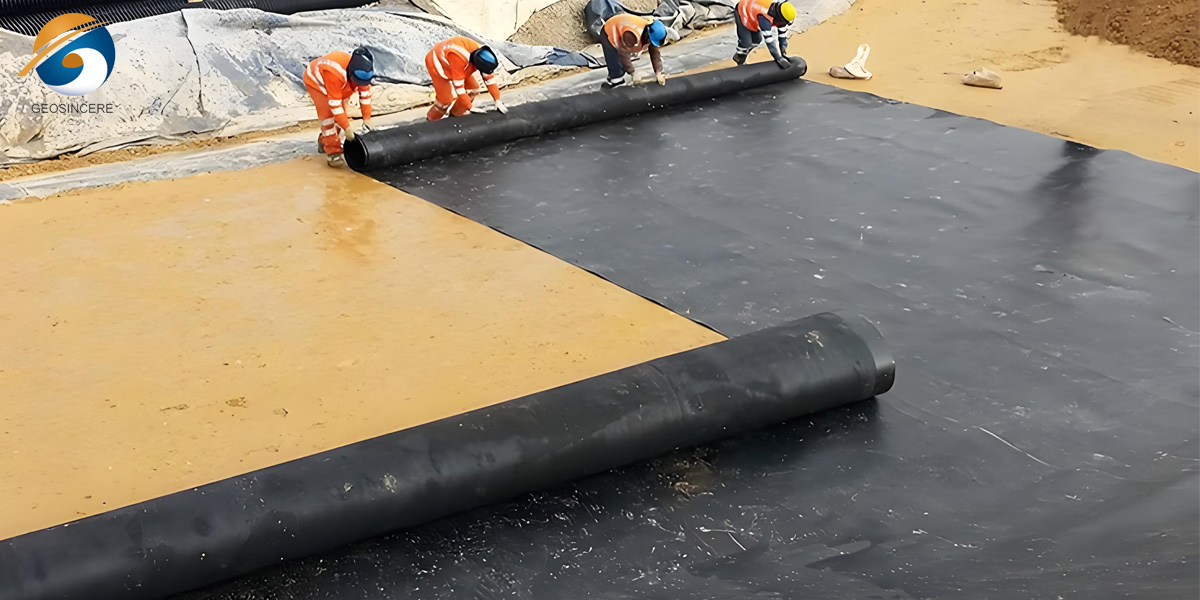

- Liner Deployment: Carefully unroll to avoid wrinkles or overstretching.
- Seaming and Welding: Use hot wedge or extrusion welding; test seams with air pressure or vacuum methods.
- Anchoring: Secure edges in anchor trenches to prevent uplift.
- Inspection & Testing: Conduct visual and nondestructive seam testing (ASTM D6392).
- Protection: Cover with geotextiles or sand where needed to shield from mechanical damage or UV exposure.
GEOSINCERE Geosynthetics provides:
- Competitive Factory-Direct Pricing
- Customizable Options: Width up to 8 m, variable lengths, smooth or textured surfaces
- Global Logistics Support: Export experience to over 100 countries
- Technical Assistance: Design, installation guidance, and on-site training
- Complete Geosynthetics Solutions: Geotextiles, geogrids, geocells, and drainage composites
Using 80 mil HDPE liners helps:
- Protect soil and groundwater from contamination
- Reduce water loss and long-term maintenance costs
- Support renewable energy and waste recycling projects
Although the initial cost is higher than thinner liners, their durability and reduced leakage risk provide better long-term value.
The correct HDPE thickness depends on:
|
Application |
Recommended Thickness |
|
Small ponds / aquaculture |
0.75–1.0 mm |
|
Wastewater lagoons |
1.5 mm |
|
Landfills / Mining |
2.0 mm (80 mil) |
|
Oil containment / secondary liners |
2.0–3.0 mm |
The 80 mil liner provides an optimal balance of strength, durability, and cost efficiency.
Rising environmental standards are driving innovation in HDPE liners:
Multilayer co-extrusion liners with enhanced flexibility
Conductive liners for electronic leak detection
Reinforced composite liners with integrated geotextiles
GEOSINCERE continues to invest in research and development to deliver eco-friendly and high-performance solutions worldwide.
The 80 mil HDPE liner remains one of the most dependable solutions for liquid and waste containment. Its combination of strength, chemical resistance, puncture resistance, and long service life makes it ideal for landfills, mining sites, reservoirs, wastewater ponds, and industrial applications.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) offers premium HDPE geomembranes that meet global quality standards and perform under the most challenging conditions. Whether for design, supply, or installation, our team provides customized solutions, competitive pricing, and professional support to ensure project success.
