When people start looking for geomembrane, there is a nearly automatic assumption that thicker means better. If 30 mil geomembrane liner is good, 60 mil must be twice as good. If 60 mil is better, 80 mil must be even more secure. This kind of thinking makes intuitive sense — after all, more material should mean more protection, right?
The reality is more complicated. Thickness is just one variable in a much larger equation, and in many real-world applications, GEOSINCERE Geosynthetics 30 mil PVC geomembrane can actually outperform materials that are twice its thickness. This is not a sales pitch. It is a fact borne out by decades of field experience, independent research, and a fundamental understanding of how different polymers behave under stress.
Let us start with the basics. A 30 mil PVC geomembrane is a flexible sheet made from polyvinyl chloride resin, combined with plasticizers that give it its signature pliability and stabilizers that protect it from degradation. The "30 mil" measurement refers to its thickness — 30 one-thousandths of an inch, or roughly 0.76 millimeters. That is thinner than a credit card but thicker than heavy-duty trash bags.
The material is manufactured to meet ASTM D7176, the standard specification for non-reinforced PVC geomembranes used in buried applications. Quality products use virgin resins and maintain tight thickness tolerances — typically within ±5% of the nominal thickness. This means a 30 mil sheet will measure somewhere between 28.5 and 31.5 mils across its entire surface, with no thin spots that could become weak points.
The physical properties tell an interesting story. A 30 mil PVC geomembrane delivers a minimum tensile strength of 73 pounds per inch of width and an elongation at break of at least 380%. That elongation figure is crucial — it means the material can stretch nearly four times its original length before tearing. This is not a theoretical lab result. It is the reason PVC geomembranes can accommodate ground settlement, temperature changes, and minor subgrade movement without failing.
The material also holds up well in cold conditions, with impact cold crack resistance down to –29°C. It resists soil burial with minimal changes in breaking factor, elongation, and modulus. And for applications involving standing water, it offers hydrostatic resistance of 100 psi minimum.
The reason 30 mil PVC can do what thicker HDPE cannot comes down to molecular structure. Polyethylene — the material used in HDPE liners — is a crystalline plastic. Its molecules arrange themselves in orderly, tightly packed structures that give it stiffness and strength but also make it rigid. PVC, by contrast, is an amorphous plastic. Its molecular structure is more like a tangled bowl of spaghetti — fluid, unstructured, and inherently flexible.
This difference has real-world consequences. A stiff HDPE liner fights against irregular surfaces. It bridges over depressions rather than conforming to them, creating unsupported spans that can rupture under pressure. PVC, with its amorphous structure, drapes over contours and settles into corners. It does not resist the shape of the ground — it follows it.
This is why a 30 mil PVC liner can be installed on slopes as steep as 3H:1V without slippage, while smooth HDPE typically requires texturing to stay put on anything steeper than about 6H:1V. In fact, research continues to show that smooth 30 mil PVC geomembrane has an equal or higher residual friction angle than textured 60 mil polyethylene. The PVC does not need the texture because it is flexible enough to conform to the soil surface and allow particles to embed in its surface, creating friction naturally.
Here is another area where 30 mil PVC pulls ahead. PVC can be seamed using multiple methods — thermal fusion with hot air or hot wedge welders, or chemical adhesives. The adhesive option is particularly useful because it does not require expensive, specialized equipment. A crew with basic training and the right adhesive can create strong, reliable seams in the field.
But the real efficiency comes from factory fabrication. Because PVC is flexible, large panels can be folded like an accordion and shipped to the site. These prefabricated panels can be as large as 15,000 square feet, and they eliminate up to 80% of the field seaming that would otherwise be required. Fewer field seams mean fewer potential leak points, faster installation, and lower labor costs.
Compare this to HDPE, which must be seamed in the field using hot wedge or extrusion welding equipment. A PVC liner may require as little as 20% of the field seams that an HDPE liner of the same area would need. For a project manager watching both the schedule and the budget, that difference is hard to ignore.
This is not speculative material. 30 mil PVC geomembranes have been used successfully in some remarkably demanding applications.
A paper mill waste landfill required closure in Michigan. The original design called for 40 mil textured LLDPE, but the project team switched to 30 mil smooth PVC instead.
- Performance & Friction: The smooth PVC easily met the minimum friction angle requirements for the site on slopes ranging from 3:1 to 5:1.
- Scale: The project covered two million square feet using 104 PVC panels (32 for one section and 72 for another).
- Quality Assurance: The installation required over 31,000 lineal feet of field seams. Every single inch of every field seam was air-channel tested, and every seam passed, exceeding minimum specifications.
In a retail development project covering 68 acres, 30 mil PVC was used to line stormwater detention ponds that doubled as water features.
- Dual Functionality: The ponds had to prevent leakage while looking attractive.
- Cost & Schedule Efficiency: PVC fitted seamlessly into a fast-track design-build schedule, making the project both secure and affordable.
30 mil PVC geomembranes are widely used in shrimp farms and fish ponds.
- Biological Safety: The material can be formulated as non-toxic and fish-safe.
- Environmental Protection: It provides a reliable waterproof barrier that protects aquatic life and prevents contamination.
30 mil PVC has been used for decades to control seepage in agricultural and municipal canals.
- Seepage Control: Provides a long-term, durable barrier against fluid loss.
- Advanced Application: Engineers developed a prototype system to install 30 mil PVC liner and concrete underwater in an operating canal. The willingness to execute underwater installation demonstrates high confidence in the material's handling characteristics and flexibility.
The most common concern about PVC geomembranes is longevity. This concern is understandable, but the evidence suggests it is often overblown.
In 1995, samples of three different 30 mil PVC geomembranes from three manufacturers were placed at the bottom of a double-lined mine settling basin in Minnesota. The objective was to investigate long-term durability — specifically, a 30-year timeline. The study is still ongoing, and the fact that samples have remained in place for decades speaks to the material's resilience.
Accelerated aging studies provide additional perspective. In water immersion tests at 20°C, one 30 mil PVC material showed a predicted service life of 49 years. Other formulations have shown even longer projections, with some exceeding 150 years. These are laboratory projections, not guarantees, but they indicate that when properly formulated and installed, PVC geomembranes are anything but short-lived.
The key variable is burial. A 30 mil PVC liner buried under at least 12 inches of soil cover has an expected service life of 25 to 50 years. Exposed to direct sunlight, however, PVC degrades faster than HDPE because its plasticizers can be affected by UV radiation. This is not a flaw — it is a design consideration. For buried applications, PVC performs admirably. For exposed applications, HDPE is usually the better choice.
PVC geomembranes have excellent resistance to a wide range of aqueous solutions across a broad pH and temperature range. They handle acids, bases, salts, and alcohols well. This makes them suitable for most water containment applications, agricultural uses, and many industrial settings.
However, there are limits. PVC is not designed for containing certain hydrocarbons, particularly ketones, ethers, and aromatic compounds. Benzene, trichloroethylene, and toluene can affect the plasticizers. Acetone and methyl-ethyl-ketone can attack the PVC structure itself. For aggressive chemical environments, HDPE remains the standard.
The 30 mil PVC geomembrane is an excellent choice for:

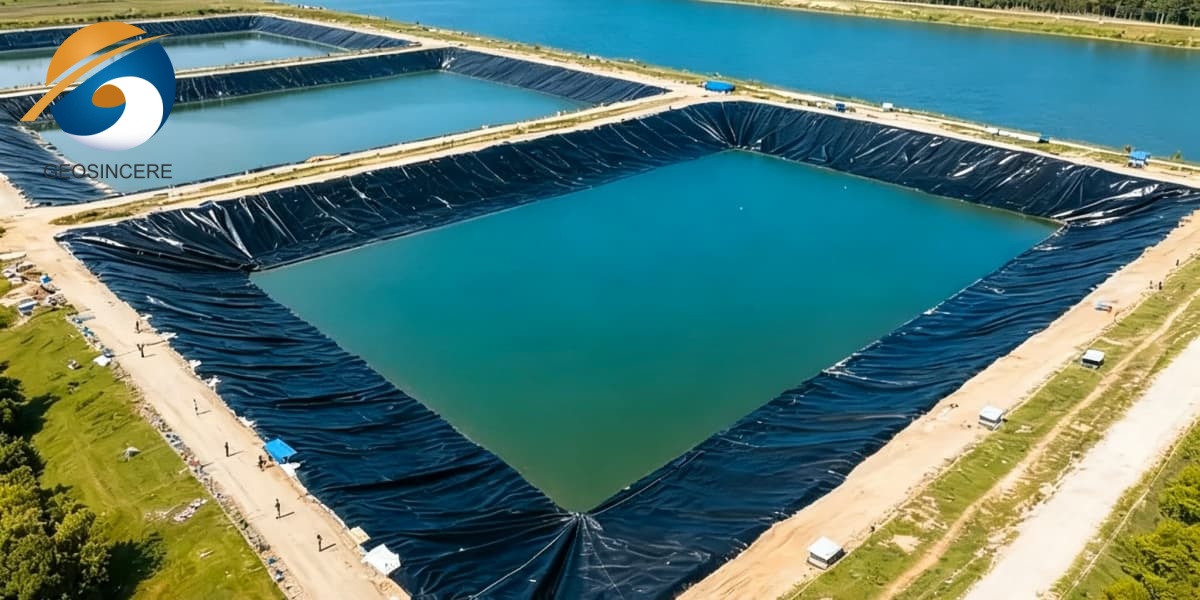

Ponds and water features — decorative ponds, golf course lakes, and irrigation reservoirs
Aquaculture — shrimp farms, fish ponds, and other aquatic farming operations
Stormwater management — detention ponds, retention basins, and water quality control structures
Canals and channels — irrigation canals, drainage ditches, and water conveyance systems

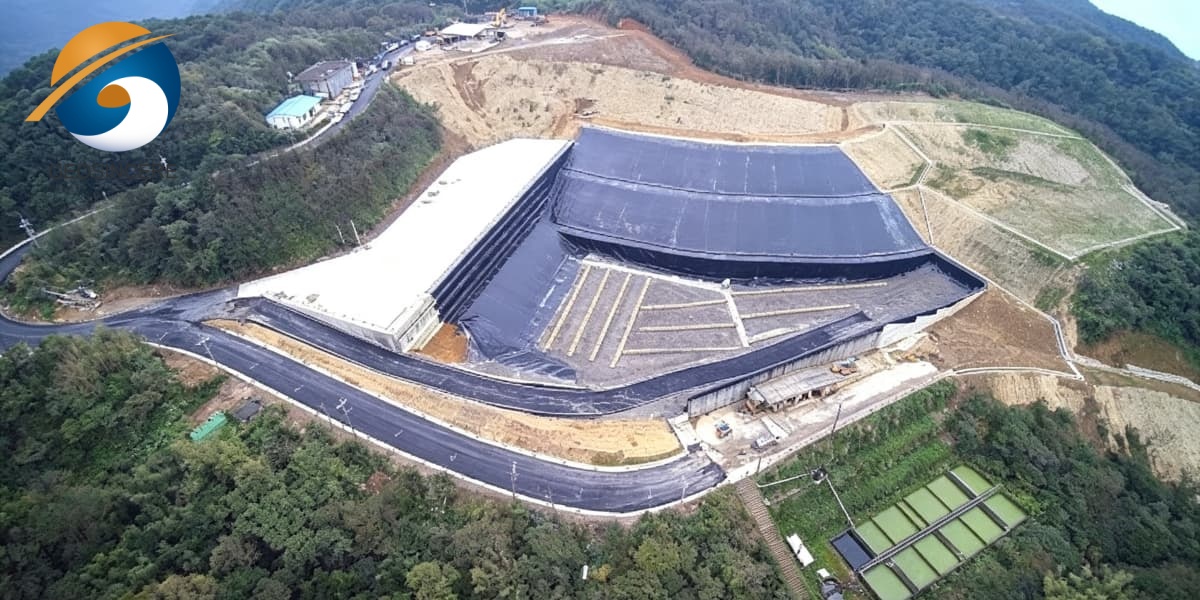

Landfill closures — final covers and caps for waste disposal sites
Smaller installations — projects under 2,000 square meters where a single prefabricated panel can be shipped and installed quickly
- It is not recommended for:
Exposed applications without soil or water cover
Aggressive chemical containment involving ketones, esters, or aromatic hydrocarbons
Primary liners for hazardous waste landfills where regulations mandate HDPE
The 30 mil PVC geomembrane challenges the assumption that thicker is always better. Its amorphous molecular structure gives it flexibility that crystalline materials cannot match. This flexibility translates into better conformability to irregular subgrades, higher friction angles on slopes, fewer field seams, faster installation, and lower overall project costs.
The material has been proven in demanding applications — from two-million-square-foot landfill closures to underwater canal installations. Long-term studies continue to demonstrate its durability, with service lives measured in decades. And while it has limitations, particularly regarding UV exposure and aggressive chemicals, those limitations are well understood and easily managed through proper design and installation.
For the majority of water containment and light-to-moderate industrial applications, Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) 30 mil PVC geomembrane is not a compromise. It is a smart, practical choice that delivers reliable performance without unnecessary expense. Sometimes, the best solution is not the thickest one — it is the one that fits the job.
