In the realm of geosynthetic engineering, the specification of geomembrane liner thickness is not merely a numerical value but a definitive parameter that governs the performance, longevity, and cost-effectiveness of containment systems. Among the various thickness grades available, the "60 mil" geomembrane HDPE 1.5 mm has emerged as an industry standard for demanding applications, ranging from hazardous waste landfills to heap leach pads in mining operations. This comprehensive article delves into the scientific and practical implications of the GEOSINCERE Geosynthetics 60 mil HDPE liner thickness, exploring its material properties, manufacturing tolerances, stress crack resistance, and installation dynamics. We will dissect the engineering rationale behind choosing 60 mil over thinner or thicker alternatives, examine the regulatory frameworks that mandate this specification, and analyze the long-term performance data that validate its use. Furthermore, this paper addresses the critical interplay between thickness, chemical resistance, and thermal expansion, providing a holistic view of why the 60 mil HDPE liner remains the gold standard in secondary containment and environmental protection.
The evolution of geomembranes has been pivotal in modern environmental engineering. High-Density Polyethylene (HDPE) has risen to prominence due to its exceptional chemical resistance, ultraviolet (UV) stability, and impermeability. However, the thickness of the HDPE liner is the most crucial variable that engineers manipulate to ensure structural integrity. The "60 mil" designation—equivalent to 0.060 inches or approximately 1.524 millimeters—represents a specific mass per unit area that balances flexibility with robustness.
The concept of "mil" (a thousandth of an inch) is deeply rooted in the North American manufacturing tradition. A 60 mil HDPE liner is often referred to as a "60-mil textured" or "smooth" geomembrane, depending on the surface finish. While the thickness itself is a physical dimension, its significance extends to mechanical strength, puncture resistance, and the ability to withstand subgrade settlement. This article seeks to provide an exhaustive analysis of why 60 mil is often the "sweet spot" for heavy-duty containment, supported by engineering data, case studies, and standards from the American Society for Testing and Materials (ASTM) and the Geosynthetic Research Institute (GRI).
HDPE is a semi-crystalline polymer. The thickness of a 60 mil liner does not alter the chemical composition but directly impacts the section modulus of the sheet. The section modulus is a geometric property that determines the stress distributed over the cross-section. A 60 mil sheet provides a significantly higher section modulus compared to a 40 mil (1.0 mm) sheet, resulting in greater resistance to bending and flexural stress.
According to ASTM D6693 (Standard Test Method for Determining Tensile Properties of Nonreinforced Polyethylene Geomembranes), the tensile yield strength and break strength are directly proportional to the cross-sectional area. For a 60 mil HDPE liner, the typical yield strength is approximately 29 kN/m (pounds per inch), whereas a 40 mil liner yields around 20 kN/m. This 45% increase in yield strength is critical when the liner is subjected to high overburden pressures, such as in deep landfills or water reservoirs. The thickness ensures that the liner does not neck down or thin out prematurely under sustained loads.
Puncture resistance, measured via ASTM D4833 (Index Puncture Resistance of Geomembranes), is exponentially related to thickness. A 60 mil HDPE liner can withstand puncture forces exceeding 630 lbs (2800 N) for smooth sheets. In comparison, a 30 mil liner might fail at under 300 lbs. This is particularly vital when the liner is installed over angular subgrade materials or when heavy construction equipment operates directly on the surface. The 60 mil thickness provides a "sacrificial buffer" that absorbs localized stress concentrations without propagating tears.
Tear propagation resistance (ASTM D1004) is another critical factor. The thickness of the 60 mil sheet ensures that if a tear initiates at a seam edge or a sharp particle, the energy required to propagate that tear is substantially higher than in thinner gauges. This property is often referred to as "toughness," and it is the primary reason why regulatory agencies favor 60 mil for hazardous waste storage.
It is a common misconception that a "60 mil" liner maintains exactly 1.5 mm across its entire surface. In reality, ASTM D5998 (Standard Specification for Polyethylene Geomembranes) allows for tolerance variations. Typically, the minimum thickness at any point must not be less than 90% of the specified value, meaning a 60 mil liner must measure at least 54 mils (1.37 mm) at its thinnest point.
However, the "average thickness" measured per ASTM D5199 (Standard Test Method for Measuring the Nominal Thickness of Geosynthetics) must be at least 60 mils. This distinction is crucial. Manufacturers utilize sophisticated extrusion dies and laser gauge controls to maintain uniformity. When an engineer specifies 60 mil, they are ensuring that even with manufacturing tolerances and wear on the extrusion die, the liner remains above the critical threshold required for hydraulic barrier performance. Furthermore, the supplier often adds a "scrim" or "co-extrusion" layer in textured variants, where the base thickness remains 60 mils, but the asperities (peaks) add additional volume, increasing the overall thickness measurement to 70 or 80 mils for the composite.
Forty-mil HDPE liners are often used for ornamental ponds and secondary containment of non-hazardous chemicals. However, they are rarely suitable for hazardous waste. The lower resistance to root penetration, insect damage, and subgrade settlement makes them riskier for long-term projects. In a 50-year design life scenario, the cumulative creep and fatigue of a 40 mil liner are significantly higher.
While 80 mil HDPE liners exist, they are often over-engineered for standard applications. The increased thickness drastically reduces flexibility, making installation more difficult—especially in cold weather where the liner becomes rigid. Furthermore, the increased material cost (approximately 33% more raw polymer) does not always justify the incremental performance gains in puncture and stress crack resistance, which are already adequate at 60 mils. The 80 mil is typically reserved for very high-heap leach pads with extremely aggressive acids, but for 90% of municipal and industrial projects, 60 mil is the designated standard.
The 60 mil thickness sits perfectly between flexibility and strength. It is thick enough to withstand the "ballast" loading of a 24-inch soil cover (approximately 2.5 kPa) without excessive deformation, yet thin enough to conform to subgrade contours and minimize bridging over voids. This adaptability reduces the risk of stress cracking at anchor trenches.
One of the most significant risks for HDPE liners is environmental stress cracking (ESC). ESC occurs when the polymer experiences tensile stress in the presence of surfactants or aggressive leachate. The resistance to this failure is measured via ASTM D5397 (Standard Test Method for Evaluation of Stress Crack Resistance of Polyolefin Geomembranes Using Notched Constant Tensile Load Test).
In the "Notched Constant Tensile Load" (NCTL) test, the time to failure is directly correlated to the thickness of the material. A 60 mil liner generally exhibits a higher Stress Crack Resistance Factor (SCRF) than a 40 mil liner. The thicker cross-section provides a larger "ligament" of material to resist the propagation of micro-cracks. While the resin formulation (i.e., the amount of carbon black and antioxidant package) is the primary determinant of SCR, the thickness acts as a multiplier. In a study published in the Geosynthetics International Journal, 60 mil sheets demonstrated a failure time in the NCTL test of over 5,000 hours, which is often the benchmark for "high performance" liners. This ensures that the liner can endure the high-stress environment of a landfill base, where temperature fluctuations and chemical exposure are constant.
While HDPE is inherently a low-permeability material (permeability coefficient of ~10^-12 cm/s), the thickness plays a crucial role in advection and diffusion. The fluid flow through a geomembrane under a hydraulic gradient is governed by Fick's Law of Diffusion and Darcy's Law for viscous flow.
Assuming no defects, the 60 mil liner has a permeability that is essentially identical to a 40 mil liner—as the intrinsic permeability is a material property, not a thickness property. However, the total flux through the liner (if considered as a continuum) is inversely proportional to the thickness. For a given hydraulic head, a 60 mil liner will allow less volumetric flow per square meter than a 30 mil liner. More importantly, the thickness acts as a barrier to volatile organic compound (VOC) migration. The diffusion coefficient of VOCs through HDPE is low, but the "path length" for diffusion is directly the thickness. A 60 mil path length reduces the mass transfer rate of contaminants by a measurable margin over a 100-year time horizon compared to thinner liners.
The thickness of 60 mil HDPE is optimal for the double-track fusion weld process, the industry standard for joining geomembrane panels. During extrusion welding or fusion welding, the heat transmission through the polymer takes a specific amount of time. A 60 mil sheet provides a "thermal mass" that allows for a wider welding temperature window (typically between 400°F and 500°F) without burning or degrading the polymer. If the liner were 80 mil, the internal heat might not reach the core effectively, leading to "cold welds." Conversely, a 40 mil liner is more susceptible to "burn-through" because the heat penetrates too quickly. The 60 mil gauge provides the "thermal buffer" necessary for consistent, strong seam peel strengths exceeding 400 N/cm when tested per ASTM D6392.
In field conditions, subgrade is rarely perfect. The 60 mil thickness allows for some "bridging" over small voids (less than 2 inches in diameter). While a liner is never designed to be a structural bridge, the 60 mil thickness gives field crews a slight margin for error if a small stone is missed during subgrade inspection. The stress relaxation behavior of 60 mil HDPE is well-documented; it stretches locally to accommodate subgrade settlement without yielding, whereas thinner liners might undergo localized necking leading to perforation.
During installation, empty geomembranes are susceptible to wind uplift. Thicker liners (60 mil) have a higher mass per unit area (approximately 0.85 lbs/sq ft) compared to 30 mil (0.42 lbs/sq ft). This increased weight helps resist wind displacement during the temporary phase of construction, reducing the need for sandbagging and reducing the risk of the liner "ballooning" and tearing at the seams.
The United States Environmental Protection Agency (USEPA) mandates that hazardous waste landfills (Subtitle C) and municipal solid waste landfills (Subtitle D) utilize geomembranes with a minimum thickness of 60 mils. This is codified in the Resource Conservation and Recovery Act (RCRA) regulations. The rationale provided in the EPA's technical guidance documents cites the 60 mil thickness as the minimum required to ensure the "strength and integrity of the barrier layer" under the mechanical stresses associated with waste placement and settlement.
ASTM D5998 outlines specific requirements for polyethylene geomembranes. For a 60 mil liner, it specifies the physical properties—density (0.94 g/cm³), melt flow index, carbon black content (2.0-3.0%), and dimensional stability. The standard explicitly requires that the average thickness (as determined by ASTM D5199) must not be less than 95% of the nominal thickness for smooth sheets, ensuring that the 60 mil spec is rigorously enforced at the factory level.
The Geosynthetic Research Institute's standard GRI-GM13 is the most widely accepted specification for HDPE geomembranes. It sets the bar high for a 60 mil liner, requiring a carbon black dispersion rating of 1 or 2, oxidative induction time (OIT) minimums (both standard and high-pressure), and strict specific gravity limits. The 60 mil specification in GRI-GM13 is the default "base case" for all performance testing.
While the primary chemical barrier is the resin itself, the thickness contributes to the service life regarding oxidation. Anti-oxidants are included in the resin formulation to prevent thermal and photo-oxidation. As the liner ages, antioxidants deplete from the surface inward. The 60 mil thickness provides a greater "reservoir" of antioxidants in the core compared to a thinner liner. This reduces the rate of "diffusion limited oxidation" (DLO). In elevated temperature applications (e.g., leachate collection pipes exposed to solar radiation before burial), a 60 mil liner experiences a longer induction time before the polymer chains begin to cross-link and become brittle. The long-term durability modeling, often based on Arrhenius kinetics, suggests that a 60 mil liner is designed for a service life exceeding 100 years in a buried environment, whereas a 30 mil liner might degrade to a brittle state in 50 years under the same conditions.
The cost of a 60 mil HDPE liner is typically measured in dollars per square foot. Although the raw material cost is approximately twice that of a 30 mil liner, the cost-benefit analysis heavily favors the 60 mil for critical applications. The "lifecycle cost" is significantly lower when factoring in the reduced risk of leakage, the lower probability of a catastrophic failure, and the higher insurance ratings associated with robust containment systems. Furthermore, the efficiency of installation—less downtime, fewer repairs, and a lower seam failure rate—often offsets the initial material premium. In a typical 10-acre landfill, choosing 60 mil over 80 mil saves roughly 15-20% on material costs while still complying with all regulatory requirements, making it the most economically efficient choice for total containment solutions.

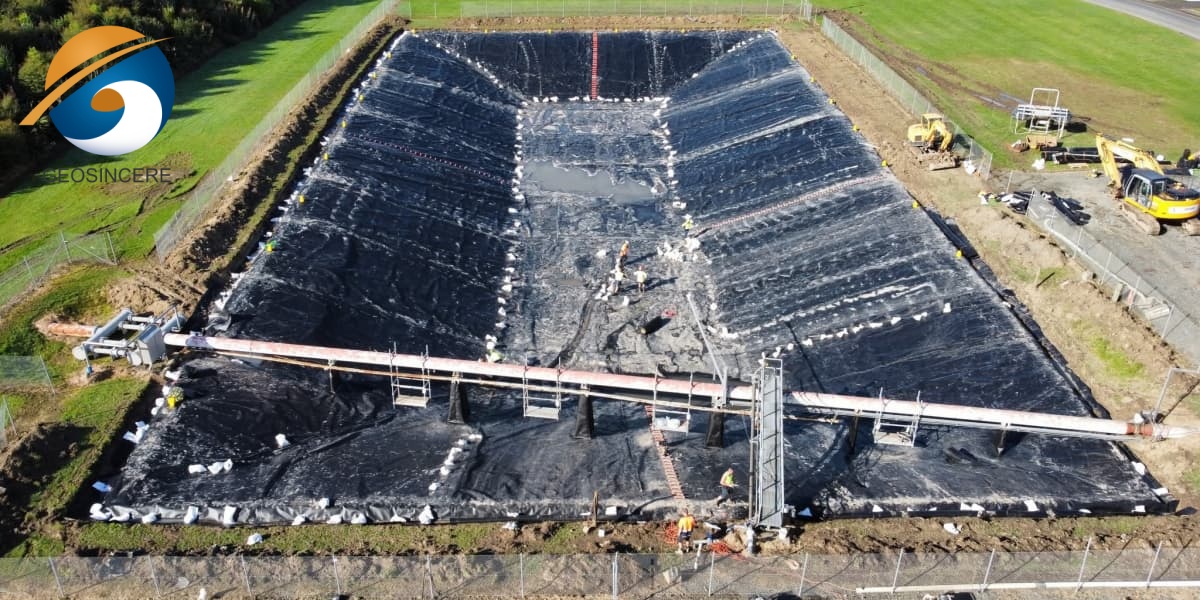

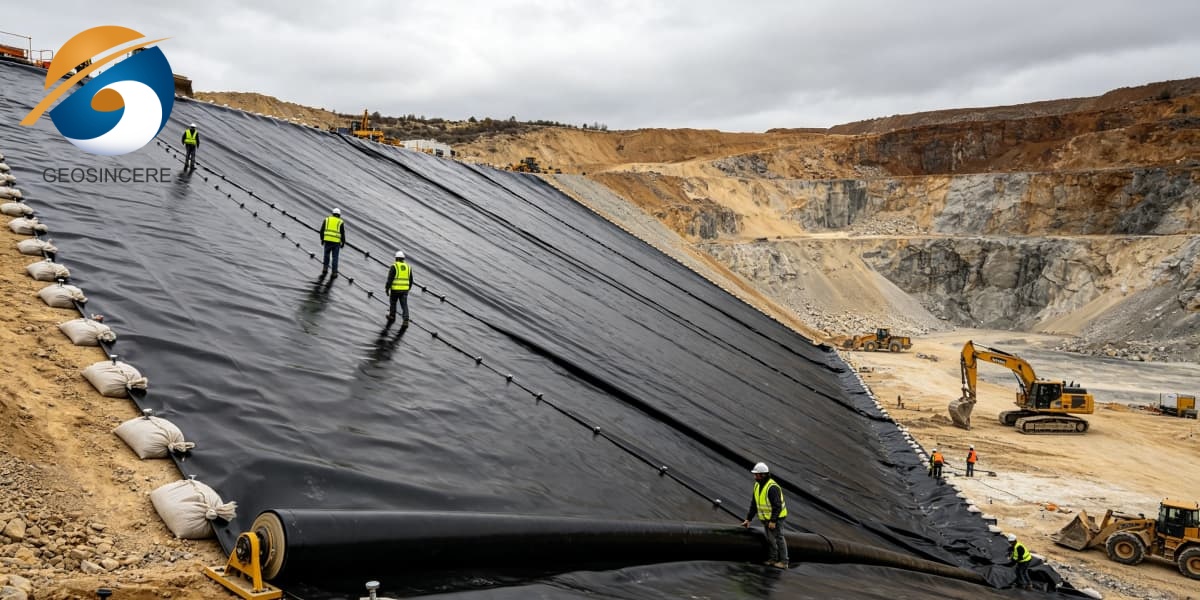

In the mining industry, heap leach pads require robust liners to contain sulfuric acid and cyanide solutions. A 60 mil HDPE liner is the industry standard. Consider a gold mining operation in Nevada. The liner is exposed to aggressive chemical solutions, heavy vehicle traffic, and sharp rock fragments. The use of a 60 mil textured geomembrane is critical to provide shear resistance between the liner and the granular drainage layers. If the liner were thinner (e.g., 40 mil), the shear stress (calculated as the weight of the ore multiplied by the coefficient of friction) would exceed the shear yield point of the polymer, causing the liner to "wrinkle" or "slide" down slopes. The 60 mil thickness provides the necessary shear resistance (measured via ASTM D5321) to maintain the structural stability of the liner system on 3H:1V slopes. Historical data from this mine shows that after 10 years of operation, the 60 mil liner exhibited less than 2% deformation, whereas adjacent test plots using 40 mil showed signs of stress cracking within 5 years.
Modern regulations often require a composite liner consisting of a geomembrane and a compacted clay liner, or a "double-liner" system with a leakage detection layer between two geomembranes. In this configuration, the primary (upper) liner is often 60 mil, while the secondary (lower) liner is also specified as 60 mil in high-risk facilities. The thickness of both liners is vital to ensure that the leak detection system functions effectively; a thinner liner might puncture and allow direct hydraulic continuity between the upper and lower systems. The hydraulic transmissivity of the drainage layer depends on the overburden pressure, which is best distributed by the 60 mil liner's structural resilience.
To maximize the performance of a 60 mil HDPE liner, installation must adhere to strict guidelines:
A 60 mil sheet expands and contracts significantly with temperature changes (coefficient of thermal expansion ~1.2 x 10^-4 /°C). Installers must leave slack in the field to prevent "tenting" during hot weather.
Seams must be tested via air pressure (ASTM D7177) for double-track welds. The thicker material holds pressure more effectively, allowing for a 30-minute hold time.
Patches used on a 60 mil liner must be at least 60 mil thick to maintain uniformity. Extrusion welding requires preheating the thicker material to prevent "cold lap" defects.
While 60 mil is the current standard, there is ongoing research into "nano-composite" HDPE materials that could allow for thinner liners (e.g., 40 mil) with equivalent performance due to increased tensile modulus. However, until such materials are proven in the field and accepted by regulatory bodies, the 60 mil thickness remains the conservative, proven choice. The development of "high-density" grades with enhanced environmental stress crack resistance (known as "HDPE-ESCR") often recommends 60 mil as the minimum to ensure that the mechanical properties are fully realized.
The 60 mil HDPE liner thickness is more than a specification; it is a comprehensive engineering solution designed to mitigate risk, ensure regulatory compliance, and provide long-term environmental protection. By balancing mechanical strength, chemical resistance, installation practicality, and economic feasibility, the 60 mil thickness has established itself as the universal benchmark for geomembrane applications.
From the manufacturing floor to the field deployment, the thickness of 60 mils ensures that the liner can endure the rigors of construction, the stress of waste containment, and the slow creep of time. It offers a "factor of safety" that thinner liners cannot provide, yet it avoids the rigidity and cost of unnecessary over-engineering. For engineers, contractors, and environmental regulators, the specification of 60 mil HDPE is a commitment to durability. As we look toward the future of waste management and water conservation, the 60 mil HDPE liner will undoubtedly continue to play a pivotal role as the foundational barrier in our efforts to protect the environment from anthropogenic contamination.
The standard is set. The performance is validated. The 60 mil HDPE liner thickness represents the confluence of material science and practical engineering, ensuring that our containment systems remain impermeable for generations to come. As the industry evolves, this thickness will likely remain the baseline against which all future innovations are measured, solidifying its status as the gold standard in geosynthetic barrier technology.

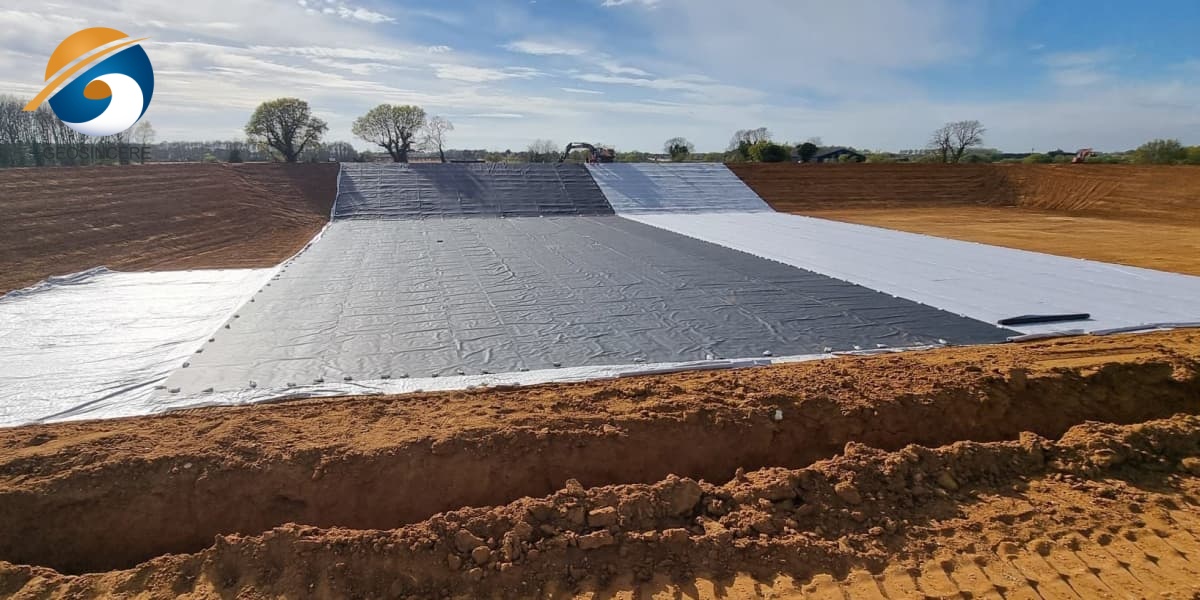

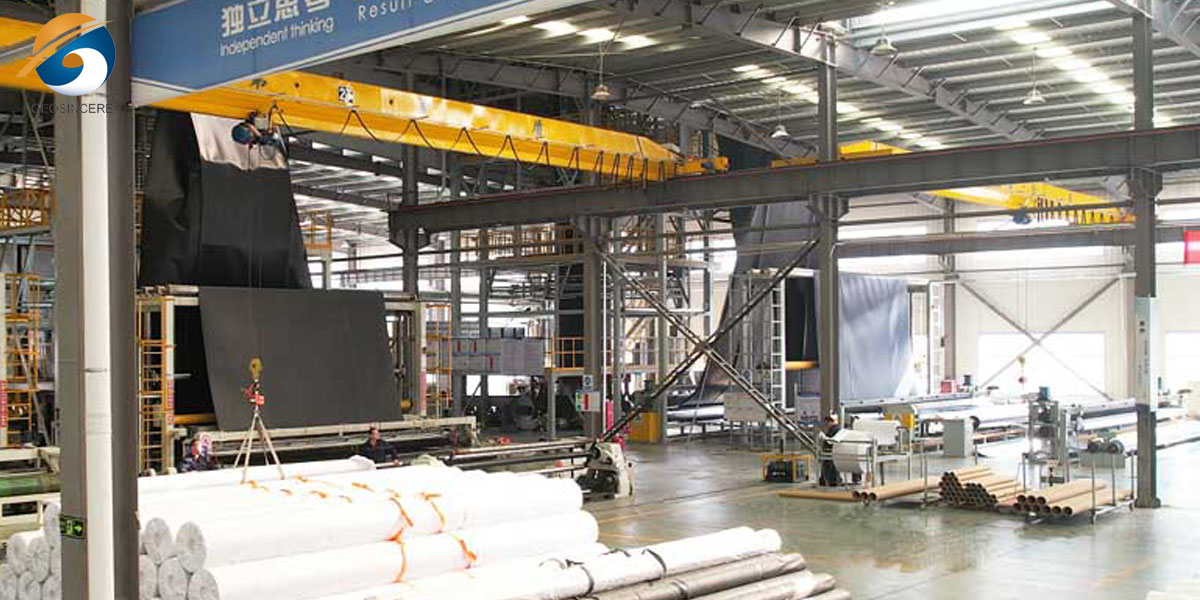

Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality HDPE geomembranes and other geosynthetics with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness.
