PVC Geomembrane is a very flexible and particularly one of the most popular impermeable lining materials in civil engineering water projects and environmental protection. To meet the increasing world demand for reliable waterproofing and pollution control systems, PVC geomembrane liners are providing the means of sustainable infrastructure development. With tightening environmental conservation regulations worldwide, engineering companies are increasingly turning to these liners as a way to achieve zero-leakage standards and reduce environmental risks.
One of the main reasons why PVC geomembrane liner remains the most popular geomembrane material is that, it can easily be installed on any locality that is less accessible. Besides flexibility and adaptability of the site conditions, it can be the choice for the projects involving movements, deformations and irregular shapes. The membrane can be stretched so much that it can be shaped to fit the irregularities of uneven ground and can withstand differential settlement without being punctured or torn. Also, its excellent tear strength combined with a very good resistance to cold temperatures make it very reliable for use in outdoor applications and difficult environmental conditions.
The materials used for the construction of PVC sheets are relatively inexpensive thus, making the project cost to down while quality is maintained. Moreover, as a result of improving technologies, PVC sheets can be produced easily in factories and, thus, reduce the installation time in the field and number of equipment needed for welding.
Whether the application is agricultural ponds or environmental protection systems, the GEOSINCERE Geosynthetics PVC geomembrane offers a reliable and economical method of controlling leakage and contamination. By meeting the demand for high quality performance and at the same time, controlling the costs over life cycle, PVC geomembrane is continuously setting new standards for lining technologies, proving its role as a protector of engineering structures and a conservator of the earth's water resources, which are very limited.
PVC geomembrane can be defined as a plastic sheet manufactured mainly from plasticized polyvinyl chloride (PVC) formulated to make it flexible and resistant to degradation. The mixing of various additives and plasticizers in different amounts result in an optimal balance of properties for each application.
The major component of PVC geomembrane is polyvinyl chloride, usually in a resin form. Plasticizers are usually combined with the PVC resin to achieve the desired plasticy and flexibility requirement. UV stabilizers, antioxidants and various other compounds are added to make sure the membrane does not get affected by degradation from exposure to sunlight and other environmental conditions causes its decay.
Some of the important properties:
- High flexibility and elongation
- Excellent waterproof performance
- Good chemical resistance
- Easy welding and installation
- Adaptability to complex shapes

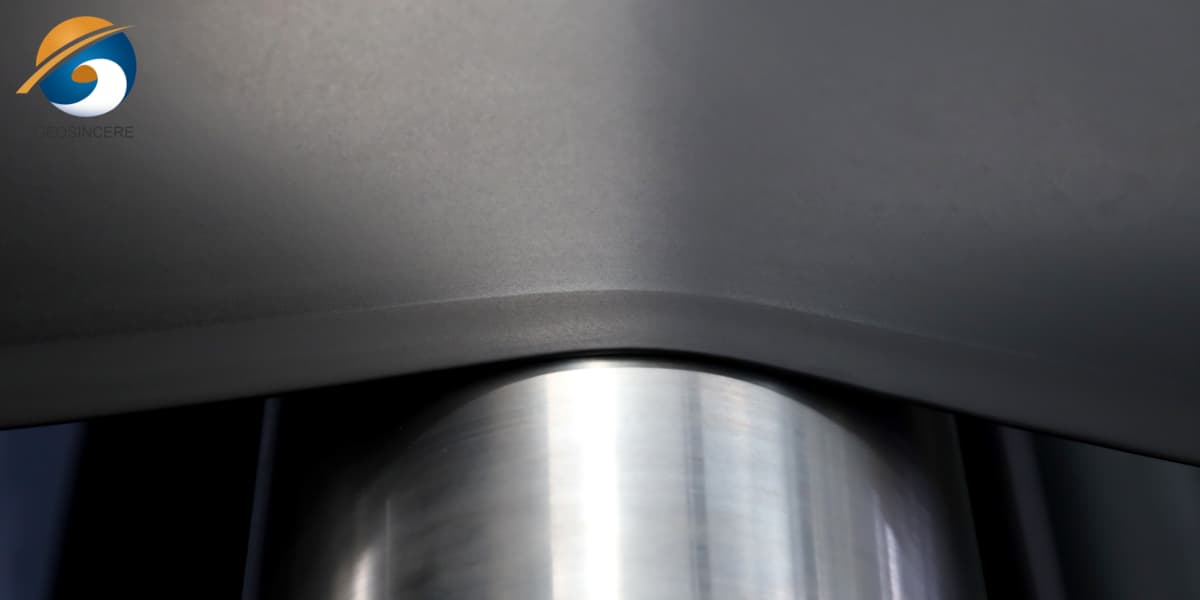

Calendering and extrusion techniques are the most commonly used processes for the production of PVC geomembranes, which also guarantee that sheets remain even thickness wise and smooth surface wise. After the PVC raw materials have been blended and heated during the calendering process, the PVC mixture is rolled through heavy precision rollers to produce a membrane of a certain thickness and with a smooth surface. Another manufacturing technique, extrusion, consists of forcing molten PVC through a slot die as the method for producing geomembranes that have highly homogeneous properties both along and across the machine directions. To obtain flexible properties compatible with bending and deformation, plasticizers are incorporated into the membrane formulation.
To guarantee excellent performance of PVC membranes when exposed to different environmental conditions, major focus is given to quality control during the manufacturing processes. High technology inline quality controlling methods are being used nowadays in most plastic processing lines for the detection of tiny pinholes or thickness variations thus ensuring that every sheet meets the global requirements for engineering applications before it is shipped.
Flexibility is a remarkable feature of PVC geomembrane. This flexibility allows the material to instantly mold itself to any irregularities of the ground, to the surfaces of the curves, and to the complicated shapes of the structures without getting cracked or broken. Thus, when the liner is exposed to small settlements or movements of the soil, it is very likely to stay unharmed. These properties are in fact so exaggerated that when PVC is made for sharp bends and other complicated shapes, it can hardly be compared to any other stiffer materials that would visibly develop cracks under the stresses.
For the purpose of designing reservoirs, ponds or other containment systems, PVC geomembranes would be the best option as they provide an extremely effective prevention of water and liquid migration. Water movement through the geomembrane (hydraulic conductivity) is so low that it effectively results in zero leakage. As a consequence, the water supply will be maintained and the subgrade will not get saturated and unstable.
Hot air or solvent welding are two welding techniques widely used to join PVC geomembranes. Thanks to either welding method, the installation can be carried out fast and the seams will have excellent performance at the same time. By employing thermal welding, the joints are fused into one-piece at the molecular level, making the weld zone even mechanically superior to the adjoining geomembrane sheets. Maintaining the integrity of such seams after installation results in assurance of a leak-proof system; testing methods involving the passage of air are usually cutting-edge techniques employed to identify any pinholes or leaks at seams in welded liner systems.
PVC resists well a wide range of acids, salts and industrial chemicals. Therefore, the application of the material to environments with moderate exposure to chemicals is quite feasible. Through this chemical inertness, the degradation of the liner due to the interaction with agricultural run-off, municipal wastewater or alkaline substances will be prevented. As a result, the service life of environmental liner systems is prolonged.
In many cases, PVC turns out to be a less costly choice among other geomembranes, especially for small and medium-size projects, which leads to a reduction of the overall construction cost. The fact that the use of the material does not require many specialized tools and the work can be completed quickly with fewer workers allows the material to significantly lower both direct procurement costs and indirect expenses related to project downtime and site preparation.

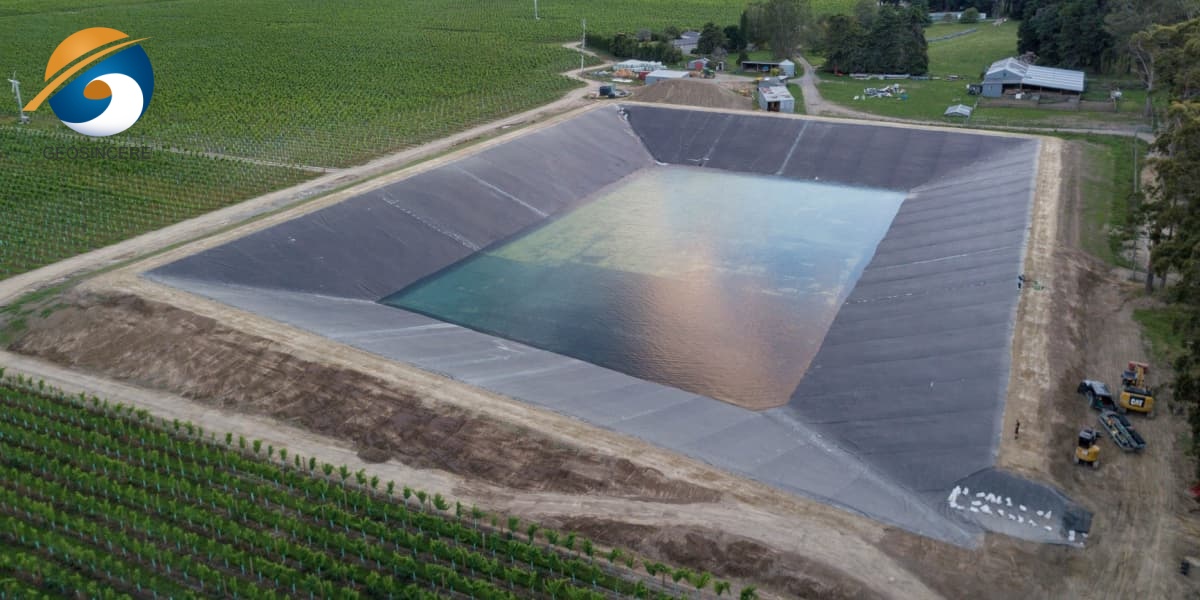

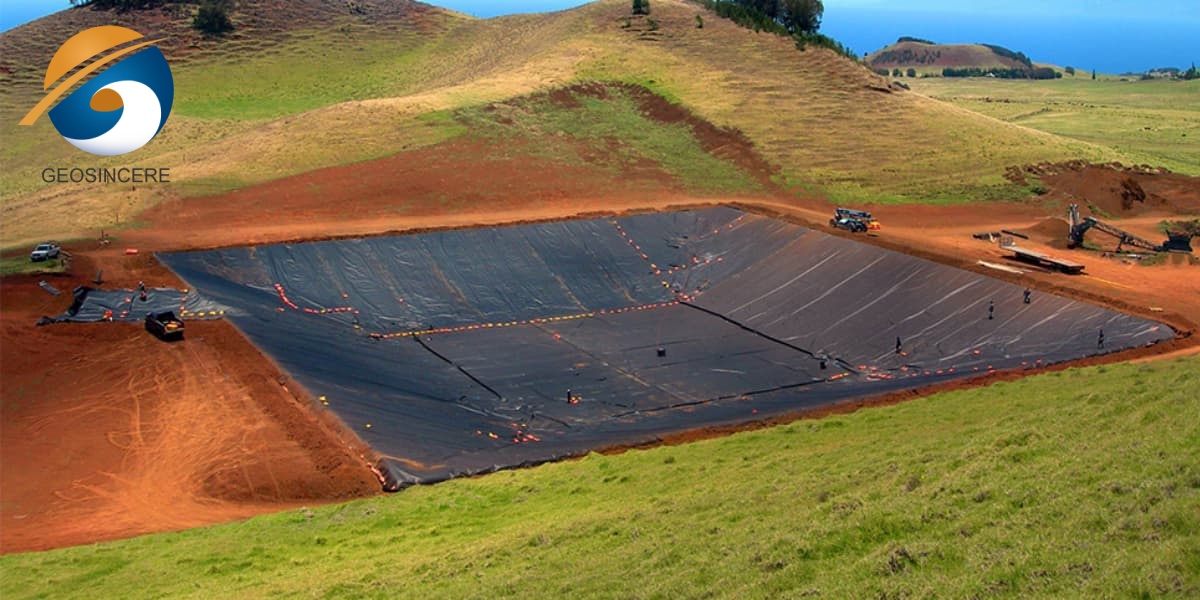

There are many reasons why PVC geomembrane is being very effectively used in the water containment projects and these include artificial lakes, water reservoirs, irrigation canals or rainwater harvesting systems. The liner’s non-permeability ensures minimal water loss and optimized water storage capacity. In case of very long irrigation canals, not only does the liner prevent water leakage into the soil thereby saving water but also because of a very smooth surface of the liner water flow friction is greatly reduced and flow velocities are at their maximum levels. Not only that, the resistance of PVC geomembrane to growth of weeds as well as penetration of roots helps in making sure that water supply channels will always be open long after regular continuous operations.

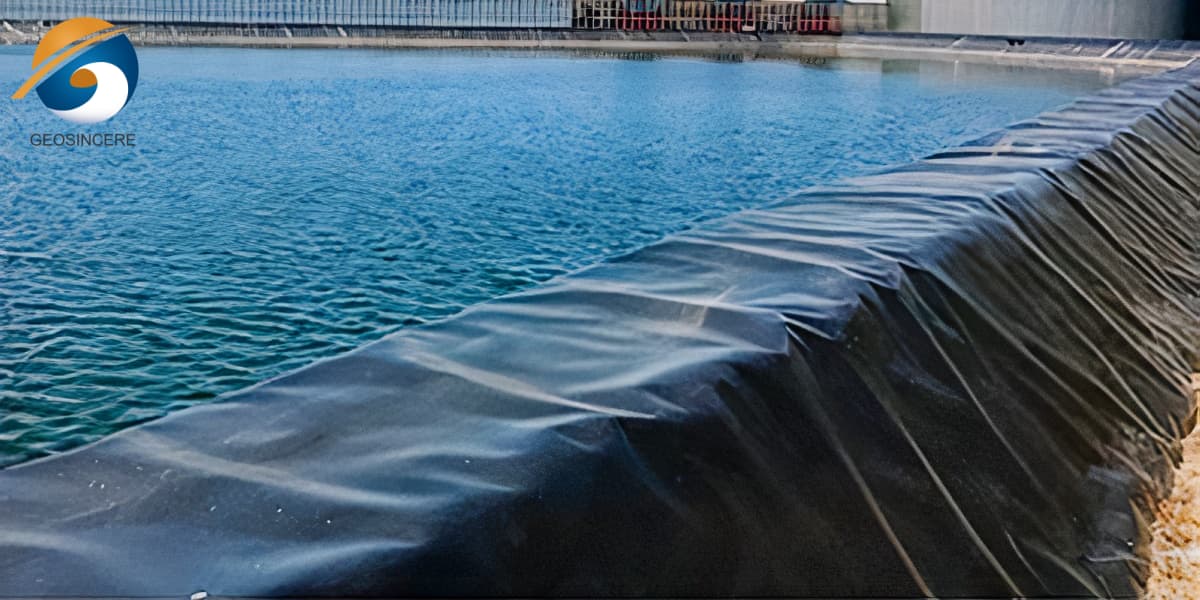

Farming of aquatic organisms such as fish, and shrimp are the major users of PVC geomembranes due to the characteristics of the material such as a smooth surface, easy cleaning, safe aquatic environment, and leak prevention. One very significant advantage of PVC-lined ponds as compared to classical earth ponds is the fact that PVC prevents soil-born diseases and also the pond banks are not eroded due to the action of waves or harvesting equipment which may cause the breaking of banks. As a result of no toxic substances appearing in the water due to the resistance of the product, a highly regulated environment is obtained that allows a very high survival rate and yield increase of the species in question.
PVC geomembrane is used in:
- Wastewater treatment ponds
- Secondary containment systems
- Landfill cover systems (non-primary liner applications)
It helps reduce environmental pollution and control hazardous leakage. In landfill capping and cover systems, it acts as an impenetrable barrier that prevents rainwater from infiltrating the waste mass, thereby minimizing the generation of highly toxic leachate. It also plays a vital role in capturing hazardous biogas, facilitating controlled methane extraction and reducing atmospheric emissions.
In construction projects, PVC geomembrane is used for:
- Tunnel waterproofing
- Basement waterproofing
- Roof waterproof layers
- Foundation protection systems
Its outstanding puncture resistance and ability to withstand high hydrostatic pressure make it an ideal lining solution for underground structures. In tunneling, for instance, the membrane easily conforms to the irregular blasted rock profiles, effectively diverting groundwater away from the concrete structure to prevent internal moisture damage and reinforcement corrosion.
- PVC: Highly flexible, suitable for deformation areas
- HDPE: Higher strength and chemical resistance
- PVC: Easier and faster installation
- HDPE: Requires more precise welding techniques
- PVC: Best for small-to-medium, flexible environments
- HDPE: Best for large-scale industrial and mining projects
PVC geomembrane is typically available in:
- 0.5 mm
- 0.75 mm
- 1.0 mm
- 1.5 mm
- 2.0 mm
Thickness selection depends on:
- Project type
- Load conditions
- Exposure environment
- Required service life
Thicker membranes provide better durability and puncture resistance.
A smooth and clean base surface is required to avoid punctures and improve performance.
Common welding methods include:
- Hot air welding
- Solvent welding
- Manual seam sealing
Proper welding ensures leak-free performance.
Quality control includes:
- Seam testing
- Visual inspection
- Leak detection tests
These steps ensure long-term reliability.
PVC geomembrane helps prevent:
- Soil contamination
- Groundwater pollution
- Water leakage losses
Its lower material and installation cost makes it suitable for budget-sensitive projects.
New PVC formulations focus on:
- Reduced plasticizer migration
- Longer service life
- Better UV resistance
PVC geomembrane is expanding into:
- Eco-aquaculture systems
- Smart water storage systems
- Urban environmental projects
PVC Geomembrane remains a highly valuable material in modern engineering due to its flexibility, waterproof performance, and cost-effectiveness. It plays a key role in water conservation, environmental protection, and infrastructure development.
Although HDPE geomembrane is preferred for heavy-duty industrial applications, PVC geomembrane continues to be an ideal solution for projects requiring adaptability, ease of installation, and economic efficiency. Driven by continuous material innovation, modern PVC liner formulations are becoming increasingly eco-friendly, incorporating non-phthalate plasticizers and bio-based stabilizers to align with strict green building certifications. This evolution enhances their sustainability profile without compromising their exceptional performance characteristics.
As global demand for sustainable water and environmental management increases, Shandong GEOSINO New Material Co.,Ltd （GEOSINCERE Geosynthetics） PVC geomembrane will continue to be an important material supporting safer and more efficient infrastructure systems. By effectively bridging the gap between stringent engineering requirements and budget constraints, it remains a cornerstone technology for climate-resilient designs and long-term ecological preservation worldwide.
