In construction, water conservancy, and environmental engineering, waterproofing and seepage prevention are critical. Geomembrane, as a highly effective and durable waterproofing material, is widely used in landfills, artificial lakes, tunnels, fish ponds, and sewage treatment plants. But what exactly is geomembrane waterproofing? What types and advantages does it offer? How should it be selected and applied?
This article provides an in-depth look at the core knowledge of geomembrane waterproofing, helping you fully understand this essential material and offering optimal waterproofing solutions for your projects.
1.1 Definition of Geomembrane
Geomembrane is a type of flexible impervious material made from high polymer resins such as high-density polyethylene (HDPE), low-density polyethylene (LDPE), and polyvinyl chloride (PVC). It is primarily used to prevent the leakage of liquids and gases and is a key member of the geosynthetics family. With a typical thickness ranging from 0.2mm to 3.0mm, geomembranes are known for their excellent chemical stability and mechanical performance, widely applied in waterproofing, anti-seepage, and anti-corrosion works.
1.2 Functions of Geomembrane Waterproofing
- Leakage Prevention: Prevents water, chemical liquids, and pollutants from seeping into the ground or surrounding environment.
- Isolation and Protection: Used in landfills and chemical ponds to prevent harmful substances from contaminating soil and groundwater.
- Enhanced Structural Stability: In hydraulic projects, it helps prevent soil erosion and enhances the stability of foundations.
2.1 HDPE Geomembrane (High-Density Polyethylene)
Features: High strength, chemical resistance, UV resistance, long service life.
Applications: Landfills, tailings dams, artificial lakes, sewage treatment ponds.
2.2 LDPE Geomembrane (Low-Density Polyethylene)
Features: High flexibility, suitable for complex terrains, slightly lower tensile strength than HDPE.
Applications: Agricultural irrigation, ecological wetlands, landscape ponds.
2.3 PVC Geomembrane (Polyvinyl Chloride)
Features: Easy to install, good adhesion, ideal for complex structures.
Applications: Underground engineering, building roof waterproofing, canal linings.
3.1 Superior Anti-Seepage Performance With a permeability coefficient as low as ≤10⁻¹³ cm/s, geomembranes perform significantly better than traditional concrete or clay layers.
3.2 Chemical Resistance HDPE and other geomembranes resist acids, alkalis, salts, oils, and other chemicals, ideal for harsh industrial or mining environments.
3.3 Aging Resistance and Long Lifespan Premium geomembranes include UV-resistant additives, allowing outdoor use for 30 to 50 years without significant degradation.
3.4 Easy Installation and Cost-Effective Compared to traditional waterproofing (like concrete), geomembranes are lightweight, weldable, and quick to install, reducing both construction time and cost.
3.5 Strong Adaptability Suitable for various geological structures and complex terrain conditions.
3.6 Cost Efficiency Total cost is much lower than conventional concrete or clay waterproofing systems.
3.7 Environmental Friendliness Made from green materials that do not release harmful substances, suitable for eco-projects.
4.1 Environmental Engineering

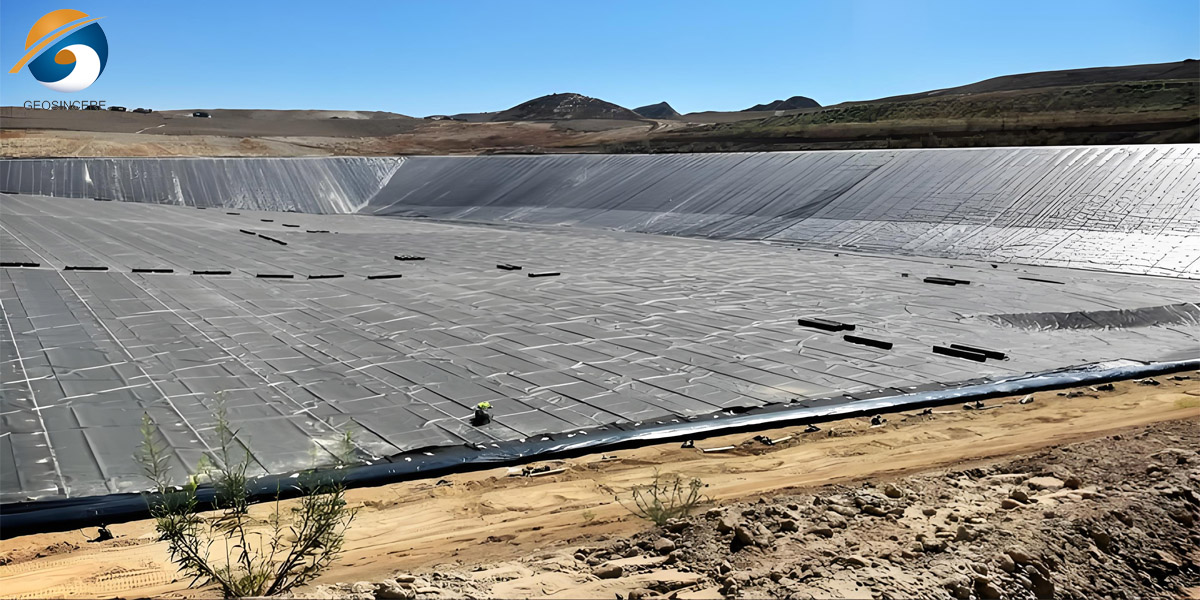

Landfills: Prevent leachate from polluting groundwater.
Sewage Treatment Ponds: Avoid wastewater leakage and protect the environment.
4.2 Water Conservancy Projects
Reservoirs and Artificial Lakes: Reduce water loss and increase storage efficiency.
Canals and Dams: Prevent seepage and reinforce structural integrity.
4.3 Agriculture and Aquaculture

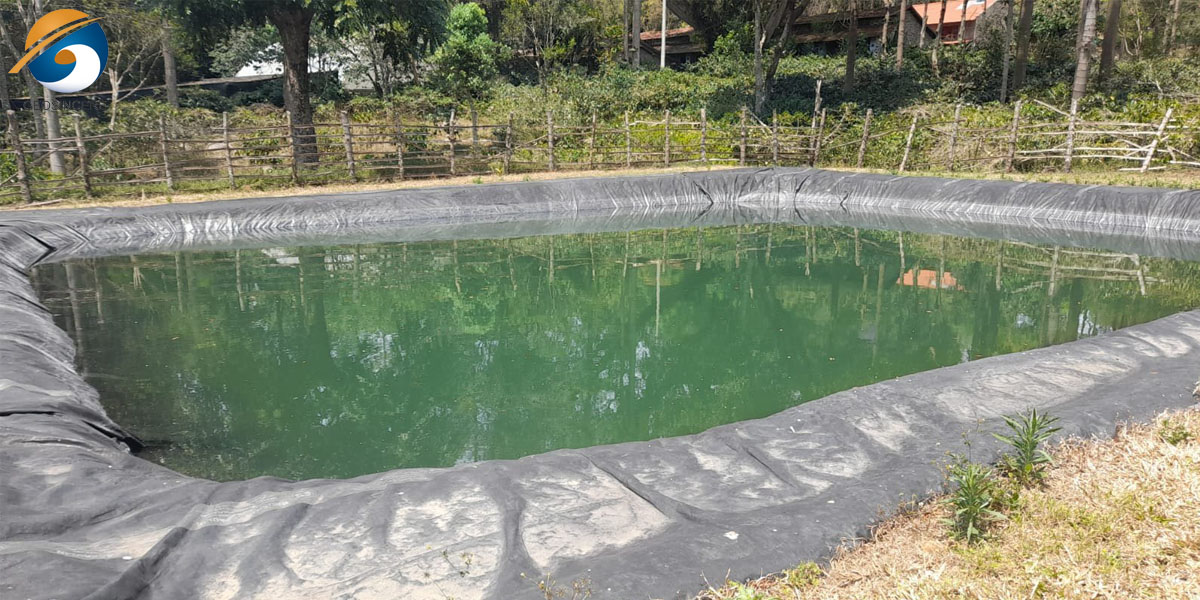

Fish and Shrimp Ponds: Prevent leakage and improve farming efficiency.
Biogas Digesters: Prevent gas escape and enhance energy utilization.
4.4 Construction Engineering
Basements and Tunnels: Protect against groundwater infiltration.
Rooftop Waterproofing: TPO/EPDM membranes are ideal for flat roof applications.
5.1 Project Type and Purpose
For landfills or mining, choose thicker HDPE geomembrane (≥1.5mm).
For aquaculture or landscaping, select LDPE or membranes 0.5-1.0mm thick.
Tunnels may require EVA or ECB membranes with high elasticity.
5.2 Key Parameters
Thickness (0.2mm-3.0mm): Thicker membranes have better puncture resistance.
Tensile Strength: Ensure it can withstand foundation settlement and external force.
Chemical Resistance: For chemical sites, choose corrosion-resistant HDPE.
5.3 Environmental Conditions
Choose UV-resistant types for high sunlight areas.
Choose high-corrosion-resistant types for acidic/alkaline conditions.
5.4 Welding and Installation Requirements
Prefer membranes compatible with hot-melt or dual-track welding for sealing efficiency.
5.5 Standards Compliance
Products should comply with national or international standards such as GB/T 17643-2011 or ASTM.
6.1 Base Preparation
Remove sharp objects like stones and roots to prevent puncturing.
Level and compact the ground to avoid uneven settlement.

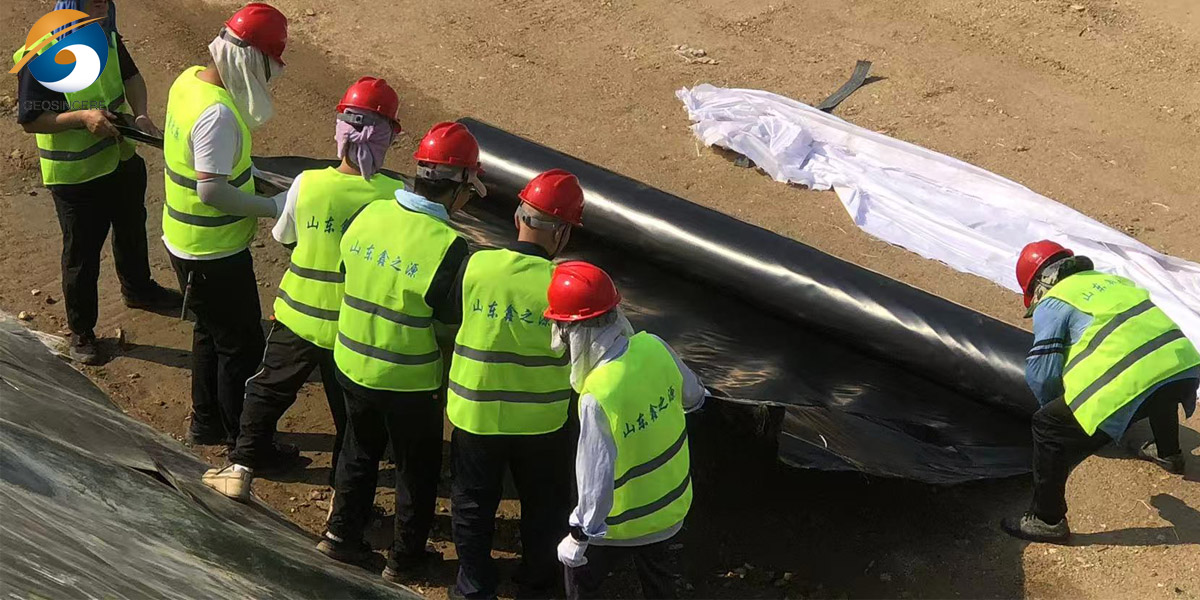

6.2 Laying and Welding
Use hot melt welding or adhesive bonding to ensure sealed seams.
Overlap width ≥10cm, and conduct air tightness tests.
6.3 Protection Layer
Cover with non-woven geotextile or sand layer to prevent mechanical damage.
