In the world of water containment, whether or not it is for growing a pond, establishing irrigation reservoirs, or managing large-scale aquaculture, one essential thing regularly operates ignored below the surface: the high density pond liner . This specialised geomembrane is extra than simply a "sheet of plastic." It acts as a fairly engineered barrier, designed to make sure reliable, long-term safety in opposition to water loss and environmental contamination. Let’s discover what HDPE liners are, their benefits, and the place they are most usually used.
An high density pond liner is a geomembrane made from high-density polyethylene resin, a plastic chosen for its superb mixture of attributes that make it perfect for water containment projects. The manufacturing method usually entails extruding the molten HDPE resin into flat sheets of various thicknesses, generally ranging from 0.3 mm (12 mil) to three mm (120 mil), with thicker choices on hand for greater stressful applications. Key points of HDPE liners include:
1.1 Exceptional Impermeability: HDPE has an extraordinarily low permeability, making it a near-perfect barrier towards water and different liquids, making sure minimal seepage and most water retention.
1.2 Durability and Longevity: With resistance to punctures, tears, and abrasions from exterior elements such as rocks and roots, high density pond liner can ultimate upwards of 30-50 years when good installed.
1.3 Chemical Resistance: HDPE is tremendously resistant to acids, alkalis, salts, and more than a few industrial chemicals, making it suitable for a broad vary of applications, from water containment to wastewater management.
1.4 UV Resistance: The incorporation of carbon black ensures that high density pond liner is resistant to degradation from UV exposure, making them best for outdoor, uncovered environments.
1.5 Low Temperature Flexibility: HDPE retains flexibility in chillier climates, adapting to subgrade contours and withstanding freeze-thaw cycles except cracking.
1.6 Environmental Stability: In addition to being resistant to organic attacks, HDPE does no longer leach detrimental supplies into the water, making it secure for use with consuming water and aquatic existence when NSF-certified grades are used.
The manufacturing of high density pond liner includes a collection of unique steps to make sure that every sheet meets the excessive requirements of strength, durability, and impermeability required for worrying applications. The manner emphasizes uniformity, reliability, and excessive overall performance throughout special liner gauges.
The first step in the manufacturing of high density pond liner is the decision of excellent virgin HDPE resin. This resin serves as the foundational cloth for the geomembrane. Only virgin HDPE, which means now not recycled, is used to hold top-quality electricity and performance, as recycled substances can introduce contaminants or inconsistencies that should have an effect on the liner’s durability.
The first-rate of the resin is essential due to the fact even mild variants in the resin's composition can lead to weaker liners that are greater prone to failure underneath stress. Manufacturers usually supply high-density polyethylene pellets from relied on suppliers to make certain steady overall performance in the last product.
Once the resin is selected, the subsequent step is to include components that decorate the high density pond liner's properties. These components are blended with the resin in specific quantities to enhance overall performance characteristics:
- Carbon Black: Added in small quantities (typically 2-3%) to grant UV resistance. The carbon black absorbs ultraviolet rays and prevents the HDPE from breaking down or degrading when uncovered to daylight over time. This makes the liner appropriate for out of doors functions the place publicity to the solar is inevitable.
- Antioxidants: These chemical substances stop oxidative degradation for the duration of the manufacturing technique and prolong the liner’s lifespan with the aid of inhibiting the breakdown of the polymer chains.
- Stabilizers: Used to decorate processing and forestall untimely failure due to environmental elements like warmness and chemicals.
The resin mixture is then subjected to extrusion, a technique that melts the resin and forces it thru a mildew to shape a continuous, flat sheet. The extruder usually consists of a barrel and screw mechanism that melts the resin and pushes it thru a die to create the favored shape.
- Extrusion Temperature: The resin is heated to a excessive temperature, commonly between 220°C and 270°C, to make sure that it flows easily besides degradation.
- Sheet Formation: As the molten resin exits the die, it varieties a non-stop sheet, which is firstly gentle and pliable.

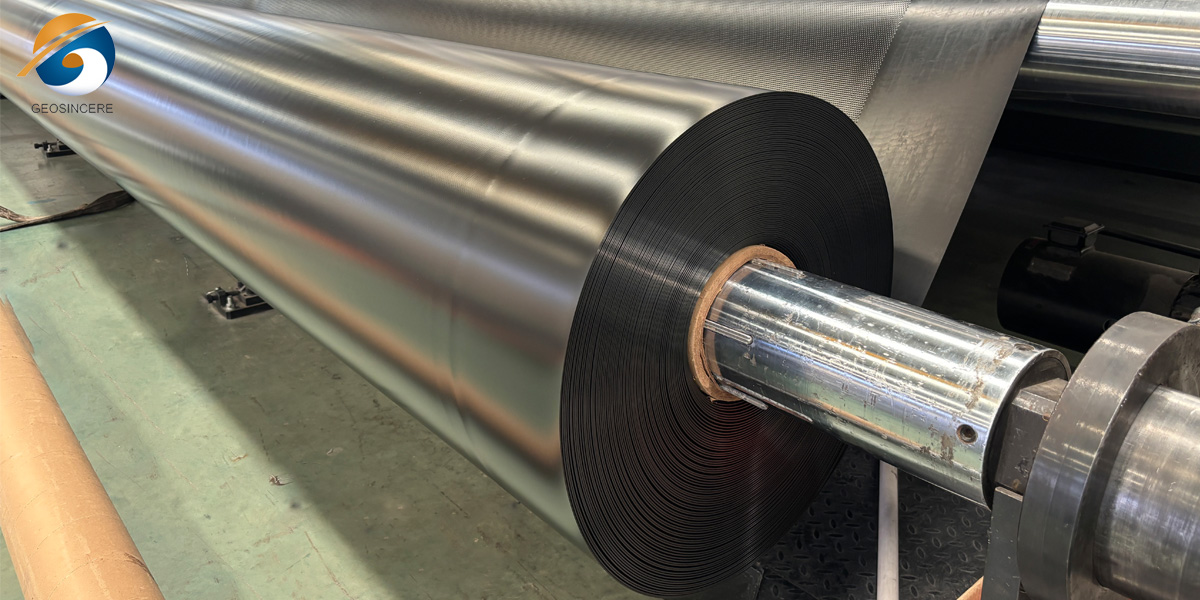

Once the sheet has been extruded, it passes thru a sequence of calendering rollers. These rollers flatten the sheet to the preferred thickness and width, ensuring precision manipulate over the last dimensions of the liner.
- Calendering: The rollers follow stress to the extruded sheet, which is persistently surpassed thru the rollers to refine its thickness and smoothness.
- Cooling: After the favored thickness is achieved, the sheet is unexpectedly cooled with the aid of passing thru cooling chambers. This rapid cooling procedure solidifies the material, locking in its structural integrity.
The end result is a smooth, uniform sheet of HDPE that is geared up for similarly trying out and pleasant control.
Quality manage is a necessary phase of the HDPE liner manufacturing process. To make certain that every liner meets the required requirements for performance, rigorous checking out is carried out at more than a few stages:
- Thickness Testing: The thickness of every sheet is cautiously measured and proven to make certain it meets the distinct requirements. Thicker liners are wished for heavy-duty functions such as landfill containment, whilst thinner liners can also be appropriate for ornamental ponds or smaller-scale projects.
- Tensile Strength Testing: This check measures the liner’s resistance to stretching or breaking when pressure is applied. A greater tensile power suggests a stronger, extra long lasting liner.
- Tear and Puncture Resistance: Given that HDPE liners are regularly set up in tough or rocky environments, they need to be resistant to tearing or puncturing. Testing ensures that the cloth can stand up to mechanical stress at some stage in set up and at some point of the lifetime of the project.
- Chemical Resistance Testing: HDPE have to be resistant to quite a number chemicals, together with acids, alkalis, and salts. Chemical resistance checks affirm the liner’s capability to keep integrity when uncovered to these substances.
- Carbon Black Dispersion: The uniform dispersion of carbon black in the liner cloth is examined to make certain constant UV safety in the course of the product. If carbon black is inconsistently distributed, some areas of the liner can also be greater prone to UV degradation.
Through these rigorous pleasant checks, producers make certain that solely the best-quality liners are delivered to clients, prepared for set up in disturbing environments.
HDPE liners are extensively used in a number industries due to their special properties:
- Containment: Used for growing ponds, tanks, and raceways for fish farming.
- Bio-Security: Helps stop disorder transmission and groundwater contamination.
Water Conservation: Reduces water loss thru seepage, making sure sustainability.
- Irrigation Reservoirs: Maximizes water storage effectivity for agricultural use.
- Livestock Watering: Provides reliable, leak-proof water sources for animals.
- Silt & Sediment Ponds: Captures runoff water and sediment, decreasing soil erosion.
- Decorative Ponds: Ideal for growing water-tight elements in gardens and parks.
- Koi Ponds: Provides a safe, non-toxic surroundings for decorative fish.
- Detention Ponds: Used for keeping stormwater runoff temporarily, permitting pollution to settle earlier than release.
- Infiltration Basins: Helps smooth stormwater earlier than it percolates into the ground.

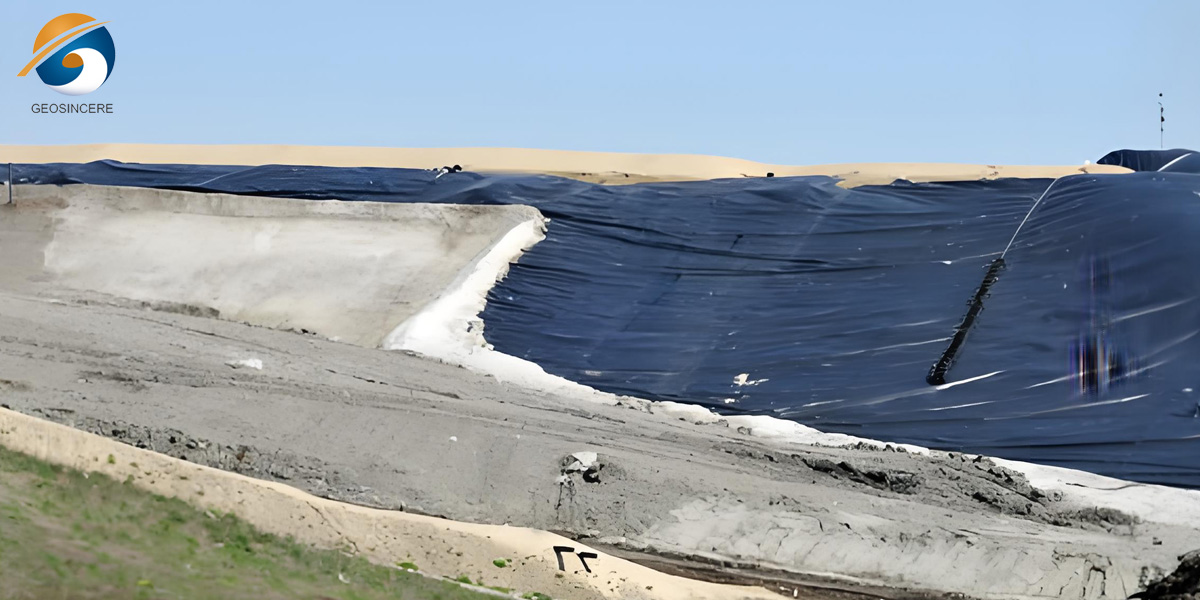

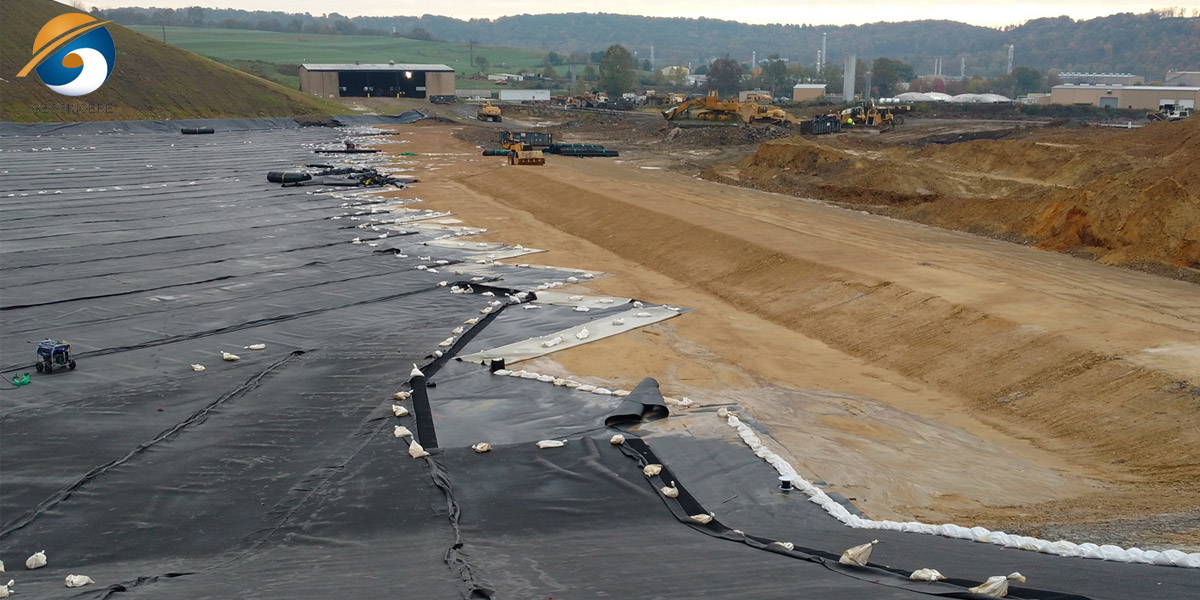

- Landfill Liners: Prevents hazardous leachate from contaminating soil and groundwater.
- Wastewater Treatment: Lining lagoons and remedy ponds in wastewater management.
- Heap Leach Pads: Used for leaching minerals from ores with chemical solutions.
- Tailings Impoundments: Contains the waste fabric produced through mining operations, safeguarding the environment.
Compared to other substances like EPDM (rubber), PVC (flexible plastic), or RPP (reinforced polypropylene), HDPE provides highest quality performance:
4.1 Chemical Resistance: HDPE is greater resistant to harsh chemical substances than EPDM or PVC.
4.2 Puncture Resistance: HDPE typically outperforms PVC and EPDM in phrases of strength.
4.3 UV Resistance: HDPE is substantially extra UV resistant due to its carbon black content.
4.4 Cost-Effective: While thinner liners like PVC or EPDM may additionally appear cheaper, HDPE’s power and sturdiness furnish decrease universal prices over the lifespan of the liner.
GEOSINCERE Geosynthetics High density pond liner stand as a cornerstone in current water containment and environmental protection. Their unmatched aggregate of impermeability, durability, and chemical resistance makes them vital for a large vary of applications, from aquaculture and irrigation to waste administration and mining. By deciding on the proper thickness and making sure specialist installation, these liners provide many years of dependable service, making them the go-to preference for water retention and environmental safety projects.
