In the realm of water containment and environmental protection, few materials have proven as versatile and reliable as High-Density Polyethylene (HDPE) geomembrane. Among the various thicknesses available, the GEOSINCERE Geosynthetics HDPE pond liner 1mm occupies a unique position, balancing flexibility with robust protection to serve a wide array of applications—from aquaculture ponds to industrial waste containment. This comprehensive guide explores the technical specifications, performance characteristics, installation considerations, and diverse applications of 1mm HDPE liner, providing an in-depth understanding for engineers, contractors, and project planners alike.
An HDPE pond liner is a flexible waterproof membrane manufactured from high-density polyethylene resin, specifically formulated for geotechnical and environmental applications. The "1mm" designation refers to its nominal thickness—approximately 40 mils in imperial measurement—which represents a middle-ground option within the broader spectrum of HDPE geomembranes that typically range from 0.2mm to 3.0mm.
The material composition of a high-quality 1mm HDPE pond liner typically consists of approximately 97.5% virgin polyethylene resin, blended with 2.5% carbon black and trace amounts of antioxidants, heat stabilizers, and ultraviolet absorbers. This carefully engineered formulation ensures the liner maintains its structural integrity and protective properties over decades of service. Manufacturers generally adhere to stringent international standards, including ASTM GRI-GM13 (USA) and GB/T 17643 (China), which govern everything from tensile strength to oxidative induction time.
The primary function of any geomembrane is to control fluid migration, and the 1mm HDPE liner excels in this regard. With a permeability coefficient typically at or below 1 × 10⁻¹³ cm/s, it provides an exceptionally effective barrier against water seepage. This near-impermeability ensures that water bodies retain their volume, chemicals remain contained, and surrounding soil and groundwater are protected from contamination. The material's hydraulic performance is comparable to—or exceeds—that of much thicker clay liners or concrete structures, but with significantly greater flexibility and ease of installation.
For a material of only 1mm thickness, the mechanical properties of HDPE geomembranes are remarkable. According to standard technical specifications, a 1mm liner exhibits a yield strength of approximately 15 kN/m, a break strength around 27 kN/m, and an elongation at break exceeding 700%. This combination of high tensile strength and extraordinary elongation allows the liner to accommodate ground settlement, withstand installation stresses, and resist punctures from overlying materials or foot traffic. Tear resistance values typically reach 125 N or greater, while puncture resistance is rated at approximately 320 N.
The polyethylene resin used in HDPE liners provides outstanding resistance to a broad spectrum of chemicals, including acids, alkalis, oils, and salts. This chemical inertness makes the 1mm liner suitable for applications ranging from potable water reservoirs to industrial wastewater ponds and landfill leachate containment. Furthermore, the incorporation of carbon black and UV stabilizers provides excellent resistance to ultraviolet radiation, allowing the liner to withstand prolonged exposure to sunlight without significant degradation. Operational temperature ranges typically span from -70°C to +110°C, accommodating extreme climatic conditions.
In the aquaculture sector, the 1mm HDPE pond liner serves as a critical component for fish and shrimp farming operations. It creates a stable, hygienic environment by preventing water loss through seepage and protecting aquatic life from soil-borne contaminants and pathogens. The liner's smooth surface facilitates easy cleaning and harvesting while its chemical resistance ensures that it will not leach harmful substances into the water. For agricultural applications—including irrigation reservoirs, drainage canals, and livestock watering ponds—the 1mm liner provides a cost-effective solution that reduces water consumption and improves overall farm efficiency.

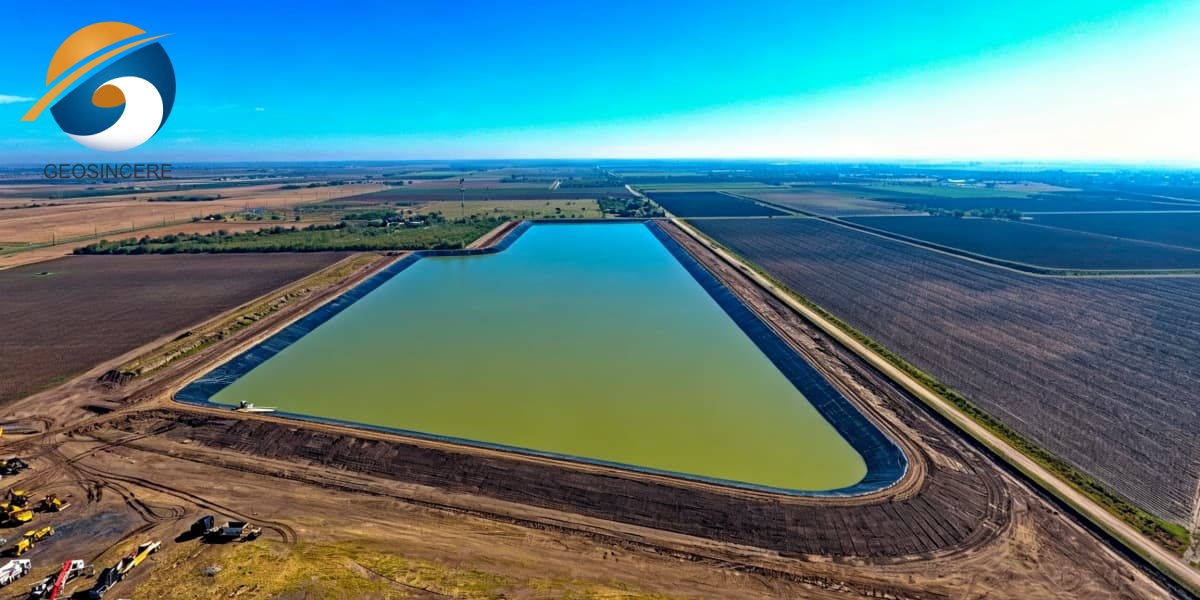

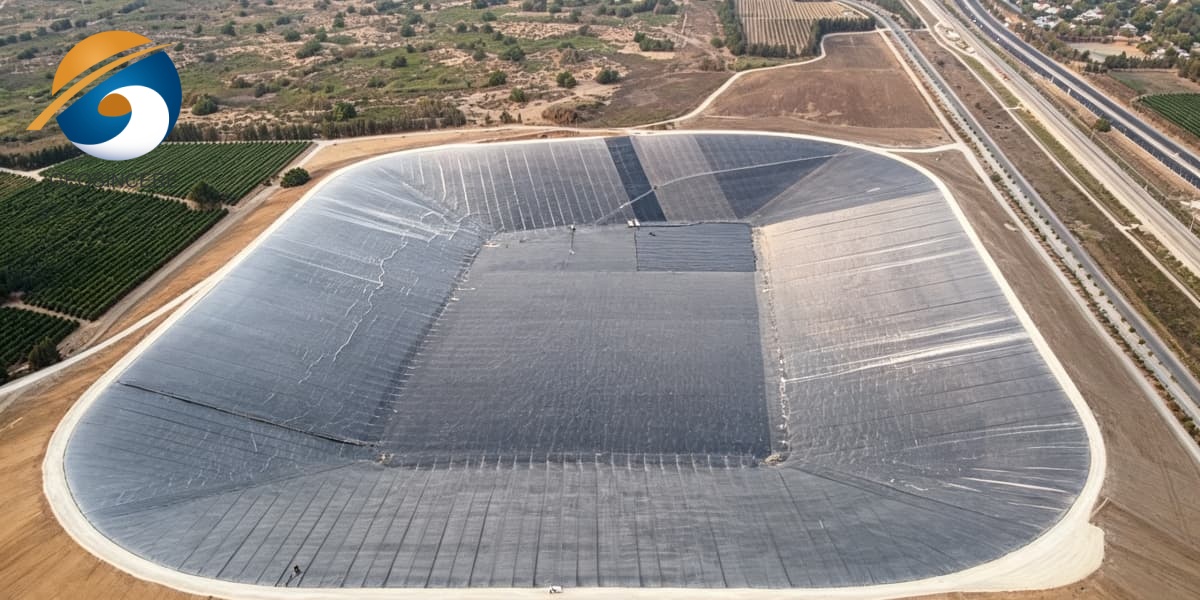

Municipal and civil engineering projects frequently employ 1mm HDPE liners for water conservation applications. These include canal lining to prevent seepage, reservoir and dam waterproofing, and the construction of artificial lakes and decorative ponds. The liner's ability to conform to irregular terrain profiles—with flexibility that reduces installation labor time by approximately 25% compared to more rigid alternatives—makes it particularly suitable for projects with complex geometries. In urban environments, HDPE liners are often used for rooftop gardens, green spaces, and underground waterproofing of buildings and tunnels.

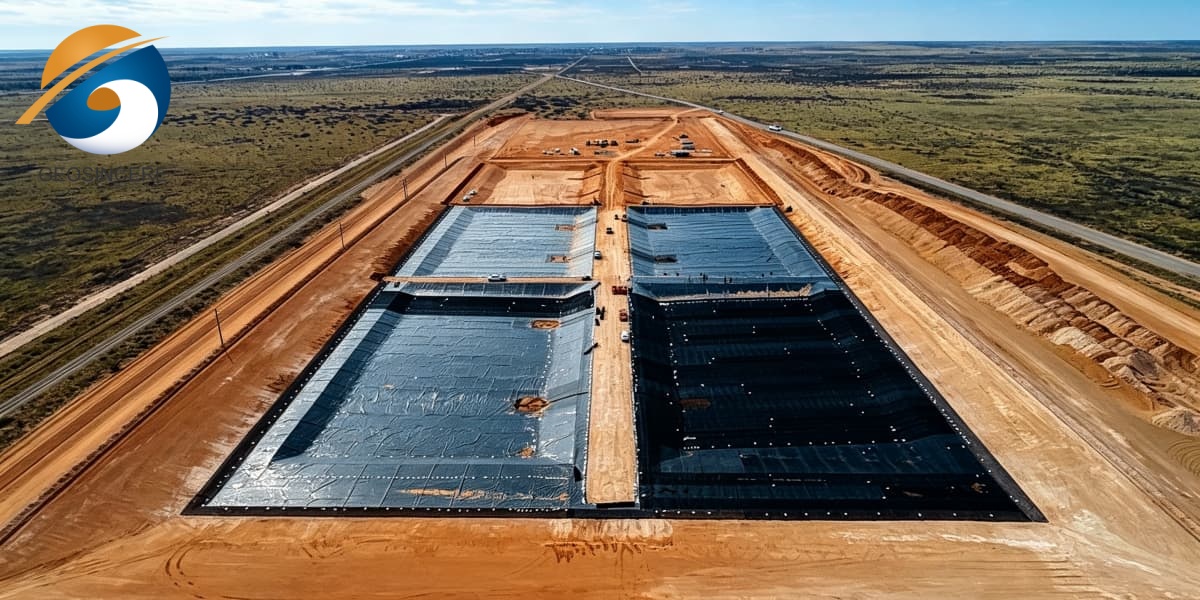

The environmental sector relies heavily on HDPE geomembranes for contaminant containment. The 1mm liner finds application in sewage treatment plants, industrial waste ponds, and hazardous waste landfills as a primary or secondary containment barrier. A published case study examining an HDPE geomembrane (0.8mm thickness) exhumed from a biodegradable waste pond after 15.17 years of field exposure demonstrated that even after extended service, the material maintained substantial tensile properties, though some degradation was observed through reduced elongation and oxidative induction time. This underscores the importance of proper material selection, quality assurance, and regular inspection for long-term environmental containment applications.
The mining industry utilizes HDPE liners for heap leach pads, tailings storage facilities, and solution ponds. The 1mm thickness provides an optimal balance between puncture resistance—critical when dealing with sharp ore particles—and cost efficiency. Similarly, industrial applications include secondary containment for above-ground tank farms, chemical reaction pools, and sedimentation basins, where the liner's chemical resistance and durability are paramount.
Successful installation of a 1mm HDPE pond liner requires careful attention to several key factors. The subgrade must be properly prepared—free from sharp objects, rocks, and debris that could cause punctures. Many installations utilize a protective geotextile layer beneath the liner to minimize puncture risk, though the 1mm liner's inherent puncture resistance (rated at approximately 320 N) often eliminates this requirement for less demanding applications.
Seaming is typically accomplished through thermal fusion welding, which creates seams that are as strong as—or stronger than—the parent material. The material's excellent weldability ensures that large sheets can be joined into continuous, monolithic barriers across expansive areas. Manufacturers generally produce rolls in widths ranging from 1 to 8 meters and lengths up to 200 meters, allowing for customization to specific project requirements. This flexibility in dimensions, combined with the material's lightweight nature, facilitates efficient transportation and installation, even in remote or challenging locations.
One of the most compelling attributes of the 1mm HDPE pond liner is its exceptional longevity. With proper installation and adequate protection from physical damage, these liners are designed to provide service lives exceeding 50 years. The inclusion of antioxidants and UV stabilizers in the formulation helps maintain material properties over decades of environmental exposure. However, factors such as oxidative degradation, thermal aging, and UV exposure can gradually affect performance. The standard specification requires that after 90 days of oven aging at 85°C, the liner must retain at least 55% of its standard oxidative induction time—a key indicator of the material's resistance to oxidative degradation over its service life.
The real-world performance of HDPE liners has been validated through field studies. As noted, an exhumed 0.8mm liner from a waste pond demonstrated that while some degradation had occurred after 15 years of service, the material remained functional, though careful analysis revealed reduced stress crack resistance and increased crystallinity. This highlights the importance of selecting appropriately formulated products and considering the specific environmental conditions of each application.
When evaluated against alternative containment solutions—such as concrete, asphalt, or compacted clay—the 1mm HDPE pond liner consistently demonstrates superior cost-effectiveness. Its relatively low material cost, ease of installation, and minimal maintenance requirements result in lower overall project costs. For example, 1mm HDPE liners are priced competitively, with commercial offerings ranging from approximately $0.50 to $1.58 per square meter depending on order volume and supplier.
From an environmental perspective, the use of HDPE liners contributes to water conservation by preventing seepage and reducing evaporation losses. The material itself is inert and does not leach harmful substances into the contained water. Additionally, many manufacturers now produce liners using recycled materials or offer recycling programs at the end of the liner's service life, further enhancing the sustainability profile of these products.
Selecting the appropriate thickness and specification for a given project requires careful consideration of several factors. The 1mm liner represents an excellent choice for many applications, offering:
Superior flexibility compared to thicker (1.5-2.5mm) alternatives, facilitating installation around complex geometries
Sufficient puncture and tear resistance for most agricultural, aquaculture, and general water containment applications
Lower material cost than thicker options while still providing robust long-term performance
Proven durability for applications with moderate exposure to mechanical stresses and chemical environments
For projects involving particularly harsh chemical environments, heavy mechanical loads, or extremely long design lives, thicker options (1.5mm, 2.0mm, or greater) may be warranted. Conversely, for temporary or low-risk applications, thinner liners (0.5mm-0.75mm) may suffice.
The HDPE pond liner 1mm represents a mature, well-engineered solution that has earned its place as a preferred choice across multiple industries. Its combination of high impermeability, mechanical strength, chemical resistance, and UV stability, all delivered at a competitive price point, makes it an indispensable tool for water conservation, environmental protection, and industrial containment. As global demand for water resources intensifies and environmental regulations become increasingly stringent, the role of reliable, durable, and cost-effective containment solutions like the HDPE pond liner will only grow in importance.
Whether for a small aquaculture project or a large-scale environmental containment facility, the 1mm HDPE liner offers the proven performance and longevity that engineers, contractors, and project owners have come to rely on. With proper selection, installation, and maintenance, it provides decades of dependable service—protecting water resources, preserving environmental quality, and supporting sustainable development worldwide.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) is the professional HDPE liner and geosynthetics manufacturer and wholesaler located in Shandong Province, China. We are an professional manufacturer, exporter and wholesaler for such geosynthetic products as HDPE Pool Liner, geotextiles, geogrids, geocells, geosynthetic clay liners (geosynthetic clay linerss), drainage boards, etc.

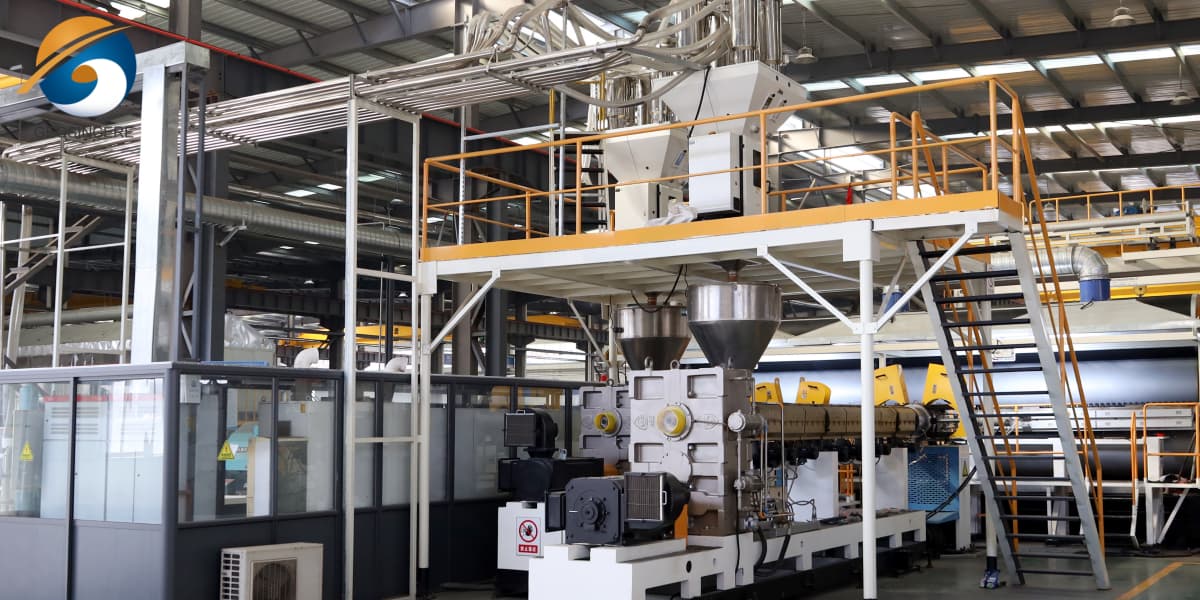

GEOSINCERE Geosynthetics has been keeping on investing in technological innovation, manufacturing facilities improvement and turnkey engineering abilities. We have invested 10 million dollars into our manufacturing factory which is equipped with state-of-the-art automatic production lines to manufacture high quality HDPE liner and other geosynthetics with optimized processes. Our extensive lines of geosynthetics products are well known for their ensured quality, high performance, excellent durability and best cost effectiveness.
