Choosing the right HDPE liner thickness is one of the most important decisions when purchasing a geomembrane for a landfill, pond, wastewater treatment facility, mining operation, reservoir, dam, or other containment project.
A thicker liner is not automatically the right liner. Likewise, choosing the thinnest available material simply to reduce the initial purchase price can create unnecessary risks during installation and long-term service.
For engineers, the correct thickness is part of a larger design decision involving subgrade conditions, puncture resistance, settlement, chemical exposure, installation methods, welding, protective layers, and project specifications. For buyers, understanding these factors makes it easier to compare quotations from different manufacturers and avoid comparing products on price alone.
This guide explains how GEOSINCERE Geosynthetics HDPE geomembrane thickness is specified, what common thickness ranges mean, how standards such as GRI GM13 and ASTM test methods are used, and what buyers should check before placing an order.
An HDPE liner, commonly called an HDPE geomembrane, is a synthetic barrier manufactured primarily from high-density polyethylene resin. It is used to control the movement of liquids, gases, or contaminants through soil and other substrates.
Thickness is normally expressed in millimeters (mm) or mils.
A useful conversion is:
1 mil = 0.001 inch = approximately 0.0254 mm
Therefore:
|
HDPE Thickness |
Approximate Thickness in Mils |
|
0.75 mm |
30 mil |
|
1.00 mm |
40 mil |
|
1.25 mm |
50 mil |
|
1.50 mm |
60 mil |
|
2.00 mm |
80 mil |
|
2.50 mm |
100 mil |
|
3.00 mm |
120 mil |
These thicknesses correspond closely to the thickness categories included in GRI GM13, which covers HDPE geomembranes from 0.75 mm to 3.0 mm.
However, thickness should never be treated as the only indicator of geomembrane performance.
Two geomembranes with the same nominal thickness can have different specifications for tensile properties, carbon black content, oxidative induction time, puncture resistance, stress crack resistance, dimensional stability, and other characteristics.
Thickness affects several practical aspects of geomembrane performance.
A thicker geomembrane generally provides a greater amount of polymer material between the contained material and the underlying or overlying environment.
This can be particularly relevant where the liner may encounter:
- Sharp or irregular subgrade
- Aggregate
- Construction traffic
- Differential settlement
- Heavy protective layers
- Mining-related loading
- Difficult installation conditions
However, the actual resistance to damage depends on the entire liner system, not thickness alone.
Thicker geomembranes are generally heavier per unit area. This can affect roll weight, handling equipment, deployment, welding procedures, and installation productivity.
Therefore, increasing thickness should have a technical reason rather than being treated as an automatic improvement.
Thickness can contribute to the amount of material available to accommodate long-term stresses and environmental exposure. But durability also depends heavily on resin formulation, additives, manufacturing quality, welding quality, installation conditions, and the surrounding containment system.
ASTM notes that tensile results for polyethylene geomembranes are sensitive to testing conditions and environmental factors, which is one reason engineering decisions should not rely on a single material property.
For buyers, the most frequently encountered thicknesses in technical specifications include approximately 0.75, 1.0, 1.5, 2.0, 2.5 and 3.0 mm.
GRI GM13 provides specification tables for HDPE geomembranes at these thickness levels. The specification covers both smooth and textured geomembranes.
A simplified purchasing reference looks like this:
|
Thickness |
Typical Engineering Consideration |
|
0.75 mm |
Light-duty or specialized applications where the project specification permits |
|
1.00 mm |
Moderate containment applications |
|
1.50 mm |
Widely specified for demanding containment systems |
|
2.00 mm |
Higher mechanical-demand applications |
|
2.50 mm |
Heavy-duty containment and engineered systems |
|
3.00 mm |
Very demanding applications or project-specific requirements |
This table is a general purchasing reference, not a design specification.
For example, a landfill project should not select 1.5 mm simply because another landfill used 1.5 mm. The required thickness should come from the project design, applicable regulations, site conditions, and the specified geomembrane standard.
Historical EPA technical guidance illustrates this point. EPA documents have referenced HDPE flexible membrane liners at 60 mil and above in certain landfill applications, while actual landfill systems have used different combinations of primary and secondary geomembranes depending on the design.
This is one of the most common questions from buyers.
The difference is not simply:
“1.5 mm is 50% better than 1.0 mm.”
That would be an oversimplification.
Instead, the engineer should consider the entire application.
A 1.0 mm liner can be suitable for projects where the design requirements are relatively moderate and the specification allows this thickness.
It may be considered for certain ponds, secondary containment systems, channels, or other applications where mechanical requirements are controlled.
1.5 mm, approximately 60 mil, is a commonly encountered thickness in engineered containment projects.
It offers a balance between material thickness, handling, welding, mechanical protection, and cost.
For buyers, however, the phrase “1.5 mm HDPE” is not enough information for quotation comparison. The buyer should also identify whether the liner is smooth or textured and which standard and test requirements apply.
2.0 mm, approximately 80 mil, is often considered where higher mechanical demands exist or where the project specification calls for a heavier geomembrane.
EPA documentation, for example, records landfill systems using both 60-mil and 80-mil HDPE geomembranes depending on the particular liner configuration.
The correct choice still depends on engineering design rather than thickness alone.
One of the biggest mistakes in international procurement is comparing thickness without comparing the testing standard.
GRI GM13 is an important specification frequently referenced for HDPE geomembranes. It covers HDPE geomembranes with a formulated sheet density of at least 0.940 g/mL and thicknesses from 0.75 mm to 3.0 mm.
For example, the GM13 specification includes nominal thickness categories of:
- 0.75 mm
- 1.00 mm
- 1.25 mm
- 1.50 mm
- 2.00 mm
- 2.50 mm
- 3.00 mm
It also defines minimum average thickness and individual thickness requirements.
ASTM methods are then used to determine specific properties.
For example, ASTM D5199 is used for measuring nominal thickness of applicable geosynthetics. ASTM explains that thickness can be affected by applied pressure and that the test determines nominal thickness rather than necessarily representing minimum thickness.
This distinction is important.
A buyer should not simply ask:
“Is your liner 1.5 mm?”
A better question is:
“What is the nominal thickness, minimum average thickness, lowest individual reading requirement, and applicable test method?”
That creates a much more meaningful technical comparison.
HDPE geomembranes are commonly supplied as smooth or textured liners.
Smooth geomembranes have a relatively uniform surface and are widely used where a low-friction barrier surface is desirable.
Textured geomembranes provide increased interface friction and are commonly considered when slope stability is important.
This creates another important purchasing issue.
A buyer may receive quotations for:
- 1.5 mm smooth HDPE
- 1.5 mm textured HDPE
- 1.5 mm single-textured HDPE
- 1.5 mm double-textured HDPE
These products should not automatically be treated as interchangeable.
Texturing can affect measured thickness, surface geometry, friction behavior, and some test procedures. In fact, ASTM D5199 specifically notes limitations for textured geomembranes where the measuring foot cannot make complete contact with the surface.
Therefore, the technical specification should clearly state the required surface type.
This is probably the most important concept for buyers.
A geomembrane's performance cannot be determined from thickness alone.
An engineering specification may also include requirements for:
- Density
- Tensile strength
- Tensile elongation
- Tear resistance
- Puncture resistance
- Carbon black content
- Carbon black dispersion
- Oxidative induction time
- Stress crack resistance
- Dimensional stability
- Seam properties
- Weathering resistance
For example, ASTM D6693/D6693M covers tensile properties of nonreinforced polyethylene geomembranes and can be applied to geomembranes from 0.25 mm to 6.3 mm under the defined test conditions. ASTM also emphasizes that the test is an index test for quality control and specification conformance rather than a complete representation of field performance.
This is why two manufacturers offering “2.0 mm HDPE” should not necessarily be considered equivalent until their technical data sheets and applicable standards are compared.
Different applications create different mechanical and environmental requirements.

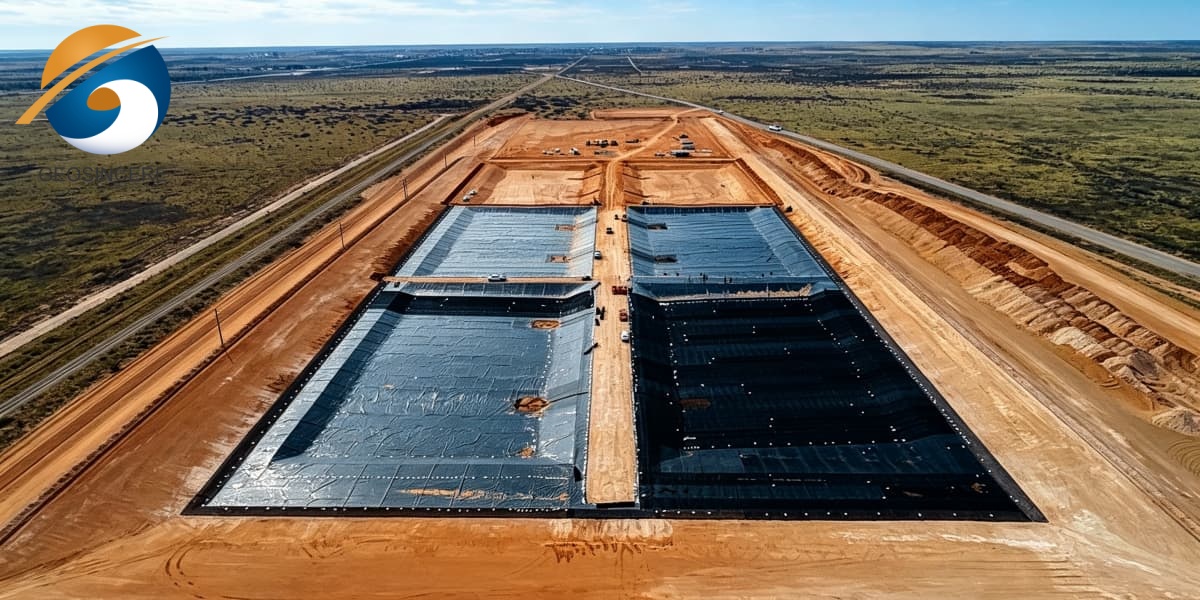

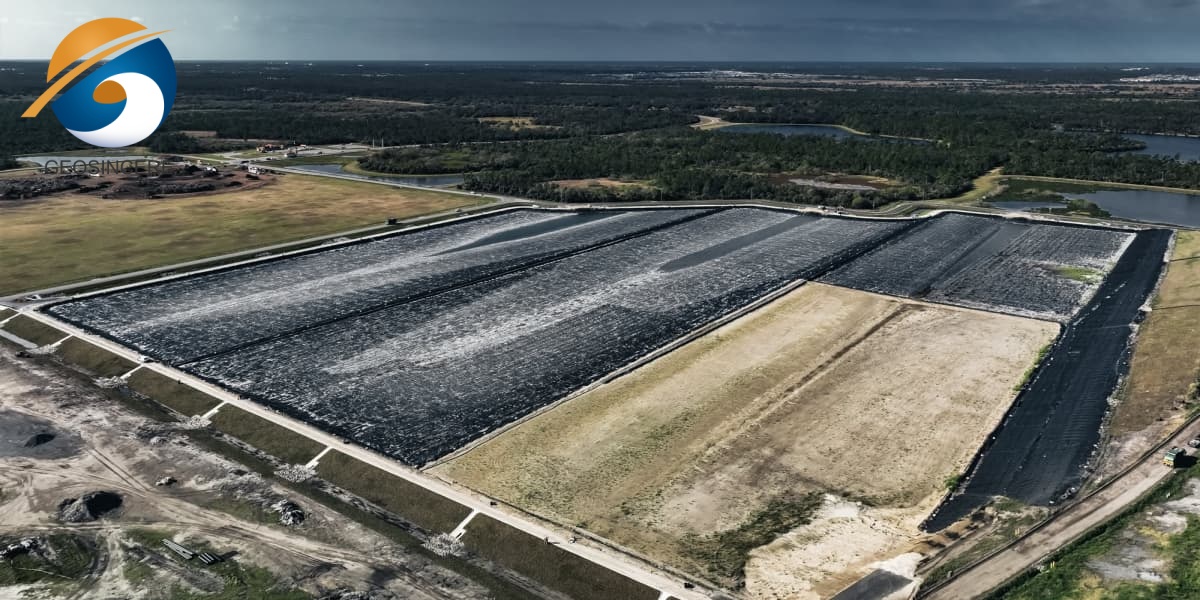

Landfill liner systems can involve waste loading, construction traffic, drainage layers, protective soils, settlement, and long-term exposure to leachate.
EPA documentation shows that landfill liner systems have used different HDPE thicknesses, including 60 mil and 80 mil geomembranes, depending on the system design.
For these projects, the geomembrane should be evaluated together with the drainage layer, geotextile protection, clay or GCL components, and other liner-system elements.

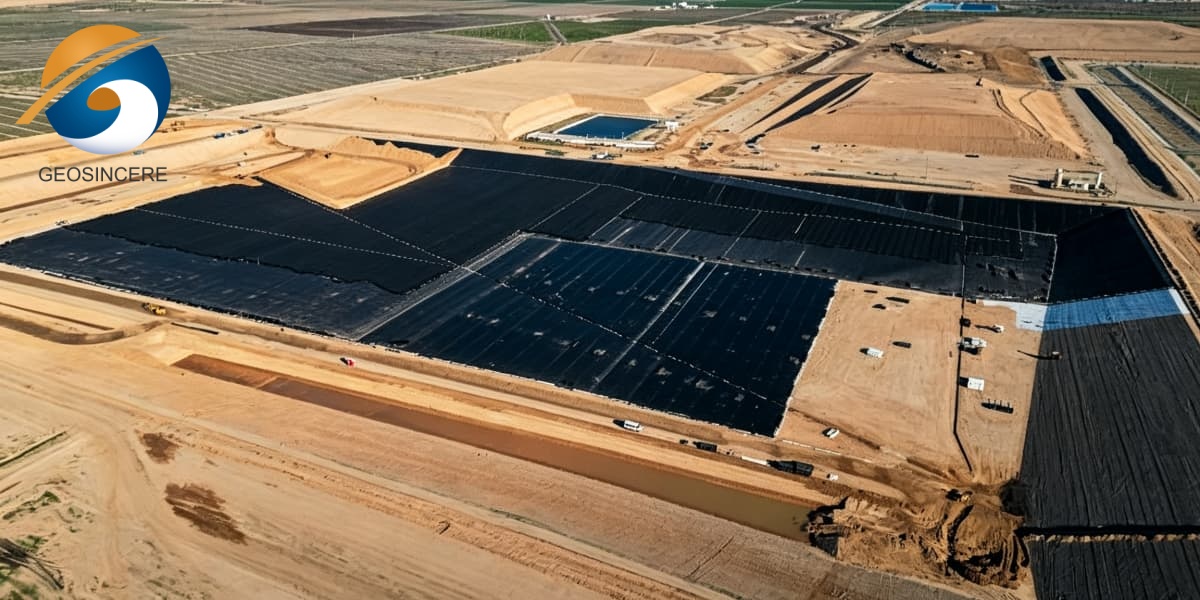

Mining applications can involve large areas, aggressive chemical environments, heavy equipment, and demanding subgrade conditions.
The appropriate thickness therefore needs to be determined from project loading, chemical compatibility, installation requirements, and the project specification.
Ponds and wastewater facilities may use HDPE geomembranes as liquid containment barriers.
The required thickness depends on factors such as subgrade quality, liquid characteristics, slope configuration, protection system, and project specifications.
Some water containment applications may use thinner geomembranes where loading and site conditions permit.
But low-cost selection should not replace proper evaluation of puncture risk and installation conditions.
Thickness has a direct effect on the quantity of polymer used per square meter.
For example, ignoring manufacturing and commercial factors:
- 1.0 mm represents approximately 1 liter of polymer volume per square meter.
- 1.5 mm represents approximately 1.5 liters per square meter.
- 2.0 mm represents approximately 2 liters per square meter.
The relationship is therefore approximately linear with thickness for material volume.
However, the selling price is not simply proportional to thickness.
Manufacturing efficiency, resin price, additives, texturing, roll dimensions, packaging, freight, certification, testing, and order quantity can all influence the final price.
For international buyers, freight can also become important because thicker geomembranes generally result in greater weight for the same project area.
This is why a professional quotation should clearly state:
Thickness + Surface + Width + Roll Length + Standard + Quantity + Incoterm
rather than simply giving a price per square meter.
For an international project, a reliable HDPE geomembrane supplier should provide more than a basic price quotation.
At GEOSINCERE Geosynthetics, our approach is to start with the buyer's project requirements and then match the geomembrane specification to the application.
Our HDPE geomembrane product range can be supplied in different thicknesses, widths, colors, and surface configurations according to project requirements. For engineering projects, the technical data should be reviewed against the applicable project specification before production.
For buyers, we recommend confirming five points before requesting a final commercial quotation:
- Required thickness
- Smooth or textured surface
- Applicable standard
- Required roll dimensions
- Required testing and documentation
This allows the manufacturer to prepare a technically comparable quotation instead of simply offering a price for “HDPE liner.”
There is no single HDPE liner thickness suitable for every project. The right choice depends on the project specifications, site conditions, loading, slope, chemical environment, protection system, and applicable standards.
GRI GM13 covers HDPE geomembranes from 0.75 mm to 3.0 mm, but the required thickness should always be determined by the project design rather than thickness alone.
For buyers, compare the complete specification:
Thickness + Surface + Standard + Mechanical Properties + Quality Control + Traceability
A reliable geomembrane supplier should be able to review the project requirements and provide a specification that matches the actual engineering conditions.
The goal is not to choose the thickest liner, but the right liner for the project.
