In modern environmental engineering, water management, and industrial containment systems, selecting the right geomembrane material is one of the most important decisions affecting project performance, durability, and long-term cost efficiency. Among various waterproofing solutions, 1mm PVC Geomembrane and HDPE geomembrane are two widely used synthetic liner materials that provide excellent anti-seepage performance.
GEOSINCERE Geosynthetics geomembrane have become essential components in many industries, including agriculture, mining, landfill construction, wastewater treatment, aquaculture, and water conservation projects. Their primary purpose is to create an impermeable barrier that prevents liquid leakage, protects groundwater resources, and improves the reliability of containment systems.
According to market research, the global geomembrane industry continues to expand due to increasing environmental regulations and growing demand for water conservation infrastructure. The geomembrane liner market covers major materials such as HDPE, PVC, LLDPE, EPDM, and other polymer-based liners, with applications ranging from landfill liners and mining containment to agricultural reservoirs and wastewater systems.
Among these options, 1mm PVC Geomembrane has attracted attention because of its excellent flexibility, easy installation, and adaptability to complex surfaces. HDPE, on the other hand, is widely recognized for its outstanding chemical resistance, mechanical strength, and long service life.
Understanding the differences between these two materials helps engineers, contractors, and project owners select the most suitable liner based on environmental conditions, installation requirements, and budget considerations.

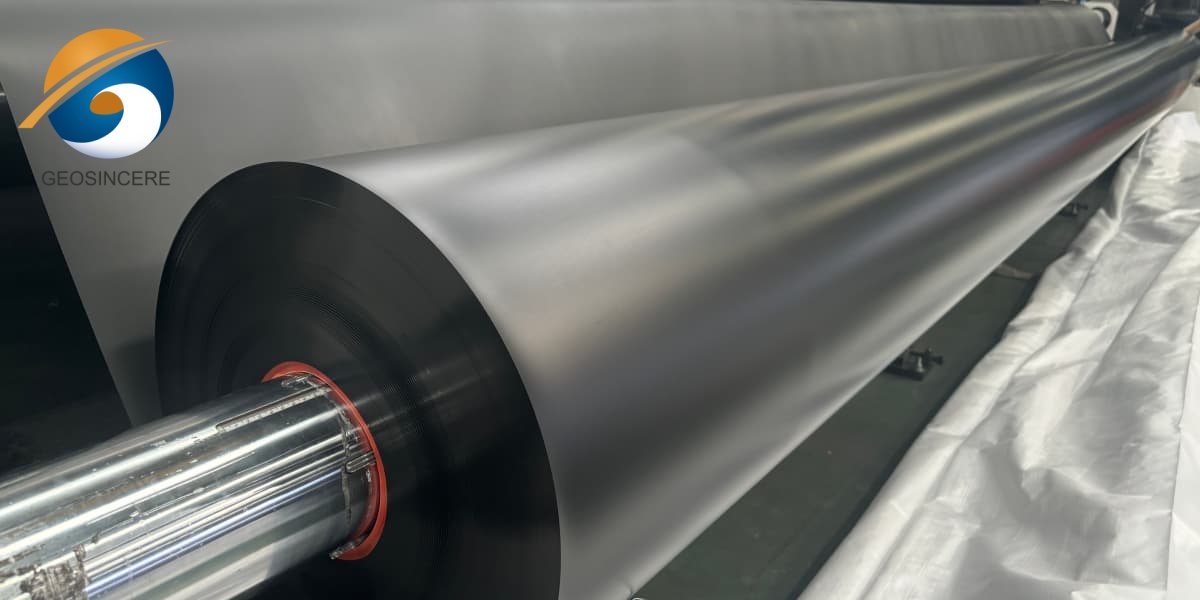

A 1mm PVC Geomembrane is a synthetic waterproof membrane manufactured mainly from polyvinyl chloride resin combined with plasticizers, stabilizers, and other additives.
The thickness of 1mm means:
- Thickness: 1 millimeter
- Equivalent thickness: approximately 40 mils
This thickness is commonly selected for medium-duty waterproofing projects where flexibility and installation convenience are important.
Typical applications include:
- Agricultural ponds
- Decorative lakes
- Water storage systems
- Aquaculture facilities
- Irrigation reservoirs
- Temporary containment systems
Unlike rigid materials such as concrete or clay liners, PVC geomembranes can adapt to irregular surfaces and ground movement, making them suitable for projects requiring flexibility.
The manufacturing process of PVC geomembrane usually involves calendering or extrusion technology.
The production process includes:
Raw Material Preparation
PVC resin is combined with:
- Plasticizers
- UV stabilizers
- Heat stabilizers
- Reinforcing additives
These additives improve:
- Flexibility
- Weather resistance
- Aging performance
- Sheet Formation
The mixed material is heated and processed into continuous sheets with controlled thickness.
Quality control focuses on:
- Thickness uniformity
- Tensile strength
- Elongation performance
- Surface quality
Final Inspection
- Waterproof performance
- Mechanical strength
- Dimensional stability
- Aging resistance
This ensures the liner can perform reliably under field conditions.
HDPE (High-Density Polyethylene) geomembrane is one of the most commonly used liners in environmental engineering.
It is manufactured from polyethylene resin and designed for applications requiring:
- High chemical resistance
- Strong mechanical performance
- Long service life
Common thickness options include:
- 0.75mm
- 1.0mm
- 1.5mm
- 2.0mm
HDPE geomembranes are widely used in:
- Landfills
- Mining heap leach pads
- Wastewater treatment plants
- Industrial containment systems
- Large reservoirs
HDPE liners are often preferred in demanding environments because of their resistance to aggressive chemicals and environmental stress.
HDPE geomembranes are generally produced through extrusion processes.
Important material components include:
- Virgin polyethylene resin
- Carbon black
- Antioxidants
- UV stabilizers
Carbon black is especially important because it improves outdoor weather resistance. Many engineering standards require approximately 2–3% carbon black content for long-term UV protection.
One of the biggest advantages of 1mm PVC Geomembrane is flexibility.
PVC geomembranes can:
- Stretch easily
- Adapt to uneven surfaces
- Follow complex shapes
- Reduce installation difficulties
This makes PVC suitable for:
- Small ponds
- Landscaping projects
- Complex-shaped reservoirs
HDPE is more rigid compared with PVC.
While HDPE provides stronger mechanical performance, installation may require:
- More careful handling
- Professional welding equipment
- Better surface preparation
HDPE generally performs better when exposed to aggressive chemicals.
Advantages of HDPE include:
- Strong resistance to acids
- Excellent resistance to alkalis
- Good performance against hydrocarbons
- High durability in industrial environments
For projects such as:
- Mining waste containment
- Chemical storage
- Landfill leachate systems
HDPE is often the preferred option.
PVC provides good resistance for many water-related applications but may not be suitable for highly aggressive chemical environments.
HDPE typically provides higher:
- Tensile strength
- Tear resistance
- Puncture resistance
This makes it suitable for heavy-duty applications.
PVC offers:
- Higher flexibility
- Better elongation capability
- Easier installation
The choice depends on whether the project requires strength or adaptability.
Agricultural water management is one of the major applications of PVC liners.
Benefits include:
- Reduced water seepage
- Improved irrigation efficiency
- Lower maintenance costs
Since agriculture accounts for around 70% of global freshwater withdrawals, improving water storage efficiency has become increasingly important.
Fish and shrimp farming require stable water environments.
1mm PVC Geomembrane provides:
- Waterproof protection
- Easy cleaning
- Better water quality control
The smooth surface reduces sediment accumulation and simplifies pond maintenance.
PVC geomembranes are widely used in:
- Artificial lakes
- Garden ponds
- Golf course water features
Their flexibility allows designers to create customized shapes.

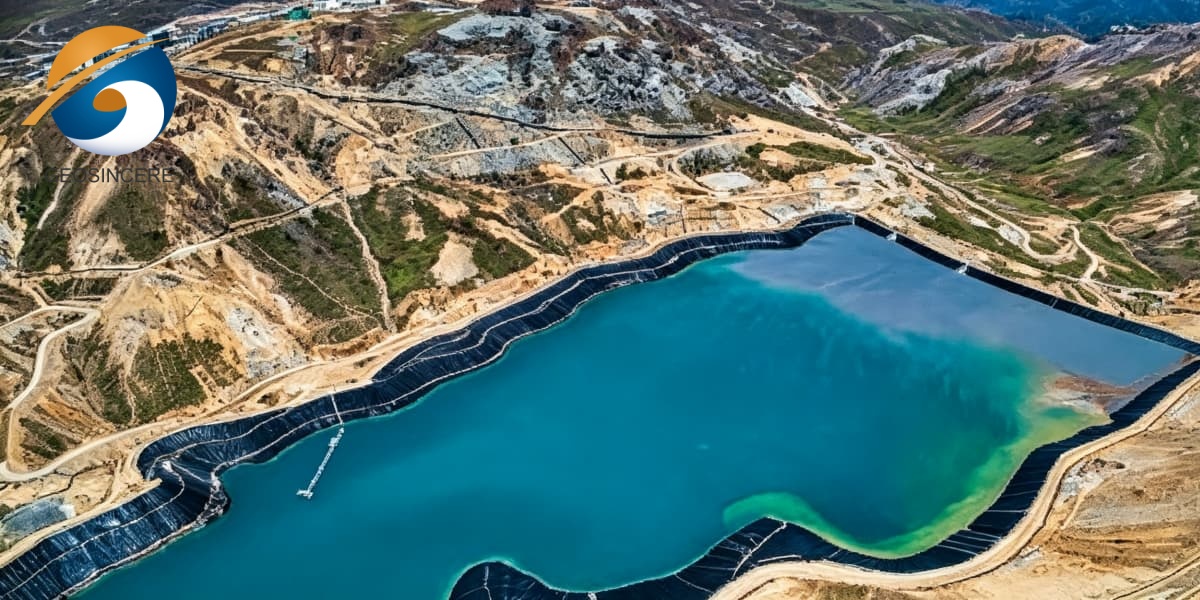

Mining projects require reliable containment systems.
HDPE liners are commonly used for:
- Heap leach pads
- Tailings storage facilities
- Process water ponds
Their chemical resistance makes them suitable for harsh environments.

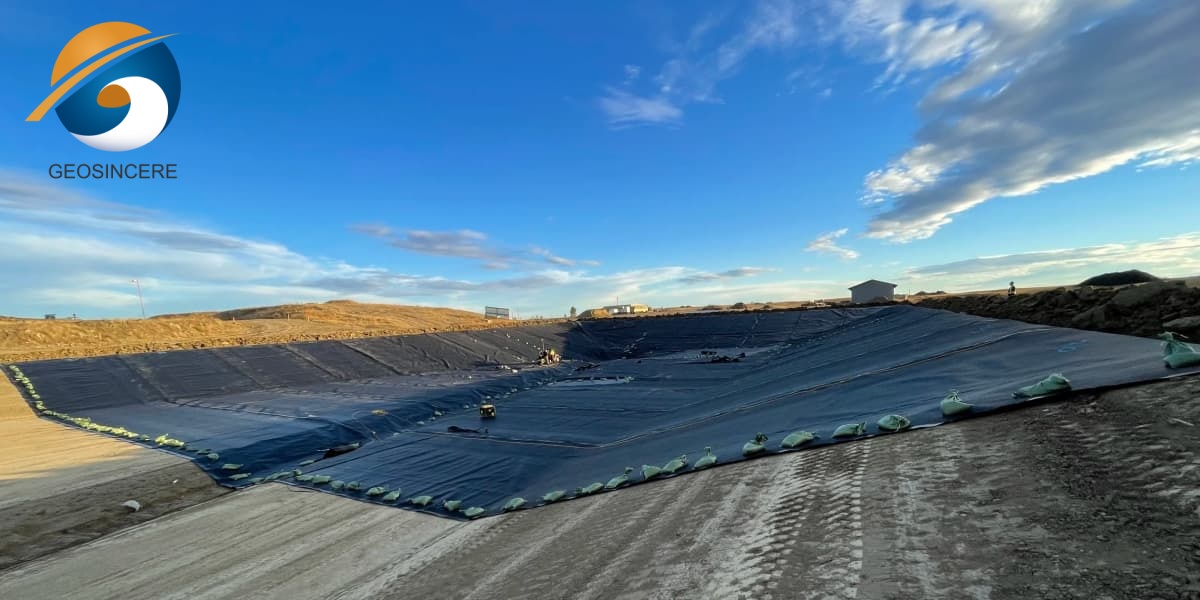

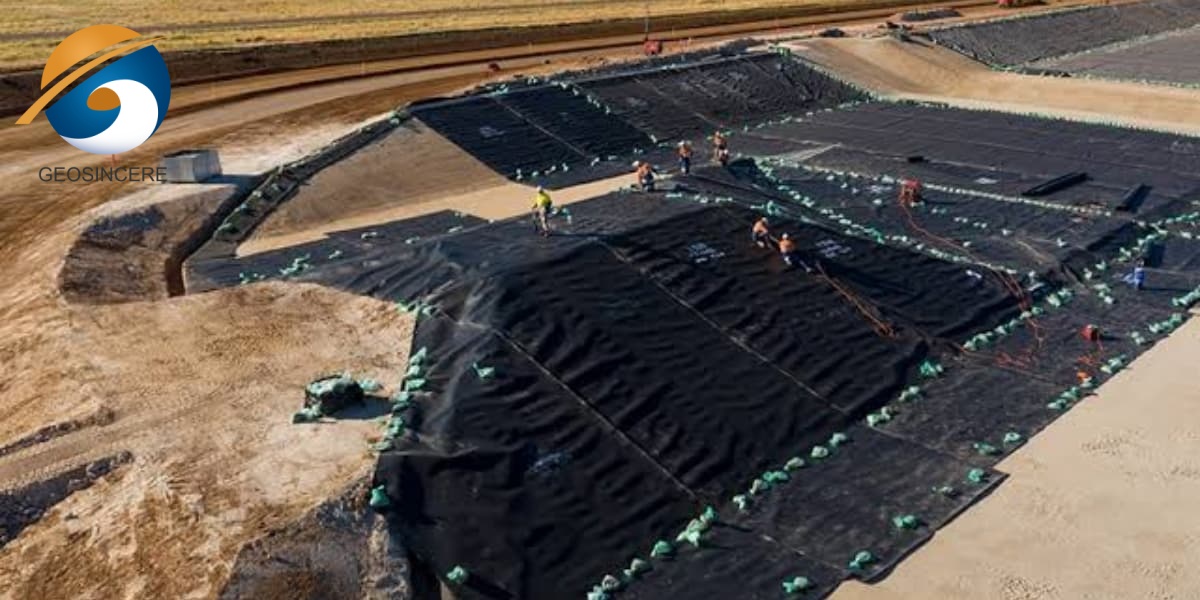

Modern landfills require liners to prevent contamination.
HDPE geomembranes help control:
- Leachate migration
- Groundwater pollution
- Environmental risks
HDPE liners are widely used in:
- Treatment ponds
- Lagoons
- Sludge containment areas
Their durability supports long-term operation.
When evaluating raw material expenditure, 1.0mm (40 mil) PVC geomembrane and HDPE exhibit distinct pricing dynamics driven by polymer resin markets and processing complexity.
PVC Geomembrane: Often considered an initial cost-effective option for light-to-moderate applications. While virgin PVC resin can carry a slightly higher raw polymer cost than base polyethylene, its superior flexibility enables large factory pre-fabrication (panels up to 15,000 sq. ft.). This significantly reduces custom field cutting and raw waste, making it highly economical for:
- Small-to-medium decorative water systems and ornamental pond
- Agricultural irrigation canals and temporary containment basins
- Irregularly shaped terrain requiring rapid, seamless deployment
HDPE Geomembrane : Offers competitive volume pricing due to high-capacity global manufacturing scales, though initial project setup costs can be higher because of:
- Higher density resin mass and specialized carbon black additives (2.0–2.5% for UV stabilization)
- Rigid roll formats (typically 7m–8m wide) that mandate heavy transport and onsite rigging equipment
A comprehensive economic assessment must extend beyond initial supply pricing to incorporate total installed expenditure and amortized service life. Industry data indicates that installation and seaming represent 25% to 45% of total liner project budgets.
PVC’s high flexibility permits solvent welding or hot-wedge seam speeds that lower onsite labor hours by up to 20%–30% compared to HDPE’s rigid extrusion/dual-wedge field welding requirements.
- HDPE: High-density polyethylene demonstrates exceptional chemical immunity and resistance to Environmental Stress Cracking (ESC). Under exposed outdoor or harsh waste containment conditions, GRI-GM13 compliant HDPE routinely delivers a design life of 30 to 50+ years, amortizing lifecycle maintenance costs down to <0.03 / m² per year.
- PVC: Standard PVC formulations rely on plasticizers for flexibility, which can gradually migrate under prolonged high-UV or high-temperature exposure, leading to an expected service life of 15 to 25 years in exposed environments (or 30+ years if buried).
HDPE delivers superior long-term ROI for high-consequence, multi-decade industrial assets (e.g., landfills, mining leach pads, municipal reservoirs) where liner replacement costs are prohibitive.
PVC provides optimum capital efficiency for budget-sensitive, flexible, or short-to-medium term applications where rapid installation and fitment to complex geometries outweigh multi-decadal longevity demands.
PVC is recommended for:
- Agricultural ponds
- Aquaculture systems
- Decorative water projects
- Applications requiring flexibility
Advantages:
- Easy installation
- Good adaptability
- Cost efficiency
HDPE is recommended for:
- Mining projects
- Landfills
- Industrial containment
- Large environmental systems
Advantages:
- Excellent chemical resistance
- Higher strength
- Longer service life
As environmental regulations become stricter, demand for reliable containment solutions continues to grow.
Major growth sectors include:
- Waste management
- Mining
- Agriculture
- Water conservation
Future geomembranes are expected to focus on:
- Better UV resistance
- Higher durability
- Improved flexibility
- Sustainable materials
Manufacturers continue developing advanced polymer formulations to improve performance.
Shandong Geosino New Material Co., Ltd. (GEOSINCERE Geosynthetics) both 1mm PVC Geomembrane and HDPE geomembrane provide reliable waterproofing solutions, but they serve different engineering requirements.
PVC geomembrane is an excellent choice when projects require:
- Flexibility
- Easy installation
- Cost efficiency
HDPE geomembrane is better suited for applications requiring:
- High chemical resistance
- Mechanical strength
- Long-term durability
The best liner choice depends on project conditions, environmental exposure, expected service life, and budget requirements.
By understanding the differences between 1mm PVC Geomembrane and HDPE, engineers and project owners can select the most suitable material to achieve reliable containment performance and long-term project success.
